EUROPEAN STANDARD
FINAL DRAFT
EN 693:2001
NORME EUROPÉENNE
EUROPÄISCHE NORM
prA1
August 2008
ICS 25.120.10

English Version
Machine tools - Safety - Hydraulic presses
Machines-outils - Sécurité - Presses hydrauliques Werkzeugmaschinen - Sicherheit - Hydraulische Pressen
This draft amendment is submitted to CEN members for unique acceptance procedure. It has been drawn up by the Technical Committee
CEN/TC 143.
This draft amendment A1, if approved, will modify the European Standard EN 693:2001. If this draft becomes an amendment, CEN
members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for inclusion of this amendment
into the relevant national standard without any alteration.
This draft amendment was established by CEN in three official versions (English, French, German). A version in any other language made
by translation under the responsibility of a CEN member into its own language and notified to the CEN Management Centre has the same
status as the official versions.
CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Cyprus, Czech Republic, Denmark, Estonia, Finland,
France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal,
Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland and United Kingdom.
Warning : This document is not a European Standard. It is distributed for review and comments. It is subject to change without notice and
shall not be referred to as a European Standard.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION
EUROPÄISCHES KOMITEE FÜR NORMUNG
Management Centre: rue de Stassart, 36 B-1050 Brussels
© 2008 CEN All rights of exploitation in any form and by any means reserved Ref. No. EN 693:2001/prA1:2008: E
worldwide for CEN national Members.

---------------------- Page: 3 ----------------------

SIST EN 693:2001/kprA1:2008
EN 693:2001/prA1:2008 (E)

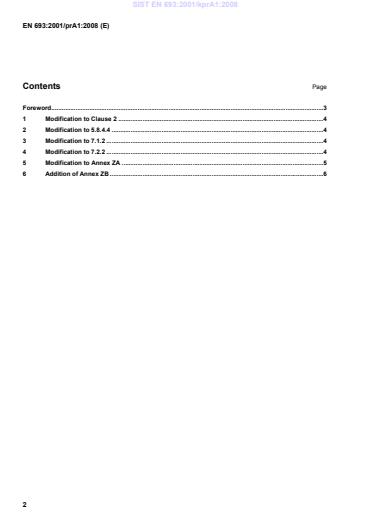

Contents Page
Foreword.3
1 Modification to Clause 2 .4
2 Modification to 5.8.4.4 .4
3 Modification to 7.1.2 .4
4 Modification to 7.2.2 .4
5 Modification to Annex ZA .5
6 Addition of Annex ZB .6

2

---------------------- Page: 4 ----------------------

SIST EN 693:2001/kprA1:2008
EN 693:2001/prA1:2008 (E)
Foreword
This document (EN 693:2001/prA1:2008) has been prepared by Technical Committee CEN/TC 143 “Machine
tools - Safety”, the secretariat of which is held by SNV.
This document is currently submitted to the Unique Acceptance Procedure.
This document has been prepared under a mandate given to CEN by the European Commission and the
European Free Trade Association, and supports essential requirements of EC Directive(s).
For relationship with EC Directive(s), see informative Annexes ZA and ZB, which are integral parts of this
document.

3

---------------------- Page: 5 ----------------------

SIST EN 693:2001/kprA1:2008
EN 693:2001/prA1:2008 (E)
1 Modification to Clause 2
Add the following reference:
"EN ISO 4871:1996, Acoustics - Declaration and verification of noise emission values of machinery and
equipment (ISO 4871:1996)"

2 Modification to 5.8.4.4
Replace item w) with the following:
"w) the sound power emitted where the equivalent continuous A-weighted sound pressure level exceeds
80 dB (A)."

3 Modification to 7.1.2
Replace item a) wit
...
