(Main)Curtain Walling - Watertightness - Site test
Curtain Walling - Watertightness - Site test
This standard defines the method to be used to check for any points of water leakage that may occur in curtain walling when installed on a building. It is a supplementary test not required for classification purposes. It is intended for use primarily where water leaks have already occured. It may also be used on new installations, when specified.
It describes how an area of curtain walling that is installed on a building shall be subjected to a continuous film of water over its outside face
Windows and doors incorporated into the curtain walling may be similarly tested.
This standard applies to any curtain walling product as defined in prEN 13830.
NOTE An alternative, more exhaustive test for watertightness of curtain walling, installed on a building, may be carried out. (See annex B).
Vorhangfassaden - Schlagregendichtheit - Feldversuch
Anwendungsbereich
Diese Norm legt das Verfahren fest, das zum Überprüfen von allen Stellen anzuwenden ist, an denen
Wasser eindringt, was bei Vorhangfassaden, die an einem Gebäude eingebaut sind, vorkommen kann.
Bei der Prüfung handelt es sich um eine optionale Prüfung, die nicht für Klassifizierungszwecke gefordert
wird. Sie ist hauptsächlich für Anwendungen vorgesehen, wo bereits Undichtigkeiten aufgetreten sind.
Falls festgelegt, kann sie auch bei neuen Einbauten angewendet werden.
In der Norm wird beschrieben, wie ein Bereich der an einem Gebäude eingebauten Vorhangfassade auf
dessen Außenfläche einem kontinuierlichen Wasserfilm ausgesetzt werden muss.
EN 13051:2001 (D) 2 Fenster, Türen und Tore, die in die Vorhangfassade eingebaut sind, können auf gleiche Weise geprüft
werden.Diese Norm gilt für jede Vorhangfassade, wie in prEN 13830 festgelegt.
ANMERKUNG Alternativ kann hinsichtlich der Schlagregendichtheit von bereits in ein Gebäude eingebauten Vor-
hangfassaden eine tiefergehende Prüfung durchgeführt werden (siehe Anhang B).
Façade rideaux - Etanchéité à l'eau - Essai sur site
La présente norme définit la méthode à utiliser pour identifier les points de fuites d'eau dans les façades rideaux installées sur un bâtiment. Elle décrit la façon dont une façade rideau installée sur un bâtiment doit être soumise à un film continu d'eau sur sa face externe. La méthode est principalement utilisée pour soumettre à essai les joints conçus pour rester fermé et étanche à l'eau. Les joints manoeuvrables, tels que ceux situés autour des fenêtres et des portes, peuvent être soumis à essai de la même façon, à condition que la cause de toute pénétration d'eau puisse être identifiée.
Obešene fasade - Neprepustnost za vodo - Terenski preskus
General Information
- Status
- Published
- Publication Date
- 24-Jul-2001
- Withdrawal Date
- 30-Jan-2002
- Technical Committee
- CEN/TC 33 - Doors, windows, shutters and building hardware
- Drafting Committee
- CEN/TC 33/WG 6 - Curtain walling
- Current Stage
- 9093 - Decision to confirm - Review Enquiry
- Start Date
- 10-Jan-2023
- Completion Date
- 14-Apr-2025
- Directive
- 89/106/EEC - Construction products
Overview
EN 13051:2001 is a European standard developed by CEN that specifies a site testing method for watertightness of curtain walling installed on buildings. This standard is supplementary and primarily intended to identify existing water leaks in curtain wall systems, although it can also be applied to new installations when required. The testing method involves applying a continuous film of water to the exterior face of an installed curtain wall and checking for any water ingress on the interior side.
This standard applies universally to all curtain walling products as defined in the product standard prEN 13830 and includes windows and doors integrated into curtain wall assemblies. It is part of a broader family of curtain walling standards focused on product performance and onsite evaluation.
Key Topics
- Scope of testing: Focuses on detecting water leakage by simulating rainwater exposure on installed curtain walls.
- Test principle: Application of a constant, uniform water film on the external façade over a specified duration while monitoring for leaks inside.
- Apparatus requirements:
- Spray bar with nozzles spaced max 400 mm apart.
- Water supply system capable of providing steady pressure between 2 and 3 bar.
- Measurement devices to ensure accurate water flow rates (~5 l/min per metre of spray bar).
- Test procedure:
- Spray water uniformly for 30 minutes at specified flow rate.
- Observe and record any water leakage inside the curtain wall.
- Continue inspection for 30 minutes post-testing.
- Leakage identification: Procedures described to isolate leakage points, including retesting at broken-down zones.
- Reporting: Comprehensive test reports include specimen description, test parameters, leakage observations, and results.
Applications
- Existing curtain walls: Especially valuable for troubleshooting water ingress problems after installation or during building maintenance.
- New installations: Can be specified to verify watertight performance as an additional quality control measure.
- Windows and doors: Incorporated elements within curtain walls may also be tested by the same procedure.
- Building envelope verification: Supports overall façade performance assessments to prevent moisture-related deterioration and maintain building integrity.
- Product conformity support: While not a classification test itself, it complements laboratory tests such as EN 12155 by confirming performance under real site conditions.
Related Standards
- prEN 13830: Defines curtain walling product requirements and terminology, crucial for understanding the curtain wall systems covered by EN 13051.
- EN 12155: Laboratory test for curtain wall watertightness under static pressure, providing a more exhaustive testing environment.
- prEN 13119: Specifies terminology related to curtain walls, ensuring consistent definitions in testing and documentation.
- Eurocode 1: Part 2.7: Used for determining design wind loads, which influence watertightness pressure testing criteria.
Keywords: EN 13051, curtain walling watertightness, site test, water leakage detection, façade testing, building envelope, prEN 13830, EN 12155, curtain wall testing standards, water ingress, construction quality control
By utilizing EN 13051:2001, building professionals, façade contractors, and quality inspectors can effectively identify and manage water leakage issues in curtain wall installations, enhancing building durability and occupant comfort. This standard provides a practical and reproducible method to safeguard the performance of curtain walls against water penetration on-site.
Frequently Asked Questions
EN 13051:2001 is a standard published by the European Committee for Standardization (CEN). Its full title is "Curtain Walling - Watertightness - Site test". This standard covers: This standard defines the method to be used to check for any points of water leakage that may occur in curtain walling when installed on a building. It is a supplementary test not required for classification purposes. It is intended for use primarily where water leaks have already occured. It may also be used on new installations, when specified. It describes how an area of curtain walling that is installed on a building shall be subjected to a continuous film of water over its outside face Windows and doors incorporated into the curtain walling may be similarly tested. This standard applies to any curtain walling product as defined in prEN 13830. NOTE An alternative, more exhaustive test for watertightness of curtain walling, installed on a building, may be carried out. (See annex B).
This standard defines the method to be used to check for any points of water leakage that may occur in curtain walling when installed on a building. It is a supplementary test not required for classification purposes. It is intended for use primarily where water leaks have already occured. It may also be used on new installations, when specified. It describes how an area of curtain walling that is installed on a building shall be subjected to a continuous film of water over its outside face Windows and doors incorporated into the curtain walling may be similarly tested. This standard applies to any curtain walling product as defined in prEN 13830. NOTE An alternative, more exhaustive test for watertightness of curtain walling, installed on a building, may be carried out. (See annex B).
EN 13051:2001 is classified under the following ICS (International Classification for Standards) categories: 91.060.10 - Walls. Partitions. Facades. The ICS classification helps identify the subject area and facilitates finding related standards.
EN 13051:2001 is associated with the following European legislation: EU Directives/Regulations: 305/2011, 89/106/EEC; Standardization Mandates: M/108. When a standard is cited in the Official Journal of the European Union, products manufactured in conformity with it benefit from a presumption of conformity with the essential requirements of the corresponding EU directive or regulation.
You can purchase EN 13051:2001 directly from iTeh Standards. The document is available in PDF format and is delivered instantly after payment. Add the standard to your cart and complete the secure checkout process. iTeh Standards is an authorized distributor of CEN standards.
Standards Content (Sample)
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Obešene fasade - Neprepustnost za vodo - Terenski preskusVorhangfassaden - Schlagregendichtheit - FeldversuchFaçade rideaux - Etanchéité a l'eau - Essai sur siteCurtain Walling - Watertightness - Site test91.060.10Stene. Predelne stene. FasadeWalls. Partitions. FacadesICS:Ta slovenski standard je istoveten z:EN 13051:2001SIST EN 13051:2002en01-julij-2002SIST EN 13051:2002SLOVENSKI
STANDARD
EUROPEAN STANDARDNORME EUROPÉENNEEUROPÄISCHE NORMEN 13051July 2001ICS 91.060.10English versionCurtain Walling - Watertightness - Site testFaçade rideaux - Etanchéité à l'eau - Essai sur siteVorhangfassaden - Schlagregendichtheit - FeldversuchThis European Standard was approved by CEN on 9 May 2001.CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this EuropeanStandard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such nationalstandards may be obtained on application to the Management Centre or to any CEN member.This European Standard exists in three official versions (English, French, German). A version in any other language made by translationunder the responsibility of a CEN member into its own language and notified to the Management Centre has the same status as the officialversions.CEN members are the national standards bodies of Austria, Belgium, Czech Republic, Denmark, Finland, France, Germany, Greece,Iceland, Ireland, Italy, Luxembourg, Netherlands, Norway, Portugal, Spain, Sweden, Switzerland and United Kingdom.EUROPEAN COMMITTEE FOR STANDARDIZATIONCOMITÉ EUROPÉEN DE NORMALISATIONEUROPÄISCHES KOMITEE FÜR NORMUNGManagement Centre: rue de Stassart, 36
B-1050 Brussels© 2001 CENAll rights of exploitation in any form and by any means reservedworldwide for CEN national Members.Ref. No. EN 13051:2001 ESIST EN 13051:2002

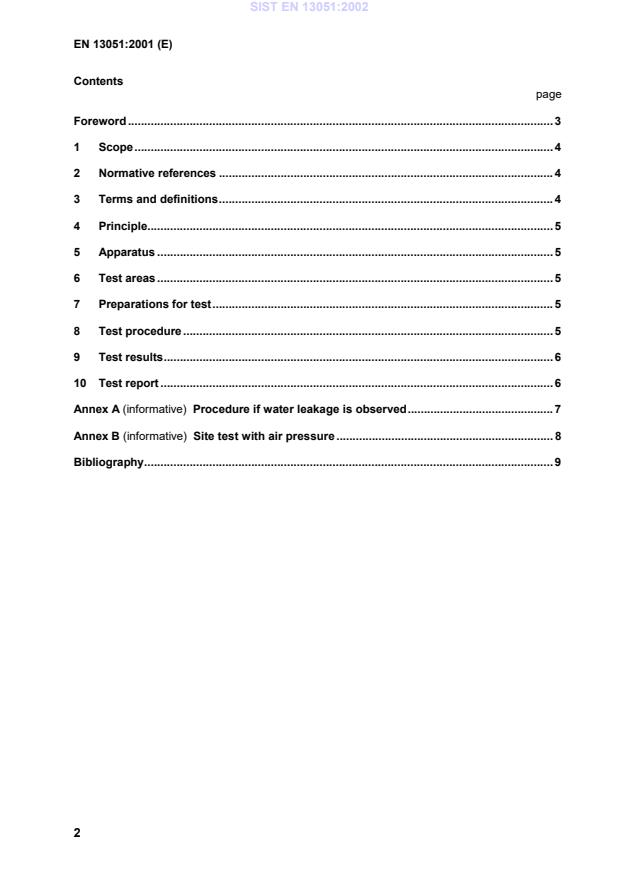

Procedure if water leakage is observed.7Annex B (informative)
