EN 13169:2012

2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Toplotnoizolacijski proizvodi za stavbe - Proizvodi iz ekspandiranega perlita (EPB) - SpecifikacijaWärmedämmstoffe für Gebäude - Werkmäßig hergestellte Produkte aus Blähperlit (EPB) - SpezifikationProduits isolants thermiques pour le bâtiment - Produits manufacturés en panneaux de perlite expansée (EPB) - SpécificationThermal insulation products for buildings - Factory made expanded perlite board (EPB) products - Specification91.100.60Thermal and sound insulating materialsICS:Ta slovenski standard je istoveten z:EN 13169:2012SIST EN 13169:2013en,fr,de01-marec-2013SIST EN 13169:2013SLOVENSKI
STANDARDSIST EN 13169:20091DGRPHãþD

EUROPEAN STANDARD NORME EUROPÉENNE EUROPÄISCHE NORM
EN 13169
November 2012 ICS 91.100.60 Supersedes EN 13169:2008English Version
Thermal insulation products for buildings - Factory made expanded perlite board (EPB) products - Specification
Produits isolants thermiques pour le bâtiment - Produits manufacturés en panneaux de perlite expansée (EPB) - Spécification
Wärmedämmstoffe für Gebäude - Werkmäßig hergestellte Produkte aus Blähperlit (EPB) - Spezifikation This European Standard was approved by CEN on 6 October 2012.
CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN-CENELEC Management Centre or to any CEN member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management Centre has the same status as the official versions.
CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, Former Yugoslav Republic of Macedonia, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION EUROPÄISCHES KOMITEE FÜR NORMUNG
Management Centre:
Avenue Marnix 17,
B-1000 Brussels © 2012 CEN All rights of exploitation in any form and by any means reserved worldwide for CEN national Members. Ref. No. EN 13169:2012: ESIST EN 13169:2013

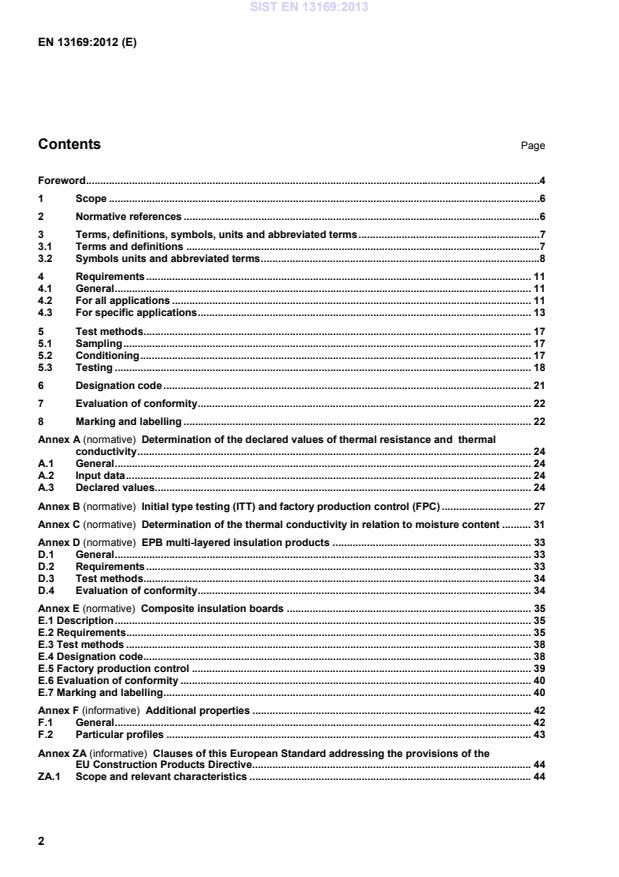

Determination of the declared values of thermal resistance and
thermal conductivity . 24A.1General . 24A.2Input data . 24A.3Declared values. 24Annex B (normative)
Initial type testing (ITT) and factory production control (FPC) . 27Annex C (normative)
Determination of the thermal conductivity in relation to moisture content . 31Annex D (normative)
EPB multi-layered insulation products . 33D.1General . 33D.2Requirements . 33D.3Test methods . 34D.4Evaluation of conformity . 34Annex E (normative)
Composite insulation boards . 35E.1 Description . 35E.2 Requirements . 35E.3 Test methods . 38E.4 Designation code. 38E.5 Factory production control . 39E.6 Evaluation of conformity . 40E.7 Marking and labelling . 40Annex F (informative)
Additional properties . 42F.1General . 42F.2Particular profiles . 43Annex ZA (informative)
Clauses of this European Standard addressing the provisions of the EU Construction Products Directive. 44ZA.1Scope and relevant characteristics . 44SIST EN 13169:2013

2 Normative references The following documents, in whole or in part, are normatively referenced in this document and are indispensable for its application. For dated references, only the edition cited applies. For undated references, the latest edition of the referenced document (including any amendments) applies. EN 822, Thermal insulating products for building applications — Determination of length and width EN 823, Thermal insulating products for building applications — Determination of thickness EN 824, Thermal insulating products for building applications — Determination of squareness EN 825, Thermal insulating products for building applications — Determination of flatness EN 826, Thermal insulating products for building applications — Determination of compression behaviour EN 1604, Thermal insulating products for building applications — Determination of dimensional stability under specified temperature and humidity conditions EN 1605, Thermal insulating products for building applications — Determination of deformation under specified compressive load and temperature conditions EN 1606, Thermal insulating products for building applications — Determination of compressive creep EN 1607, Thermal insulating products for building applications — Determination of tensile strength perpendicular to faces EN 1609, Thermal insulating products for building applications — Determination of short term water absorption by partial immersion EN 12086:1997, Thermal insulating products for building applications — Determination of water vapour transmission properties SIST EN 13169:2013

Note 1 to entry: Boards may (can) also have a profiled edge. SIST EN 13169:2013

level value which is the upper or lower limit of a requirement and given by the declared value of the characteristic concerned 3.1.3
class combination of two levels of the same property between which the performance shall fall 3.1.4
board; slab (insulation) rigid or semi-rigid product of rectangular shape and cross section in which the thickness is uniform and substantially smaller than the other dimensions Note 1 to entry: Board is usually thinner than slab. They may also be supplied in tapered form. 3.1.5
facing functional or decorative surface layer with a thickness of less than 3 mm, e.g. paper, plastic film, fabric or metal foil, which is not considered as separate thermal insulation layers to be added to the thermal resistance of the product 3.1.6
coating functional or decorative surface layer with a thickness of less than 3 mm usually applied by painting, spraying, pouring or trowelling, which is not considered as separate thermal insulation layer to be added to the thermal resistance of the product 3.1.7
multi-layered insulation product product which can be faced or coated made from two or more layers of a thermal insulation material from the same European Standard, which are bonded together horizontally by chemical or physical adhesion 3.1.8
composite insulation product
product which can be faced or coated made from two or more layers bonded together by chemical or physical adhesion consisting of at least one factory made thermal insulation material layer 3.2 Symbols units and abbreviated terms For the purposes of this document, the following symbols and units apply. a is the coefficient describing the influence of moisture on the thermal conductivity – αp is the practical sound absorption coefficient – αw is the weighted sound absorption coefficient – b is the width mm c is the compressibility mm d is the thickness mm dB is the thickness under a load of 2 kPa after removal of an additional load of 48 kPa mm dL is the thickness under a load of 250 Pa mm dN is the nominal thickness of the product mm ∆εb is the relative change in width % SIST EN 13169:2013

Abbreviated terms used in this standard: EPB is Expanded Perlite Board ITT is Initial Type Test FPC is Factory Production Control RtF is Reaction to Fire SIST EN 13169:2013

This test shall not be performed when the tests described in E.2.7 are used. 4.2.4 Squareness Squareness shall be determined in accordance with EN 824. The deviation from squareness on length and width, Sb, shall not exceed 3 mm/m. 4.2.5 Flatness Flatness shall be determined in accordance with EN 825. The deviation from flatness, Smax, shall not exceed the following:  3 mm for length and width not exceeding 1 200 mm;  5 mm for length and width exceeding 1 200 mm. 4.2.6 Bending strength Bending strength, σb, shall be determined in accordance with EN 12089. For handling purpose, the bending strength of boards shall not be less than 250 kPa. NOTE The requirement for handling applies to individual boards. In the case of multi-layered boards, it may be assumed that the requirement is satisfied when each of the individual layers fulfils this requirement. SIST EN 13169:2013

NOTE This classification is compulsory and always included in the CE Marking label.
Detailed information about the test conditions and the field of application of the classification as stated in the reaction to fire classification report shall be given in the manufacturer's literature.
4.2.8 Durability characteristics 4.2.8.1 General The appropriate durability characteristics have been considered and are covered in 4.2.8.2, 4.2.8.3 and where appropriate in 4.3.9 on compressive creep. 4.2.8.2 Durability of reaction to fire of the product as placed on the market against ageing/degradation The reaction to fire performance of EPB products as declared by 4.2.6 does not change with time.
4.2.8.3 Durability of thermal resistance against ageing/degradation The thermal conductivity of EPB products does not change with time. This is covered and considered for declaration by 4.2.1 thermal conductivity, and any change in thickness is covered by at least one of the 4.3.2 Dimensional stability tests, as relevant. 4.3 For specific applications 4.3.1 General If there is no requirement for a property described in 4.3 for a product in use, then the property does not need to be determined and declared by the manufacturer. 4.3.2 Dimensional stability Dimensional stability under specified temperature or under specified temperature and relative humidity conditions shall be determined in accordance with EN 1604. The test shall be carried out for the conditions given in Table 2. The relative changes in length, ∆εl, and width, ∆εb and the relative reduction in thickness, ∆εd, shall not exceed the values given in Table 2 for the declared level.
48 h, 70 ºC EN 1604 0.5 1 DS(23,90)
48 h, 23 ºC, 90 % R.H. EN 1604 0.5 1 DS(70,90)
48 h, 70 ºC, 90 % R.H. EN 1604 0.5 1
The tests DS(70,-) and DS(23,90) don’t need to be performed when the test DS(70,90) is used. 4.3.3 Compressive stress or compressive strength Compressive stress at 10 % deformation, σ10, or the compressive strength, σm, shall be determined in accordance with EN 826. No test result for either the compressive stress at 10 % deformation, σ10, or the compressive strength, σm, whichever is the smaller, shall be less than the value given in Table 3, for the declared level. Table 3 — Levels for compressive stress or compressive strength Level Requirement kPa CS(10\Y)100 ≥ 100 CS(10\Y)120 ≥ 120 CS(10\Y)130 ≥ 130 CS(10\Y)150 ≥ 150 CS(10\Y)200 ≥ 200 CS(10\Y)300 ≥ 300 CS(10\Y)450 ≥ 450 CS(10\Y)700 ≥ 700 CS(10\Y)800 ≥ 800
4.3.4 Deformation under specified load and temperature Deformation in thickness under specified load and temperature conditions shall be determined in accordance with EN 1605. The relative deformation in thickness, ∆εd, shall not exceed the values given in Table 4 for the declared level. SIST EN 13169:2013

4.3.5 Tensile strength perpendicular to faces Tensile strength perpendicular to faces, σmt, shall be determined in accordance with EN 1607, using the additional provisions of 5.3.3. No test result shall be lower than 20 kPa. 4.3.6 Water absorption 4.3.6.1 Short-term water absorption by partial immersion Short-term water absorption by partial immersion, Wp, shall be determined in accordance with EN 1609. No test result shall exceed the declared value. 4.3.6.2 Short-term water absorption by total immersion Short-term water absorption by total immersion, Wst, shall be determined in accordance with 5.3.4. No test result shall exceed the value, given in Table 5, for the declared level. Table 5 — Levels for water absorption by total immersion Level Requirement kg/dm3 WS(T) 8 ≤ 0,08 WS(T) 6 ≤ 0,06 WS(T) 4 ≤ 0,04 WS(T) 2 ≤ 0,02
4.3.7 Bending strength at a constant span Bending strength at a constant span of 250 mm, σbc, shall be determined in accordance with EN 12089. No test result shall be lower than the value given in Table 6, for the declared level. SIST EN 13169:2013

4.3.8 Point load Point load, Fp, at 2 mm deformation shall be determined in accordance with EN 12430 and declared in levels with steps of 50 N. No test result shall be less than the declared level. 4.3.9 Compressive creep Compressive creep, Xct, and total thickness reduction, Xt, shall be determined after at least one hundred twenty two days of testing at a declared compressive stress, σc, given in steps of at least 1 kPa, and the results shall be extrapolated thirty times, corresponding to ten years, to obtain the declared levels in accordance with EN 1606. Compressive creep shall be declared in levels, i2, and the total thickness reduction shall be declared in levels, i1, with steps of 0,1 mm at the declared stress. No test result shall exceed the declared levels at the declared stress. NOTE 1 Referring to the designation code CC(i1/i2/y)σc, according to Clause 6, a declared level CC(2,5/2/10)100, for example, indicates a value not exceeding 2 mm for compressive creep and 2,5 mm for total thickness reduction after extrapolation at 10 years (i.e. 30 times one hundred twenty two days of testing) under a declared stress of 100 kPa. NOTE 2 Testing times. According to EN 1606, the procedure at 10, 25 and 50 years respectively require the following testing times: Extrapolation time years Minimum testing time days 10 122 25 304 50 608
4.3.10 Water vapour transmission Water vapour transmission properties shall be determined in accordance with EN 12086, and declared as the water vapour diffusion resistance factor, µ, for homogeneous products and as the water vapour resistance, Z, for faced or non-homogeneous products. No test result of µ shall be greater than the declared value and no test result of Z shall be less than the declared value. In the absence of measurements, the water vapour diffusion resistance factor, µ, of expanded perlite board products, either unfaced, or faced with a fabric with an open structure, may be assumed to be equal to 5. Alternatively for the declaration of the water vapour diffusion resistance factor, µ, of EPB products, values quoted in EN ISO 10456 may be used. SIST EN 13169:2013

European test methods are under development. NOTE 2 see Annex ZA. 4.3.12 Reaction to fire of the product in standardized assemblies simulating end-use applications
Reaction to fire classification of products in standardized assemblies simulating end-use applications excluding pipe insulation shall be determined in accordance with EN 13501-1 and the mounting and fixing rules given in EN 15715. This classification offers the opportunity to give a complementary and optional declaration on reaction to fire for standard test configurations of assemblies which include the insulation product.
The number of the selected test configuration of assembly (Table 5 of EN 15715:2009) which is used in the test shall be quoted with the Euroclass.
Detailed information about the test conditions and the field of application of the classification as stated in the reaction to fire classification report shall be given in the manufacturer's literature.
4.3.13 Continuous glowing combustion NOTE A test method is under development and the standard will be amended when this is available.
5 Test methods 5.1 Sampling Test specimens shall be taken from the same sample which shall be at least one full board. 5.2 Conditioning For test specimens consisting of full boards, no conditioning is needed unless otherwise specified in the test standard. In case of dispute, the test specimens shall be stored at (23 ± 2) °C and (50 ± 5) % relative humidity for at least six weeks prior to testing. For FPC no special conditioning of the test specimens is needed. When cut from boards, except for 5.3.2, test specimens shall be stored in an atmosphere of (23 ± 2) °C and (50 ± 5) % relative humidity until stabilisation at constant weight is achieved. Stabilisation is obtained when the relative change in weight does not exceed 0,5 % between two consecutive weekly measurements. In case of dispute, the following stepwise procedure shall be carried out:  Step 1 (dry reference): The specimens are stored for 72 h at (70 ± 2) °C, in an oven ventilated with an air taken at (23 ± 2) °C and (50 ± 5) % relative humidity, and then weighed. The mass of the test specimen at Step 1 is m23,dry.  Step 2 (normal reference): After conditioning according to step 1, the specimens are stored in an atmosphere of (23 ± 2) °C and (50 ± 5) % relative humidity until stabilisation, and then weighed. Stabilisation, by definition, takes at least six weeks with some additional time so that the relative change in moisture does not increase by more than 5 % between two consecutive weekly measurements. The mass of the test specimen at Step 2 is m23,50. SIST EN 13169:2013
...
