EN 13169:2008

2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Toplotnoizolacijski proizvodi za stavbe - Proizvodi iz ekspandiranega perlita (EPB) - SpecifikacijaWärmedämmstoffe für Gebäude - Werkmäßig hergestellte Produkte aus Blähperlit (EPB) - SpezifikationProduits isolants thermiques pour le bâtiment - Produits manufacturés en perlite expansée (EPB) - SpécificationThermal insulation products for buildings - Factory made products of expanded perlite (EPB) - Specification91.100.60Thermal and sound insulating materialsICS:Ta slovenski standard je istoveten z:EN 13169:2008SIST EN 13169:2009en,fr,de01-februar-2009SIST EN 13169:2009SLOVENSKI
STANDARDSIST EN 13169:2002/AC:2006SIST EN 13169:2002/A1:2004SIST EN 13169:20021DGRPHãþD

EUROPEAN STANDARDNORME EUROPÉENNEEUROPÄISCHE NORMEN 13169November 2008ICS 91.100.60Supersedes EN 13169:2001
English VersionThermal insulation products for buildings - Factory madeproducts of expanded perlite (EPB) - SpecificationProduits isolants thermiques pour le bâtiment - Produitsmanufacturés en perlite expansée (EPB) - SpécificationWärmedämmstoffe für Gebäude - Werkmäßig hergestellteProdukte aus Blähperlit (EPB) - SpezifikationThis European Standard was approved by CEN on 18 October 2008.CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this EuropeanStandard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such nationalstandards may be obtained on application to the CEN Management Centre or to any CEN member.This European Standard exists in three official versions (English, French, German). A version in any other language made by translationunder the responsibility of a CEN member into its own language and notified to the CEN Management Centre has the same status as theofficial versions.CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Cyprus, Czech Republic, Denmark, Estonia, Finland,France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal,Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland and United Kingdom.EUROPEAN COMMITTEE FOR STANDARDIZATIONCOMITÉ EUROPÉEN DE NORMALISATIONEUROPÄISCHES KOMITEE FÜR NORMUNGManagement Centre: rue de Stassart, 36
B-1050 Brussels© 2008 CENAll rights of exploitation in any form and by any means reservedworldwide for CEN national Members.Ref. No. EN 13169:2008: ESIST EN 13169:2009

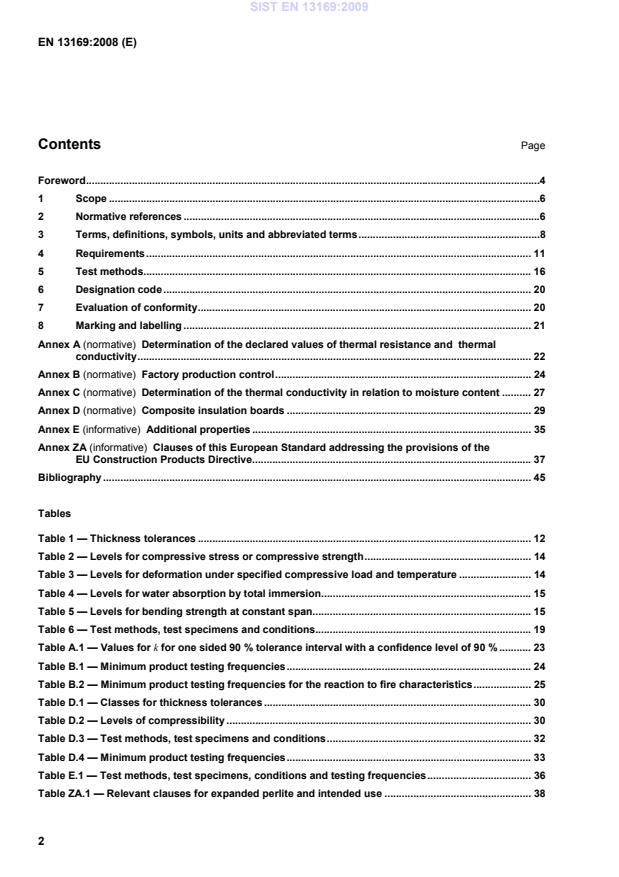

Determination of the declared values of thermal resistance and
thermal conductivity . 22 Annex B (normative)
Factory production control . 24 Annex C (normative)
Determination of the thermal conductivity in relation to moisture content . 27 Annex D (normative)
Composite insulation boards . 29 Annex E (informative)
Additional properties . 35 Annex ZA (informative)
Clauses of this European Standard addressing the provisions of the EU Construction Products Directive. 37 Bibliography . 45
Tables Table 1 — Thickness tolerances . 12 Table 2 — Levels for compressive stress or compressive strength . 14 Table 3 — Levels for deformation under specified compressive load and temperature . 14 Table 4 — Levels for water absorption by total immersion. 15 Table 5 — Levels for bending strength at constant span. 15 Table 6 — Test methods, test specimens and conditions. 19 Table A.1 — Values for k for one sided 90 % tolerance interval with a confidence level of 90 % . 23 Table B.1 — Minimum product testing frequencies . 24 Table B.2 — Minimum product testing frequencies for the reaction to fire characteristics . 25 Table D.1 — Classes for thickness tolerances . 30 Table D.2 — Levels of compressibility . 30 Table D.3 — Test methods, test specimens and conditions . 32 Table D.4 — Minimum product testing frequencies . 33 Table E.1 — Test methods, test specimens, conditions and testing frequencies . 36 Table ZA.1 — Relevant clauses for expanded perlite and intended use . 38 SIST EN 13169:2009

Figures Figure C.1 — Example of a graphic representation of “a”
(a = 0,04/0,037 = 1,08 in this example) . 28 Figure ZA.1 — Example CE marking information . 44
EN 822, Thermal insulating products for building applications — Determination of length and width EN 823, Thermal insulating products for building applications — Determination of thickness EN 824, Thermal insulating products for building applications — Determination of squareness EN 825, Thermal insulating products for building applications — Determination of flatness EN 826, Thermal insulating products for building applications — Determination of compression behaviour EN 1602, Thermal insulating products for building applications — Determination of the apparent density
EN 1604, Thermal insulating products for building applications — Determination of dimensional stability under specified temperature and humidity conditions EN 1605, Thermal insulating products for building applications — Determination of deformation under specified compressive load and temperature conditions EN 1606, Thermal insulating products for building applications — Determination of compressive creep EN 1607, Thermal insulating products for building applications — Determination of tensile strength perpendicular to faces EN 1609, Thermal insulating products for building applications — Determination of short term water absorption by partial immersion SIST EN 13169:2009

EN ISO 9229, Thermal insulation — Vocabulary (ISO 9229:2007) EN ISO 11654, Acoustics — Sound absorbers for use in buildings — Rating of sound absorption (ISO 11654:1997) EN ISO 11925-2, Reaction to fire tests — Ignitability of building products subjected to direct impingement of flame – Part 2: Single-flame source test (ISO 11925-2:2002) ISO 12491, Statistical methods for quality control of building materials and components
1 Under review SIST EN 13169:2009

3 Terms, definitions, symbols, units and abbreviated terms 3.1 Terms and definitions For the purposes of this document, the following terms and definitions apply. 3.1.1 Terms and definitions as given in EN ISO 9229 3.1.1.1 expanded perlite lightweight granular (insulation) material manufactured from naturally occurring volcanic rock expanded by heat to form a cellular structure 3.1.1.2 multi-layered insulation combination of two or more layers of a specific insulation material. The thickness of the individual layers may differ 3.1.1.3 composite insulation combination of layers of at least two different insulation materials. The insulation property of the composite is derived from the insulation properties of the individual materials 3.1.2 Additional terms and definitions 3.1.2.1 expanded perlite board rigid insulation board manufactured from expanded perlite, reinforcing fibres and binding agents NOTE 1 It may be delivered as a board or as two or more boards bonded together with a suitable adhesive (multi-layered insulation: see 3.1.1.2).
NOTE 2 Boards may also have a profiled edge. 3.1.2.2 level given value which is the upper or lower limit of a requirement. The level is given by the declared value of the characteristic concerned 3.1.2.3 class combination of two levels of the same property between which the performance shall fall 3.2 Symbols units and abbreviated terms 3.2.1 Symbols and units used in this standard: a is the coefficient describing the influence of moisture on the thermal conductivity – b is the width mm c is the compressibility mm d is the thickness mm SIST EN 13169:2009

Initial Type Test RTF Reaction To Fire FPC Factory Production Control SIST EN 13169:2009

4.2.3 Thickness Thickness, d, shall be determined in accordance with EN 823, using a load equal to 250 Pa. No test result shall deviate from the nominal thickness, dN, by more than the corresponding tolerances given in Table 1. Table 1 — Thickness tolerances Dimensions in millimetres Nominal thickness dN ≤ 35 35 < dN ≤ 70 70 < dN ≤ 120 dN > 120 Tolerance ± 1 ± 2 ± 3 ± 4
This test shall not be performed when the tests described in D.2.7 are used. 4.2.4 Squareness Squareness shall be determined in accordance with EN 824. The deviation from squareness on length and width, Sb, shall not exceed 3 mm/m. 4.2.5 Flatness Flatness shall be determined in accordance with EN 825. The deviation from flatness, Smax, shall not exceed the following: 3 mm for length and width not exceeding 1 200 mm; 5 mm for length and width exceeding 1 200 mm. 4.2.6 Bending strength Bending strength, σb, shall be determined in accordance with EN 12089. For handling purpose, the bending strength of boards shall not be less than 250 kPa. NOTE The requirement for handling applies to individual boards. In the case of multi-layered boards, it may be assumed that the requirement is satisfied when each of the individual layers fulfills this requirement. 4.2.7 Dimensional stability under specified temperature and humidity conditions Dimensional stability under specified humidity conditions shall be determined in accordance with EN 1604. The test shall be carried out for 48 h at (23 ± 2) °C and (90 ± 5) % relative humidity. The relative changes in length, ∆εl, and width, ∆εb, shall not exceed 0,5 %. The relative changes in thickness, ∆εd, shall not exceed 1 %. 4.2.8 Reaction to fire Reaction to fire classification (Euroclasses) shall be determined in accordance with EN 13501-1. SIST EN 13169:2009

Table 2 — Levels for compressive stress or compressive strength Level Requirement kPa CS(10\Y)100 ≥ 100 CS(10\Y)125 ≥ 125 CS(10\Y)150 ≥ 150 CS(10\Y)200 ≥ 200 CS(10\Y)300 ≥ 300 CS(10\Y)450 ≥ 450 CS(10\Y)700 ≥ 700 CS(10\Y)800 ≥ 800
4.3.4 Deformation under specified load and temperature Deformation in thickness under specified load and temperature conditions shall be determined in accordance with EN 1605. The relative deformation in thickness, ∆εd, shall not exceed the values given in Table 3 for the declared level. Table 3 — Levels for deformation under specified compressive load and temperature Level Requirement % Test conditions DLT(1)5 ≤ 5 Load: 20 kPa Temperature: (80 ± 1) °C Time: (48 ± 1) h DLT(2)5 ≤ 5 Load: 40 kPa Temperature: (70 ± 1) °C Time: (168 ± 1) h DLT(3)5 ≤ 5 Load: 80 kPa Temperature: (60 ± 1) °C Time: (168 ± 1) h
4.3.5 Tensile strength perpendicular to faces Tensile strength perpendicular to faces, σmt, shall be determined in accordance with EN 1607, using the additional provisions of 5.3.3. No test result shall be lower than 20 kPa. 4.3.6 Water absorption 4.3.6.1 Short-term water absorption by partial immersion Short-term water absorption by partial immersion, Wp, shall be determined in accordance with EN 1609. No test result shall exceed the declared value. SIST EN 13169:2009

4.3.7 Bending strength at a constant span Bending strength at a constant span of 250 mm, σbc, shall be determined in accordance with EN 12089. No test result shall be lower than the value given in Table 5, for the declared level. Table 5 — Levels for bending strength at constant span Level Requirement kPa BS(250)700 ≥ 700 BS(250)900 ≥ 900 BS(250)1100 ≥ 1 100 BS(250)1300 ≥ 1 300
4.3.8 Point load Point load at 2 mm deformation shall be determined in accordance with EN 12430 and declared in levels with steps of 50 N. No test result shall be less than the declared level. 4.3.9 Compressive creep Compressive creep, Xct, and total thickness reduction, Xt, shall be determined after at least one hundred twenty two days of testing at a declared compressive stress, σc, given in steps of at least 1 kPa, and the result extrapolated thirty times corresponding to ten years to obtain the declared levels in accordance with EN 1606. Compressive creep shall be declared in levels, i2, and the total thickness reduction shall be declared in levels, i1, with steps of 0,1 mm at the declared stress. No test result shall exceed the declared levels at the declared stress. NOTE Referring to the designation code CC(i1/i2/y)σc, according to Clause 6, a declared level CC(2,5/2/10)100, as for example, indicates a value not exceeding 2 mm for compressive creep and 2,5 mm for total thickness reduction after extrapolation at 10 years (i.e. 30 times one hundred twenty two days of testing) under a declared stress of 100 kPa. SIST EN 13169:2009

5 Test methods 5.1 Sampling Test specimens shall be taken from the same sample which shall be at least one full board. 5.2 Conditioning For test specimens consisting of full boards, no conditioning is needed unless otherwise specified in the test standard. In case of dispute, the test specimens shall be stored at (23 ± 2) °C and (50 ± 5) % relative humidity for at least 6 weeks prior to testing. When cut from boards, except for 5.3.2, test specimens shall be stored in an atmosphere of (23 ± 2) °C and (50 ± 5) % relative humidity until stabilisation at constant weight is achieved. Stabilisation is obtained when the relative change in weight does not exceed 0,5 % between two consecutive weekly measurements. In case of dispute, the following stepwise procedure shall be carried out:  step 1 (dry reference): The specimens are stored for 72 h at (70 ± 2) °C, in an oven ventilated with an air taken at (23 ± 2) °C and (50 ± 5) % relative humidity, and then weighed. The mass of the test specimen at step 1 is m23,dry.  step 2 (normal reference): After conditioning according to step 1, the specimens are stored in an atmosphere of (23 ± 2) °C and (50 ± 5) % relative humidity until stabilisation, and then weighed. Stabilisation, by definition, takes at least 6 weeks with some additional time so that the relative change in moisture does not increase by more than 5 % between two consecutive weekly measurements. The mass of the test specimen at step 2 is m23,50. Moisture content, u23,50, expressed in kilogram per kilogram, shall be determined by weighing the specimens at each step with an accuracy of 0,1 g, and calculated using equation (1): 23,drydry2350235023mmmu,,,−= (1) SIST EN 13169:2009

6 Designation code A designation code for the product shall be given by the manufacturer. The following shall be included except when there is no requirement for a property described in 4.3:  Expanded perlite board abbreviated term EPB  Document number EN 13169  Bending strength BS  Dimensional stability under specified temperature and humidity conditions DS(H)  Dimensional stability under specified temperature and humidity conditions DS(T+\50)  Compressive stress or compressive strength CS(10\Y)i  Deformation under load and temperature DLT(i)5  Tensile strength perpendicular to faces TR  Short term water absorption by partial immersion WSi  Short term water absorption by total immersion WS(T)i  Bending strength at constant span BS(250)i  Point load PL(2)i  Compressive creep CC(i1/i2/y)σc  Water vapour transmission MUi or Zi where “i” shall be used to indicate the relevant class or level, “σc” shall be used to indicate the compressive stress expressed in kPa, “y” to indicate the number of years. The designation code for an expanded perlite product is illustrated by the following example: EPB EN 13169 — BS — DS(H) — DS(T+/50) — CS(10\Y)200 — DLT(3)5 — TR — WS — WS(T)4 — BS(250)700 — PL(2)300 — CC(2,5/2/10)80 — MU5 NOTE The characteristics determined in 4.2 are not included in the designation code if a limit value (threshold value) is given for the product. 7 Evaluation of conformity The manufacturer or his authorised representative shall be responsible for the conformity of his product with the requirements of this European Standard. The evaluation of conformity shall be carried out in accordance with EN 13172 and shall be based on initial type testing (ITT), factory production control (FPC) by the manufacturer, including product assessment and tests on samples taken at the factory. The compliance of the product with the requirements of this standard and with the stated values (including classes) shall be demonstrated by: SIST EN 13169:2009

For the EC certificate and declaration of conformity, as appropriate, see ZA.2.2. 8
Marking and labelling Products conforming to this standard shall be clearly marked, either on the product or on the label or on the packaging, with the following information:  product name or other identifying characteristic;  name or identifying mark and address of the manufacturer or his authorised representative;  shift or time of production and manufacturing plant or traceability code;  reaction to fire class;  declared thermal resistance;  declared thermal conductivity;  nominal thickness;  designation code as given in Clause 6;  type of facing or coating, if any;  nominal length, nominal width;  number of pieces and area in the package, as appropriate. NOTE For CE marking and labelling see ZA.3. SIST EN 13169:2009

Determination of the declared values of thermal resistance and
thermal conductivity A.1 General It is the responsibility of the manufacturer to determine the declared values of thermal conductivity and thermal resistance. He will have to demonstrate conformity of the product to its declared values. The declared values of thermal conductivity and thermal resistance of a product are the expected values of these properties during an economically reasonable working life under normal conditions, assessed through measured data at reference conditions. A.2 Input data The manufacturer shall have at least ten test results for thermal conductivity or thermal resistance, obtained from internal or external direct measurements in order to calculate the declared values. The direct thermal resistance or thermal conductivity measurements shall be carried out at regular intervals spread over a time period of the last twelve months. If less than 10 test results is available, that period may be extended until ten test results are obtained, but with a maximum period of three years, within which the product and production conditions have not changed significantly. For new products, the thermal resistance or thermal conductivity test results shall be carried out spread over a minimum period of ten days. The declared values shall be calculated according to the method given in A.3 and shall be recalculated at intervals not exceeding three months of production. A.3 Declared values A.3.1 General The derivation of the declared values RD and λD from the calculated values R90/90 and λ90/90 shall use the rules given in 4.2.1 which include the rounding conditions. A.3.2 Case where thermal resistance and thermal conductivity are declared The declared values RD and λD shall be derived from the calculated values R90/90 and λ90/90 which are determined using the Equations A.1, A.2 and A.3. λ90/90 = λmean + k × sλ (A.1) 1)(12meani−−=∑=nsniλλλ (A.2) R90/90 = dN/λ90/90 (A.3) SIST EN 13169:2009

Factory production control Table B.1 — Minimum product testing frequencies Clause Minimum testing frequencya No Title 4.2.1 Thermal resistance
...
