CEN ISO/TS 17263:2003
(Main)Automatic vehicle and equipment identification - Intermodal goods transport - System parameters (ISO/TS 17263:2003)
Automatic vehicle and equipment identification - Intermodal goods transport - System parameters (ISO/TS 17263:2003)
ISO/TS 17263:2003 establishes an AEI-System based on radio frequency technologies. This system is intended for general application in RTTT/TICS. It allows for the transfer of the identification codes and further information about equipment and vehicles used in intermodal transport into such RTTT/TICS and information systems related to Intermodal Transport processes. Within the intermodal context of the RTTT/TICS Sector, AEI systems have the specific objective of achieving an unambiguous identification of an ITU or related equipment or vehicle or item used in intermodal transport, and to make that identification automatically. Vehicles will be considered and handled under Intermodal aspects as "Intermodal Equipment". Therefore a differentiation between AEI and AVI systems under the purpose of ISO/TS 17263:2003 is not required.
ISO/TS 17263:2003 is specifically aimed at DSRC-type air interfaces. The requirement and test methods may not apply for Intermodal AEI systems using long range communications such as Cellular Networks or Satellite, or vicinity communication such as inductively coupled antennas. The interoperability across the air interface (reference point Delta) is outside the scope of ISO/TS 17263:2003.
The aim of ISO/TS 17263:2003 is to define, describe and specify the System Parameters related to an intermodal AEI system to provide an enabling Standard, which, whilst allowing the system specifier to determine the performance levels and operating conditions, provides a framework for interoperability. Therefore ISO/TS 17263:2003 specifies:
parameters and requirements of the identification system itself;
performance criteria necessary to ensure consistent and reliable operation of AEI systems within international transport processing;
requirements of the performance and the position of the electronic devices (tag) when installed on intermodal equipment;
requirements for the installation of readers, and performance data related to these components.
Automatische Identifizierung von Fahrzeugen und Ausrüstungen - Kombinierter Güterverkehr - Systemparameter (ISO/TS 17263:2003)
Identification automatique des véhicules et des équipements - Transport intermodal de marchandises - Paramètres des systèmes (ISO/TS 17263:2003)
Samodejna identifikacija vozil in opreme – Intermodalni prevoz blaga – Sistemski parametri (ISO/TS 17263:2003)
General Information
Relations
Standards Content (Sample)
SLOVENSKI STANDARD
01-oktober-2003
Samodejna identifikacija vozil in opreme – Intermodalni prevoz blaga – Sistemski
parametri (ISO/TS 17263:2003)
Automatic vehicle and equipment identification - Intermodal goods transport - System
parameters (ISO/TS 17263:2003)
Automatische Identifizierung von Fahrzeugen und Ausrüstungen - Kombinierter
Güterverkehr - Systemparameter (ISO/TS 17263:2003)
Identification automatique des véhicules et des équipements - Transport intermodal de
marchandises - Parametres des systemes (ISO/TS 17263:2003)
Ta slovenski standard je istoveten z: CEN ISO/TS 17263:2003
ICS:
03.220.20 Cestni transport Road transport
35.240.60 Uporabniške rešitve IT v IT applications in transport
transportu in trgovini and trade
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.
TECHNICAL SPECIFICATION
CEN ISO/TS 17263
SPÉCIFICATION TECHNIQUE
TECHNISCHE SPEZIFIKATION
June 2003
ICS 35.240.60
English version
Automatic vehicle and equipment identification – Intermodal
goods transport – System parameters (ISO/TS 17263:2003)
Identification automatique des véhicules et des
équipements – Transport intermodal de marchandises –
Paramètres des systèmes (ISO/TS 17263:2003)
This Technical Specification (CEN/TS) was approved by CEN on 25 November 2002 for provisional application.
The period of validity of this CEN/TS is limited initially to three years. After two years the members of CEN will be requested to submit their
comments, particularly on the question whether the CEN/TS can be converted into a European Standard.
CEN members are required to announce the existence of this CEN/TS in the same way as for an EN and to make the CEN/TS available. It
is permissible to keep conflicting national standards in force (in parallel to the CEN/TS) until the final decision about the possible
conversion of the CEN/TS into an EN is reached.
CEN members are the national standards bodies of Austria, Belgium, Czech Republic, Denmark, Finland, France, Germany, Greece,
Hungary, Iceland, Ireland, Italy, Luxembourg, Malta, Netherlands, Norway, Portugal, Slovakia, Spain, Sweden, Switzerland and United
Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION
EUROPÄISCHES KOMITEE FÜR NORMUNG
Management Centre: rue de Stassart, 36 B-1050 Brussels
© 2003 CEN All rights of exploitation in any form and by any means reserved Ref. No. CEN ISO/TS 17263:2003 E
worldwide for CEN national Members.

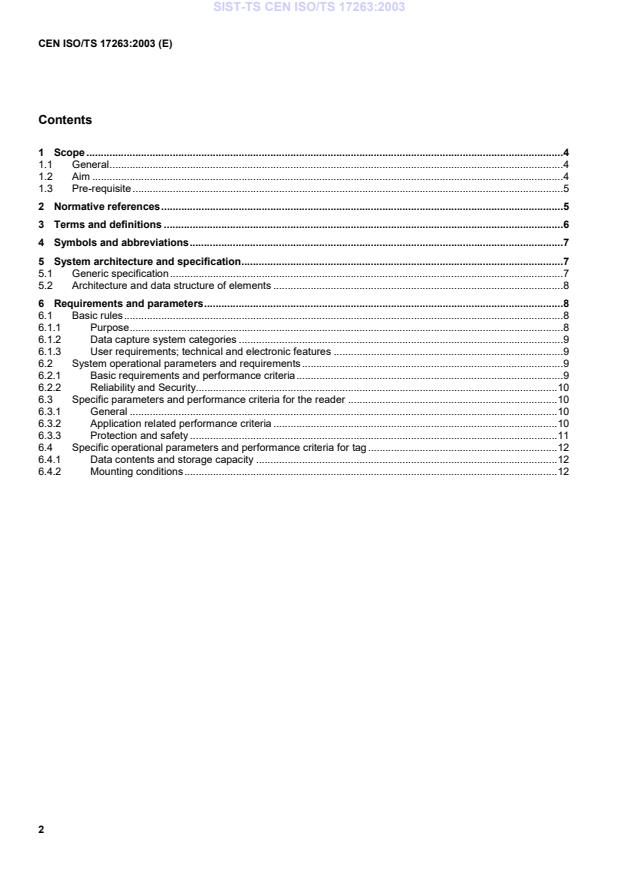

Contents
1 Scope .4
1.1 General.4
1.2 Aim .4
1.3 Pre-requisite .5
2 Normative references.5
3 Terms and definitions .6
4 Symbols and abbreviations.7
5 System architecture and specification.7
5.1 Generic specification.7
5.2 Architecture and data structure of elements .8
6 Requirements and parameters.8
6.1 Basic rules.8
6.1.1 Purpose.8
6.1.2 Data capture system categories .9
6.1.3 User requirements; technical and electronic features .9
6.2 System operational parameters and requirements.9
6.2.1 Basic requirements and performance criteria.9
6.2.2 Reliability and Security.10
6.3 Specific parameters and performance criteria for the reader .10
6.3.1 General .10
6.3.2 Application related performance criteria .10
6.3.3 Protection and safety .11
6.4 Specific operational parameters and performance criteria for tag .12
6.4.1 Data contents and storage capacity .12
6.4.2 Mounting conditions.12
Foreword
This Technical Specification (CEN ISO/TS 17263:2003) has been prepared by Technical Committee CEN/TC 278,
"Road Transport and Traffic Telematics", the secretariat of which is held by NEN, in collaboration with Technical
Committee ISO/TC 204, “Transport information and control systems”.
This is the third part of a series of Technical Specifications defining Intermodal Goods Transport for AVI/AEI, and is
the result from CEN/TC 278 Work Item 00278089. The following documents are published to form a series of
standards for for AVI/AEI in intermodal goods transport AVI/AEI:
— CEN ISO/TS 17261 Architecture and terminology (under preparation)
— CEN ISO/TS 17262 Numbering and data structures
— CEN ISO/TS 17263 System parameters
— CEN ISO/TS 17264 AVI/AEI interfaces (under preparation)
According to the CEN/CENELEC Internal Regulations, the national standards organizations of the following
countries are bound to announce this Technical Specification: Austria, Belgium, Czech Republic, Denmark,
Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Luxembourg, Malta, Netherlands, Norway,
Portugal, Slovak Republic, Spain, Sweden, Switzerland and the United Kingdom.
Introduction
This Technical Specification specifies parameters for a system for the automatic identification of equipment,
vehicles and items (AEI) used in intermodal transport chains. This Technical Specification is designed to enable
users and suppliers of AEI-Systems to specify or use a system or components of a system that will enable
interoperability. Such systems are designed to read and transfer the identity and some further important data of
equipment, vehicles and items used in intermodal transport to other partners in each possible transport chain to
minimise the expenditure and to automate the process of transport observation and control. This pre standard is a
part of a family of Standards for that purpose.
AEI systems are necessary as a basic tool for RTTT/TICS applications in intermodal transport operation. These
information systems need real-time highly reliable data about the identity, status, time, location, etc. of the
equipment, vehicles or items during the transport operation. The characteristics of an Intermodal Transport chain is
that pieces of equipment or items will be loaded or unloaded more than once from other pieces of equipment or
vehicles. AEI systems in such applications shall also be able to provide the identity of both units at the loading and
unloading process. The purpose is to capture the event so that the information system reflects the real world.
1 Scope
1.1 General
This Technical Specification establishes an AEI-System based on radio frequency technologies. This system is
intended for general application in RTTT/TICS. It allows the transfer of the identification codes and further
information about equipment and vehicles used in intermodal transport into such RTTT/TICS and information
systems related to Intermodal Transport processes. Within the intermodal context of the RTTT/TICS Sector, AEI
systems have the specific objective of achieving an unambiguous identification of an ITU or related equipment or
vehicle or item used in intermodal transport, and to make that identification automatically. Vehicles will be
considered and handled under Intermodal aspects as „Intermodal Equipment“. Therefore a differentiation between
AEI and AVI systems under the purpose of this standard is not required.
This Technical Specification is specifically aimed at DSRC-type air interfaces. The requirement and test methods
may not apply for Intermodal AEI systems using long range communications such as Cellular Networks or Satellite,
or vicinity communication such as inductively coupled antennas. The interoperability across the air interface
(reference point Delta) is outside the scope of this Technical Specification. Please see CEN ISO/TS 17264
Automatic Vehicle and Equipment Identification (AVI/AEI) - AVI/AEI Interfaces (under preparation).
1.2 Aim
The aim of this standard is to define, describe and specify the System Parameters related to an intermodal AEI
system to provide an enabling Standard, which, whilst allowing the system specifier to determine the performance
levels and operating conditions, provides a framework for interoperability. Therefore this Technical Specification
specifies:
a) parameters and requirements of the identification system itself
b) performance criteria necessary to ensure consistent and reliable operation of AEI systems within international
transport processing
c) requirements of the performance and the position of the electronic devices (tag) when installed on intermodal
equipment
d) requirements for the installation of readers, and performance data related to these components.
NOTE: These parameters of an AEI system shall be identical, compatible or interoperable world-wide in respect of systems
complying to this Pre-Standard. Yet it is recognised that, at the implementation level, there may be requirements for regional or
operational differences in the performance levels achieved against these parameters.
1.3 Pre-requisite
Any system to read identity and related data has to be based on a standardised system to allocate an
unambiguous identity to each item, vehicle, load unit or equipment as defined in CEN ISO/TS 17262 Automatic
vehicle and equipment identification - Intermodal goods transport - Numbering and data structures.
2 Normative references
This Technical Specification incorporates by dated or undated reference, provisions from other publications. These
normative references are cited at the appropriate places in the text and the publications are listed hereafter. For
dated references, subsequent amendments to or revisions of any of these publications apply to this Technical
Specification only when incorporated in it by amendment or revision. For undated references the latest edition of
the publication referred to applies (including amendments).
EN 13044, Swap Bodies - Coding, Identification and Marking
ISO 10374, Freight containers – Automatic identification
ISO/IEC 8824-1, Information processing systems - Open Systems Interconnection - Specification of
abstract syntax notation one (ASN.1) - Part 1: Specification of the Basic Notation
ISO/IEC 8824-2, Information processing systems - Open Systems Interconnection - Specification of
abstract syntax notation one (ASN.1) - Part 2: Information Object Specification
ISO/IEC 8824-3, Information processing systems - Open Systems Interconnection - Specification of
abstract syntax notation one (ASN.1) - Part 3: Constraint Specification
ISO/IEC 8824-4, Information processing systems - Open Systems Interconnection - Specification of
abstract syntax notation one (ASN.1) - Part 4: Parameterisation of the ASN.1 Specifications
ISO/IEC 8825-1, Information processing systems - Open Systems Interconnection - Specification of
ASN.1 Encoding Rules – Part 1: Basic Encoding Rules
ISO/IEC 8825-2, Information processing systems - Open Systems Interconnection - Specification of
ASN.1 Encoding Rules – Part 2: Packed Encoding Rules
ISO/IEC 8825-3, Information processing systems - Open Systems Interconnection - Specification of
ASN.1 Encoding Rules – Part 3: Distinguished Encoding Rules
ENV ISO 14815, Road Traffic and Transport Telematics - Automatic Vehicle and Equipment Identification
– System specification
CEN ISO/TS 17261: Road Transport and Traffic Telematics - Automatic vehicle and equipment
identification - Intermodal goods transport - Architecture and terminology
CEN ISO/TS 17262: Road Transport and Traffic Telematics – Automatic vehicle and equipment
identification - Intermodal goods transport - Numbering and data structures
CEN ISO/TS 17264: Road Transport and Traffic Telematics - Automatic Vehicle and Equipment
Identification (AVI/AEI) - AVI/AEI Int
...
