CEN

EN ISO 3822-3:1997

(Main)

Acoustics - Laboratory tests on noise emission from appliances and equipment used in water supply installations - Part 3: Mounting and operating conditions for in-line valves and appliances

Acoustics - Laboratory tests on noise emission from appliances and equipment used in water supply installations - Part 3: Mounting and operating conditions for in-line valves and appliances

Gives the mounting and operating conditions to be used for in-line valves and appliances, which control the flow, pressure or temperature of the water in water supply installations, when measuring the noise emission resulting from water flow. Replaces the first edition.

Akustik - Prüfung des Geräuschverhaltens von Armaturen und Geräten der Wasserinstallation im Laboratorium - Teil 3: Anschluß- und Betriebsbedingungen für Durchgangsarmaturen

Dieser Teil der EN ISO 3822 legt die Anschluß- und Betriebsbedingungen für Durchgangsarmaturen und Geräte zum Einstellen von Durchfluß, Druck oder Temperatur des Wassers in Wasserinstallationsanlagen bei der Messung des Geräusches fest, das durch Fließen des Wassers hervorgerufen wird. Sie ist für Durchgangsarmaturen und Geräte mit einer größten Nennweite von DN 32 und Einrichtungen, in denen der größte Durchfluß 2 l/s nicht überschritten wird, anwendbar.

Acoustique - Mesurage en laboratoire du bruit émis par les robinetteries et les équipements hydrauliques utilisés dans les installations de distribution d'eau - Partie 3: Conditions de montage et de fonctionnement des robinetteries et des équipements hydrauliques en ligne

La présente partie de l'ISO 3822 spécifie les conditions de montage de fonctionnement à utiliser pour les robinetteries et les équipements hydrauliques en ligne qui contrôlent le débit, la pression ou la température de l'eau dans les installations de distribution d'eau, quand on mesure le bruit émis résultant de l'écoulement de l'eau. Elles est applicable aux robinetteries et aux équipements hydrauliques en lignes de dimension nominale DN 321) et aux dispositifs dans lesquels le débit d'eau maximal dans le dispositif ne dépasse pas 2 l/s. Les méthodes décrites sont en général utilisées pour tous les types de robinetteries en ligne de conception conventionnelle.

Akustika - Laboratorijski preskusi emisije hrupa armatur in naprav pri inštalacijah za oskrbo z vodo - 3. del: Pogoji za priključitev in delovanje pretočnih armatur (ISO 3822-3:1997)

Določa pogoje priključitve in delovanja, ki se uporabljajo za pretočne ventile in armature, kateri nadzorujejo pretok, pritisk ali temperaturo vode v napravah za oskrbo z vodo, kadar se merijo emisije hrupa, ki nastaja zaradi pretoka vode. Uporablja se za pretočne ventile in armature, ki so maksimalne nominalne velikosti DN 32 ter pri sistemih, kjer vrednost največjega pretoka vode ne preseže 2 l/s. Opisani postopek velja za splošno uporabo in za vse vrste pretočnih ventilov konvencionalnih oblik.

General Information

Status
Withdrawn
Publication Date
14-Jan-1997
Withdrawal Date
06-Feb-2018
ICS
17.140.20 - Noise emitted by machines and equipment
Technical Committee
CEN/TC 126 - Acoustic properties of building products and of buildings
Drafting Committee
CEN/TC 126/WG 3 - Laboratory test on noise from hydraulic equipment used in water installations
Current Stage
9960 - Withdrawal effective - Withdrawal
Completion Date
07-Feb-2018
Directive
305/2011 - Regulation (eu) No 305/2011 of the European Parliament and of the Council of 9 march 2011 laying down harmonised conditions for the marketing of construction products and repealing council directive 89/106/eec
89/106/EEC - Construction products
Mandate
M/BC/CEN/91/8 - CPD: Protection against noise
Ref Project
SIST EN ISO 3822-3:1999 - Acoustics - Laboratory tests on noise emission from appliances and equipment used in water supply installations - Part 3: Mounting and operating conditions for in-line valves and appliances

Relations

Replaced By
EN ISO 3822-3:2018 - Acoustics - Laboratory tests on noise emission from appliances and equipment used in water supply installations - Part 3: Mounting and operating conditions for in-line valves and appliances (ISO 3822-3:2018)
Effective Date
21-Oct-2015
Amended By
EN ISO 3822-3:1997/A1:2009 - Acoustics - Laboratory tests on noise emission from appliances and equipment used in water supply installations - Part 3: Mounting and operating conditions for in-line valves and appliances - Amendment 1 (ISO 3822-3:1997/Amd 1:2009)
Effective Date
08-Jun-2022

Buy Standard

EN ISO 3822-3:1999EN ISO 3822-3:1999
PreviousNext
Standard
EN ISO 3822-3:1999
English language
11 pages
sale 10% off
Preview
sale 10% off
Preview
e-Library read for
1 day

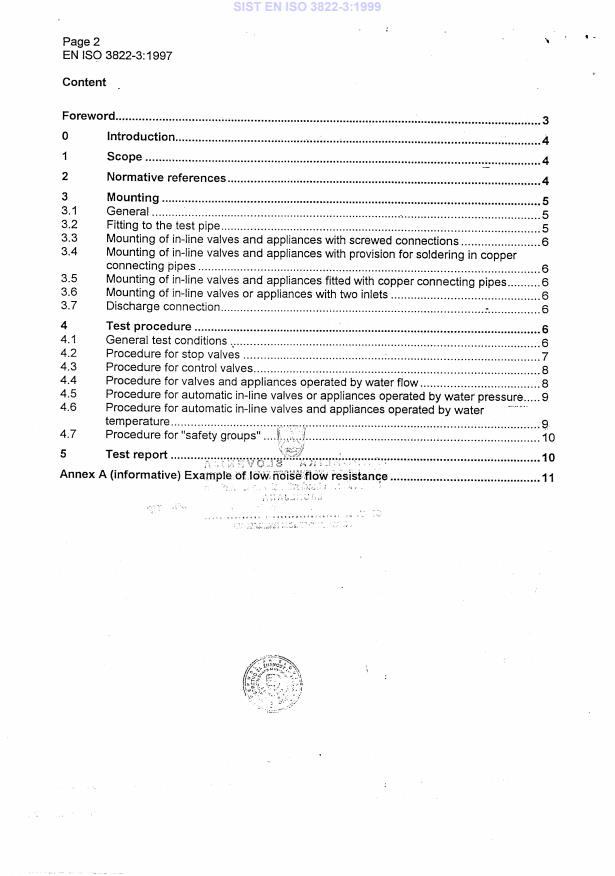

Standards Content (Sample)


SLOVENSKI STANDARD
01-november-1999
$NXVWLND/DERUDWRULMVNLSUHVNXVLHPLVLMHKUXSDDUPDWXULQQDSUDYSULLQãWDODFLMDK
]DRVNUER]YRGRGHO3RJRML]DSULNOMXþLWHYLQGHORYDQMHSUHWRþQLKDUPDWXU ,62

Acoustics - Laboratory tests on noise emission from appliances and equipment used in
water supply installations - Part 3: Mounting and operating conditions for in-line valves
and appliances
Akustik - Prüfung des Geräuschverhaltens von Armaturen und Geräten der
Wasserinstallation im Laboratorium - Teil 3: Anschluß- und Betriebsbedingungen für
Durchgangsarmaturen
Acoustique - Mesurage en laboratoire du bruit émis par les robinetteries et les
équipements hydrauliques utilisés dans les installations de distribution d'eau - Partie 3:
Conditions de montage et de fonctionnement des robinetteries et des équipements
hydrauliques en ligne
Ta slovenski standard je istoveten z: EN ISO 3822-3:1997
ICS:
17.140.20 Emisija hrupa naprav in Noise emitted by machines
opreme and equipment
91.140.60 Sistemi za oskrbo z vodo Water supply systems
2003-01.Slovenski inštitut za s
...
