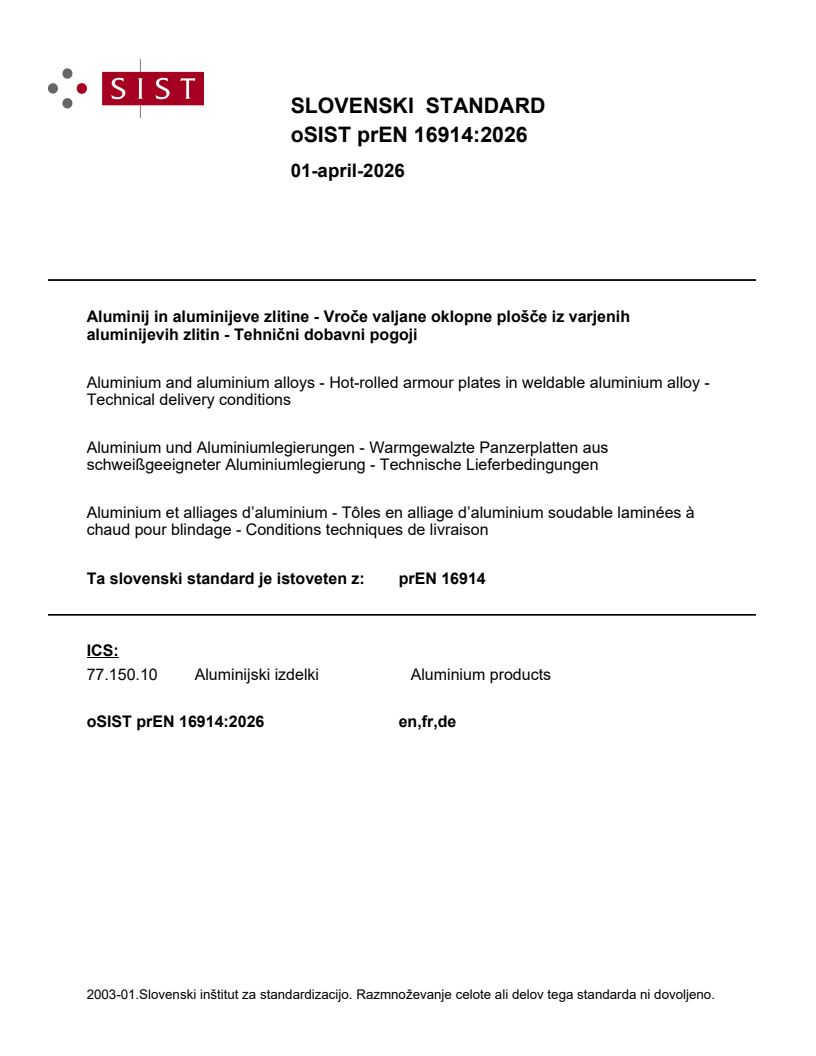

prEN 16914

SLOVENSKI STANDARD
01-april-2026
Aluminij in aluminijeve zlitine - Vroče valjane oklopne plošče iz varjenih
aluminijevih zlitin - Tehnični dobavni pogoji
Aluminium and aluminium alloys - Hot-rolled armour plates in weldable aluminium alloy -
Technical delivery conditions
Aluminium und Aluminiumlegierungen - Warmgewalzte Panzerplatten aus
schweißgeeigneter Aluminiumlegierung - Technische Lieferbedingungen
Aluminium et alliages d’aluminium - Tôles en alliage d’aluminium soudable laminées à
chaud pour blindage - Conditions techniques de livraison
Ta slovenski standard je istoveten z: prEN 16914
ICS:
77.150.10 Aluminijski izdelki Aluminium products
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

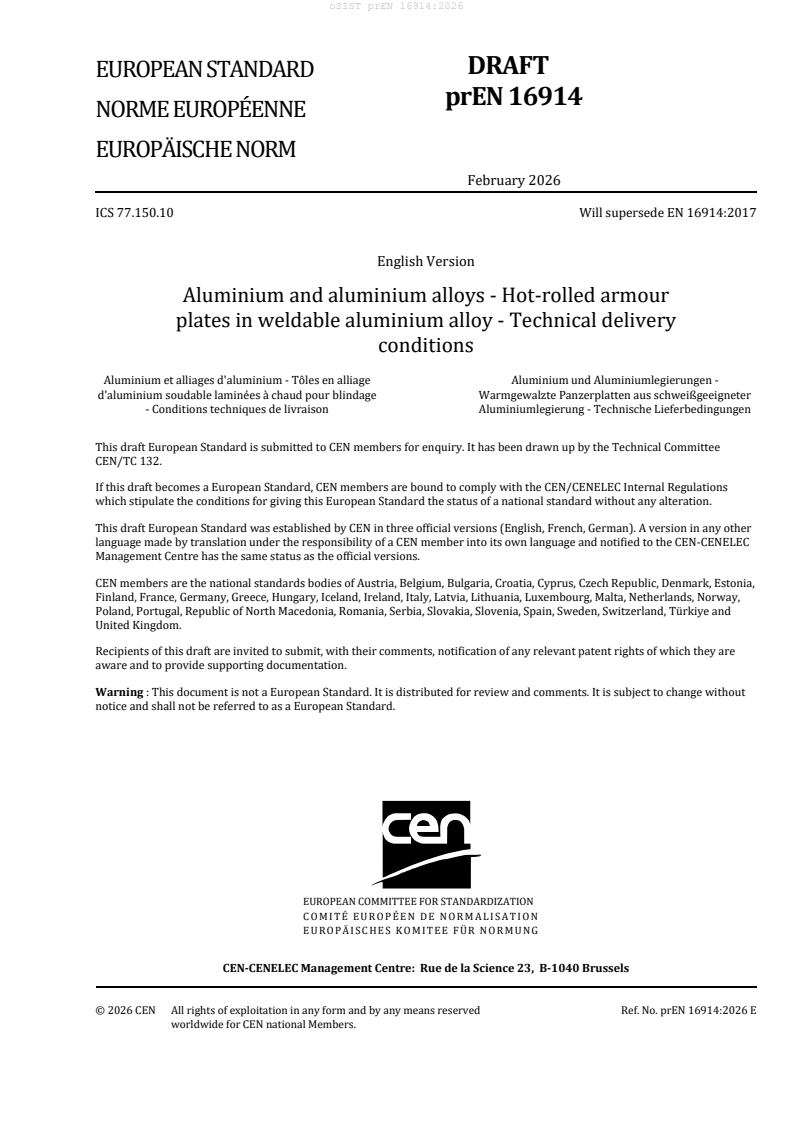

DRAFT
EUROPEAN STANDARD
NORME EUROPÉENNE
EUROPÄISCHE NORM
February 2026
ICS 77.150.10 Will supersede EN 16914:2017
English Version
Aluminium and aluminium alloys - Hot-rolled armour
plates in weldable aluminium alloy - Technical delivery
conditions
Aluminium et alliages d'aluminium - Tôles en alliage Aluminium und Aluminiumlegierungen -
d'aluminium soudable laminées à chaud pour blindage Warmgewalzte Panzerplatten aus schweißgeeigneter
- Conditions techniques de livraison Aluminiumlegierung - Technische Lieferbedingungen
This draft European Standard is submitted to CEN members for enquiry. It has been drawn up by the Technical Committee
CEN/TC 132.
If this draft becomes a European Standard, CEN members are bound to comply with the CEN/CENELEC Internal Regulations
which stipulate the conditions for giving this European Standard the status of a national standard without any alteration.

This draft European Standard was established by CEN in three official versions (English, French, German). A version in any other
language made by translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC
Management Centre has the same status as the official versions.

CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia,
Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway,
Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Türkiye and
United Kingdom.
Recipients of this draft are invited to submit, with their comments, notification of any relevant patent rights of which they are
aware and to provide supporting documentation.

Warning : This document is not a European Standard. It is distributed for review and comments. It is subject to change without
notice and shall not be referred to as a European Standard.

EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION

EUROPÄISCHES KOMITEE FÜR NORMUNG

CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2026 CEN All rights of exploitation in any form and by any means reserved Ref. No. prEN 16914:2026 E
worldwide for CEN national Members.

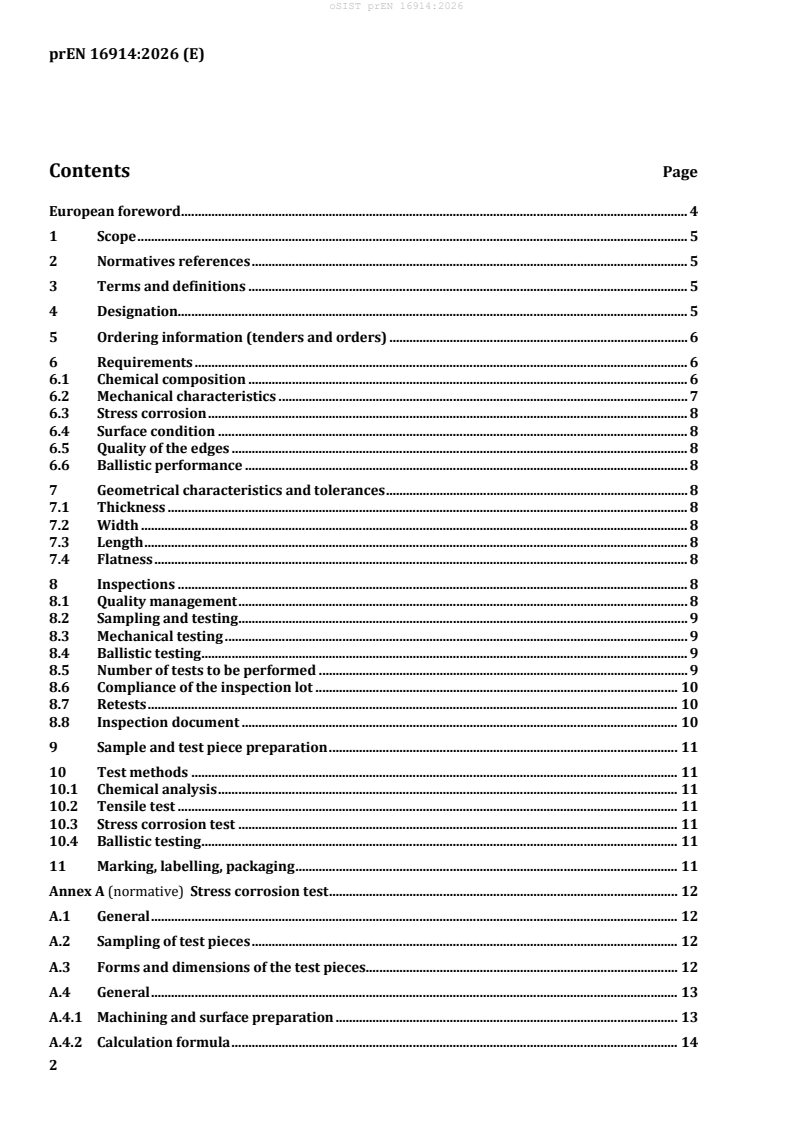

Contents Page
European foreword . 4
1 Scope . 5
2 Normatives references . 5
3 Terms and definitions . 5
4 Designation. 5
5 Ordering information (tenders and orders) . 6
6 Requirements . 6
6.1 Chemical composition . 6
6.2 Mechanical characteristics . 7
6.3 Stress corrosion . 8
6.4 Surface condition . 8
6.5 Quality of the edges . 8
6.6 Ballistic performance . 8
7 Geometrical characteristics and tolerances . 8
7.1 Thickness . 8
7.2 Width . 8
7.3 Length . 8
7.4 Flatness . 8
8 Inspections . 8
8.1 Quality management . 8
8.2 Sampling and testing . 9
8.3 Mechanical testing . 9
8.4 Ballistic testing . 9
8.5 Number of tests to be performed . 9
8.6 Compliance of the inspection lot . 10
8.7 Retests . 10
8.8 Inspection document . 10
9 Sample and test piece preparation . 11
10 Test methods . 11
10.1 Chemical analysis . 11
10.2 Tensile test . 11
10.3 Stress corrosion test . 11
10.4 Ballistic testing . 11
11 Marking, labelling, packaging . 11
Annex A (normative) Stress corrosion test . 12
A.1 General . 12
A.2 Sampling of test pieces . 12
A.3 Forms and dimensions of the test pieces . 12
A.4 General . 13
A.4.1 Machining and surface preparation . 13
A.4.2 Calculation formula . 14
A.5 Operating procedure . 14
A.6 Testing conditions . 15
A.7 Interpretation of the results . 15
Bibliography . 16

European foreword
This document has been prepared by Technical Committee CEN/TC 132 “Aluminium and aluminium alloys”,
the secretariat of which is held by AFNOR.
This document is currently submitted to the CEN Enquiry.
This document will supersede EN 16914:2017.
— introduction of normative references EN 515 (as mentioned in Clause 4) and NF A 50-800-2 and NF A 50-
800-3 (as mentioned in Subclause 10.4) as applying to ballistic testing and requirements, in Clause 2;
— introduction of Clause 3 as required by the latest edition of CEN template;
— simplification of Table 1 in Clause 4;
— merging former Subclauses 4.1 and 4.2 in single Clause 5;
— additional information included in Subclause 6.1;
— rewording of Subclause 6.2;
— change in stress corrosion testing conditions and acceptance criteria for ARAL1 material (Subclause 6.3
and Annex A);
— rewording of title and text of Subclause 6.4;
— rewording in Subclause 6.6;
— simplification of Subclauses sequence in Clause 7;
— rewording of Subclauses 8.2 to 8.8;
— rewording of Subclause 10.4;
— change in appliable stress corrosion testing conditions in Annex A, Clause A.1, A.4.2 and Clause A.7.

1 Scope
This document specifies the technical delivery conditions for weldable aluminium alloy plates for armour
applications with a nominal thickness between 10 mm and 70 mm for ARAL1 material and between 10 mm
and 80 mm for ARAL2 material.
2 Normatives references
The following documents, in whole or in part, are normatively referenced in this document and are
indispensable for its application. For dated references, only the edition cited applies. For undated references,
the latest edition of the referenced document (including any amendments) applies.
EN 485-1, Aluminium and aluminium alloys — Sheet, strip and plate — Part 1: Technical conditions for
inspection and delivery
EN 485-3, Aluminium and aluminium alloys — Sheet, strip and plate — Part 3: Tolerances on dimensions and
form for hot-rolled products
EN 515, Aluminium and aluminium alloys — Wrought products — Temper designations
EN 10204, Metallic products — Types of inspection documents
EN ISO 6892-1, Metallic materials — Tensile testing — Part 1: Method of test at room temperature
(ISO 6892-1:2016)
NF A 50-800-2, Hot-rolled weldable aluminium alloy sheets for armouring — Part 2: Ballistic testing method
NF A 50-800-3, Hot-rolled weldable aluminium alloy sheets for armouring — Part 3: Characteristics of the
ammunitions and maximum protection velocities
3 Terms and definitions
For the purposes of this document, the terms and definitions given in EN 12258-1 [1] apply.
ISO and IEC maintain terminology databases for use in standardization at the following addresses:
— ISO Online browsing platform: available at https://www.iso.org/obp/
— IEC Electropedia: available at https://www.electropedia.org/
4 Designation
The aluminium alloys concerned by this document are designated in accordance with the categories listed in
Table 1 below. The applicable tempers shall be those of EN 515.
Table 1 — Categories
Composition
Mechanical
Category Characteristics Temper
characteristics
ARAL1 Aluminium alloy for armour See 6.1 See 6.2 T651
ARAL2 Aluminium alloy for armour See 6.1 See 6.2 H131

5 Ordering information (tenders and orders)
The following information shall be provided by the purchaser at the time of the call for tenders and stated on
the order:
a) form and nature of the product:
1) the designation of the aluminium or aluminium alloy, in accordance with Table 1;
b) the reference to this document, i.e. EN 16914;
c) the nominal dimensions and form of the product:
1) thickness;
2) width;
3) length (in the rolling direction).
At each order, the rolling direction shall be specified.
Unless otherwise specified, the longest dimension shall be the length;
d) the form and dimension tolerances;
e) quantity required: number of pieces, and the applicable quantity tolerance;
f) any requirements regarding inspection documents;
g) any specific requirements agreed upon between the supplier and the customer;
h) when applicable and not being the producer of the plate products, name of the external inspection
organisation required to perform material acceptance.
6 Requirements
6.1 Chemical composition
The chemical composition of the alloys shall be within the ranges for chemistry specified in Table 2 (ARAL1)
or Table 3 (ARAL2):
Table 2 — Chemical composition for analysis from melt, in weight-% (ARAL1)
Si Fe Cu Mn Mg Cr Zn Zr Zr + Al Other

Ti
Each Total
Min   0,10 0,05 1,0 0,10 4,0 0,08 0,08 remainder
Max 0,35 0,40 0,20 0,50 1,4 0,35 5,0 0,20 0,25 0,05 0,15

Table 3 — Chemical composition for analysis from melt, in weight-% (ARAL2)
Si Fe Cu Mn Mg Cr Zn Ti Al Other

Each Total
Min    0,40 4,0 0,05   remainder
Max 0,40 0,40 0,10 1 4,9 0,25 0,25 0,15 0,05 0,15

The chemical composition shall be determined according to the methods disclosed in EN 485-1 or a method
defined and stated on the order.
Th
...
