EN 16678:2022
(Main)Safety and control devices for gas burners and gas burning appliances - Automatic shut-off valves for operating pressure of above 500 kPa up to and including 6 300 kPa
Safety and control devices for gas burners and gas burning appliances - Automatic shut-off valves for operating pressure of above 500 kPa up to and including 6 300 kPa
EN 13611:2019, Clause 1 applies with the following modification and addition:
Modification:
The 1st paragraph of EN 13611:2019, Clause 1 is replaced by:
This document specifies the safety, design, construction, and performance requirements and testing for automatic shut-off valves for burners and appliances burning one or more gaseous fuels, hereafter referred to as “valves”.
This document is applicable to valves with declared maximum inlet pressures of more than 500 kPa and up to and including 6 300 kPa and of nominal connection sizes up to and including DN 250.
Addition:
This document is applicable to:
- electrically actuated valves;
- valves actuated by fluids including the pilot valves for these fluids if actuated electrically and including release valves, but not to any external electrical devices for switching the actuating energy;
- valves where the flow rate is controlled by external electrical signals proportional to the applied signal;
- valves fitted with closed position indicator switches.
This document is not applicable to valves specifically designed for use in transmission and distribution networks.
The 4th paragraph of EN 13611:2019, Clause 1 is removed.
Sicherheits- und Regeleinrichtungen für Gasbrenner und Gasbrennstoffgeräte - Automatische Absperrventile für einen Betriebsdruck über 500 kPa bis einschließlich 6 300 kPa
EN 13611:2019, Abschnitt 1, gilt mit folgender Änderung und Ergänzung:
Änderung:
Der erste Absatz von EN 13611:2019, Abschnitt 1, wird ersetzt durch:
Dieses Dokument legt die Sicherheits , Auslegungs , Konstruktions- und Leistungsanforderungen sowie die Prüfung von automatischen Absperrventilen für Brenner und Brennstoffgeräte für einen oder mehrere gasförmige Brennstoffe, nachstehend als „Ventile“ bezeichnet, fest.
Dieses Dokument gilt für Ventile mit einem angegebenen höchsten Eingangsdruck von mehr als 500 kPa bis einschließlich 6 300 kPa und mit Anschlussnennweiten bis einschließlich DN 250.
Ergänzung:
Dieses Dokument gilt für:
— elektrisch betätigte Ventile;
— Ventile, die durch Steuermedien betätigt werden, einschließlich der Steuerventile für diese Steuermedien, wenn sie elektrisch betätigt werden und Entlüftungsventile enthalten, nicht jedoch für externe elektrische Schaltgeräte für die Antriebsenergie;
— Ventile mit Durchflussmengenregelung durch externe elektrische Signale proportional zum angelegten Signal;
— Ventile, die mit Meldeschaltern für die geschlossene Stellung ausgestattet sind.
Dieses Dokument gilt nicht für Ventile, die speziell für die Verwendung in Transport- und Verteilungsnetzen ausgelegt sind.
Der vierte Absatz von EN 13611:2019, Abschnitt 1, entfällt.
Équipements auxiliaires pour brûleurs à gaz et appareils à gaz - Robinets automatiques de sectionnement pour pression de service supérieure à 500 kPa et inférieure ou égale à 6300 kPa
L’article 1 de la norme EN13611 :2019 s’applique avec la modification et l’addition suivantes :
Modification :
Le 1er paragraphe de l’article 1 de la norme EN13611 :2019 est remplacé par ce qui suit :
Le présent document spécifie les exigences de sécurité, de conception, de construction et de fonctionnement ainsi que les essais applicables aux robinets automatiques de sectionnement pour brûleurs et appareils utilisant un ou plusieurs combustibles gazeux, dénommés ci-après « robinets ».
Le présent document est applicable aux robinets dont la pression amont maximale déclarée est supérieure à 500 kPa et inférieure ou égale à 6 300 kPa, de diamètres nominaux de raccordement inférieurs ou égaux à DN 250.
Addition :
Le présent document est applicable :
- aux robinets commandés électriquement ;
- aux robinets actionnés par des fluides, y compris aux robinets pilotes de ces fluides s’ils sont commandés électriquement et aux robinets de décharge, mais en aucun cas aux dispositifs électriques externes commutant l’énergie motrice de commande ;
- aux robinets automatiques de sectionnement dans lesquels le débit est commandé par des signaux électriques externes, proportionnellement au signal reçu ;
- aux robinets équipés de contacts indicateurs de position fermée.
Le présent document n’est pas applicable aux robinets spécifiquement conçus pour une utilisation dans les réseaux de transport et de distribution.
Le 4ième paragraphe de l’article 1 de la EN 13611 :2019 est supprimé.
Varnostne in nadzorne naprave za plinske gorilnike in plinske aparate - Samodejni zaporni ventili za delovni tlak nad 500 kPa do vključno 6300 kPa
General Information
Relations
Standards Content (Sample)
SLOVENSKI STANDARD
01-december-2022
Nadomešča:
SIST EN 16678:2016
Varnostne in nadzorne naprave za plinske gorilnike in plinske aparate - Samodejni
zaporni ventili za delovni tlak nad 500 kPa do vključno 6300 kPa
Safety and control devices for gas burners and gas burning appliances - Automatic shut-
off valves for operating pressure of above 500 kPa up to and including 6 300 kPa
Sicherheits- und Regeleinrichtungen für Gasbrenner und Gasbrennstoffgeräte -
Automatische Absperrventile für einen Betriebsdruck über 500 kPa bis einschließlich 6
300 kPa
Équipements auxiliaires pour brûleurs à gaz et appareils à gaz - Robinets automatiques
de sectionnement pour pression de service supérieure à 500 kPa et inférieure ou égale à
6300 kPa
Ta slovenski standard je istoveten z: EN 16678:2022
ICS:
23.060.40 Tlačni regulatorji Pressure regulators
27.060.20 Plinski gorilniki Gas fuel burners
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.
EN 16678
EUROPEAN STANDARD
NORME EUROPÉENNE
October 2022
EUROPÄISCHE NORM
ICS 23.060.40 Supersedes EN 16678:2015
English Version
Safety and control devices for gas burners and gas burning
appliances - Automatic shut-off valves for operating
pressure of above 500 kPa up to and including 6 300 kPa
Équipements auxiliaires pour brûleurs à gaz et Sicherheits- und Regeleinrichtungen für Gasbrenner
appareils à gaz - Robinets automatiques de und Gasbrennstoffgeräte - Automatische
sectionnement pour pression de service supérieure à Absperrventile für einen Betriebsdruck über 500 kPa
500 kPa et inférieure ou égale à 6300 kPa bis einschließlich 6 300 kPa
This European Standard was approved by CEN on 8 August 2022.
CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this
European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references
concerning such national standards may be obtained on application to the CEN-CENELEC Management Centre or to any CEN
member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by
translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management
Centre has the same status as the official versions.
CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia,
Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway,
Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Türkiye and
United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION
EUROPÄISCHES KOMITEE FÜR NORMUNG
CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2022 CEN All rights of exploitation in any form and by any means reserved Ref. No. EN 16678:2022 E
worldwide for CEN national Members.

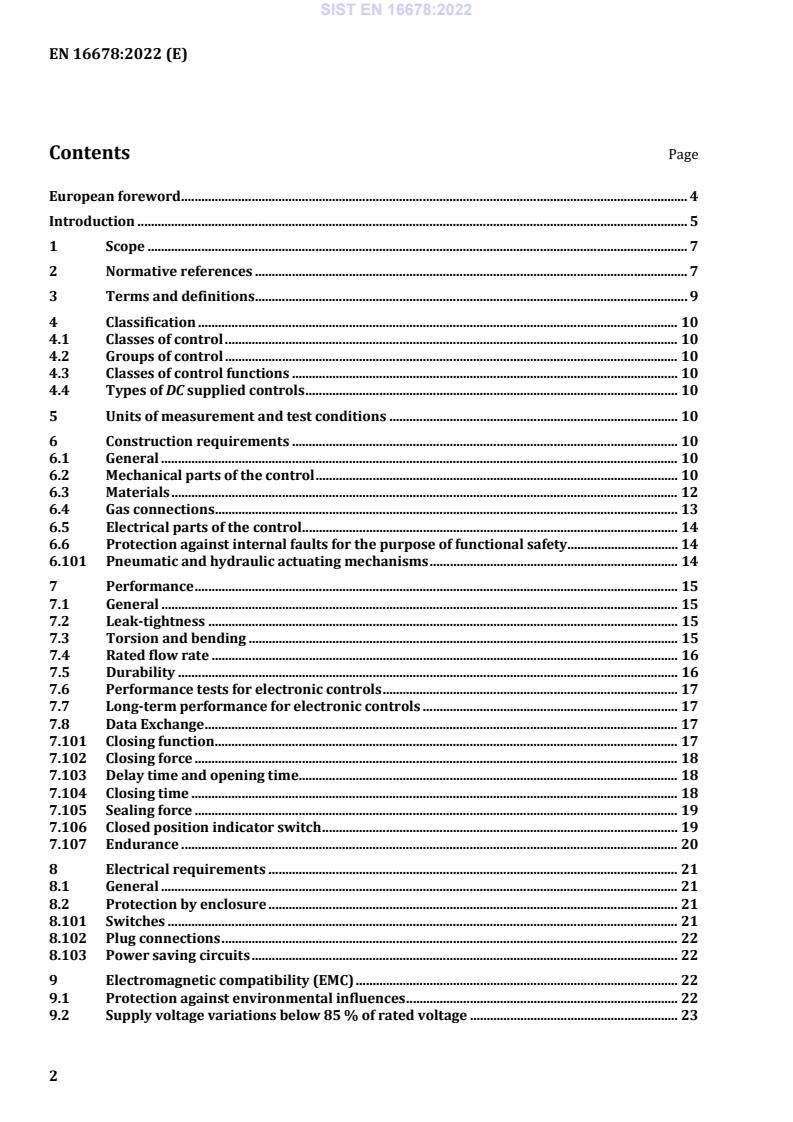

Contents Page
European foreword . 4
Introduction . 5
1 Scope . 7
2 Normative references . 7
3 Terms and definitions . 9
4 Classification . 10
4.1 Classes of control . 10
4.2 Groups of control . 10
4.3 Classes of control functions . 10
4.4 Types of DC supplied controls . 10
5 Units of measurement and test conditions . 10
6 Construction requirements . 10
6.1 General . 10
6.2 Mechanical parts of the control . 10
6.3 Materials . 12
6.4 Gas connections . 13
6.5 Electrical parts of the control . 14
6.6 Protection against internal faults for the purpose of functional safety . 14
6.101 Pneumatic and hydraulic actuating mechanisms . 14
7 Performance . 15
7.1 General . 15
7.2 Leak-tightness . 15
7.3 Torsion and bending . 15
7.4 Rated flow rate . 16
7.5 Durability . 16
7.6 Performance tests for electronic controls . 17
7.7 Long-term performance for electronic controls . 17
7.8 Data Exchange . 17
7.101 Closing function . 17
7.102 Closing force . 18
7.103 Delay time and opening time. 18
7.104 Closing time . 18
7.105 Sealing force . 19
7.106 Closed position indicator switch . 19
7.107 Endurance . 20
8 Electrical requirements . 21
8.1 General . 21
8.2 Protection by enclosure . 21
8.101 Switches . 21
8.102 Plug connections . 22
8.103 Power saving circuits . 22
9 Electromagnetic compatibility (EMC) . 22
9.1 Protection against environmental influences . 22
9.2 Supply voltage variations below 85 % of rated voltage . 23
9.3 Voltage dips and interruptions . 23
9.4 Supply frequency variations . 23
9.5 Surge immunity tests . 23
9.6 Electrical fast transient/burst . 23
9.7 Immunity to conducted disturbances induced by radio frequency fields . 23
9.8 Immunity to radiated disturbances induced by radio frequency fields . 23
9.9 Electrostatic discharge tests . 23
9.10 Power frequency magnetic field immunity tests . 23
9.11 Harmonics and interharmonics including mains signalling at a. c. power port, low
frequency immunity tests . 23
10 Marking, instructions . 23
10.1 Marking . 23
10.2 Instructions . 24
10.3 Warning notice . 25
Annex A (informative) Abbreviations and Symbols . 26
Annex B (informative) Leak-tightness test for gas controls – volumetric method . 27
Annex C (informative) Leak-tightness test for gas controls – pressure loss method . 28
Annex D (normative) Calculation of pressure loss into leakage rate . 29
Annex E (normative) Electrical/electronic component fault modes . 30
Annex F (normative) Additional requirements for safety accessories and pressure
accessories as defined in EU Directive 2014/68/EU . 31
Annex G (normative) Materials for pressurized parts . 32
Annex H (normative) Additional materials for pressurized parts . 33
Annex I (normative) Requirements for controls used in DC supplied gas burners and
appliances burning gaseous or liquid fuels . 34
Annex J (normative) Method for the determination of a Safety Integrity Level (SIL) . 35
Annex K (normative) Method for the determination of a Performance Level (PL) . 36
Annex L (informative) Relationship between Safety Integrity Level (SIL) and Performance
Level (PL) . 39
Annex M (normative) Reset functions . 40
Annex N (informative) Guidance document on Environmental Aspects . 41
Annex O (normative) Seals of elastomer, cork and synthetic fibre mixtures . 42
Annex ZA (informative) Relationship between this European Standard and the essential
requirements of Regulation (EU) 2016/426 aimed to be covered . 43
European foreword
This document (EN 16678:2022) h
...
