EN 3155-058:2006
(Main)Aerospace series - Electrical contacts used in elements of connection - Part 058: Contacts, electrical, coaxial, size 16, male, type D, solder, class R Product standard
Aerospace series - Electrical contacts used in elements of connection - Part 058: Contacts, electrical, coaxial, size 16, male, type D, solder, class R Product standard
This standard specifies the required characteristics, tests and tooling applicable to size 16, male coaxial, electrical contacts, type D, solder, class R, used in elements of connection according to EN 3155-002.
It shall be used together with EN 3155-001.
The associated male contacts are defined in EN 3155-059 and EN 3155-069.
Luft- und Raumfahrt - Elektrische Kontakte zur Verwendung in Verbindungselementen - Teil 058: Elektrische koaxial Stiftkontakt Größe 16, Typ D, zum Löten, Klasse R - Produktnorm
Diese Norm legt die Anforderungen, Prüfungen und Werkzeuge für elektrische koaxiale Stiftkontakte, Größe 16, Typ D, zum Löten, Klasse R, zur Verwendung in elektrischen Verbindungselementen nach EN 3155 002 fest.
Sie ist in Verbindung mit EN 3155 001 anzuwenden.
Die zugehörigen Buchsenkontakte sind in EN 3155 059 und EN 3155 069 festgelegt.
Série aérospatiale - Contacts électriques utilisés dans les organes de connexion - Partie 058 : Contacts, électriques, coaxiaux, taille 16, mâles, type D, à souder, class R - Norme de produit
Aeronavtika - Električni kontakti za uporabo v veznih elementih - 058. del: Kontakti, električni, koaksialni, velikost 16, moški, tip D, za spajkanje, razred R - Standard za proizvod
General Information
- Status
- Published
- Publication Date
- 04-Jul-2006
- Withdrawal Date
- 30-Jan-2007
- Technical Committee
- ASD-STAN - Aerospace
- Drafting Committee
- ASD-STAN/D 2 - Electrical
- Current Stage
- 9093 - Decision to confirm - Review Enquiry
- Start Date
- 01-Jun-2017
- Completion Date
- 28-Jan-2026
Relations
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
Overview
EN 3155-058:2006 is a CEN (European) product standard in the Aerospace series that defines the characteristics, tests and tooling for size 16, coaxial, male electrical contacts - Type D, solder, class R. It is intended for use with EN 3155-002 and EN 3155-001 and covers physical, material and performance requirements for contacts used in aerospace connection elements. These contacts are derived from and intermateable with MIL‑C‑39029 series devices.
Key topics and technical requirements
- Contact type & environment: Type D coaxial male contacts, class R (operating temperature range ‑65 °C to 150 °C). Contact mass: ≤ 0.243 g.
- Materials & coatings:
- Body: copper alloy with gold plating on an undercoat.
- Dielectric: ETFE fluoropolymer.
- Heat-shrink tubing: radiation crosslinked PVDF.
- Solder rings: Sn63 (per QQ‑S‑571).
- Permissible cable dimensions (typical ranges):
- Shield Ø: 1.67 – 2.13 mm
- Dielectric Ø: 0.91 – 1.72 mm
- Conductor Ø: 0.22 – 0.58 mm
- Jacket Ø up to 2.62 mm
- Assembly & termination:
- Strip and fold/prepare shield per figures in the standard, insert cable, then apply heat until the solder flows and strain-relief tubing conforms.
- Recommended hot-air tool: ≥ 800 W, heating zone 420 ± 20 °C.
- Testing & performance (references to EN 2591 methods):
- Electrical: low‑level contact resistance (centre initial ≤ 10 mΩ, after tests ≤ 15 mΩ), insulation resistance, voltage proof.
- Mechanical/Environmental: shock and vibration with discontinuity limits ≤ 100 ns, thermal cycling, endurance, fluid resistance and salt mist.
- Gauging: contact engagement/extraction gauges per MS3197 dimensions (approx. 0.362–0.398 mm diameters), tool-steel or carbide.
Applications and who uses this standard
- Aerospace connector manufacturers specifying and producing size‑16 coaxial male contacts (type D, solder, class R).
- Wiring harness and cable assembly suppliers implementing termination, tooling and heat‑shrink processes.
- Aerospace system integrators and OEMs ensuring intermateability with MIL‑series contacts and compliance with environmental and electrical performance.
- Test laboratories and quality assurance teams executing EN 2591 test methods called out by the standard.
- Procurement and maintenance teams requiring standard reference for parts, acceptance criteria and replacement components.
Related standards
- EN 3155-001 (technical specification)
- EN 3155-002 (list & utilization of contacts)
- EN 3155-059 / EN 3155-069 (associated female contacts)
- EN 2591 (test methods)
- Relevant MIL standards (MIL‑C‑39029 series), QQ‑S‑571 (solder spec), TR 6058 (cable code list)
Keywords: EN 3155-058:2006, aerospace electrical contacts, coaxial contacts size 16, type D solder class R, product standard, CEN, EN 3155 series, solder rings, ETFE, PVDF, Sn63, MIL‑C‑39029.
Get Certified
Connect with accredited certification bodies for this standard
National Aerospace and Defense Contractors Accreditation Program (NADCAP)
Global cooperative program for special process quality in aerospace.
NSF-ISR
NSF International Strategic Registrations.
Orion Registrar Inc.
US-based certification body for management systems.
Sponsored listings
Frequently Asked Questions
EN 3155-058:2006 is a standard published by the European Committee for Standardization (CEN). Its full title is "Aerospace series - Electrical contacts used in elements of connection - Part 058: Contacts, electrical, coaxial, size 16, male, type D, solder, class R Product standard". This standard covers: This standard specifies the required characteristics, tests and tooling applicable to size 16, male coaxial, electrical contacts, type D, solder, class R, used in elements of connection according to EN 3155-002. It shall be used together with EN 3155-001. The associated male contacts are defined in EN 3155-059 and EN 3155-069.
This standard specifies the required characteristics, tests and tooling applicable to size 16, male coaxial, electrical contacts, type D, solder, class R, used in elements of connection according to EN 3155-002. It shall be used together with EN 3155-001. The associated male contacts are defined in EN 3155-059 and EN 3155-069.
EN 3155-058:2006 is classified under the following ICS (International Classification for Standards) categories: 49.060 - Aerospace electric equipment and systems. The ICS classification helps identify the subject area and facilitates finding related standards.
EN 3155-058:2006 has the following relationships with other standards: It is inter standard links to EN 2591-708:2001, EN 2591-407:1999, EN 2591-416:2001, EN 2591-401:1996, EN 2591-6406:2001, EN 2591-427:2001, EN 2591-6301:2001, EN 2591-508:2023, EN 2591-502:2001, EN 2591-409:1999, EN 2591-312:1997, EN 2591-208:1996, EN 2591-503:2001, EN 2591-301:1996, EN 2591-6318:2001. Understanding these relationships helps ensure you are using the most current and applicable version of the standard.
EN 3155-058:2006 is available in PDF format for immediate download after purchase. The document can be added to your cart and obtained through the secure checkout process. Digital delivery ensures instant access to the complete standard document.

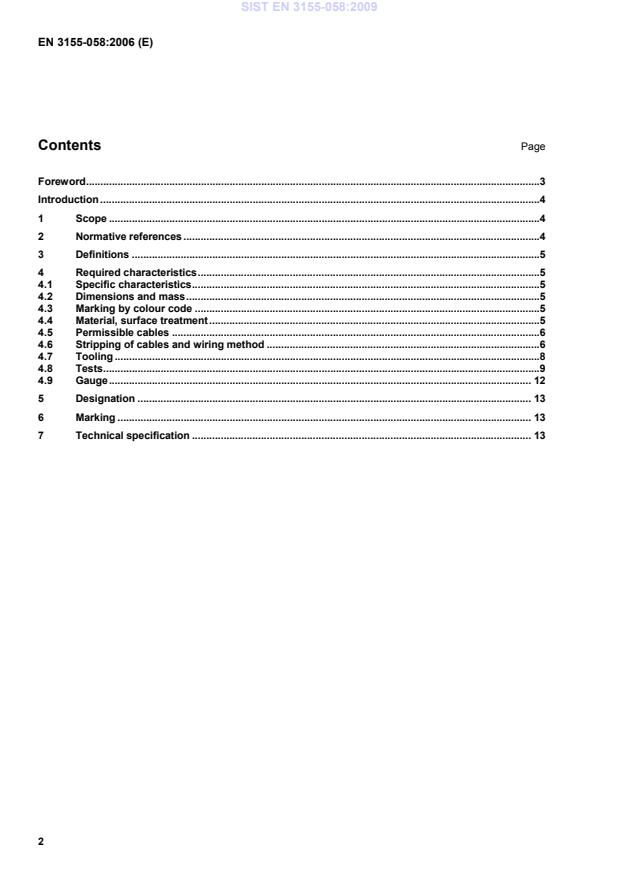

Standards Content (Sample)

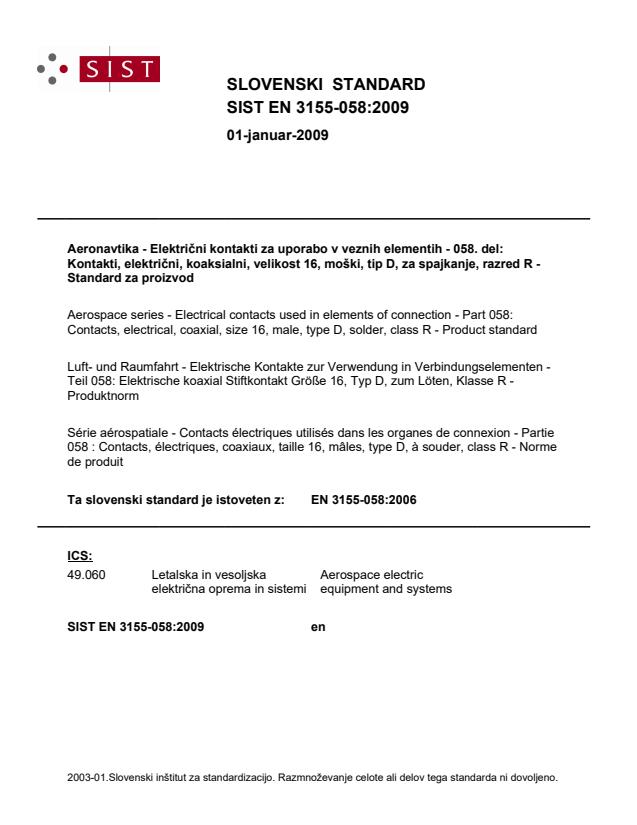

2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Luft- und Raumfahrt - Elektrische Kontakte zur Verwendung in Verbindungselementen - Teil 058: Elektrische koaxial Stiftkontakt Größe 16, Typ D, zum Löten, Klasse R - ProduktnormSérie aérospatiale - Contacts électriques utilisés dans les organes de connexion - Partie 058 : Contacts, électriques, coaxiaux, taille 16, mâles, type D, à souder, class R - Norme de produitAerospace series - Electrical contacts used in elements of connection - Part 058: Contacts, electrical, coaxial, size 16, male, type D, solder, class R - Product standard49.060Aerospace electric equipment and systemsICS:Ta slovenski standard je istoveten z:EN 3155-058:2006SIST EN 3155-058:2009en01-januar-2009SIST EN 3155-058:2009SLOVENSKI
STANDARD

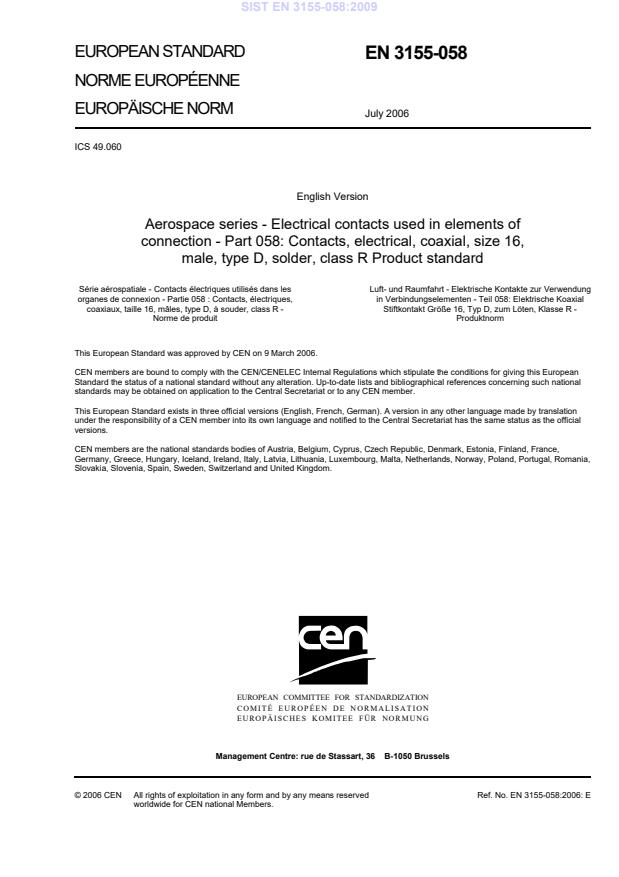

EUROPEAN STANDARDNORME EUROPÉENNEEUROPÄISCHE NORMEN 3155-058July 2006ICS 49.060 English VersionAerospace series - Electrical contacts used in elements ofconnection - Part 058: Contacts, electrical, coaxial, size 16,male, type D, solder, class R Product standardSérie aérospatiale - Contacts électriques utilisés dans lesorganes de connexion - Partie 058 : Contacts, électriques,coaxiaux, taille 16, mâles, type D, à souder, class R -Norme de produitLuft- und Raumfahrt - Elektrische Kontakte zur Verwendungin Verbindungselementen - Teil 058: Elektrische KoaxialStiftkontakt Größe 16, Typ D, zum Löten, Klasse R -ProduktnormThis European Standard was approved by CEN on 9 March 2006.CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this EuropeanStandard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such nationalstandards may be obtained on application to the Central Secretariat or to any CEN member.This European Standard exists in three official versions (English, French, German). A version in any other language made by translationunder the responsibility of a CEN member into its own language and notified to the Central Secretariat has the same status as the officialversions.CEN members are the national standards bodies of Austria, Belgium, Cyprus, Czech Republic, Denmark, Estonia, Finland, France,Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania,Slovakia, Slovenia, Spain, Sweden, Switzerland and United Kingdom.EUROPEAN COMMITTEE FOR STANDARDIZATIONCOMITÉ EUROPÉEN DE NORMALISATIONEUROPÄISCHES KOMITEE FÜR NORMUNGManagement Centre: rue de Stassart, 36
B-1050 Brussels© 2006 CENAll rights of exploitation in any form and by any means reservedworldwide for CEN national Members.Ref. No. EN 3155-058:2006: ESIST EN 3155-058:2009
...
