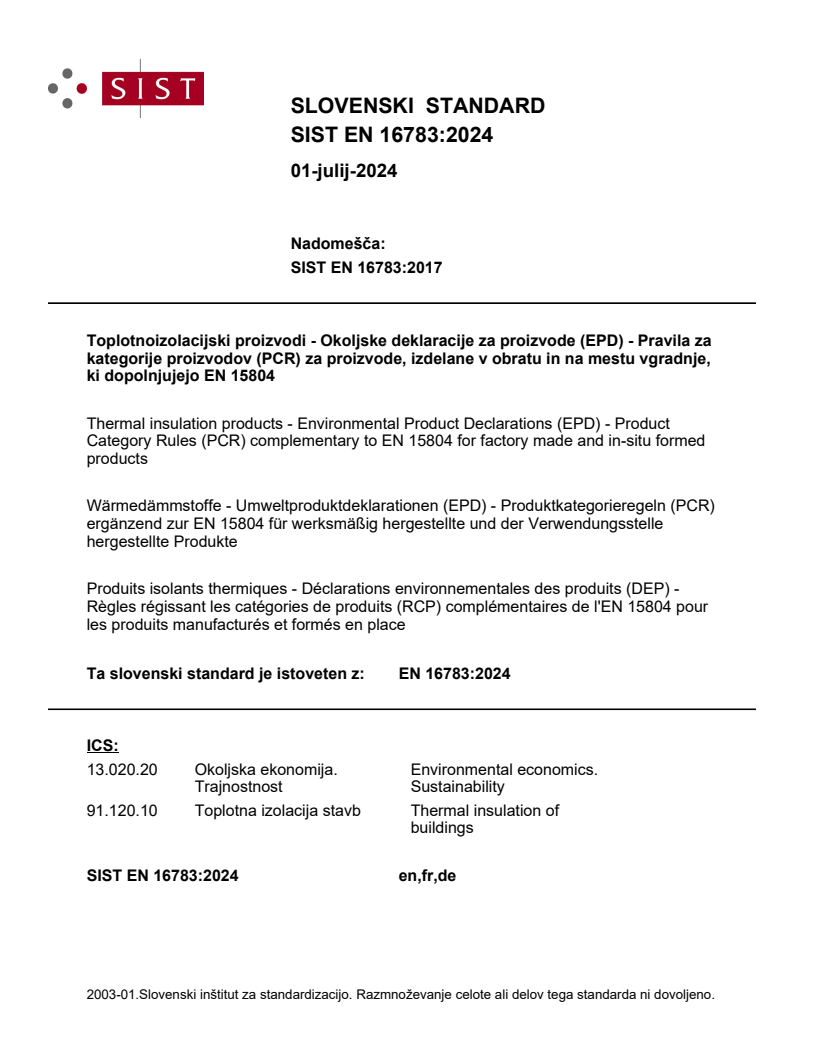

EN 16783:2024

SLOVENSKI STANDARD
01-julij-2024
Nadomešča:
SIST EN 16783:2017
Toplotnoizolacijski proizvodi - Okoljske deklaracije za proizvode (EPD) - Pravila za
kategorije proizvodov (PCR) za proizvode, izdelane v obratu in na mestu vgradnje,
ki dopolnjujejo EN 15804
Thermal insulation products - Environmental Product Declarations (EPD) - Product
Category Rules (PCR) complementary to EN 15804 for factory made and in-situ formed
products
Wärmedämmstoffe - Umweltproduktdeklarationen (EPD) - Produktkategorieregeln (PCR)
ergänzend zur EN 15804 für werksmäßig hergestellte und der Verwendungsstelle
hergestellte Produkte
Produits isolants thermiques - Déclarations environnementales des produits (DEP) -
Règles régissant les catégories de produits (RCP) complémentaires de l'EN 15804 pour
les produits manufacturés et formés en place
Ta slovenski standard je istoveten z: EN 16783:2024
ICS:
13.020.20 Okoljska ekonomija. Environmental economics.
Trajnostnost Sustainability
91.120.10 Toplotna izolacija stavb Thermal insulation of
buildings
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

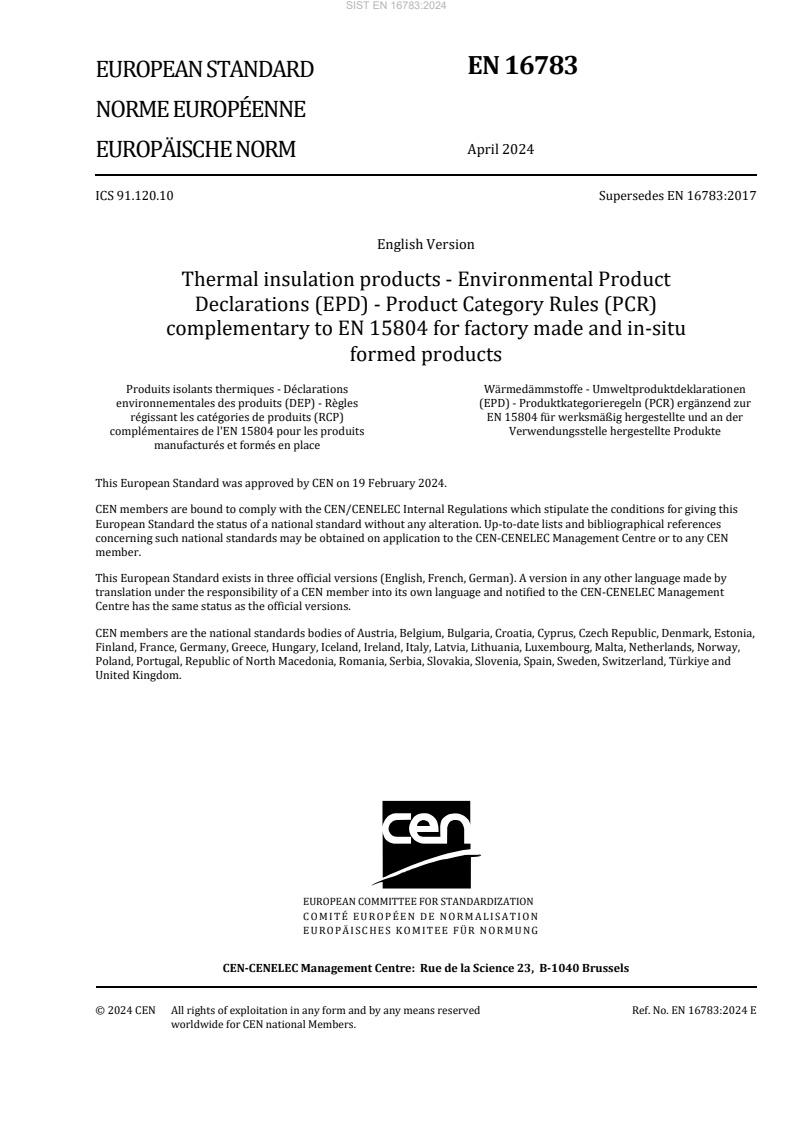

EN 16783
EUROPEAN STANDARD
NORME EUROPÉENNE
April 2024
EUROPÄISCHE NORM
ICS 91.120.10 Supersedes EN 16783:2017
English Version
Thermal insulation products - Environmental Product
Declarations (EPD) - Product Category Rules (PCR)
complementary to EN 15804 for factory made and in-situ
formed products
Produits isolants thermiques - Déclarations Wärmedämmstoffe - Umweltproduktdeklarationen
environnementales des produits (DEP) - Règles (EPD) - Produktkategorieregeln (PCR) ergänzend zur
régissant les catégories de produits (RCP) EN 15804 für werksmäßig hergestellte und an der
complémentaires de l'EN 15804 pour les produits Verwendungsstelle hergestellte Produkte
manufacturés et formés en place
This European Standard was approved by CEN on 19 February 2024.

CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this
European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references
concerning such national standards may be obtained on application to the CEN-CENELEC Management Centre or to any CEN
member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by
translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management
Centre has the same status as the official versions.

CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia,
Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway,
Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Türkiye and
United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION

EUROPÄISCHES KOMITEE FÜR NORMUNG

CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2024 CEN All rights of exploitation in any form and by any means reserved Ref. No. EN 16783:2024 E
worldwide for CEN national Members.

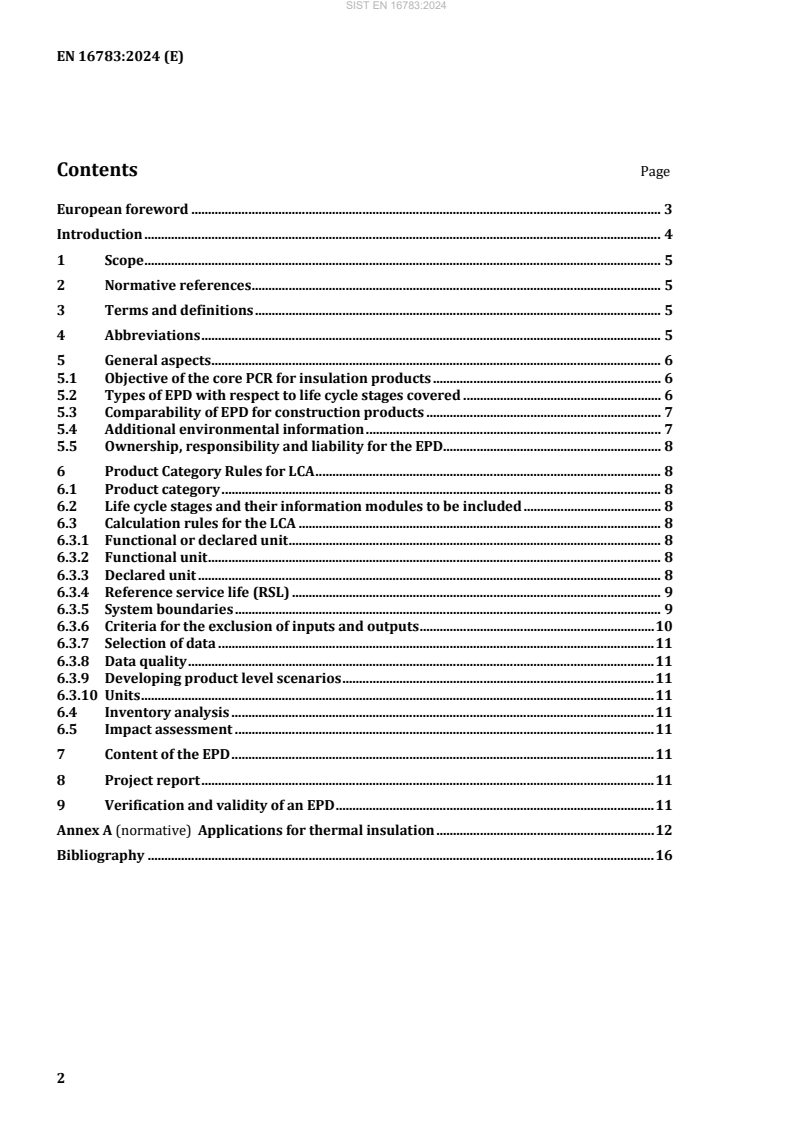

Contents Page
European foreword . 3
Introduction . 4
1 Scope . 5
2 Normative references . 5
3 Terms and definitions . 5
4 Abbreviations . 5
5 General aspects . 6
5.1 Objective of the core PCR for insulation products . 6
5.2 Types of EPD with respect to life cycle stages covered . 6
5.3 Comparability of EPD for construction products . 7
5.4 Additional environmental information . 7
5.5 Ownership, responsibility and liability for the EPD. 8
6 Product Category Rules for LCA . 8
6.1 Product category . 8
6.2 Life cycle stages and their information modules to be included . 8
6.3 Calculation rules for the LCA . 8
6.3.1 Functional or declared unit . 8
6.3.2 Functional unit . 8
6.3.3 Declared unit . 8
6.3.4 Reference service life (RSL) . 9
6.3.5 System boundaries . 9
6.3.6 Criteria for the exclusion of inputs and outputs . 10
6.3.7 Selection of data . 11
6.3.8 Data quality . 11
6.3.9 Developing product level scenarios . 11
6.3.10 Units . 11
6.4 Inventory analysis . 11
6.5 Impact assessment . 11
7 Content of the EPD . 11
8 Project report . 11
9 Verification and validity of an EPD . 11
Annex A (normative) Applications for thermal insulation . 12
Bibliography . 16
European foreword
This document (EN 16783:2024) has been prepared by Technical Committee CEN/TC 88 “Thermal
insulating materials and products”, the secretariat of which is held by DIN.
This European Standard shall be given the status of a national standard, either by publication of an
identical text or by endorsement, at the latest by October 2024, and conflicting national standards shall
be withdrawn at the latest by October 2024.
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. CEN shall not be held responsible for identifying any or all such patent rights.
This document supersedes EN 16783:2017.
In comparison with the previous edition EN 16783:2017, the following technical modifications have been
made:
a) modification of the title;
b) updated in relation to the latest revision of EN 15804:2012+A2:2019 .
Any feedback and questions on this document should be directed to the users’ national standards body.
A complete listing of these bodies can be found on the CEN website.
According to the CEN-CENELEC Internal Regulations, the national standards organisations of the
following countries are bound to implement this European Standard: Austria, Belgium, Bulgaria, Croatia,
Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland,
Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Republic of North
Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Türkiye and the United
Kingdom.
Introduction
This document provides rules for the assessment and quantification of parameters describing the
environmental impact of thermal insulation products to prepare environmental product declarations.
It defines complementary product category rules (PCR) for thermal insulation products based on the core
rules for all construction products established in EN 15804:2012+A2:2019 . These rules are intended to
be used in conjunction with EN 15804:2012+A2:2019 .
These PCR apply to all CEN/TC 88 thermal insulation product standards (EN 13162 to EN 13171,
EN 14063-1, EN 14064-1, EN 14303 to EN 14309, EN 14313, EN 14314, EN 14315-1 to EN 14320-1,
EN 14933, EN 14934, prEN 15100-1, EN 15101-1, EN 15501, EN 15599-1, EN 15600-1, EN 15732,
EN 16025-1, EN 16069, prEN 16491, EN 16809-1, EN 16863, EN 16977, EN 17140) in order to minimize
intra-sectoral deviations. These PCR are also valid for thermal insulation products outside of CEN/TC 88
and for thermal insulation products involved in other CEN/TCs.
As in EN 15804:2012+A2:2019 , the results from the assessment are expressed following the modularity
principle in a form that allows aggregation (addition) to provide complete information for construction
works. These PCR do not deal with aggregation at the construction works level nor does it describe the
rules for applying the environmental parameters in a construction works assessment.
The reduction in energy used and the reduction of emissions produced during the installed life of
insulation products exceed by far the energy used and in most cases the emissions occurring during the
production, installation and disposal processes. 5.4 of this document provides the rules for declaration of
any such benefits as additional information.
NOTE The titles of the clauses in this document follow EN 15804:2012+A2:2019 to enhance readability.
1 Scope
This document provides the product category rules (PCR) for Type III environmental declarations (as in
EN 15804:2012+A2:2019 ) for factory made and in situ thermal insulation products.
Complementary to EN 15804:2012+A2:2019 , the PCR described in this document:
— specify the declared unit to be used;
— define the system boundaries for thermal insulation products;
— specify/describe the default scenarios and rules for defining scenarios for certain life cycle
information modules.
These PCR are intended to be used for cradle to gate, cradle to gate with options or cradle to grave
assessment, provided the intention is properly stated in the system boundary description.
2 Normative references
The following documents are referred to in the text in such a way that some or all of their content
constitutes requirements of this document. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any amendments) applies.
EN 13172, Thermal insulation products — Evaluation of conformity
EN 15804:2012+A2:2019 , Sustainability of construction works — Environmental product declarations —
Core rules for the product category of construction products
EN 15941, Sustainability of construction works — Data quality for environmental assessment of products
and construction work — Selection and use of data
EN 15942, Sustainability of construction works — Environmental product declarations — Communication
format business-to-business
EN 15978, Sustainability of construction works — Assessment of environmental performance of buildings
— Calculation method
EN ISO 9229, Thermal insulation — Vocabulary (ISO 9229)
3 Terms and definitions
For the purposes of this document, the terms and definitions given in EN ISO 9229 and
EN 15804:2012+A2:2019 apply.
ISO and IEC maintain terminology databases for use in standardization at the following addresses:
— ISO Online browsing platform: available at https://www.iso.org/obp
— IEC Electropedia: available at https://www.electropedia.org/
4 Abbreviations
For the purpose of this document, the abbreviations given in EN ISO 9229, EN 15804:2012+A2:2019 and
the abbreviations given in Annex A apply.

As impacted by EN 15804:2012+A2:2019/AC:2021.
5 General aspects
5.1 Objective of the core PCR for insulation products
The objective is as in EN 15804:2012+A2:2019 and the Scope of this document.
5.2 Types of EPD with respect to life cycle stages covered
These PCRs identify two main families of EPDs:
1) EPDs for factory made thermal insulation products;
2) EPDs for in situ thermal insulation products including installation.
To be in compliance with this document, the mandatory and voluntary product stages to be declared for
both families are described in Figure 1. This table applies as well for factory made thermal insulation
products, that have their applicable technical characteristics (e.g. thermal resistance) at the factory gate
as well as for in situ formed thermal insulation products that establish their applicable technical
characteristics after activities on site.
For an EPD type “Cradle to gate with options” the declaration of modules A4, “Transport” and A5
“Installation” of the construction process stage is optional. Also, the modules B1 to B7 covering the use
phase are optional. The declaration of the modules of the other life cycle stages is mandatory.
For an EPD type “Cradle to grave” all modules are mandatory.
For each of these EPD, mandatory and voluntary stages are described as in Figure 1.

Key
m Mandatory
o Optional
i Mandatory provision of scenario description and technical information
Figure 1 — Modules applicable for factory made and in situ products (including installation)
5.3 Comparability of EPD for construction products
In principle, the comparison of products on the basis of their EPD is defined by the contribution they
make to the environmental performance of the construction works. The comparison of the environmental
performance of construction products using the EPD information should meet both the required
functional and technical requirements. In some cases, construction products are not functionally
equivalent; if so, the EPDs could be still used, not to compare but to evaluate the environmental
performance and its impacts on the construction works, and shall consider the complete life cycle (all
information modules). End use applications are defined in Annex A. Cradle to grave analyses can describe
all relevant requirements for the end-use application of the product.
The main purpose of incorporating thermal insulation products is to reduce the energy consumption in
the use stage of buildings. Since the reduction of the environmental impacts due to energy savings during
the use stage is in most cases much higher than the environmental impacts of the insulation products
themselves, focus on good performance on building level during use is more important than comparing
insulation products.
5.4 Additional environmental information
Additional environmental information shall be as in EN 15804:2012+A2:2019 and Annex A of this
document.
If benefits of thermal insulation products due to energy saving during the installed life are reported in
relation to the environmental performance of a building, they shall be reported as additional information.
The environmental impacts shall be calculated using EN 15978. The benefit is the difference between the
impacts of at least two thermal insulation performances for the same building considered over the whole
life cycle. The scenarios shall be fully described in the EPD and sufficient information given to the verifier
to verify this.
5.5 Ownership, responsibility and liability for the EPD
The ownership, responsibility and liability for the EPD shall be as in EN 15804:2012+A2:2019
Communication formats.
The communication format of the EPD shall be in accordance with EN 15942.
6 Product Category Rules for LCA
6.1 Product category
The product category referred to in this document includes all the thermal insulation products.
6.2 Life cycle stages and their information modules to be included
The life cycle stages shall be as in EN 15804:2012+A2:2019 and in addition 5.2 of this document.
6.3 Calculation rules for the LCA
6.3.1 Functional or declared unit
The functional or declared unit shall be as in EN 15804:2012+A2:2019 .
6.3.2 Functional unit
The functional unit shall be as in EN 15804:2012+A2:2019 and in addition 5.2 of this document, a
functional unit shall contain the thermal resistance (R-value) for the applications as listed in Annex A. If
the thermal resistance (R-value) is not relevant for a specific building equipment or a specific civil
engineer
...
