Paints and varnishes - Determination of pigment content - Part 2: Ashing method (ISO 14680-2:2000)

This part of ISO 14680 specifies a test  method for determining the pigment content  of paints in which the product under test is  ashed. The method is not applicable to  coating materials containing organic  pigments and/or dyestuffs and inorganic  pigments treated with organic compounds.  These treatment compounds, which could  be about 10 % of the pigment, will be lost  during ashing. Since the mass of many  pigments and extenders changes under the  specified test conditions, it will depend on  the composition and the chosen ashing  temperature whether the actual pigment  content of the product under test can be  deduced from the pigment content found by  this method. The pigment content of coating  materials can also be determined by a  centrifuge method (see EN ISO 14680- 1) or by a filtration method (see EN ISO  14680-3).

Beschichtungsstoffe - Bestimmung des Pigmentgehaltes - Teil 2: Veraschungsverfahren (ISO 14680-2:2000)

Peintures et vernis - Détermination de la teneur en pigment - Partie 2: Méthode par calcination (ISO 14680-2:2000)

L'ISO 14680-2:2000 fait partie d'une série de normes traitant de l'échantillonnage et des essais des peintures, vernis et produits assimilés.
Elle spécifie une méthode pour déterminer la teneur en pigments des peintures, dans laquelle le produit soumis à essai est calciné. La méthode n'est pas applicable aux matériaux de revêtement contenant de l'aluminium, des pigments organiques et/ou des colorants ou pigments inorganiques traités avec des composés organiques. De tels composants, qui peuvent représenter environ dix pour cent de la composition du pigment, seront détruits lors de la calcination.
Comme l'état de nombreux pigments et matières de charge est modifié dans les conditions d'essai spécifiées, le fait qu'il soit possible ou non de déduire la teneur réelle en pigments du produit soumis à essai à partir de sa teneur apparente en pigments, déterminée en utilisant cette méthode, dépendra de la composition et de la température de calcination.
Cette méthode ne convient pas généralement dans le cas de peintures et vernis UV, et de peintures ou vernis contenant des diluants réactifs nécessitant des conditions de chauffage spéciales.
La teneur en pigments des matériaux de revêtement peut également être déterminée en utilisant une méthode par centrifugation (voir l'ISO 14680-1) ou par filtration (voir l'ISO 14680-3).

Barve in laki – Določevanje pigmenta – 2. del: Žarilna metoda (ISO 14680-1:2000)

General Information

Status
Published
Publication Date
07-Feb-2006
Withdrawal Date
30-Aug-2006
ICS
87.060.10 - Pigments and extenders
Technical Committee
CEN/TC 139 - Paints and varnishes
Drafting Committee
CEN/TC 139 - Paints and varnishes
Current Stage
6060 - Definitive text made available (DAV) - Publishing
Start Date
08-Feb-2006
Due Date
12-Sep-2006
Completion Date
08-Feb-2006
Ref Project
SIST EN ISO 14680-2:2006 - Paints and varnishes - Determination of pigment content - Part 2: Ashing method (ISO 14680-2:2000)

Relations

Refers
ISO 1513:1992 - Paints and varnishes - Examination and preparation of samples for testing
Effective Date
09-Feb-2026

Overview

EN ISO 14680-2:2006 is a European and international standard titled "Paints and varnishes - Determination of pigment content - Part 2: Ashing method (ISO 14680-2:2000)". This standard specifies a standardized procedure to measure the pigment content in paints and varnishes using the ashing method. It is part of a series of standards focused on testing and sampling of paints and varnishes, prepared by ISO/TC 35 and adopted by CEN. The ashing method involves removing binders and volatile components by heating to leave inorganic pigments and extenders for measurement.

Key Topics

  • Scope and Applicability
    EN ISO 14680-2:2006 applies to paints and varnishes where pigment content needs to be determined accurately through ashing. It excludes materials containing aluminium, organic pigments, dyestuffs, or inorganic pigments treated with organics, which are partly lost during ashing. This method is generally unsuitable for UV paints or those with reactive diluents.

  • Testing Principle
    The method involves evaporating solvents, then ashing the residue at temperatures between 600 °C and 900 °C (or at 450 °C in the presence of carbonates). The remaining ash mass corresponds to the pigment content, including extenders and inorganic solids that are non-volatile at the test temperature.

  • Apparatus Needed

    • Porcelain crucibles
    • Drying oven with controlled ventilation at 80±2 °C
    • Muffle furnace or fast incinerator for ashing
    • Analytical balance with 0.001 g precision
    • Crucible tongs and desiccator

  • Procedure Summary

    1. Heat crucible to constant mass and weigh.
    2. Add ~2 g of test paint, evaporate solvents at 80 °C.
    3. Ash the sample to remove organics, typically around 2 hours.
    4. Cool and weigh the crucible with ash residue until mass is stable.
    5. Calculate pigment content as a percentage of the original sample mass.

  • Precision and Reliability

    • Repeatability is ±2% between duplicate tests by the same operator/lab.
    • Reproducibility is ±4% between different labs.
    • Results differing by more than 0.5% relative to the mean require retesting.

Applications

EN ISO 14680-2:2006 is invaluable for industries and laboratories involved in the quality control and formulation of paints, coatings, and varnishes. Accurate pigment content determination enables:

  • Quality assurance of product consistency
  • Regulatory compliance for pigment concentration limits
  • Formulation development by quantifying pigment load
  • Comparative analysis of raw materials and finished products
  • Research and product innovation relating to coatings performance

It supports professionals in ensuring that paints and varnishes meet the required specifications for opacity, color strength, and durability relating to pigment levels.

Related Standards

This standard is part of the ISO 14680 series addressing pigment content measurement:

  • ISO 14680-1: Centrifuge method for pigment content determination
  • ISO 14680-3: Filtration method for pigment content determination

Additionally, sample preparation and testing reference the following international standards:

  • ISO 1513: Examination and preparation of paint samples for testing
  • ISO 15528: Sampling procedures for paints and varnishes

Together, these standards provide a comprehensive framework for sampling and assessing the pigment content in coating materials with different techniques suited to various product types.

By adhering to EN ISO 14680-2:2006, testing laboratories and manufacturers can achieve precise, reproducible measurement of pigment content, critical for product quality and performance in the coatings industry.

Frequently Asked Questions

EN ISO 14680-2:2006 is a standard published by the European Committee for Standardization (CEN). Its full title is "Paints and varnishes - Determination of pigment content - Part 2: Ashing method (ISO 14680-2:2000)". This standard covers: This part of ISO 14680 specifies a test method for determining the pigment content of paints in which the product under test is ashed. The method is not applicable to coating materials containing organic pigments and/or dyestuffs and inorganic pigments treated with organic compounds. These treatment compounds, which could be about 10 % of the pigment, will be lost during ashing. Since the mass of many pigments and extenders changes under the specified test conditions, it will depend on the composition and the chosen ashing temperature whether the actual pigment content of the product under test can be deduced from the pigment content found by this method. The pigment content of coating materials can also be determined by a centrifuge method (see EN ISO 14680- 1) or by a filtration method (see EN ISO 14680-3).

This part of ISO 14680 specifies a test method for determining the pigment content of paints in which the product under test is ashed. The method is not applicable to coating materials containing organic pigments and/or dyestuffs and inorganic pigments treated with organic compounds. These treatment compounds, which could be about 10 % of the pigment, will be lost during ashing. Since the mass of many pigments and extenders changes under the specified test conditions, it will depend on the composition and the chosen ashing temperature whether the actual pigment content of the product under test can be deduced from the pigment content found by this method. The pigment content of coating materials can also be determined by a centrifuge method (see EN ISO 14680- 1) or by a filtration method (see EN ISO 14680-3).

EN ISO 14680-2:2006 is classified under the following ICS (International Classification for Standards) categories: 87.060.10 - Pigments and extenders. The ICS classification helps identify the subject area and facilitates finding related standards.

EN ISO 14680-2:2006 has the following relationships with other standards: It is inter standard links to ISO 1513:1992. Understanding these relationships helps ensure you are using the most current and applicable version of the standard.

EN ISO 14680-2:2006 is available in PDF format for immediate download after purchase. The document can be added to your cart and obtained through the secure checkout process. Digital delivery ensures instant access to the complete standard document.

Standards Content (Sample)


SLOVENSKI STANDARD
01-april-2006
%DUYHLQODNL±'RORþHYDQMHSLJPHQWD±GHOäDULOQDPHWRGD ,62
Paints and varnishes - Determination of pigment content - Part 2: Ashing method (ISO
14680-2:2000)
Beschichtungsstoffe - Bestimmung des Pigmentgehaltes - Teil 2: Veraschungsverfahren
(ISO 14680-2:2000)
Peintures et vernis - Détermination de la teneur en pigment - Partie 2: Méthode par
calcination (ISO 14680-2:2000)
Ta slovenski standard je istoveten z: EN ISO 14680-2:2006
ICS:
87.060.10 Pigmenti in polnila Pigments and extenders
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

EUROPEAN STANDARD
EN ISO 14680-2
NORME EUROPÉENNE
EUROPÄISCHE NORM
February 2006
ICS 87.060.10
English Version
Paints and varnishes - Determination of pigment content - Part
2: Ashing method (ISO 14680-2:2000)
Peintures et vernis - Détermination de la teneur en pigment Beschichtungsstoffe - Bestimmung des Pigmentgehaltes -
- Partie 2: Méthode par calcination (ISO 14680-2:2000) Teil 2: Veraschungsverfahren (ISO 14680-2:2000)
This European Standard was approved by CEN on 16 January 2006.
CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European
Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such national
standards may be obtained on application to the Central Secretariat or to any CEN member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation
under the responsibility of a CEN member into its own language and notified to the Central Secretariat has the same status as the official
versions.
CEN members are the national standards bodies of Austria, Belgium, Cyprus, Czech Republic, Denmark, Estonia, Finland, France,
Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania,
Slovakia, Slovenia, Spain, Sweden, Switzerland and United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION
EUROPÄISCHES KOMITEE FÜR NORMUNG
Management Centre: rue de Stassart, 36  B-1050 Brussels
© 2006 CEN All rights of exploitation in any form and by any means reserved Ref. No. EN ISO 14680-2:2006: E
worldwide for CEN national Members.

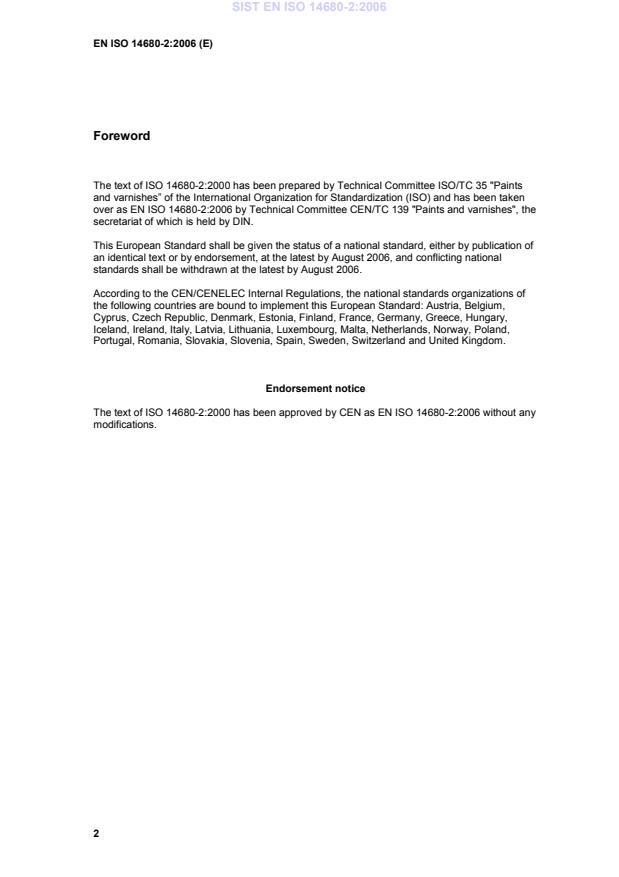

Foreword
The text of ISO 14680-2:2000 has been prepared by Technical Committee ISO/TC 35 "Paints
and varnishes” of the International Organization for Standardization (ISO) and has been taken
over as EN ISO 14680-2:2006 by Technical Committee CEN/TC 139 "Paints and varnishes", the
secretariat of which is held by DIN.

This European Standard shall be given the status of a national standard, either by publication of
an identical text or by endorsement, at the latest by August 2006, and conflicting national
standards shall be withdrawn at the latest by August 2006.

According to the CEN/CENELEC Internal Regulations, the national standards organizations of
the following countries are bound to implement this European Standard: Austria, Belgium,
Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary,
Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland,
Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland and United Kingdom.

Endorsement notice
The text of ISO 14680-2:2000 has been approved by CEN as EN ISO 14680-2:2006 without any
modifications.
INTERNATIONAL ISO
STANDARD 14680-2
First edition
2000-04-01
Paints and varnishes — Determination of
pigment content —
Part 2:
Ashing method
Peintures et vernis — Détermination de la teneur en pigment —
Partie 2: Méthode par calcination
Reference number
ISO 14680-2:2000(E)
©
ISO 2000
ISO 14680-2:2000(E)
PDF disclaimer
This PDF file may contain embedded typefaces. In accordance with Adobe's licensing policy, this file may be printed or viewed but shall not
be edited unless the typefaces which are embedded are licensed to and installed on the computer performing the editing. In downloading this
file, parties accept therein the responsibility of not infringing Adobe's licensing policy. The ISO Central Secretariat accepts no liability in this
area.
Adobe is a trademark of Adobe Systems Incorporated.
Details of the software products used to create this PDF file can be found in the General Info relative to the file; the PDF-creation parameters
were optimized for printing. Every care has been taken to ensure that the file is suitable for use by ISO member bodies. In the unlikely event
that a problem relating to it is found, please inform the Central Secretariat at the address given below.
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form or by any means, electronic
or mechanical, including photocopying and microfilm, without permission in writing from either ISO at the address below or ISO's member body
in the country of the requester.
ISO copyright office
Case postale 56 � CH-1211 Geneva 20
Tel. + 41 22 749 01 11
Fax + 41 22 734 10 79
E-mail copyright@iso.ch
Web www.iso.ch
Printed in Switzerland
ii © ISO 2000 – All rights reserved

ISO 14680-2:2000(E)
Contents
Foreword.iv
1 Scope .1
2 Normative references .1
3 Term and definition .1
4 Principle.2
5 Apparatus .2
6 Sampling.2
7 Procedure .2
8 Expression of results .3
9 Precision.3
10 Test report .3
ISO 14680-2:2000(E)
Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards bodies (ISO
member bodies). The work of preparing International Standards is normally carried out through ISO technical
committees. Each member b
...
