Paints and varnishes - Determination of pigment content - Part 1: Centrifuge method (ISO 14680-1:2000)

This part of ISO 14680 specifies a test  method for determining the pigment content  of paints in which the solids are sedimented  by centrifugation. It is primarily intended for  checking the composition during the  production of coating materials and as an  acceptance check for the coating material  user. It cannot be applied to coating  materials containing dyestuffs, carbon black  or very finely divided silicon dioxide and very  finely divided titanium dioxide, nor to  emulsion paints. The pigment content of  coating materials can also be determined  by an ashing method (see EN ISO  14680-2) and by a filtration method (see EN ISO 14680-3).

Beschichtungsstoffe - Bestimmung des Pigmentgehaltes - Teil 1: Zentrifugenverfahren (ISO 14680-1:2000)

Peintures et vernis - Détermination de la teneur en pigment - Partie 1: Méthode par centrifugation (ISO 14680-1:2000)

L'ISO 14680-1:2000 fait partie d'une série de normes traitant de l'échantillonnage et des essais des peintures, vernis et produits assimilés.
Elle spécifie une méthode pour déterminer la teneur en pigments des peintures, dans laquelle les solides sont sédimentés par centrifugation.
Elle est tout d'abord destinée à vérifier la composition pendant la production des matériaux de revêtement, et à faciliter le contrôle réception pour l'utilisateur du matériau de revêtement. Des difficultés peuvent apparaître lorsque la méthode est appliquée à des matériaux de revêtement contenant des colorants, du noir de carbone, du dioxyde de silicium très finement fractionné ou du dioxyde de titane très finement fractionné. Elle peut ne pas être appropriée pour les peintures émulsions.
La teneur en pigments des matériaux de revêtement peut également être déterminée au moyen d'une méthode par calcination (voir l'ISO 14680-2) ou d'une méthode par filtration (voir l'ISO 14680-3).

Barve in laki – Določevanje pigmenta – 1. del: Centrifugalna metoda (ISO 14680-1:2000)

General Information

Status
Published
Publication Date
07-Feb-2006
Withdrawal Date
30-Aug-2006
ICS
87.060.10 - Pigments and extenders
Technical Committee
CEN/TC 139 - Paints and varnishes
Drafting Committee
CEN/TC 139 - Paints and varnishes
Current Stage
6060 - Definitive text made available (DAV) - Publishing
Start Date
08-Feb-2006
Due Date
12-Sep-2006
Completion Date
08-Feb-2006
Ref Project
SIST EN ISO 14680-1:2006 - Paints and varnishes - Determination of pigment content - Part 1: Centrifuge method (ISO 14680-1:2000)

Relations

Refers
ISO 1513:1992 - Paints and varnishes - Examination and preparation of samples for testing
Effective Date
09-Feb-2026

Overview

EN ISO 14680-1:2006 - Paints and varnishes: Determination of pigment content - Part 1: Centrifuge method specifies a laboratory test method to determine the pigment (and extender) content of coating materials by sedimenting the solids with a centrifuge. Published by CEN as an endorsed version of ISO 14680-1:2000, this standard is intended primarily for production control and acceptance testing of solvent- and some water‑dilutable paints (it may be unsuitable for emulsion paints and certain finely divided or coloured materials).

Key topics and requirements

  • Scope and principle: Dilute a representative test portion with a suitable solvent, separate insoluble solids by centrifugation, dry the sediment and calculate pigment content by mass.
  • Apparatus: laboratory centrifuge (balanced swivelling buckets) capable of 250 000 RPM-equivalent centrifugal acceleration (25 000 g), centrifuge tubes (e.g., 50 ml), polished-ball stirrer, forced‑air drying oven at (125 ± 2) °C, analytical balance (0.001 g) and desiccator.
  • Test portions and solvent volumes: Example table entries - 50 ml tube: 10 ± 0.2 g sample + ~20 ml solvent; 100 ml tube: 15 ± 0.3 g sample + ~40 ml solvent.
  • Procedure highlights:
    • Prepare representative samples per ISO 15528 and ISO 1513.
    • Dissolve binder with appropriate solvent (e.g., xylene for solvent‑soluble, butylglycol for water‑dilutable).
    • Centrifuge until supernatant is nearly clear (typically ~20 min), decant, resuspend and repeat 2–4 times.
    • Dry to constant mass at 125 °C, cool in a desiccator and weigh.
  • Calculation: Pigment content (%) = (m2 − m0) / (m1 − m0) × 100, where m0 = mass of empty tube, m1 = mass of tube + test portion, m2 = mass of tube + dried residue.
  • Precision: For ~30% pigment content - repeatability r = 2% (95% probability, same lab/operator); reproducibility R = 4% (different labs).
  • Test report must include product identification, reference to EN ISO 14680-1, solvent used, individual and mean results, deviations from the method and test date.

Applications

  • Quality control during paint and varnish production to monitor pigment/load levels.
  • Incoming inspection and acceptance testing by paint formulators, converters, and specifiers.
  • Laboratory verification when comparing formulations or troubleshooting pigment dispersion and solids content.
  • Note: exercise caution with samples containing dyestuffs, carbon black, very finely divided SiO2 or TiO2.

Related standards

  • ISO 14680-2 - Ashing method for pigment content.
  • ISO 14680-3 - Filtration method for pigment content.
  • Normative references used: ISO 1513 (sample preparation) and ISO 15528 (sampling).

Keywords: EN ISO 14680-1:2006, pigment content, centrifuge method, paints and varnishes, test method, pigments and extenders, laboratory centrifuge, paint quality control.

Frequently Asked Questions

EN ISO 14680-1:2006 is a standard published by the European Committee for Standardization (CEN). Its full title is "Paints and varnishes - Determination of pigment content - Part 1: Centrifuge method (ISO 14680-1:2000)". This standard covers: This part of ISO 14680 specifies a test method for determining the pigment content of paints in which the solids are sedimented by centrifugation. It is primarily intended for checking the composition during the production of coating materials and as an acceptance check for the coating material user. It cannot be applied to coating materials containing dyestuffs, carbon black or very finely divided silicon dioxide and very finely divided titanium dioxide, nor to emulsion paints. The pigment content of coating materials can also be determined by an ashing method (see EN ISO 14680-2) and by a filtration method (see EN ISO 14680-3).

This part of ISO 14680 specifies a test method for determining the pigment content of paints in which the solids are sedimented by centrifugation. It is primarily intended for checking the composition during the production of coating materials and as an acceptance check for the coating material user. It cannot be applied to coating materials containing dyestuffs, carbon black or very finely divided silicon dioxide and very finely divided titanium dioxide, nor to emulsion paints. The pigment content of coating materials can also be determined by an ashing method (see EN ISO 14680-2) and by a filtration method (see EN ISO 14680-3).

EN ISO 14680-1:2006 is classified under the following ICS (International Classification for Standards) categories: 87.060.10 - Pigments and extenders. The ICS classification helps identify the subject area and facilitates finding related standards.

EN ISO 14680-1:2006 has the following relationships with other standards: It is inter standard links to ISO 1513:1992. Understanding these relationships helps ensure you are using the most current and applicable version of the standard.

EN ISO 14680-1:2006 is available in PDF format for immediate download after purchase. The document can be added to your cart and obtained through the secure checkout process. Digital delivery ensures instant access to the complete standard document.

Standards Content (Sample)

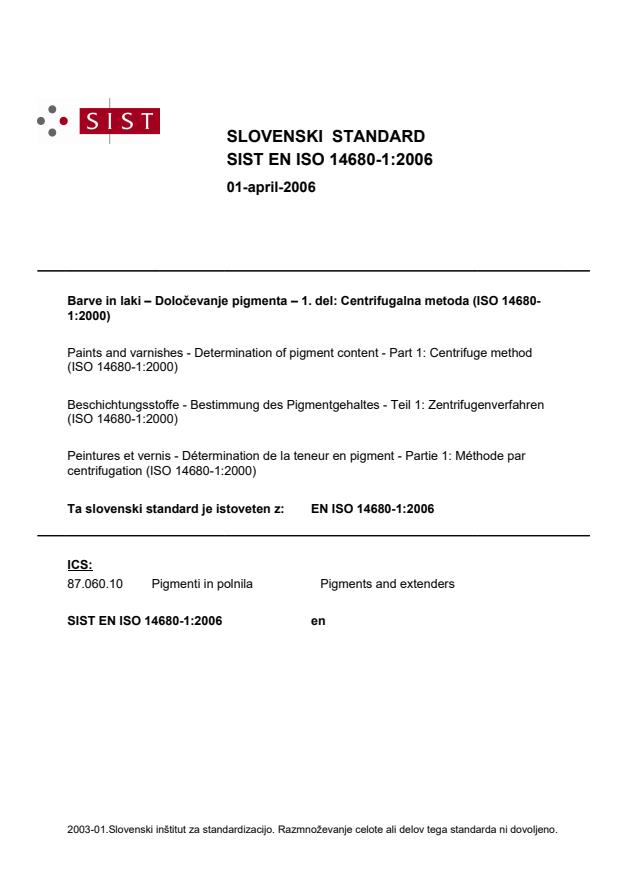

SLOVENSKI STANDARD
01-april-2006
%DUYHLQODNL±'RORþHYDQMHSLJPHQWD±GHO&HQWULIXJDOQDPHWRGD ,62

Paints and varnishes - Determination of pigment content - Part 1: Centrifuge method
(ISO 14680-1:2000)
Beschichtungsstoffe - Bestimmung des Pigmentgehaltes - Teil 1: Zentrifugenverfahren
(ISO 14680-1:2000)
Peintures et vernis - Détermination de la teneur en pigment - Partie 1: Méthode par
centrifugation (ISO 14680-1:2000)
Ta slovenski standard je istoveten z: EN ISO 14680-1:2006
ICS:
87.060.10 Pigmenti in polnila Pigments and extenders
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

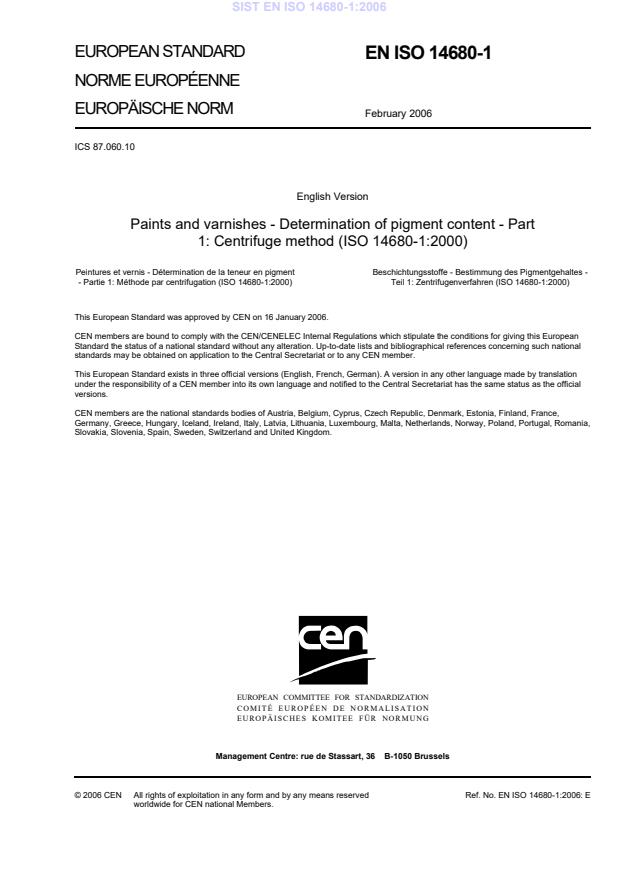

EUROPEAN STANDARD
EN ISO 14680-1
NORME EUROPÉENNE
EUROPÄISCHE NORM
February 2006
ICS 87.060.10
English Version
Paints and varnishes - Determination of pigment content - Part
1: Centrifuge method (ISO 14680-1:2000)
Peintures et vernis - Détermination de la teneur en pigment Beschichtungsstoffe - Bestimmung des Pigmentgehaltes -
- Partie 1: Méthode par centrifugation (ISO 14680-1:2000) Teil 1: Zentrifugenverfahren (ISO 14680-1:2000)
This European Standard was approved by CEN on 16 January 2006.
CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European
Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such national
standards may be obtained on application to the Central Secretariat or to any CEN member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation
under the responsibility of a CEN member into its own language and notified to the Central Secretariat has the same status as the official
versions.
CEN members are the national standards bodies of Austria, Belgium, Cyprus, Czech Republic, Denmark, Estonia, Finland, France,
Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania,
Slovakia, Slovenia, Spain, Sweden, Switzerland and United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION
EUROPÄISCHES KOMITEE FÜR NORMUNG
Management Centre: rue de Stassart, 36  B-1050 Brussels
© 2006 CEN All rights of exploitation in any form and by any means reserved Ref. No. EN ISO 14680-1:2006: E
worldwide for CEN national Members.

Foreword
The text of ISO 14680-1:2000 has been prepared by Technical Committee ISO/TC 35 "Paints
and varnishes” of the International Organization for Standardization (ISO) and has been taken
over as EN ISO 14680-1:2006 by Technical Committee CEN/TC 139 "Paints and varnishes", the
secretariat of which is held by DIN.

This European Standard shall be given the status of a national standard, either by publication of
an identical text or by endorsement, at the latest by August 2006, and conflicting national
standards shall be withdrawn at the latest by August 2006.

According to the CEN/CENELEC Internal Regulations, the national standards organizations of
the following countries are bound to implement this European Standard: Austria, Belgium,
Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary,
Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland,
Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland and United Kingdom.

Endorsement notice
The text of ISO 14680-1:2000 has been approved by CEN as EN ISO 14680-1:2006 without any
modifications.
INTERNATIONAL ISO
STANDARD 14680-1
First edition
2000-04-01
Paints and varnishes — Determination of
pigment content —
Part 1:
Centrifuge method
Peintures et vernis — Détermination de la teneur en pigment —
Partie 1: Méthode par centrifugation
Reference number
ISO 14680-1:2000(E)
©
ISO 2000
ISO 14680-1:2000(E)
PDF disclaimer
This PDF file may contain embedded typefaces. In accordance with Adobe's licensing policy, this file may be printed or viewed but shall not
be edited unless the typefaces which are embedded are licensed to and installed on the computer performing the editing. In downloading this
file, parties accept therein the responsibility of not infringing Adobe's licensing policy. The ISO Central Secretariat accepts no liability in this
area.
Adobe is a trademark of Adobe Systems Incorporated.
Details of the software products used to create this PDF file can be found in the General Info relative to the file; the PDF-creation parameters
were optimized for printing. Every care has been taken to ensure that the file is suitable for use by ISO member bodies. In the unlikely event
that a problem relating to it is found, please inform the Central Secretariat at the address given below.
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form or by any means, electronic
or mechanical, including photocopying and microfilm, without permission in writing from either ISO at the address below or ISO's member body
in the country of the requester.
ISO copyright office
Case postale 56 � CH-1211 Geneva 20
Tel. + 41 22 749 01 11
Fax + 41 22 734 10 79
E-mail copyright@iso.ch
Web www.iso.ch
Printed in Switzerland
ii © ISO 2000 – All rights reserved

ISO 14680-1:2000(E)
Contents
1 Scope .1
2 Normative references .1
3 Term and definition .1
4 Principle.2
5 Apparatus .2
6 Sampling.2
7 Procedure .2
8 Expression of results .3
9 Precision.3
10 Test report .4
ISO 14680-1:2000(E)
Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards bodies (ISO
member bodies). The work of preparing International Standards is normally carried out through ISO technical
committees. Each member body interested in a subject for which a technical committee has been established has
the right to be represented on that committee. International organizations, governmental and non-governmental, in
liaison with ISO, also take part in the work. ISO collaborates closely with the International Electrotechnical
Commission (IEC) on all matters of electrotechnical standardization.
International Standards are drafted in accordance with the rules given in the ISO/IEC Directives, Part 3.
Draft International Standards adopted by the technical committees are circulated to the member bodies for voting.
Publication as an International Standard requires approval by at least 75 % of the member bodies casting a vote.
Attention is drawn to the possibility that some of the el
...
