EN ISO 14680-3:2006
(Main)Paints and varnishes - Determination of pigment content - Part 3: Filtration method (ISO 14680-3:2000)
Paints and varnishes - Determination of pigment content - Part 3: Filtration method (ISO 14680-3:2000)
This part of ISO 14680 specifies a test method for determining the pigment content of paints in which the solids are filtered off. The method is particular applicable to coating materials containing carbon black, very finely divided silicon dioxide, very finely titanium dioxide, organic pigments or polymer dispersions. It is not aplicable to water-diltuable paints because the whole binder will coagulte it the potassium hydroxide solution is added. That means that the pigment and binder will be filtered and the result is a mixture of both. The pigment content of coating materials can also be determined by a centrifuge method (see EN ISO 14680-1) or an ashing method (see EN ISO 14680-2).
Beschichtungsstoffe - Bestimmung des Pigmentgehaltes - Teil 3: Filtrationsverfahren (ISO 14680-3:2000)
Peintures et vernis - Détermination de la teneur en pigment - Partie 3: Méthode par filtration (ISO 14680-3:2000)
L'ISO 14680-3:2000 fait partie d'une série de normes traitant de l'échantillonnage et des essais des peintures, vernis et produits assimilés.
Elle spécifie une méthode pour déterminer la teneur en pigments des peintures, méthode dans laquelle on ajoute une solution d'hydroxyde de potassium pour coaguler le pigment et dans laquelle on filtre les parties solides qui en résultent. La méthode est notamment applicable aux matériaux de revêtement contenant du noir de carbone, du dioxyde de silicium très finement fractionné, du dioxyde de titane très finement fractionné, des pigments organiques ou des dispersions de polymères. Elle n'est pas applicable aux peintures solubles dans l'eau en raison de la coagulation complète du liant lors de l'ajout de la solution d'hydroxyde de potassium.
La teneur en pigments des matériaux de revêtement peut également être déterminée en utilisant une méthode par centrifugation (voir l'ISO 14680-1) ou par calcination (voir l'ISO 14680-2).
Barve in laki – Določevanje pigmenta – 3. del: Filtracijska metoda (ISO 14680-1:2000)
General Information
- Status
- Published
- Publication Date
- 07-Feb-2006
- Withdrawal Date
- 30-Aug-2006
- Technical Committee
- CEN/TC 139 - Paints and varnishes
- Drafting Committee
- CEN/TC 139 - Paints and varnishes
- Current Stage
- 6060 - Definitive text made available (DAV) - Publishing
- Start Date
- 08-Feb-2006
- Due Date
- 12-Sep-2006
- Completion Date
- 08-Feb-2006
Relations
- Effective Date
- 09-Feb-2026
Overview
EN ISO 14680-3:2006 - Paints and varnishes: Determination of pigment content - Part 3: Filtration method (ISO 14680-3:2000) specifies a standardized filtration procedure to determine the pigment (and other solid) content of coating materials. The method coagulates pigment with a methanolic potassium hydroxide solution, filters the solids on a pre-weighed filter crucible containing a bed of filtering aid, dries and weighs the residue, and calculates pigment content by mass percentage.
Key topics and technical requirements
- Scope and applicability
- Applicable to paints and varnishes that tolerate KOH-induced coagulation (particularly useful for coatings containing carbon black, very finely divided SiO2, TiO2, organic pigments or polymer dispersions).
- Not generally suitable for many water-dilutable paints (whole binder may coagulate).
- Principle
- Dilute sample with suitable organic solvent, add methanolic KOH (c = 1 mol/L) to coagulate solids, filter through a glass filter crucible with filtering aid, dry at 105 ± 2 °C, and weigh residue.
- Required apparatus and materials
- G3 glass filter crucible (pore size 15–40 µm) with a bed of filtering aid (e.g., diatomaceous earth)
- 50 ml wide-neck conical flask with PTFE stopper, suction flask and adapter, measuring cylinder, 5 ml safety pipette
- Drying oven with forced horizontal ventilation capable of 105 ± 2 °C; analytical balance to 0.001 g; desiccator
- Reagents: methanol (analytical grade), methanolic KOH (1 mol/L), suitable organic solvent
- Test procedure essentials
- Prepare and weigh filter crucible with filtering aid (10 g suspended, dried 1 h at 105 °C)
- Duplicate determinations: weigh 1–2 g test portion, add 20 ml organic solvent, add 1.5 ml methanolic KOH, wait 5 min, filter, rinse, wash solids with methanol, dry to constant mass and weigh
- Calculate pigment content: (m3 − m1) / m2 × 100 (m1 = crucible mass; m2 = test portion mass; m3 = crucible + solids mass)
- Precision
- Repeatability (r): 0.5% (absolute) for duplicates by one operator in one lab
- Reproducibility (R): 1% (absolute) between laboratories
- Reporting
- Include product identity, reference to ISO 14680-3, solvent used, individual and mean results, deviations, and test date
Applications and users
- Who uses it
- Laboratory analysts, quality control technicians, paint formulators, raw material suppliers, R&D teams, and conformity assessment bodies in the coatings industry.
- Practical uses
- Routine QC of pigment and filler loading in paints and varnishes
- Verification of batch composition, troubleshooting coating performance issues linked to pigment content (opacity, tint strength, rheology)
- Comparative testing where centrifuge or ashing methods are unsuitable
Related standards
- ISO 14680-1: Centrifuge method (alternative)
- ISO 14680-2: Ashing method (alternative)
- ISO 1513: Sample preparation and examination
- ISO 15528: Sampling of paints and varnishes
Keywords: EN ISO 14680-3:2006, pigment content, filtration method, paints and varnishes, methanolic potassium hydroxide, filtering aid, filter crucible, precision, repeatability, reproducibility.
Frequently Asked Questions
EN ISO 14680-3:2006 is a standard published by the European Committee for Standardization (CEN). Its full title is "Paints and varnishes - Determination of pigment content - Part 3: Filtration method (ISO 14680-3:2000)". This standard covers: This part of ISO 14680 specifies a test method for determining the pigment content of paints in which the solids are filtered off. The method is particular applicable to coating materials containing carbon black, very finely divided silicon dioxide, very finely titanium dioxide, organic pigments or polymer dispersions. It is not aplicable to water-diltuable paints because the whole binder will coagulte it the potassium hydroxide solution is added. That means that the pigment and binder will be filtered and the result is a mixture of both. The pigment content of coating materials can also be determined by a centrifuge method (see EN ISO 14680-1) or an ashing method (see EN ISO 14680-2).
This part of ISO 14680 specifies a test method for determining the pigment content of paints in which the solids are filtered off. The method is particular applicable to coating materials containing carbon black, very finely divided silicon dioxide, very finely titanium dioxide, organic pigments or polymer dispersions. It is not aplicable to water-diltuable paints because the whole binder will coagulte it the potassium hydroxide solution is added. That means that the pigment and binder will be filtered and the result is a mixture of both. The pigment content of coating materials can also be determined by a centrifuge method (see EN ISO 14680-1) or an ashing method (see EN ISO 14680-2).
EN ISO 14680-3:2006 is classified under the following ICS (International Classification for Standards) categories: 87.060.10 - Pigments and extenders. The ICS classification helps identify the subject area and facilitates finding related standards.
EN ISO 14680-3:2006 has the following relationships with other standards: It is inter standard links to ISO 1513:1992. Understanding these relationships helps ensure you are using the most current and applicable version of the standard.
EN ISO 14680-3:2006 is available in PDF format for immediate download after purchase. The document can be added to your cart and obtained through the secure checkout process. Digital delivery ensures instant access to the complete standard document.
Standards Content (Sample)

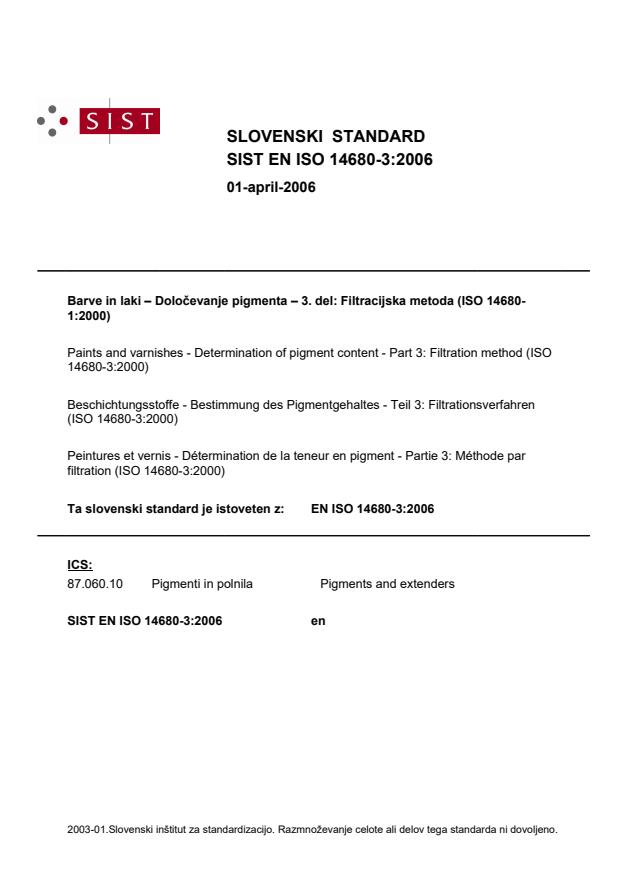

SLOVENSKI STANDARD
01-april-2006
%DUYHLQODNL±'RORþHYDQMHSLJPHQWD±GHO )LOWUDFLMVNDPHWRGD ,62
Paints and varnishes - Determination of pigment content - Part 3: Filtration method (ISO
14680-3:2000)
Beschichtungsstoffe - Bestimmung des Pigmentgehaltes - Teil 3: Filtrationsverfahren
(ISO 14680-3:2000)
Peintures et vernis - Détermination de la teneur en pigment - Partie 3: Méthode par
filtration (ISO 14680-3:2000)
Ta slovenski standard je istoveten z: EN ISO 14680-3:2006
ICS:
87.060.10 Pigmenti in polnila Pigments and extenders
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

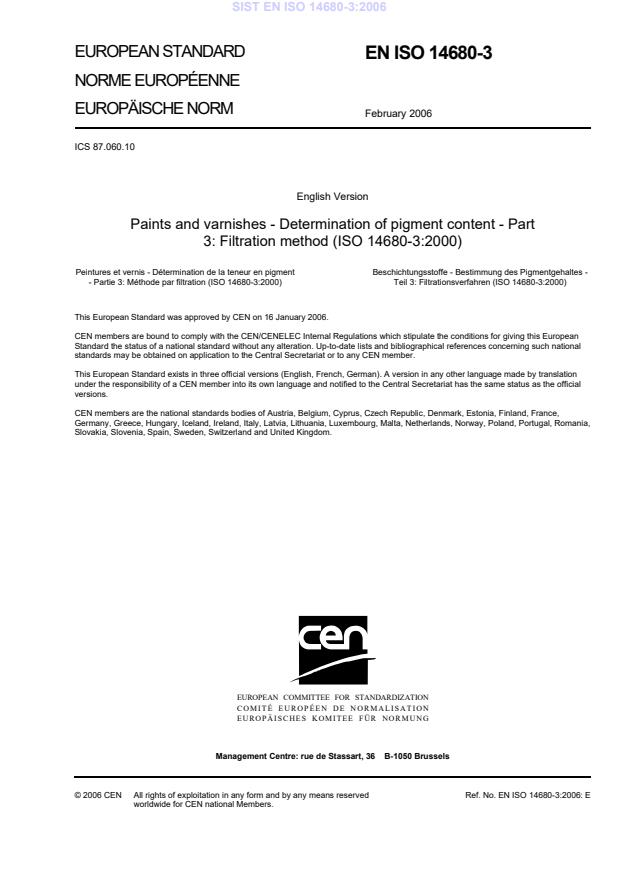

EUROPEAN STANDARD
EN ISO 14680-3
NORME EUROPÉENNE
EUROPÄISCHE NORM
February 2006
ICS 87.060.10
English Version
Paints and varnishes - Determination of pigment content - Part
3: Filtration method (ISO 14680-3:2000)
Peintures et vernis - Détermination de la teneur en pigment Beschichtungsstoffe - Bestimmung des Pigmentgehaltes -
- Partie 3: Méthode par filtration (ISO 14680-3:2000) Teil 3: Filtrationsverfahren (ISO 14680-3:2000)
This European Standard was approved by CEN on 16 January 2006.
CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European
Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such national
standards may be obtained on application to the Central Secretariat or to any CEN member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation
under the responsibility of a CEN member into its own language and notified to the Central Secretariat has the same status as the official
versions.
CEN members are the national standards bodies of Austria, Belgium, Cyprus, Czech Republic, Denmark, Estonia, Finland, France,
Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania,
Slovakia, Slovenia, Spain, Sweden, Switzerland and United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION
EUROPÄISCHES KOMITEE FÜR NORMUNG
Management Centre: rue de Stassart, 36 B-1050 Brussels
© 2006 CEN All rights of exploitation in any form and by any means reserved Ref. No. EN ISO 14680-3:2006: E
worldwide for CEN national Members.

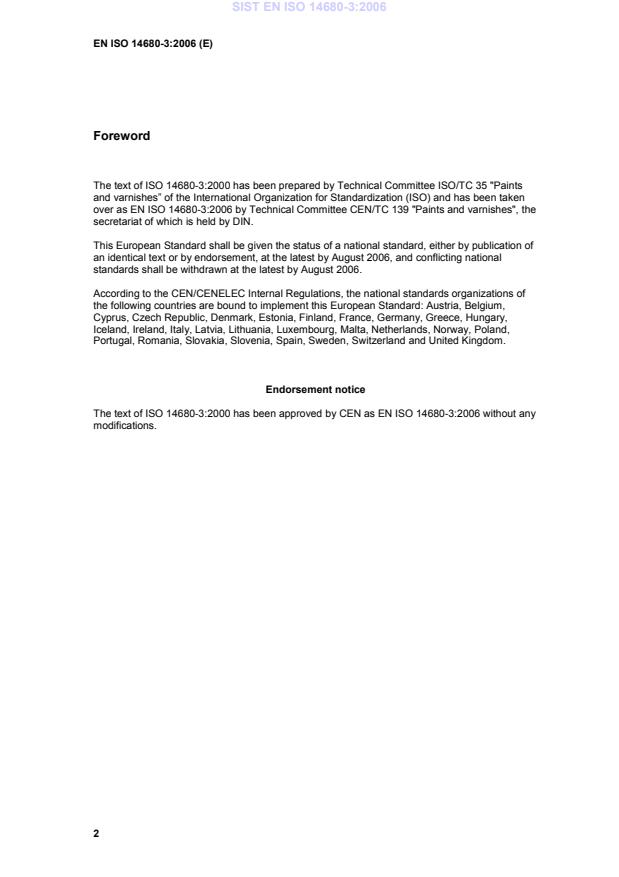

Foreword
The text of ISO 14680-3:2000 has been prepared by Technical Committee ISO/TC 35 "Paints
and varnishes” of the International Organization for Standardization (ISO) and has been taken
over as EN ISO 14680-3:2006 by Technical Committee CEN/TC 139 "Paints and varnishes", the
secretariat of which is held by DIN.
This European Standard shall be given the status of a national standard, either by publication of
an identical text or by endorsement, at the latest by August 2006, and conflicting national
standards shall be withdrawn at the latest by August 2006.
According to the CEN/CENELEC Internal Regulations, the national standards organizations of
the following countries are bound to implement this European Standard: Austria, Belgium,
Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary,
Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland,
Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland and United Kingdom.
Endorsement notice
The text of ISO 14680-3:2000 has been approved by CEN as EN ISO 14680-3:2006 without any
modifications.
INTERNATIONAL ISO
STANDARD 14680-3
First edition
2000-04-01
Paints and varnishes — Determination of
pigment content —
Part 3:
Filtration method
Peintures et vernis — Détermination de la teneur en pigment
Partie 3: Méthode par filtration
Reference number
ISO 14680-3:2000(E)
©
ISO 2000
ISO 14680-3:2000(E)
PDF disclaimer
This PDF file may contain embedded typefaces. In accordance with Adobe's licensing policy, this file may be printed or viewed but shall not
be edited unless the typefaces which are embedded are licensed to and installed on the computer performing the editing. In downloading this
file, parties accept therein the responsibility of not infringing Adobe's licensing policy. The ISO Central Secretariat accepts no liability in this
area.
Adobe is a trademark of Adobe Systems Incorporated.
Details of the software products used to create this PDF file can be found in the General Info relative to the file; the PDF-creation parameters
were optimized for printing. Every care has been taken to ensure that the file is suitable for use by ISO member bodies. In the unlikely event
that a problem relating to it is found, please inform the Central Secretariat at the address given below.
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form or by any means, electronic
or mechanical, including photocopying and microfilm, without permission in writing from either ISO at the address below or ISO's member body
in the country of the requester.
ISO copyright office
Case postale 56 � CH-1211 Geneva 20
Tel. + 41 22 749 01 11
Fax + 41 22 734 10 79
E-mail copyright@iso.ch
Web www.iso.ch
Printed in Switzerland
ii © ISO 2000 – All rights reserved
ISO 14680-3:2000(E)
Contents
Foreword.iv
1 Scope .1
2 Normative references .1
3 Term and definition .1
4 Principle.2
5 Apparatus .2
6 Reagents and materials .2
7 Sampling.2
8 Procedure .3
9 Expression of results .3
10 Precision.3
11 Test report .4
ISO 14680-3:2000(E)
Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards bodies (ISO
member bodies). The work of preparing International Standards is normally carried out through ISO technical
committees. Each member body interested in a subject for which a technical committee has been established has
the right to be represented on that committee. International organizations, gover
...
