EN 13170:2012

2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Toplotnoizolacijski proizvodi za stavbe - Proizvodi iz ekspandirane plute (ICB) - SpecifikacijaWärmedämmstoffe für Gebäude - Werkmäßig hergestellte Produkte aus expandiertem Kork (ICB) - SpezifikationProduits isolants thermiques pour le bâtiment - Produits manufacturés en liège expansé (ICB) - SpécificationThermal insulation products for buildings - Factory made products of expanded cork (ICB) - Specification91.100.60Thermal and sound insulating materialsICS:Ta slovenski standard je istoveten z:EN 13170:2012SIST EN 13170:2013en,fr,de01-marec-2013SIST EN 13170:2013SLOVENSKI
STANDARDSIST EN 13170:20091DGRPHãþD

EUROPEAN STANDARD NORME EUROPÉENNE EUROPÄISCHE NORM
EN 13170
November 2012 ICS 91.100.60 Supersedes EN 13170:2008English Version
Thermal insulation products for buildings - Factory made products of expanded cork (ICB) - Specification
Produits isolants thermiques pour le bâtiment - Produits manufacturés en liège expansé (ICB) - Spécification
Wärmedämmstoffe für Gebäude - Werkmäßig hergestellte Produkte aus expandiertem Kork (ICB) - Spezifikation This European Standard was approved by CEN on 6 October 2012.
CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN-CENELEC Management Centre or to any CEN member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management Centre has the same status as the official versions.
CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, Former Yugoslav Republic of Macedonia, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION EUROPÄISCHES KOMITEE FÜR NORMUNG
Management Centre:
Avenue Marnix 17,
B-1000 Brussels © 2012 CEN All rights of exploitation in any form and by any means reserved worldwide for CEN national Members. Ref. No. EN 13170:2012: ESIST EN 13170:2013

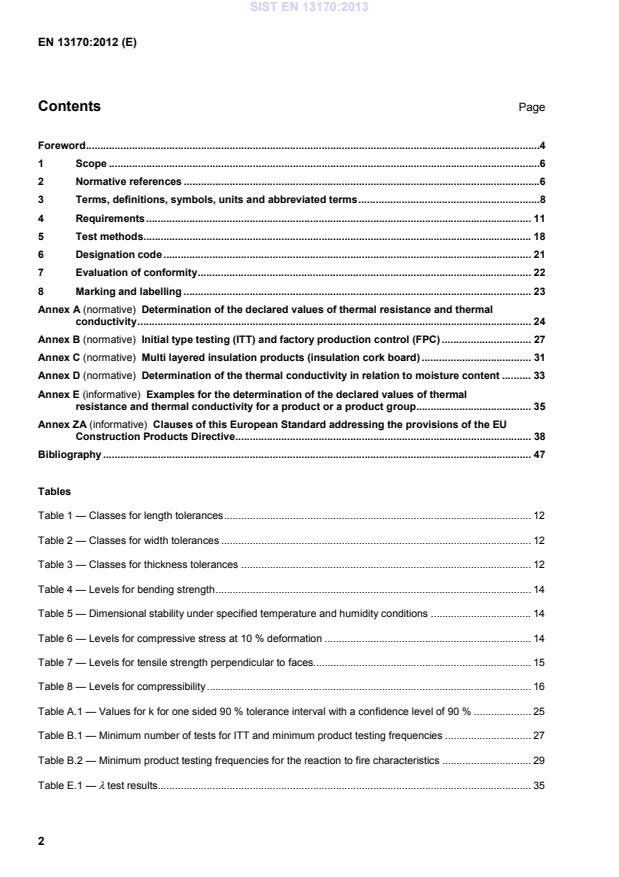

2 Contents Page Foreword .41Scope .62Normative references .63Terms, definitions, symbols, units and abbreviated terms .84Requirements . 115Test methods . 186Designation code . 217Evaluation of conformity . 228Marking and labelling . 23Annex A (normative)
Determination of the declared values of thermal resistance and thermal conductivity . 24Annex B (normative)
Initial type testing (ITT) and factory production control (FPC) . 27Annex C (normative)
Multi layered insulation products (insulation cork board) . 31Annex D (normative)
Determination of the thermal conductivity in relation to moisture content . 33Annex E (informative)
Examples for the determination of the declared values of thermal resistance and thermal conductivity for a product or a product group . 35Annex ZA (informative)
Clauses of this European Standard addressing the provisions of the EU Construction Products Directive . 38Bibliography . 47 Tables
Table 1 — Classes for length tolerances . 12Table 2 — Classes for width tolerances . 12Table 3 — Classes for thickness tolerances . 12Table 4 — Levels for bending strength . 14Table 5 — Dimensional stability under specified temperature and humidity conditions . 14Table 6 — Levels for compressive stress at 10 % deformation . 14Table 7 — Levels for tensile strength perpendicular to faces. 15Table 8 — Levels for compressibility . 16Table A.1 — Values for k for one sided 90 % tolerance interval with a confidence level of 90 % . 25Table B.1 — Minimum number of tests for ITT and minimum product testing frequencies . 27Table B.2 — Minimum product testing frequencies for the reaction to fire characteristics . 29Table E.1 — λ test results. 35SIST EN 13170:2013

4 Foreword This document (EN 13170:2012) has been prepared by Technical Committee CEN/TC 88 “Thermal insulating materials and products”, the secretariat of which is held by DIN. This European Standard shall be given the status of a national standard, either by publication of an identical text or by endorsement, at the latest by May 2013, and conflicting national standards shall be withdrawn at the latest by May 2013. Attention is drawn to the possibility that some of the elements of this document may be the subject of patent rights. CEN [and/or CENELEC] shall not be held responsible for identifying any or all such patent rights. This document supersedes EN 13170:2008. This document has been prepared under a mandate given to CEN by the European Commission and the European Free Trade Association, and supports essential requirements of EU Directive(s). For relationship with EU Directive(s), see informative Annex ZA, which is an integral part of this document. Compared with EN 13170:2008, the main changes are: a) better harmonisation between the individual standards of the package (EN 13162 to EN 13171) on definitions, requirements, classes and levels; b) new normative annex on multi-layered products; c) changes on some editorial and technical content and addition of information on some specific items such as for ICB; d) addition of links to EN 15715, Thermal insulation products — Instructions for mounting and fixing for reaction to fire testing — Factory made products; e) changes to Annex ZA. This standard is one of a series of standards for insulation products used in buildings, but may be used in other areas where appropriate. In pursuance of Resolution BT 20/1993 revised, CEN/TC 88 have proposed defining the standards listed below as a “package” of documents. The package of standards comprises the following group of interrelated standards for the specifications of factory made thermal insulation products, all of which come within the scope of CEN/TC 88: EN 13162, Thermal insulation products for buildings — Factory made mineral wool (MW) products — Specification EN 13163, Thermal insulation products for buildings — Factory made expanded polystyrene (EPS) products — Specification EN 13164, Thermal insulation products for buildings — Factory made extruded polystyrene foam (XPS) products — Specification EN 13165, Thermal insulation products for buildings — Factory made rigid polyurethane foam (PU) products — Specification SIST EN 13170:2013

According to the CEN/CENELEC Internal Regulations, the national standards organisations of the following countries are bound to implement this European Standard: Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, Former Yugoslav Republic of Macedonia, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and the United Kingdom.
6 1 Scope This European Standard specifies the requirements for factory made products of expanded cork, which are used for the thermal insulation of buildings. The products are made with granulated cork agglomerated without additional binders and are delivered as boards with or without facings or coatings. Products covered by this standard are also used in prefabricated thermal insulation systems and composite panels; the performance of systems incorporating these products is not covered. This standard describes product characteristics and includes procedures for testing, evaluation of conformity, marking and labelling. This standard does not specify the required level of a given property to be achieved by a product to demonstrate fitness for purpose in a particular application. The levels required for a given application are to be found in regulations or non-conflicting standards. Products with a declared thermal resistance lower than 0,25 m2⋅K/W, or a declared thermal conductivity greater than 0,060 W/(m⋅K), at 10 °C, are not covered by this European Standard. 2 Normative references The following documents, in whole or in part, are normatively referenced in this document and are indispensable for its application. For dated references, only the edition cited applies. For undated references, the latest edition of the referenced document (including any amendments) applies. EN 822, Thermal insulating products for building applications — Determination of length and width EN 823, Thermal insulating products for building applications — Determination of thickness EN 824, Thermal insulating products for building applications — Determination of squareness EN 825, Thermal insulating products for building applications — Determination of flatness EN 826, Thermal insulating products for building applications — Determination of compression behaviour EN 1602, Thermal insulating products for building applications — Determination of the apparent density EN 1603, Thermal insulating products for building applications — Determination of dimensional stability under constant normal laboratory conditions (23 °C/50 % relative humidity) EN 1604, Thermal insulating products for building applications — Determination of dimensional stability under specified temperature and humidity conditions EN 1605, Thermal insulating products for building applications — Determination of deformation under specified compressive load and temperature conditions EN 1606, Thermal insulating products for building applications — Determination of compressive creep EN 1607, Thermal insulating products for building applications — Determination of tensile strength perpendicular to faces EN 1609, Thermal insulating products for building applications — Determination of short term water absorption by partial immersion EN 12086, Thermal insulating products for building applications — Determination of water vapour transmission properties EN 12089, Thermal insulating products for building applications — Determination of bending behaviour SIST EN 13170:2013

EN 29052-1, Acoustics — Determination of dynamic stiffness — Part 1: Materials used under floating floors in dwellings (ISO 9052-1) EN 29053, Acoustics — Materials for acoustical applications - Determination of air flow resistance (ISO 9053) EN ISO 354, Acoustics — Measurement of sound absorption in a reverberation room (ISO 354) EN ISO 1182, Reaction to fire tests for building products — Non-combustibility test (ISO 1182) EN ISO 1716, Reaction to fire tests for products — Determination of the gross heat of combustion (calorific value) (ISO 1716) EN ISO 9229:2007, Thermal insulation — Vocabulary (ISO 9229:2007) EN ISO 10456, Building materials and products — Hygrothermal properties — Tabulated design values and procedures for determining declared and design thermal values (ISO 10456) EN ISO 11654, Acoustics — Sound absorbers for use in buildings — Rating of sound absorption (ISO 11654) EN ISO 11925-2, Reaction to fire tests — Ignitability of building products subjected to direct impingement of flame — Part 2: Single-flame source test (ISO 11925-2) ISO 16269-6:2005, Statistical interpretation of data — Part 6: Determination of statistical tolerance intervals
8 3 Terms, definitions, symbols, units and abbreviated terms 3.1 Terms and definitions For the purposes of this document, the terms and definitions given in EN ISO 9229:2007 apply with exception or in addition of the following: 3.1.1 cork protective layer of the cork oak tree (Quercus suber L.) which may be periodically removed from its trunk and branches to provide the raw material for cork products 3.1.2 granulated cork fragments of cork obtained by grinding and/or milling raw or manufactured cork Note 1 to entry: Usually, the size of granules is between 4 mm and 18 mm. 3.1.3 insulation cork board (ICB) pre-formed product made from ground granulated cork expanded and bonded exclusively with its own natural binder exuded from cork cell walls by heating under pressure 3.1.4 level value which is the upper or lower limit of a requirement and given by the declared value of the characteristic concerned 3.1.5 class combination of two levels of the same property between which the performance shall fall 3.1.6 board; slab rigid or semi-rigid (insulation) product of rectangular shape and cross section in which the thickness is uniform and substantially smaller than the other dimensions Note 1 to entry
Boards are usually thinner than slabs. They may also be supplied in tapered form. 3.1.7 facing functional or decorative surface layer with a thickness of less than 3 mm, e.g. paper, plastic film, fabric or metal foil, which are not considered as separate thermal insulation layers to be added to the thermal resistance of the product 3.1.8 coating functional or decorative surface layers with a thickness of less than 3 mm usually applied by painting, spraying, pouring or trowelling, which are not considered as separate thermal insulation layers to be added to the thermal resistance of the product 3.1.9 composite insulation product product which can be faced or coated made from two or more layers bonded together by chemical or physical adhesion consisting of at least one factory made thermal insulation material layer SIST EN 13170:2013

Symbols, units and abbreviated terms For the purposes of this document, the following symbols and units apply. αp is the practical sound absorption coefficient — αw is the weighted sound absorption coefficient — b is the width mm c is the compressibility mm d is the thickness under a load of (250 ± 5) Pa mm dB is the thickness under a load of 2 kPa after removal of an additional load of 48 kPa mm dL is the thickness under a load of 250 Pa mm dN is the nominal thickness of the product mm dS is the thickness of the test specimen mm ∆εb is the relative change in width % ∆εd is the relative change in thickness % ∆εl is the relative change in length % ∆εs is the relative change in flatness mm/m ε is the deformation under specified compressive load and temperature mm εct is the compressive creep % εt is the total relative thickness reduction % Fp is the compressive force at critical point kN H is the moisture content % k is a factor related to the number of test results available — l is the length mm λ90/90 is the 90 % fractile with a confidence level of 90 % for the thermal conductivity W/(m⋅K) λD is the declared thermal conductivity W/(m⋅K) λi is one test result of thermal conductivity
W/(m⋅K) λmean is the mean thermal conductivity W/(m⋅K) λU is the design thermal conductivity W/(m⋅K) n
is the number of test results
— R90/90 is the 90 % fractile with a confidence level of 90 % for the thermal resistance m2⋅K/W RD is the declared thermal resistance m2⋅K/W Ri is one test result of thermal resistance
m2⋅K/W Rmean is the mean thermal resistance m2⋅K/W
10 RU is the design thermal resistance m2⋅K/W ρa is the apparent density kg/m3 Sb is the deviation from squareness on length and width mm/m Sd is the deviation from squareness on thickness mm Smax is the deviation from flatness
mm X0 is the initial deformation % Xt is the total thickness reduction
% Xct Is the compressive creep % sR is the estimate of the standard deviation of the thermal resistance m2⋅K/W sλ is the estimate of the standard deviation of the thermal conductivity W/(m⋅K) s′ is the dynamic stiffness MN/m3 σ10 is the compressive stress at 10 % deformation kPa σb is the bending strength kPa σc is the declared compressive stress (for compressive creep) kPa σmt is the tensile strength perpendicular to faces kPa Wp is the short-term water absorption kg/m2 τ is the shear strength kPa Z is the water vapour resistance m2⋅h⋅Pa/mg AFr is the symbol of the declared level of air flow resistivity AP is the symbol of the declared level of practical sound absorption coefficient AW is the symbol of the declared level of weighted sound absorption coefficient CC(i1/i2/y) σc is the symbol of the declared level for compressive creep CP is the symbol of the declared level for compressibility CS(10) is the symbol of the declared level for compressive stress at 10 % deformation DS(23,90) or DS(70,90) is the symbol of the level for dimensional stability under specified temperature and humidity conditions DS(70,-) is the symbol of the declared value for dimensional stability at specified temperature DLT is the symbol of the declared value for the deformation under specified load and temperature L is the symbol of the declared class for length tolerances MU is the symbol of the declared value for water vapour diffusion resistance factor PL(P) is the symbol of the declared level of point load at the critical point SD SS is the symbol of the declared level for dynamic stiffness is the symbol of the declared value for shear strength
Ti is the symbol of the declared class for thickness tolerances TR is the symbol of the declared level for tensile strength perpendicular to faces W is the symbol of the declared class for width tolerances WS is the declared value for short term water absorption Z is the symbol of the declared value for water vapour resistance
is Expanded (Insulation) Cork Board ITT
is Initial Type Test FPC
is Factory Production Control RtF is Reaction to Fire 4 Requirements 4.1 General Product properties shall be assessed in accordance with Clause 5. To comply with this standard, products shall meet the requirements of 4.2 and of 4.3, as appropriate. For multi-layered products additional requirements are given in Annex C. One test result for a product property is the average of the measured values on the number of test specimens given in Table 9. 4.2 For all applications 4.2.1 Thermal resistance and thermal conductivity Thermal resistance and thermal conductivity shall be based upon measurements carried out in accordance with EN 12667 or EN 12939 for thick products and in accordance with 5.3.2 and Annex C. The thermal resistance and thermal conductivity shall be determined in accordance with procedures given in Annex A and declared by the manufacturer according to the following:  the reference mean temperature shall be 10 °C;  the declared values are to be given for a moisture content equal to that of the material when it has reached equilibrium with the air at 23 °C and relative humidity 50 %;
 the measured values shall be expressed with three significant figures;  for products of uniform thickness, the thermal resistance, RD, shall always be declared. The thermal conductivity, λD, shall be declared where possible. Where appropriate, for products of non-uniform thickness (e.g. for sloped and tapered products), only the thermal conductivity, λD, shall be declared;  the declared thermal resistance, RD, and the declared thermal conductivity, λD, shall be given as limit values representing at least 90 % of the production, determined with a confidence level of 90 %; 
the statistical value of thermal conductivity, λ90/90, shall be rounded upwards to the nearest 0,001 W/(m⋅K) and declared as λD in levels with steps of 0,001 W/(m⋅K);  the declared thermal resistance, RD, shall be calculated from the nominal thickness, dN, or dL in case of products with declared compressibility (see 4.3.10.3) and the corresponding thermal conductivity, λ90/90, unless measured directly;  the statistical value of thermal resistance, R90/90, when calculated from the nominal thickness, dN, or dL in case of products with declared compressibility (see 4.3.10.3) and the corresponding thermal conductivity, SIST EN 13170:2013

12 λ90/90, shall be rounded downwards to the nearest 0,05 m2⋅K/W, and declared as RD in levels with steps of 0,05 m2⋅K/W;  the statistical value of thermal resistance R90/90, for those products for which only the thermal resistance is measured directly, shall be rounded downwards to the nearest 0,05 m2⋅K/W and declared as RD in levels with steps of 0,05 m2⋅K/W. Examples of determination of declared values of thermal resistance, RD, and thermal conductivity, λD, are given in Annex D. NOTE λU and RU (design values) may be determined with reference to EN ISO 10456. 4.2.2 Length and width Length, l, and width, b, shall be determined in accordance with EN 822. No test result shall deviate from the nominal values by more than the tolerances given in Table 1 and Table 2 for the declared classes. Table 1 — Classes for length tolerances Class Tolerances mm L1 ± 3 L2 ± 5
Table 2 — Classes for width tolerances Class Tolerances mm W1 ± 2 W2 ± 3
NOTE The commonly linear dimensions of Insulation Cork Board are: Length: 1 000 mm Width: 500 mm
4.2.3 Thickness Thickness, d, shall be determined in accordance with EN 823, method B.2, under a pressure of (250 ± 5) Pa. No test result shall deviate from the nominal thickness, dN, by more than the tolerances given in Table 3 for the declared class. Table 3 — Classes for thickness tolerances Class Thickness Tolerances T1 20 mm ≤ d ≤ 50 mm ± 1 mm T2 d > 50 mm ± 2 %, maximum ± 2 mm
4.2.7.3 Durability of thermal resistance and thermal conductivity against ageing/degradation The thermal conductivity of insulation cork board products does not change with time. This is covered and considered for declaration by 4.2.1 thermal conductivity and any change in thickness is covered by at least one of the 4.3.2 dimensional stability tests, as relevant. 4.2.8 Moisture content Moisture content, H, shall be determined in accordance with EN 12105. The product shall be protected from rain during storage. Under these conditions, no test result shall exceed a mass fraction of 8 %. 4.2.9 Apparent density Apparent density, ρa, shall be determined in accordance with EN 1602. The product shall be protected from rain during storage. Under these conditions, no test result shall exceed 130 kg/m3. 4.2.10 Bending strength Bending strength, 1b, shall be determined in accordance with EN 12089, method B. For handling purposes, the result of the test cannot be below the value indicated in Table 4, for the level considered, and in conformity with the thickness of the product.
14 Table 4 — Levels for bending strength Level Thickness
mm Requirement
kPa
1b1 20 mm ≤ d ≤ 50 mm
≥ 140
1b2 d > 50 mm
≥ 110
4.3 For specific applications 4.3.1 General If there is no requirement for a property described in 4.3 for a product in use, then the property does not need to be determined and declared by the manufacturer. 4.3.2 Dimensional stability Dimensional stability under normal laboratory temperature and relative humidity conditions shall be determined in accordance with EN 1603. Dimensional stability under specified temperature or under specified temperature and humidity conditions shall be determined in accordance with EN 1604. The test shall be carried out for the conditions given in Table 5. The relative changes in length, ∆εl, and width, ∆εb and the relative reduction in thickness, ∆εd, and the flatness, ∆εs, shall not exceed the values given in Table 5 for the declared level. Table 5 — Dimensional stability under specified temperature and humidity conditions Designation Condition Test method Requirement Length, ∆εl, and width, ∆εb Thickness, ∆εd % % DS(70,—) 48 h, 70 ºC EN 1604 1 1 DS(23,90) 48 h, 23 ºC, 90 % R.H. EN 1604 1 1 DS(70,90) 48 h, 70 ºC, 90 % R.H. EN 1604 1 1
The tests DS(70,—) and DS(23,90) need not to be performed when the test DS(70,90) is used. 4.3.3 Compressive stress or compressive strength Compressive stress at 10 % deformation, σ10, shall be determined in accordance with EN 826. No test result shall be lower than the value given in Table 6 for the declared level. Table 6 — Levels for compressive stress at 10 % deformation Level Requirement kPa CS(10)90 ≥ 90 CS(10)100 ≥ 100 CS(10)110 ≥ 110 SIST EN 13170:2013

Table 7 — Levels for tensile strength perpendicular to faces Level Requirement kPa TR40 ≥ 40 TR50 ≥ 50 TR60 ≥ 60
4.3.5 Point load
Point load, Fp, at 5 mm deformation shall be determined in accordance with EN 12430 and declared in levels with steps of 50 N. No test result shall be less than the declared level, PL(P). 4.3.6 Compressive creep Compressive creep, Xct, and total thickness reduction, Xt, shall be determined after at least one hundred and twenty two days of testing at a declared compressive stress, σc, given in steps of at least 1 kPa, and the results shall be extrapolated thirty times, corresponding to ten years, to obtain the declared level in accordance with EN 1606. Compressive creep shall be declared in levels, i2, and total thickness reduction shall be declared in levels, i1, with steps of 0,1 mm at the declared stress. No test result shall exceed the declared level at the declared stress. NOTE 1 Referring to the designation code CC(i1/i2/y)σc, according to Clause 6, a declared level CC(2,5/2/10)50, for example, indicates a value not exceeding 2 mm for compressive creep and 2,5 mm for total thickness reduction after extrapolation at 10 years (i.e. 30 times one hundred twenty two days of testing) under a declared stress of 50 kPa. NOTE 2 Testing times. According to EN 1606, the procedure at 10, 25 and 50 years respectively require the following testing times:
Extrapolation time Minimum testing time years days 10 122 25 304 50 608
4.3.7 Short term water absorption Short term water absorption by partial immersion, Wp, shall be determined in accordance with EN 1609. No test result shall exceed 0,5 kg/m2. SIST EN 13170:2013

16 4.3.8 Water vapour transmission Water vapour transmission properties shall be determined in accordance with EN 12086, and declared as the water vapour diffusion resistance factor, µ, for homogeneous products and as the water vapour resistance, Z, for faced or non-homogeneous products. No test result of µ shall be greater than the declared value and no test result of Z shall be less than the declared value, Z. Alternatively, for the declaration of the water vapour diffusion resistance, µ, of expanded cork products, the value quoted in EN ISO 10456 may be used. 4.3.9 Dynamic stiffness Dynamic stiffness, s′, shall be determined in accordance with EN 29052-1, without preloading. The value of dynamic stiffness shall be declared in levels with steps of 1 MN/m3. No test result shall exceed the declared level, SD. 4.3.10 Compressibility 4.3.10.1 General The main application of products using compressibility is floating floors. 4.3.10.2 Thickness, dL Thickness, dL, shall be determined in accordance with EN 12431 under a load of 250 Pa. No test result shall deviate from the nominal thickness, dN, by more than the tolerances given in Table 3 for the labelled class. 4.3.10.3 Thickness, dB Thickness, dB, shall be determined in accordance with EN 12431 with a pause of 120 s before measuring dB. 4.3.10.4 Compressibility, c Compressibility, c, shall be determined as the difference between dL and dB for products in classes T1 and T2. No test result shall exceed the values given in Table 8 for the declared level, CP. Table 8 — Levels for compressibility Level Imposed load on the product Compressibility, c Nominal compressibility Tolerance test results kPa mm mm CP5 ≤ 2,0 ≤ 5 +2 CP4 ≤ 3,0 ≤ 4 CP3 ≤ 4,0 ≤ 3 CP2 ≤ 5,0 ≤ 2 +1
NOTE 1 The levels of the imposed load on the product are taken from EN 1991-1-1. NOTE 2 A test result is the mean of the readings for the number of test specimens tested. SIST EN 13170:2013

NOTE 1 European test methods are under development. NOTE 2 See Annex ZA. 4.3.14 Reaction to fire of the product in standardized assemblies simulating end-use applications Reaction to fire classification of products in standardized assemblies simulating end-use applications, excluding pipe insulation, shall be determined in accordance with EN 13501-1 and the mounting and fixing rules given in EN 15715. This classification offers the opportunity to give a complementary and optional declaration on reaction to fire for standard test configurations of assemblies which include the insulation product. The number of the selected test configuration of assembly (Table 5 of EN 15715:2009) which is used in the test shall be quoted with the Euroclass. Detailed information about the test conditions and the field of application of the classification as stated in the reaction to fire classification report shall be given in the manufacturer’s literature. 4.3.15 Continuous glowing combustion NOTE A test method is under development and the standard will be amended when this is available. 4.3.16 Deformation under specified compressive load and temperature Deformation under specified load and temperature conditions ε, shall be carried out in accordance with EN 1605. No test result shall be greater than the declared level, DLT. SIST EN 13170:2013

18 4.3.17 Shear Strength
Shear strength, τ, shall be determined in accordance with EN 12090. No test result shall be lower than 50 kPa. 5 Test methods 5.1 Sampling Test specimens shall be taken from the same sample with a total area not less than 0,5 m2 and sufficient to cover the needed tests. The shorter side of the sample shall not be less than 300 mm or full size of the product, whichever is the smaller. 5.2 Conditioning No special conditioning of the test specimens is needed unless otherwise specified in the test standard. In case of dispute, the test specimens shall be stored at (23 ± 2) °C and (50 ± 5) % relative humidity for at least 6 h prior to testing. For FPC no special conditioning of the test specimens is needed. When cut from boards, except for 5.3.2, test specimens shall be stored in an atmosphere of (23 ± 2) °C and (50 ± 5) % relative humidity until stabilisation at constant weight is achieved. Stabilisation is obtained when the relative change in weight does not exceed 0,5 % between two consecutive weekly measurements. In case of dispute, the following stepwise procedure shall be carried out:  Step 1 (dry reference): The specimens are stored for 72 h at (70 ± 2) °C, in an oven ventilated with an air taken at (23 ± 2) °C and (50 ± 5) % relative humidity, and then weighed. The mass of the test specimen at step 1 is m23,dry.  Step 2 (normal reference): After conditioning according to step 1, the specimens are stored in an atmosphere of (23 ± 2) °C and (50 ± 5) % relative humidity until stabilisation, and then weighed. Stabilisation, by definition, takes at least six weeks with some additional time so that the relative change in moisture does not increase by more than 5 % between two consecutive weekly measurements. The mass of the test specimen at step 2 is m23,50. Moisture content, u23,50, expressed in kilogram per kilogram, shall be determined by weighing the specimens at each step with an accuracy of 0,1 g, and calculated using Formula (1): 23,drydry2350235023mmmu,,,−= (1) 5.3 Testing 5.3.1 General Table 9 gives the dimensions of the test specimens, the minimum number of measurements required to get one test result and any specific conditions which are necessary. The test may be performed on the unfaced/uncoated product, if the facing/coating is known to have no relevance to the test result. 5.3.2 Thermal resistance and thermal conductivity Thermal resistance and thermal conductivity shall be determined in accordance with EN 12667 or EN 12939 for thick products and under the following conditions: SIST EN 13170:2013

20 Table 9 — Test methods, test specimens and conditions (1 of 2) Dimensions in millimetres
Clause Test method Test specimen length and widtha
Minimum number of measurements to get one test result Specific conditions No Title
4.2.1 Thermal resistance — thermal conductivity EN 12667 EN 12939 See EN 12667or EN 12939 1 — 4.2.2 Length and width EN 822 Full-size 3 — 4.2.3 Thickness EN 823 Full-size 3 Method B.2 pressure of (250 ± 5) Pa 4.2.4 Squareness EN 824 Full-size 3 — 4.2.5 Flatness EN 825 Full-size 3 — 4.2.6 Reaction to fire of the product as placed on the market See EN 13501-1 and EN 15715 See Clause 5 of
EN 15715:2009 4.2.8 Moisture content EN 12105 200 × 200 or 300 × 300 or 500 × 500 5 — 4.2.9 Apparent density EN 1602 Full size board 5 — 4.2.10 Bending strength EN 12089 150 × (5 × dN) 5 Method B 4.3.2 Dimensional stability under specified conditions EN 1604 200 × 200 3 — 4.3.3 Compressive stress at 10 % deformation EN 826 100 × 100 3 —
4.3.4 Tensile strength perpendicular to faces EN 1607 100 × 100 or 200 × 200 5 —
4.3.5 Point load EN 12430 300 × 300 3 — 4.3.6 Compressive creep EN 1606 100 × 100 3 — 4.3.7 Short term water absorption EN 1609 200 × 200 3 Method A 4.3.8 Water vapour transmission EN 12086 100 × 100 3 b
4.3.9 Dynamic stiffness EN 29052-1200 × 200 3 — 4.3.10 Thickness, dL
EN 12431
200 × 200 3
Classes T1 and T2 Thickness, dB Long term thickness reduction EN 1606 Level CP2 4.3.11 Sound absorption EN ISO 354Minimum 10 m2 1 To be reported4.3.12 Air flow resistivity EN 29053 Apparatus 3 Method A SIST EN 13170:2013

Table 9 — Test methods, test specimens and conditions (2 of 2) Clause
Test method
Test specimen length and widtha Minimum number of measurements to get one test result Specific conditions No Title 4.3.13 Release of dangerous substances c — — — 4.3.14 Reaction to fire of the product in standardized assemblies simulating end-use applications
See EN 13501-1 and EN 15715
...
