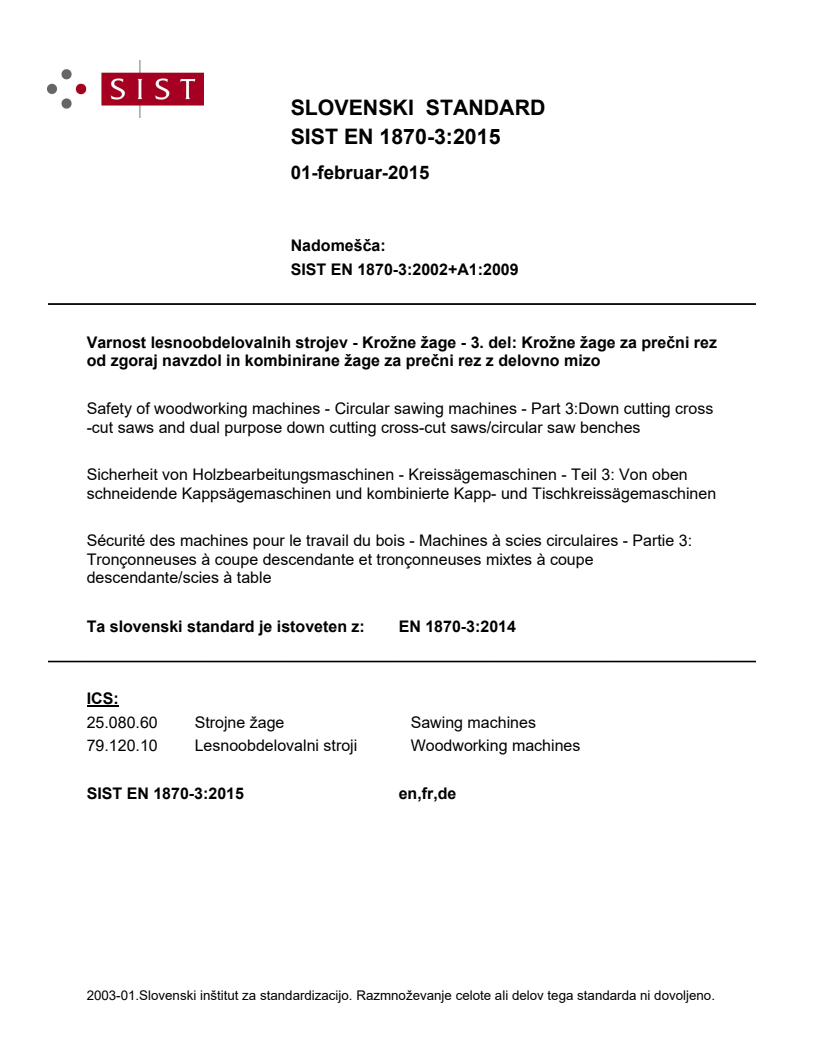

EN 1870-3:2014

SLOVENSKI STANDARD
01-februar-2015
1DGRPHãþD
SIST EN 1870-3:2002+A1:2009
9DUQRVWOHVQRREGHORYDOQLKVWURMHY.URåQHåDJHGHO.URåQHåDJH]DSUHþQLUH]
RG]JRUDMQDY]GROLQNRPELQLUDQHåDJH]DSUHþQLUH]]GHORYQRPL]R
Safety of woodworking machines - Circular sawing machines - Part 3:Down cutting cross
-cut saws and dual purpose down cutting cross-cut saws/circular saw benches
Sicherheit von Holzbearbeitungsmaschinen - Kreissägemaschinen - Teil 3: Von oben
schneidende Kappsägemaschinen und kombinierte Kapp- und Tischkreissägemaschinen
Sécurité des machines pour le travail du bois - Machines à scies circulaires - Partie 3:
Tronçonneuses à coupe descendante et tronçonneuses mixtes à coupe
descendante/scies à table
Ta slovenski standard je istoveten z: EN 1870-3:2014
ICS:
25.080.60 Strojne žage Sawing machines
79.120.10 Lesnoobdelovalni stroji Woodworking machines
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

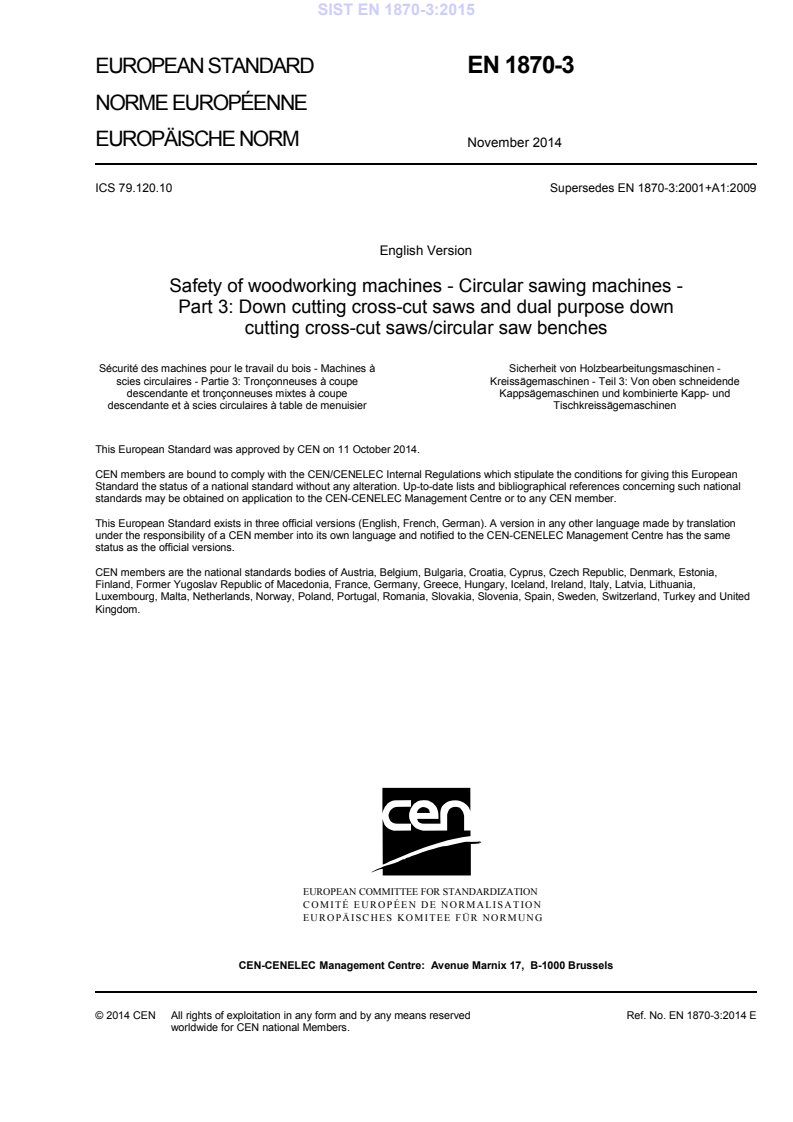

EUROPEAN STANDARD
EN 1870-3
NORME EUROPÉENNE
EUROPÄISCHE NORM
November 2014
ICS 79.120.10 Supersedes EN 1870-3:2001+A1:2009
English Version
Safety of woodworking machines - Circular sawing machines -
Part 3: Down cutting cross-cut saws and dual purpose down
cutting cross-cut saws/circular saw benches
Sécurité des machines pour le travail du bois - Machines à Sicherheit von Holzbearbeitungsmaschinen -
scies circulaires - Partie 3: Tronçonneuses à coupe Kreissägemaschinen - Teil 3: Von oben schneidende
descendante et tronçonneuses mixtes à coupe Kappsägemaschinen und kombinierte Kapp- und
descendante et à scies circulaires à table de menuisier Tischkreissägemaschinen
This European Standard was approved by CEN on 11 October 2014.

CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European
Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such national
standards may be obtained on application to the CEN-CENELEC Management Centre or to any CEN member.

This European Standard exists in three official versions (English, French, German). A version in any other language made by translation
under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management Centre has the same
status as the official versions.

CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia,
Finland, Former Yugoslav Republic of Macedonia, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania,
Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and United
Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION

EUROPÄISCHES KOMITEE FÜR NORMUNG

CEN-CENELEC Management Centre: Avenue Marnix 17, B-1000 Brussels
© 2014 CEN All rights of exploitation in any form and by any means reserved Ref. No. EN 1870-3:2014 E
worldwide for CEN national Members.

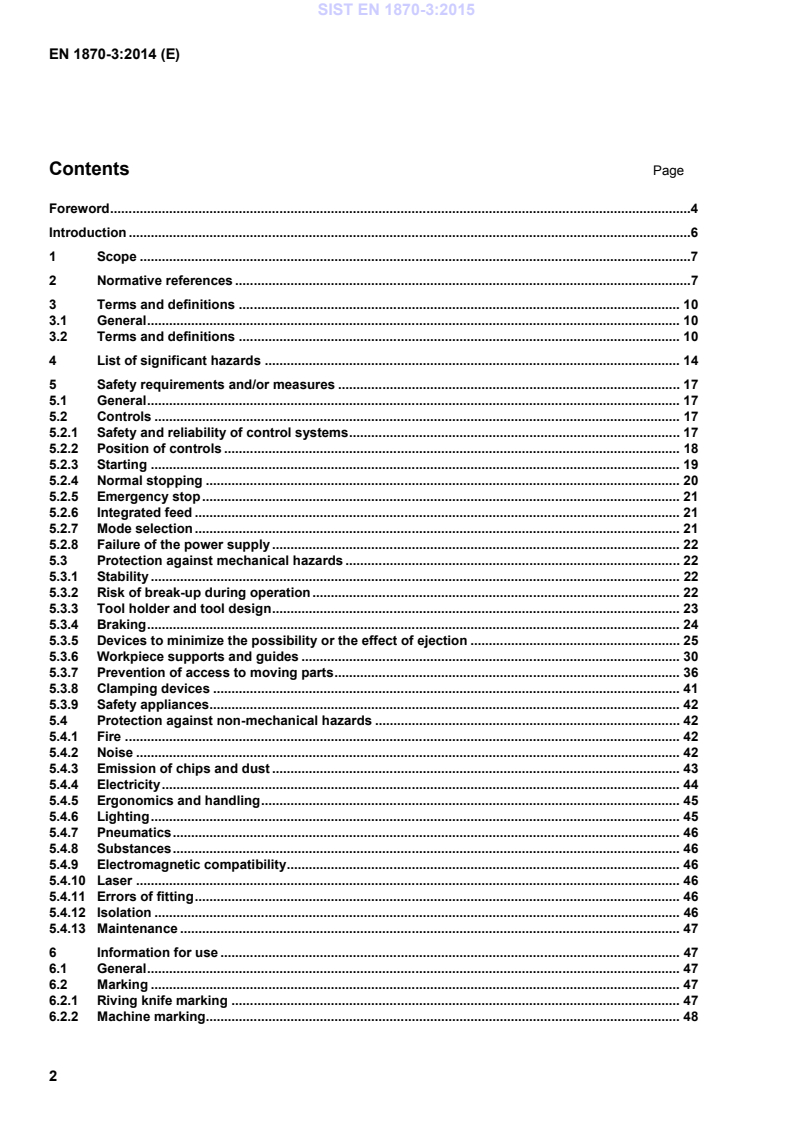

Contents Page
Foreword .4
Introduction .6
1 Scope .7
2 Normative references .7
3 Terms and definitions . 10
3.1 General . 10
3.2 Terms and definitions . 10
4 List of significant hazards . 14
5 Safety requirements and/or measures . 17
5.1 General . 17
5.2 Controls . 17
5.2.1 Safety and reliability of control systems . 17
5.2.2 Position of controls . 18
5.2.3 Starting . 19
5.2.4 Normal stopping . 20
5.2.5 Emergency stop . 21
5.2.6 Integrated feed . 21
5.2.7 Mode selection . 21
5.2.8 Failure of the power supply . 22
5.3 Protection against mechanical hazards . 22
5.3.1 Stability . 22
5.3.2 Risk of break-up during operation . 22
5.3.3 Tool holder and tool design . 23
5.3.4 Braking . 24
5.3.5 Devices to minimize the possibility or the effect of ejection . 25
5.3.6 Workpiece supports and guides . 30
5.3.7 Prevention of access to moving parts . 36
5.3.8 Clamping devices . 41
5.3.9 Safety appliances. 42
5.4 Protection against non-mechanical hazards . 42
5.4.1 Fire . 42
5.4.2 Noise . 42
5.4.3 Emission of chips and dust . 43
5.4.4 Electricity . 44
5.4.5 Ergonomics and handling . 45
5.4.6 Lighting . 45
5.4.7 Pneumatics . 46
5.4.8 Substances . 46
5.4.9 Electromagnetic compatibility . 46
5.4.10 Laser . 46
5.4.11 Errors of fitting . 46
5.4.12 Isolation . 46
5.4.13 Maintenance . 47
6 Information for use . 47
6.1 General . 47
6.2 Marking . 47
6.2.1 Riving knife marking . 47
6.2.2 Machine marking. 48
6.3 Instruction handbook . 48
Annex A (normative) Dimensional tolerances of saw spindles . 52
Annex B (normative) Riving knife mounting strength test . 53
Annex C (normative) Riving knife lateral stability test . 54
Annex D (normative) Braking tests . 55
D.1 Conditions for all tests . 55
D.2 Tests . 55
D.2.1 Un-braked run-down time . 55
D.2.2 Braked run-down time . 55
Annex E (normative) Impact test method for guards . 56
E.1 General . 56
E.2 Test method . 56
E.2.1 Preliminary remarks . 56
E.2.2 Testing equipment . 56
E.2.3 Projectile for guards . 56
E.2.4 Sampling. 56
E.2.5 Test procedure . 56
E.3 Results . 56
E.4 Assessment . 57
E.5 Test report . 57
E.6 Test equipment for impact test . 57
Annex ZA (informative) Relationship between this European Standard and the Essential

Requirements of EU Directive 2006/42/EC . 59
Bibliography . 62

Foreword
This document (EN 1870-3:2014) has been prepared by Technical Committee CEN/TC 142 “Woodworking
machines - Safety”, the secretariat of which is held by UNI.
This European Standard shall be given the status of a national standard, either by publication of an identical
text or by endorsement, at the latest by May 2015, and conflicting national standards shall be withdrawn at the
latest by May 2015.
Attention is drawn to the possibility that some of the elements of this document may be the subject of patent
rights. CEN [and/or CENELEC] shall not be held responsible for identifying any or all such patent rights.
This document has been prepared under a mandate given to CEN by the European Commission and the
European Free Trade Association, and supports essential requirements of EU Directive(s).
For relationship with EU Directive(s), see informative Annex ZA, which is an integral part of this document.
The main modifications compared to EN 1870-3:2001+A1:2009 relate to the introduction of performance
levels (PL) for control systems and to the following items:
— clarification of controls positions in 5.2.2;
— addition of PL where missing;
— addition of requirements on mode selection in 5.2.7 and on prevention of automatic restart in 5.2.8;
— deletion of material requirements on flanges in 5.3.3.3;
— addition of requirements on braking system in 5.3.4;
— up-date of references;
— addition of requirements in 5.4.3 on chips and dust performances;
— limitation of tightening torque for riving knife mounting screws in Annex B.
Organisations contributing to the preparation of this European Standard include the European Committee of
Woodworking Machinery Manufacturers Association “EUMABOIS”.
EN 1870, Safety of woodworking machines — Circular sawing machines, consists of the following parts:
— Part 3: Down cutting cross-cut saws and dual purpose down cutting cross-cut saws/circular saw benches;
— Part 4: Multi-blade rip sawing machines with manual loading and/or unloading;
— Part 5: Circular saw benches/up-cutting cross-cut sawing machines;
— Part 6: Circular sawing machines for firewood and dual purpose circular sawing machines for
firewood/circular saw benches, with manual loading and/or unloading;
— Part 7: Single blade log sawing machines with integrated feed table and manual loading and/or
unloading;
— Part 8: Single blade edging circular rip sawing machines with power driven saw unit and manual loading
and/or unloading;
— Part 9: Double blade circular sawing machines for cross-cutting with integrated feed and with manual
loading and/or unloading;
— Part 10: Single blade automatic and semi-automatic up-cutting cross-cut sawing machines;
— Part 11: Semi-automatic horizontal cross-cut sawing machines with one saw unit (radial arm saws);
— Part 12: Pendulum cross-cut sawing machines;
— Part 13: Horizontal beam panel sawing machines;
— Part 14: Vertical panel sawing machines;
— Part 15: Multi-blade cross-cut sawing machines with integrated feed of the workpiece and manual loading
and/or unloading;
— Part 16: Double mitre sawing machines for V-cutting;
— Part 17: Manual horizontal cutting cross-cut sawing machines with one saw unit (manual radial arm
saws);
— Part 18: Dimension saws;
— Part 19: Circular saw benches (with and without sliding table) and building site saws.
According to the CEN-CENELEC Internal Regulations, the national standards organizations of the following
countries are bound to implement this European Standard: Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech
Republic, Denmark, Estonia, Finland, Former Yugoslav Republic of Macedonia, France, Germany, Greece,
Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal,
Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and the United Kingdom.
Introduction
This document has been prepared to be a harmonized standard to provide one means of conforming to the
essential safety requirements of the Machinery Directive, and associated EFTA regulations. This European
Standard is a type “C” standard as defined in EN ISO 12100:2010.
The extent to which hazards are covered is indicated in the scope of this document.
When provisions of this type C standard are different from those which are stated in type A or B standards, the
provisions of this type C standard take precedence over the provisions of other standards, for machines that
have been designed and built according to the provisions of this type C standard.
The requirements of this document are directed to manufacturers and their authorized representatives of
down cutting cross-cut saws and dual purpose down cutting cross -cut saws/circular saw benches. They are
also useful for designers.
This document also includes information to be provided by the manufacturer to the user.
Common requirements for tooling are given in EN 847-1:2013.
Electrically driven machines excluded by the scope of this document are covered by the requirements of
EN 61029-1:2000, EN 61029-2-9:2009 and EN 61029-2-11:2009.
1 Scope
This European Standard deals with all significant hazards, hazardous situations and events as listed in
Clause 4 which are relevant to down cutting cross-cut saws and dual purpose down cutting cross-cut
saws/circular saw benches, herein after referred to as “machines”, designed to cut solid wood, chipboard,
fibreboard, plywood and also these materials where they are covered with plastic edging and/or plastic/light
alloy laminates when they are used as intended and under the conditions foreseen by the manufacturer
including reasonably foreseeable misuse.
NOTE 1 For the definition of down cutting cross-cut saws and dual purpose down cutting cross -cut saws/circular saw
benches, see 3.2.2, 3.2.3 and 3.2.4, and for the definition of displaceable machine, see 3.2.8.
This document does not apply to:
— machines for cross cutting logs;
— hand-held motor-operated electric tools or any adaptation permitting their use in a different mode, e.g.
bench mounting;
NOTE 2 Hand-held motor-operated electric tools and saw benches to form an integrated whole with a hand-held motor-
operated electric tools are covered by EN 60745-1:2009 together with EN 60745-2–5:2010.
— transportable machines set up on a bench or a table similar to a bench, which are intended to carry out
work in a stationary position, capable of being lifted by one person by hand i.e. maximum mass ≤ 25 kg.
NOTE 3 Transportable motor-operated electric tools are covered by the requirements of EN 61029-1:2009 together
with EN 61029-2–9:2009 and EN 61029-2–11:2009.
This document is not applicable to down cutting cross-cut saws and dual purpose down cutting cross-cut
saws/circular saw benches which are manufactured before the date of its publication as European Standard.
2 Normative references
The following documents, in whole or in part, are normatively referenced in this document and are
indispensable for its application. For dated references, only the edition cited applies. For undated references,
the latest edition of the referenced document (including any amendments) applies.
EN 574:1996+A1:2008, Safety of machinery - Two-hand control devices - Functional aspects - Principles for
design
EN 614-1:2006+A1:2009, Safety of machinery - Ergonomic design principles - Part 1: Terminology and
general principles
EN 847-1:2013, Tools for woodworking - Safety requirements - Part 1: Milling tools, circular saw blades
EN 894-1:1997+A1:2008, Safety of machinery - Ergonomics requirements for the design of displays and
control actuators - Part 1: General principles for human interactions with displays and control actuators
EN 894-2:1997+A1:2008, Safety of machinery - Ergonomics requirements for the design of displays and
control actuators - Part 2: Displays
EN 894-3:2000+A1:2008, Safety of machinery - Ergonomics requirements for the design of displays and
control actuators - Part 3: Control actuators
EN 953:1997+A1:2009, Safety of machinery - Guards - General requirements for the design and construction
of fixed and movable guards
EN 1005-1:2001+A1:2008, Safety of machinery - Human physical performance - Part 1: Terms and definitions
EN 1005-2:2003+A1:2008, Safety of machinery - Human physical performance - Part 2: Manual handling of
machinery and component parts of machinery
EN 1005-3:2002+A1:2008, Safety of machinery - Human physical performance - Part 3: Recommended force
limits for machinery operation
EN 1005-4:2005+A1:2008, Safety of machinery - Human physical performance - Part 4: Evaluation of working
postures and movements in relation to machinery
EN 1837:1999+A1:2009, Safety of machinery - Integral lighting of machines
EN 1870-19:2013, Safety of woodworking machines - Circular sawing machines - Part 19: Circular saw
benches (with and without sliding table) and building site saws
EN 50370-1:2005, Electromagnetic compatibility (EMC) - Product family standard for machine tools - Part 1:
Emission
EN 50370-2:2003, Electromagnetic compatibility (EMC) - Product family standard for machine tools - Part 2:
Immunity
EN 50525-2-21:2011, Electric cables - Low voltage energy cables of rated voltages up to and including
450/750 V (Uo/U) - Part 2-21: Cables for general applications - Flexible cables with crosslinked elastomeric
insulation
)
EN 60204-1:2006 , Safety of machinery — Electrical equipment of machines — Part 1: General
requirements (IEC 60204-1:2005, modified)
)
EN 60439-1:1999 , Low-voltage switchgear and controlgear assemblies — Part 1: Type-tested and partially
type-tested assemblies (IEC 60439-1:1999 + A1:2004)
)
EN 60529:1991 , Degrees of protection provided by enclosures (IP Code) (IEC 60529:1989 + A1:1999)
EN 60825-1:2007, Safety of laser products - Part 1: Equipment classification and requirements
(IEC 60825-1:2007)
EN 61310-1:2008, Safety of machinery - Indication, marking and actuation - Part 1: Requirements for visual,
acoustic and tactile signals (IEC 61310-1:2007)
EN 61496-2:2013, Safety of machinery - Electro-sensitive protective equipment - Part 2: Particular
requirements for equipment using active opto-electronic protective devices (AOPDs) (IEC 61496-2:2013)
EN 61800-5-2:2007, Adjustable speed electrical power drive systems - Part 5-2: Safety requirements –
Functional (IEC 61800-5-2:2007)
EN ISO 3743-1:2010, Acoustics - Determination of sound power levels and sound energy levels of noise
sources using sound pressure - Engineering methods for small movable sources in reverberant fields - Part 1:
Comparison method for a hard-walled test room (ISO 3743-1:2010)

1) EN 60204-1:2006 is amended by EN 60204-1:2006/A1:2009, based on IEC 60204-1:2005/A1:2008.
)
EN 60439-1:1999 is impacted by EN 60439-1:1999/A1:2004.
)
EN 60529:1991 is impacted by EN 60529:1991/A1:2000.
EN ISO 3743-2:2009, Acoustics - Determination of sound power levels of noise sources using sound pressure
- Engineering methods for small, movable sources in reverberant fields - Part 2: Methods for special
reverberation test rooms (ISO 3743-2:1994)
EN ISO 3744:2010, Acoustics - Determination of sound power levels and sound energy levels of noise
sources using sound pressure - Engineering methods for an essentially free field over a reflecting plane (ISO
3744:2010)
EN ISO 3745:2012, Acoustics - Determination of sound power levels and sound energy levels of noise
sources using sound pressure - Precision methods for anechoic rooms and hemi-anechoic rooms (ISO
3745:2012)
EN ISO 3746:2010, Acoustics - Determination of sound power levels and sound energy levels of noise
sources using sound pressure - Survey method using an enveloping measurement surface over a reflecting
plane (ISO 3746:2010)
EN ISO 4414:2010, Pneumatic fluid power - General rules and safety requirements for systems and their
components (ISO 4414:2010)
EN ISO 4871:2009, Acoustics - Declaration and verification of noise emission values of machinery and
equipment (ISO 4871:1996)
EN ISO 9614-1:2009, Acoustics - Determination of sound power levels of noise sources using sound intensity
- Part 1: Measurement at discrete points (ISO 9614-1:1993)
EN ISO 11202:2010, Acoustics - Noise emitted by machinery and equipment - Determination of emission
sound pressure levels at a work station and at other specified positions applying approximate environmental
corrections (ISO 11202:2010)
EN ISO 11204:2010, Acoustics - Noise emitted by machinery and equipment - Determination of emission
sound pressure levels at a work station and at other specified positions applying accurate environmental
corrections (ISO 11204:2010)
EN ISO 11688-1:2009, Acoustics - Recommended practice for the design of low-noise machinery and
equipment - Part 1: Planning (ISO/TR 11688-1:1995)
EN ISO 12100:2010, Safety of machinery - General principles for design - Risk assessment and risk reduction
(ISO 12100:2010)
EN ISO 13849-1:2008, Safety of machinery - Safety-related parts of control systems - Part 1: General
principles for design (ISO 13849-1:2006)
EN ISO 13850:2008, Safety of machinery - Emergency stop - Principles for design (ISO 13850:2006)
EN ISO 13856-1:2013, Safety of machinery - Pressure-sensitive protective devices - Part 1: General
principles for design and testing of pressure-sensitive mats and pressure-sensitive floors (ISO 13856-1:2013)
EN ISO 13856-2:2013, Safety of machinery - Pressure-sensitive protective devices - Part 2: General
principles for design and testing of pressure-sensitive edges and pressure-sensitive bars (ISO 13856-2:2013)
EN ISO 13857:2008, Safety of machinery - Safety distances to prevent hazard zones being reached by upper
and lower limbs (ISO 13857:2008)
EN ISO 14119:2013, Safety of machinery - Interlocking devices associated with guards - Principles for design
and selection (ISO 14119:2013)
ISO 7960:1995, Airborne noise emitted by machine tools — Operating conditions for woodworking machines
ISO 14118:2000, Safety of machinery — Prevention of unexpected start-up
3 Terms and definitions
3.1 General
For the purposes of this document, the terms and definitions given in EN ISO 12100:2010 and the following
apply.
3.2 Terms and definitions
3.2.1
cross-cutting
operation of cutting across the grain of a wooden workpiece
3.2.2
down cutting cross-cut saw
machine where the saw blade spindle is situated above the workpiece when the saw blade is in its rest
position and where the saw blade moves down through the workpiece during the cut (see Figure 1)

Figure 1 — Example of a down cutting cross-cut saw
3.2.3
down cutting and horizontal cutting cross-cut saw
machine where the saw unit is fed by hand and the workpiece is manually loaded and/or unloaded, and that
can be used in two modes:
a) as a down cutting cross cut saw (see 3.2.2);
b) as a down cutting cross cut saw with an additional horizontal cutting stroke where the saw unit is pulled
forward through wide work (see Figure 2)
Key
1 down cutting stroke
2 horizontal cutting stroke
3 operators side
Figure 2 — Diagrammatic illustration of a down cutting and horizontal cutting cross-cut saw
(guarding not shown)
3.2.4
dual purpose down cutting cross-cut saw/circular saw bench
machine which may be used in the following modes (see Figure 3):
a) as a down cutting cross cut saw;
b) as a circular saw bench (see EN 1870-19:2013, 3.1)

Key
1 table for use when saw unit is lowered into the circular saw bench mode
Figure 3 — Example of a dual purpose down cutting cross-cut saw/circular saw bench
3.2.5
manual cross-cut saw
machine where the saw unit is fed by hand and the workpiece is manually positioned for cutting to length
Note 1 to entry: This type of machine is not covered by Annex IV of the Machinery Directive.
3.2.6
semi-automatic cross-cut saw
machine where the saw unit has integrated feed which is initiated manually and the workpiece is positioned
manually or by means of a positioning mechanism for cutting to length
Note 1 to entry: This type of machine is covered by Annex IV of the Machinery Directive.
3.2.7
automatic cross-cut saw
machine where the saw unit has integrated feed, the workpiece is manually loaded and/or unloaded,
automatically positioned for cutting to pre-selected lengths and where the integrated feed of the saw unit is
initiated automatically
Note 1 to entry: This type of machine is not covered by Annex IV of the Machinery Directive.
3.2.8
displaceable machine
machine which is located on the floor, stationary during use and equipped with a device, normally wheels,
which allow it to be moved between locations
3.2.9
machine actuator
power mechanism used to effect motion of the machine
3.2.10
hand feed
manual holding and/or guiding of the workpiece or of a machine element incorporating a tool (hand feed
includes the use of a hand operated carriage on which the workpiece is placed manually or clamped and the
use of a de-mountable power feed unit)
Note 1 to entry: The words in brackets are not applicable to this machine.
3.2.11
integrated feed
feed mechanism for the workpiece or tool which is integrated with the machine and where the workpiece or
machine element with incorporated tool are held and controlled mechanically during the machining operation
3.2.12
cutting area of the saw blade
area where the saw blade can be involved in the cutting process
3.2.13
non-cutting area of the saw blade
area of the saw blade where the saw blade is not involved in the cutting process
3.2.14
ejection
unexpected movement of the workpiece or parts of it or part of the machine from the machine during
processing
3.2.15
kickback
particular form of ejection and is describing the unexpected movement of the workpiece or parts of it or parts
of the machine opposite to the direction of feed during processing
3.2.16
anti kick-back device
device which either reduces the possibility of kickback or arrests the motion during kickback of the workpiece
or parts of it or parts of the machine
3.2.17
safety appliance
additional device which is not an integral part of the machine but which assists the operator in the safe feeding
of the workpiece, e.g. as illustrated in Figure 4

a) Example of push stick
Key
1 handle
b) Example of push block
Figure 4 — Example of push stick and push block (for dual purpose down cutting cross-cut
saws/circular saw benches in the saw bench mode)
3.2.18
run-down time
time elapsed from the actuation of the stop control device up to spindle standstill
3.2.19
manual loading of power fed machines
operation, where the workpiece is presented by the operator directly to the machine integrated feed, e.g.
rotating feed rollers, travelling table or reciprocating carriage; i.e. for which there is no intermediate loading
device to receive and transfer the workpiece from the operator to the integrated feed
3.2.20
manual unloading of power fed machines
operation, where the workpiece is removed by the operator directly from the machine out-feed; i.e. for which
there is no intermediate unloading device to receive and transfer the workpiece from the machine out-feed to
the operator
3.2.21
information from the supplier
statements, sales literature, leaflets or other documents where the manufacturer (or supplier) declares either
the characteristics or the compliance of the material or product to a relevant standard
3.2.22
performance level
PL
discrete level used to specify the ability of safety-related parts of control systems to perform a safety function
under foreseeable conditions
[SOURCE: EN ISO 13849-1:2008, 3.1.23]
3.2.23
safety related part of the control system
SRP/CS
part of a control system that responds to safety-related input signals and generate safety-related output
signals
[SOURCE: EN ISO 13849-1:2008, 3.1.1]
4 List of significant hazards
Clause 4 contains all the significant hazards, hazardous situations and events (see EN ISO 12100:2010),
identified by risk assessment as significant for the machines as defined in the scope and which require action
to eliminate or reduce the risk. This document deals with these significant hazards by defining safety
requirements and/or measures or by reference to relevant standards.
These hazards are listed in Table 1.
Table 1 — List of significant hazards
No Hazards, hazardous situations and EN ISO 12100:2010 Relevant
hazardous events subclauses of
this document
1 Mechanical hazards related to:
– machine parts or workpieces:
a) shape; 5.3.3, 5.3.5,
5.3.6, 5.3.7,
5.3.8, 5.3.9
b) relative location; 5.2.2, 5.3.5,

5.3.6, 5.3.8
c) mass and stability (potential energy of 5.3.7
elements which may move under the 6.2.2.1, 6.2.2.2, 6.3
effect of gravity);
d) mass and velocity (kinetic energy of 5.3.7
elements in controlled or uncontrolled
motion);
e) mechanical strength. 5.3.2, 5.3.3,
5.3.5, 5.3.6, 5.3.9
– accumulation of energy inside the
machinery:
f) elastic elements (springs), or 6.2.5, 6.3.3 5.3.7
g) liquids and gases under pressure. 6.2.10, 6.3.5.4 5.3.7
1.1 Crushing hazard  5.3.7, 5.3.8
1.2 Shearing hazard 5.3.7, 5.3.8
1.3 Cutting or severing hazard 5.3.2, 5.3.3,
5.3.4, 5.3.7
1.4 Entanglement hazard 5.3.7
1.5 Drawing-in or trapping hazard 5.3.7
1.9 High pressure fluid injection or ejection 6.2.10 5.3.2, 5.3.3,
hazard 5.3.5, 5.3.6,
5.3.8, 5.4.7
2 Electrical hazards due to:
2.1 Contact of persons with live parts (direct 6.2.9, 6.3.5.4 5.4.4, 5.4.13
contact)
2.2 Contact of persons with parts which have 6.2.9 5.4.4, 5.4.13
become live under faulty conditions (indirect

contact)
4 Hazards generated by noise, resulting in:
4.1 Hearing loss (deafness), other physiological 6.2.2.2, 6.3 5.4.2
disorders (loss of balance, loss of
awareness)
4.2 Interference with speech communication, 6.2.2.2, 6.3 5.4.2
acoustic signals
6 Hazards generated by radiation
No Hazards, hazardous situations and EN ISO 12100:2010 Relevant
hazardous events subclauses of
this document
6.5 Lasers 6.3.4.5 5.4.13
7 Hazards generated by materials and substances (and their constituent elements)
processed or used by the machinery
7.1 Hazards from contact with or inhalation of 6.2.3, 6.2.4 5.4.3
harmful fluids and dusts
7.2 Fire hazard 6.2.4 5.4.1, 5.4.3
8 Hazards generated by neglecting ergonomic principles in machinery design related
to:
8.1 Unhealthy postures or excessive effort 6.2.7, 6.2.8, 6.2.11.12, 5.2.2
6.3.5.5, 6.3.5.6
8.2 Hand-arm or foot-leg anatomy 6.2.8.3 5.2.2
8.4 Local lighting 6.2.8.6 6.3
8.6 Human error, human behaviour 6.2.8, 6.2.11.8, 6.3 d) 2)
6.2.11.10, 6.3.5.2, 6.4
8.7 Design, location or identification of manual 6.2.8.f, 6.2.11.8 5.2.2
controls
8.8 Design or location of visual display units 6.2.8, 6.4.2 5.2.2
9 Combination of hazards 6.3.2.1 5.2.7
10 Unexpected start up, unexpected overrun/overspeed (or any similar malfunction)
from:
10.1 Failure/disorder of the control system 6.2.11, 6.3.5.4 5.2.1
10.2 Restoration of energy supply after an 6.2.11.4 5.2.8
interruption
10.3 External influences on electrical equipment 6.2.11.11 5.2.1, 5.4.4,
5.4.12
10.6 Errors made by the operator (due to 6.2.8, 6.2.11.8, 5.2.1, 5.4.5, 6.3
mismatch of machinery with human 6.2.11.10, 6.3.5.2, 6.4
characteristics and abilities, see 8.6)
11 Impossibility of stopping the machine in 6.2.11.1, 6.2.11.3, 5.2.4, 5.2.5
the best possible conditions 6.3.5.2
13 Failure of the power supply 6.2.11.1, 6.2.11.4 5.2.8
14 Failure of the control circuit 6.2.11, 6.3.5.4 5.2.1
15 Errors of fitting 6.2.7, 6.4.5 5.3.3
16 Break-up during operation 6.2.3 5.3.2
17 Falling or ejected objects or fluids 6.2.3, 6.2.10 5.3.5
18 Loss of stability / overturning of 6.3.2.6 5.3.1
machinery
5 Safety requirements and/or measures
5.1 General
The machine shall comply with the safety requirements and/or protective measures of Clause 5.
In addition, the machine should be designed according to the principles of EN ISO 12100:2010 for hazards
relevant but not significant, which are not dealt with by this document (e.g. sharp edges of the machine
frame).
For guidance in connection with risk reduction by design, see EN ISO 12100:2010, 6.2 and for safeguarding
measures, see EN ISO 12100:2010, 6.3.
5.2 Controls
5.2.1 Safety and reliability of control systems
5.2.1.1 General
For the purpose of this document, safety related part of a control system means the system from the initial
device, e.g. actuator or position detector or sensor up to and including the power control element of the final
machine actuator, e.g. motor or brake. Safety related parts of the control system of this machine comprise
parts concerning the following functions and they shall fulfil the requirements of at least the PL given below in
accordance with the requirements of EN ISO 13849-1:2008:
— starting: PL = c (see 5.2.3);
— normal stopping: PL = c (see 5.2.4);
— emergency stopping: PL = c (see 5.2.5);
— interlocking: PL = c (see 5.2.3, 5.3.7.4, 5.3.7.4.2, 5.3.7.6);
— interlocking with guard locking: PL = c (see 5.3.7.3, 5.3.7.4, 5.3.7.6);
— clamping: PL = c (see 5.3.8);
— braking system: PL = b or PL = c (see 5.2.4, 5.2.5, 5.3.4);
— two hand control: PL = c (see 5.3.7.2);
— interlocking of the positioning of the workpiece or of the integrated feed of the saw unit: PL = c (see
5.2.3);
— pressure sensitive mats: PL = c (see 5.3.7.4);
— active opto-electronic protective devices: PL = c (see 5.3.7.4);
— mechanically actuated trip device (trip bar): PL = c (see 5.3.7.4).
Verification: by checking the relevant drawings and/or circuit diagrams and inspection of the machine.
NOTE For components' characteristics the information from the component supplier can be useful.
5.2.1.2 Use of protective devices
Protective devices shall be in accordance with the specific standards. For the devices listed below the
following requirements apply:
a) pressure sensitive mats shall be designed to detect persons weighing more than 35 kg, be fitted with a
reset device and shall conform to the requirements of EN ISO 13856-1:2013. The system as a whole
(including sensor(s), control system and outlet interface, interlocking control circuit) shall conform at least
to PL = c in accordance with the requirements of EN ISO 13849-1:2008;
b) active opto-electronic protective devices (light barrier) shall as minimum be in accordance with type 2 as
defined in EN 61496-2:2013 and the associated control system shall conform to at least PL = c in
accordance with the requirements of EN ISO 13849-1:2008;
c) magnetic/proximity switches shall be in accordance with the requirements of 6.3 of EN ISO 14119:2013
and the related control system shall conform to at least PL = c in accordance with the requirements of
EN ISO 13849-1:2008;
d) time delay and the related control system shall be at least PL = c in accordance with the requirements of
EN ISO 13849-1:2008.
Verification: by checking the relevant drawings and/or circuit diagrams, inspection of the machine and relevant
functional testing of the machine.
NOTE For the components characteristics, confirmation from the components manufacturers can be useful.
5.2.2 Position of controls
5.2.2.1 General
According to the size of the machine emergency stops required by 5.2.5 shall be positioned:
a) within 1,0 m of the loading position;
b) within 1,0 m of the unloading position;
c) at the main control panel;
d) within 500 mm of the two hand control (where provided);
e) within 3,0 m of the saw unit.
NOTE A single emergency stop can fulfil more than one of these requirements.
Verification: by checking the relevant drawings and/or circuit diagrams, measurement, inspection and relevant
functional testing of the machine.
5.2.2.2 Manual machines
The start control and the stop control required by 5.2.3 and 5.2.4 shall be either:
a) incorporated in, or adjacent to the operating handle of the machine; or
b) at the front of the machine, below the workpiece support, and at a minimum height of 600 mm from the
floor level.
Verification: by checking the relevant drawings, measurement and inspection of the machine.
5.2.2.3 Semi-automatic machines
The requirements in EN 60204-1:2006, 10.1.1 apply and in addition the two hand control (see 5.3.7.2) shall be
situated:
a) at the front of the machine;
b) below the workpiece support;
c) at a minimum height of 750 mm from the floor level.
Where the control for the clamps is separate from the t
...
