Refractory products - Determination of resistance to carbon monoxide (ISO 12676:2000)

This International Standard specifies a method for determining the comparative resistance of refractory materials to
carbon monoxide disintegration.
The test is intended to be more severe than conditions encountered in service in order to enable probable behaviour
of refractory materials to be assessed in a relatively short time.

Feuerfeste Erzeugnisse - Bestimmung der Beständigkeit gegen Kohlenstoffmonooxid (ISO 12676:2000)

Diese Internationale Norm legt ein Verfahren zur Bestimmung der vergleichbaren Beständigkeit von feuerfesten Werkstoffen beim Zerfall von Kohlenstoffmonooxid fest.
Die Prüfung beabsichtigt härtere Bedingungen als die während des laufenden Betriebes herrschenden anzulegen, um das wahrscheinliche Verhalten feuerfester Werkstoffe in relativ kurzer Zeit einschätzen zu können.

Produits réfractaires - Détermination de la résistance au monoxyde de carbone (ISO 12676:2000)

La présente Norme internationale spécifie une méthode de détermination de la résistance comparative des matériaux
réfractaires à la désagrégation par le monoxyde de carbone.
L'essai est réalisé dans des conditions plus contraignantes que les conditions d'exploitation réelles pour permettre
d'évaluer le comportement potentiel des matériaux réfractaires en un temps relativement court.

Ognjevzdržni izdelki – Ugotavljanje odpornosti proti ogljikovemu monoksidu (ISO 12676:2000)

General Information

Status
Published
Publication Date
04-Mar-2003
ICS
81.080 - Refractories
Technical Committee
CEN/TC 187 - Refractory products and materials
Drafting Committee
CEN/TC 187/WG 4 - Chemical analysis
Current Stage
9092 - Decision on results of review/2YR ENQ - revise - Review Enquiry
Start Date
12-Mar-2008
Completion Date
12-Mar-2008
Ref Project
SIST EN ISO 12676:2003 - Refractory products - Determination of resistance to carbon monoxide (ISO 12676:2000)

Overview

EN ISO 12676:2003 is a European and International Standard specifying a method to determine the resistance of refractory products to carbon monoxide (CO) disintegration. Published by CEN based on ISO 12676:2000, this standard provides a rigorous testing procedure to assess how refractory materials behave under severe carbon monoxide exposure. The method is designed to exceed typical service conditions, enabling a rapid and reliable evaluation of material performance against CO-induced damage.

This standard is essential for manufacturers, quality control laboratories, and engineers working with refractory materials used in high-temperature industrial environments where exposure to carbon monoxide is a concern.

Key Topics

  • Scope
    The standard defines testing methods for comparing the resistance of refractory materials to carbon monoxide disintegration, which involves breakdown caused by the deposition of carbon from CO dissociation.

  • Test Principle
    Testpieces of refractory materials are exposed to a controlled atmosphere containing carbon monoxide at a specified temperature and duration under strictly regulated conditions to simulate and accelerate potential disintegration.

  • Apparatus Requirements
    Includes a furnace, gas-tight reaction chamber, temperature controller, gas supply system, and analysis tools to maintain and monitor a CO-rich environment and temperature within precise limits.

  • Testpieces Preparation
    Refractory samples must be prepared as rectangular or square prisms, with specified dimensions and treatments (fired or unfired), ensuring reproducibility and reliability in results.

  • Procedure
    The test cycle involves heating in nitrogen, switching to a controlled CO atmosphere, maintaining test conditions, then flushing with nitrogen and cooling. Continuous monitoring of gas composition and temperature is critical.

  • Assessment of Results
    Post-test evaluation classifies testpieces based on visual and structural conditions: unaffected, surface damage, cracked, or disrupted, providing a clear benchmark of CO resistance.

  • Reporting
    Detailed documentation is required on test conditions, materials, timings, flow rates, outcomes, and observations to ensure traceability and confidence in results.

Applications

EN ISO 12676:2003 is widely applied in the metallurgy, cement, glass, and ceramics industries where refractory linings and components face carbon monoxide atmospheres during high-temperature processes. Key applications include:

  • Quality Control
    Manufacturers test refractory bricks, castables, and shapes to ensure compliance with performance specifications before market release.

  • Material Development
    Research teams use this standard to develop more CO-resistant refractory formulations, enhancing durability and lifespan.

  • Predictive Maintenance
    Facility operators assess the probable degradation rate of installed refractory materials for better maintenance planning and replacement schedules.

  • Safety and Compliance
    Regulatory compliance surrounding toxic CO exposure and refractory performance safety is supported through adherence to this testing protocol.

Related Standards

To complement EN ISO 12676:2003, consider the following related standards which provide additional frameworks for refractory product testing and sampling:

  • ISO 5022:1979 – Shaped refractory products: sampling and acceptance testing
  • ISO 8656-1:1988 – Refractory products: sampling of raw materials and unshaped products – Part 1: Sampling scheme
  • ISO/TC 33 – Technical Committee overseeing refractory material standards
  • Additional ISO and CEN standards covering chemical resistance, thermal shock resistance, and mechanical testing of refractory materials

Adopting EN ISO 12676:2003 allows industries to reliably benchmark the resistance of refractory products to carbon monoxide, ensuring safer, more durable, and more efficient high-temperature operations in CO-rich environments.

Frequently Asked Questions

EN ISO 12676:2003 is a standard published by the European Committee for Standardization (CEN). Its full title is "Refractory products - Determination of resistance to carbon monoxide (ISO 12676:2000)". This standard covers: This International Standard specifies a method for determining the comparative resistance of refractory materials to carbon monoxide disintegration. The test is intended to be more severe than conditions encountered in service in order to enable probable behaviour of refractory materials to be assessed in a relatively short time.

This International Standard specifies a method for determining the comparative resistance of refractory materials to carbon monoxide disintegration. The test is intended to be more severe than conditions encountered in service in order to enable probable behaviour of refractory materials to be assessed in a relatively short time.

EN ISO 12676:2003 is classified under the following ICS (International Classification for Standards) categories: 81.080 - Refractories. The ICS classification helps identify the subject area and facilitates finding related standards.

You can purchase EN ISO 12676:2003 directly from iTeh Standards. The document is available in PDF format and is delivered instantly after payment. Add the standard to your cart and complete the secure checkout process. iTeh Standards is an authorized distributor of CEN standards.

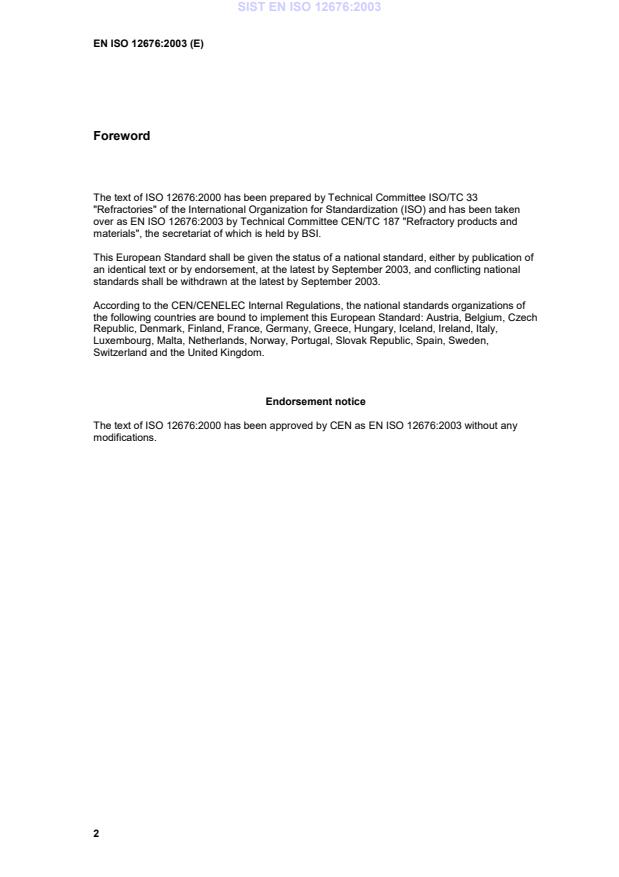

Standards Content (Sample)


2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Ognjevzdržni izdelki – Ugotavljanje odpornosti proti ogljikovemu monoksidu (ISO 12676:2000)Feuerfeste Erzeugnisse - Bestimmung der Beständigkeit gegen Kohlenstoffmonooxid (ISO 12676:2000)Produits réfractaires - Détermination de la résistance au monoxyde de carbone (ISO 12676:2000)Refractory products - Determination of resistance to carbon monoxide (ISO 12676:2000)81.080Ognjevzdržni materialiRefractoriesICS:Ta slovenski standard je istoveten z:EN ISO 12676:2003SIST EN ISO 12676:2003en01-november-2003SIST EN ISO 12676:2003SLOVENSKI
STANDARD
EUROPEAN STANDARDNORME EUROPÉENNEEUROPÄISCHE NORMEN ISO 12676March 2003ICS 81.080English versionRefractory products - Determination of resistance to carbonmonoxide (ISO 12676:2000)Produits réfractaires - Détermination de la résistance aumonoxyde de carbone (ISO 12676:2000)Feuerfeste Erzeugnisse - Bestimmung der Beständigkeitgegen Kohlenstoffmonooxid (ISO 12676:2000)This European Standard was approved by CEN on 9 January 2003.CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this EuropeanStandard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such nationalstandards may be obtained on application to the Management Centre or to any CEN member.This European Standard exists in three official versions (English, French, German). A version in any other language made by translationunder the responsibility of a CEN member into its own language and notified to the Management Centre has the same status as the officialversions.CEN members are the national standards bodies of Austria, Belgium, Czech Republic, Denmark, Finland, France, Germany, Greece,Hungary, Iceland, Ireland, Italy, Luxembourg, Malta, Netherlands, Norway, Portugal, Slovak Republic, Spain, Sweden, Switzerland andUnited Kingdom.EUROPEAN COMMITTEE FOR STANDARDIZATIONCOMITÉ EUROPÉEN DE NORMALISATIONEUROPÄISCHES KOMITEE FÜR NORMUNGManagement Centre: rue de Stassart, 36
B-1050 Brussels© 2003 CENAll rights of exploitation in any form and by any means reservedworldwide for CEN national Members.Ref. No. EN ISO 12676:2003 ESIST EN ISO 12676:2003

INTERNATIONALSTANDARDISO12676Firstedition2000-11-15ReferencenumberISO12676:2000(E)©ISO2000Refractoryproducts—DeterminationofresistancetocarbonmonoxideProduitsréfractaires—DéterminationdelarésistanceaumonoxydedecarboneSIST EN ISO 12676:2003

ISO12676:2000(E)ii©ISO2000–AllrightsreservedPDFdisclaimerThisPDFfilemaycontainembeddedtypefaces.InaccordancewithAdobe'slicensingpolicy,thisfilemaybeprintedorviewedbutshallnotbeeditedunlessthetypefaceswhichareembeddedarelicensedtoandinstalledonthecomputerperformingtheediting.Indownloadingthisfile,partiesacceptthereintheresponsibilityofnotinfringingAdobe'slicensingpolicy.TheISOCentralSecretariatacceptsnoliabilityinthisarea.AdobeisatrademarkofAdobeSystemsIncorporated.DetailsofthesoftwareproductsusedtocreatethisPDFfilecanbefoundintheGeneralInforelativetothefile;thePDF-creationparameterswereoptimizedforprinting.EverycarehasbeentakentoensurethatthefileissuitableforusebyISOmemberbodies.Intheunlikelyeventthataproblemrelatingtoitisfound,pleaseinformtheCentralSecretariatattheaddressgivenbelow.©ISO2000Allrightsreserved.Unlessotherwisespecified,nopartofthispublicationmaybereproducedorutilizedinanyformorbyanymeans,elec-tronicormechanical,includingphotocopyingandmicrofilm,withoutpermissioninwritingfromeitherISOattheaddressbeloworISO'smem-berbodyinthecountryoftherequester.ISOcopyrightofficeCasepostale56•CH-1211Geneva20Tel.+41227490111Fax+41227490947E-mailcopyright@iso.chWebwww.iso.chPrintedinSwitzerlandSIST EN ISO 12676:2003

ISO12676:2000(E)©ISO2000–AllrightsreservediiiContentsPage1Scope.12Normativereferences.13Termsanddefinitions.14Principle.15Apparatus.26Sampling.47Testpieces.48Procedure.49Conditionoftestpieces.510Testreport.5SIST EN ISO 12676:2003

ISO12676:2000(E)iv©ISO2000–AllrightsreservedForewordISO(theInternationalOrganizationforStandardization)isaworldwidefederationofnationalstandardsbodies(ISOmemberbodies).TheworkofpreparingInternationalStandardsisnormallycarriedoutthroughISOtechnicalcom-mittees.Eachmemberbodyinterestedinasubjectforwhichatechnicalcommitteehasbeenestablishedhastherighttoberepresentedonthatcommittee.Internationalorganizations,governmentalandnon-governmental,inliai-sonwithISO,alsotakepartinthework.ISOcollaboratescloselywiththeInternationalElectrotechnicalCommission(IEC)onallmattersofelectrotechnicalstandardization.InternationalStandardsaredraftedinaccordancewiththerulesgivenintheISO/IECDirectives,Part3.DraftInternationalStandardsadoptedbythetechnicalcommitteesarecirculatedtothememberbodiesforvoting.PublicationasanInternationalStandardrequiresapprovalbyatleast75%ofthememberbodiescastingavote.AttentionisdrawntothepossibilitythatsomeoftheelementsofthisInternationalStandardmaybethesubjectofpatentrights.ISOshallnotbeheldresponsibleforidentifyinganyorallsuchpatentrights.InternationalStandardISO12676waspreparedbyTechnicalCommitteeISO/TC33,Refractories.SIST EN ISO 12676:2003

INTERNATIONALSTANDARDISO12676:2000(E)©ISO2000–Allrightsreserved1Refractoryproducts—Determinationofresistancetocarbonmonoxide1ScopeThisInternationalStandardspecifiesamethodfordeterminingthecomparativeresistanceofrefractorymaterialstocarbonmonoxidedisintegration.Thetestisintendedtobemoreseverethanconditionsencounteredinserviceinordertoenableprobablebehaviourofrefractorymaterialstobeassessedinarelativelyshorttime.2NormativereferencesThefollowingnormativedocumentscontainprovisionswhich,throughreferenceinthistext,constituteprovisionsofthisInternationalStandard.Fordatedreferences,subsequentamendmentsto,orrevisionsof,anyofthesepublica-tionsdonotapply.However,partiestoagreementsbasedonthisInternationalStandardareencouragedtoinvesti-gatethepossibilityofapplyingthemostrecenteditionsofthenormativedocumentsindicatedbelow.Forundatedreferences,thelatesteditionofthenormativedocumentreferredtoapplies.MembersofISOandIECmaintainreg-istersofcurrentlyvalidInternationalStandards.ISO5022:1979,Shapedrefractoryproducts—Samplingandacceptancetesting.ISO8656-1:1988,Refractoryproducts—Samplingofrawmaterialsandunshapedproducts—Part1:Samplingscheme.3TermsanddefinitionsForthepurposesofthisInternationalStandard,thefollowingtermsanddefinitionsapply.3.1carbonmonoxidedisintegrationbreakdownofarefractoryproductcausedbythedepositionofcarbonresultingfromthedissociationofcarbonmon-oxide3.2carbonmonoxideresistanceresistanceofarefractoryproducttocarbon
...
