EN 2436-003:2006
(Main)Aerospace series - Paints and varnishes - Corrosion resistant chromate-free two component cold curing primer - Part 003: High corrosion and fluid resistance
Aerospace series - Paints and varnishes - Corrosion resistant chromate-free two component cold curing primer - Part 003: High corrosion and fluid resistance
This standard specifies the requirements for a two component, cold curing, chromate-free epoxy or polyurethane, high corrosion and fluid resistant primer which can be used with or without a finish for aerospace applications.
The properties specified in this standard are obtained on defined aluminium alloy test pieces prepared in accordance with EN 3837 and ISO 3270. The ability of the material to be used for a specific application (e.g. alternative substrate, alternative primer, specific drying conditions etc.) shall be determined by supplementary tests to confirm that the requirements of this standard are met.
Luft- und Raumfahrt - Beschichtungsstoffe - Korrosionsbeständiger Zweikomponenten-Primer, kalthärtend chromatfrei - Teil 003: Hohe Beständigkeit gegen Korrosion und Flüssigkeiten
Diese Norm legt die Anforderungen an einen chromatfreien, kalthärtenden Zweikomponenten Primer auf Epoxid oder Polyurethanharzbasis mit hoher Beständigkeit gegen Korrosion und Flüssigkeiten fest, der mit oder ohne Deckbeschichtung in der Luft und Raumfahrt verwendet werden kann.
Die in dieser Norm festgelegten Eigenschaften werden anhand definierter Probenkörper aus Aluminiumlegie¬rung ermittelt, die nach EN 3837 und ISO 3270 vorbereitet werden. Die Eignung des für eine bestimmte An¬wendung zu verwendenden Materials (z. B. alternativer Trägerwerkstoff, alternativer Primer, bestimmte Trocknungsbedingungen usw.) ist durch zusätzliche Prüfungen bestimmen, um nachzuweisen, dass die Anforderungen dieser Norm erfüllt werden.
Série aérospatiale - Peintures et vernis - Peinture primaire anti-corrosion sans chromate à deux composants polymérisant à température ambiante - Partie 003 : Haute résistance à la corrosion et aux fluides
Aeronavtika - Barve in laki - Dvokomponentni temeljni premaz, korozijsko obstojen, brez kroma, ki se suši pri sobni temperaturi - 003. del: Visoka odpornost proti koroziji in tekočinam
General Information
- Status
- Published
- Publication Date
- 20-Jun-2006
- Withdrawal Date
- 30-Dec-2006
- Technical Committee
- ASD-STAN - Aerospace
- Drafting Committee
- ASD-STAN/D 5 - Non-Metallic
- Current Stage
- 9093 - Decision to confirm - Review Enquiry
- Start Date
- 01-Jun-2017
- Completion Date
- 28-Jan-2026
Relations
- Refers
EN 2334:1997 - Aerospace series - Chromic-sulphuric acid pickle of aluminium and aluminium alloys - Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
Overview
EN 2436-003:2006 is a European standard established by CEN, specifying the requirements for a two-component, cold curing, chromate-free primer used in aerospace applications. This primer is formulated either as an epoxy or polyurethane system, designed to provide high corrosion and fluid resistance for aerospace metal surfaces, primarily aluminium alloys. The primer offers protection either as a standalone coating or as a base layer under finishing paints.
The standard serves an important role in aerospace material coatings by promoting safer, environmentally friendly primer formulations that eliminate chromate compounds, known for their toxicity, while ensuring durability, corrosion resistance, and chemical protection under demanding conditions typical of aerospace environments.
Key Topics
Two-Component System: The primer consists of a base resin combined with an activator, mixed in defined ratios. It cures at ambient temperature, facilitating easy application and use.
Chromate-Free Composition: Ensures compliance with modern environmental and safety regulations by avoiding chromate-based corrosion inhibitors traditionally used in aerospace primers.
High Corrosion Resistance: Tested on aluminium alloy substrates prepared according to EN 3837 and ISO 3270, offering robust protection against corrosion including resistance to salt spray, filiform corrosion, and fluid exposure.
Fluid Resistance: Demonstrates strong resistance to common aerospace fluids, such as tri-n-butyl phosphate, hydraulic fluids, and water, preventing blistering, softening, or film detachment.
Cold Curing: Cold curing capability allows application and curing at ambient temperatures, improving operational flexibility compared to heat-cured primers.
Compatibility: Suitable for use with or without a finishing topcoat, enabling versatile application tailored to specific aerospace needs.
Quality Assurance and Testing: The standard outlines rigorous batch release and qualification testing protocols including physical, chemical, mechanical, and environmental performance tests to maintain consistent product quality.
Applications
EN 2436-003:2006 primers are highly applicable within:
Aerospace Industry: Protecting aircraft structural aluminium alloys from corrosion and chemical degradation during manufacturing, assembly, and service life.
Aircraft Maintenance and Repair: Providing a reliable primer layer for refinishing and maintenance operations requiring chromate-free alternatives.
Manufacturing: Used in aerospace component production lines where cold curing and tight environmental compliance are critical.
Surface Protection: Ideal for aerospace parts subject to exposure to harsh fluids and corrosive environments such as fuel, hydraulic fluids, and varying temperature extremes.
The primer’s properties enable longer lifecycle for aluminium components by preventing corrosion induced failures and reducing maintenance needs associated with corrosion-related damage.
Related Standards
To ensure full compatibility and performance within aerospace coatings systems, EN 2436-003:2006 connects with several related standards:
EN 3837: Surface preparation methods for aluminium alloy test pieces, critical for reproducible corrosion resistance testing.
EN 2334: Chromic acid and sulphuric acid pickling processes for aluminium, relevant to substrate preparation prior to primer application.
EN 2379: Specification for fluids used in non-metallic materials assessment, including compatibility testing.
EN 2434-003: Specifies finishing coating systems compatible with two component cold curing primers, often used in combination with EN 2436-003 primers.
EN 4385: General organization and structure for aerospace non-metallic material standards, under which EN 2436-003 is categorized.
ISO 3270: Environmental conditioning during testing, ensuring consistent test environments for defining primer properties.
EN 3840: Technical specifications for aerospace paints and varnishes, referenced for product formulation and testing methods.
Compliance with EN 2436-003:2006 ensures aerospace primers meet advanced environmental, safety, and performance expectations, offering chromate-free corrosion protection for aluminium substrates crucial to aviation safety and reliability.
Keywords: aerospace primer, chromate-free primer, corrosion resistant primer, two-component primer, cold curing epoxy primer, polyurethane aerospace primer, EN 2436-003, aluminium alloy protection, aerospace paint standards, fluid resistant primer, aerospace coatings standard.
Get Certified
Connect with accredited certification bodies for this standard
National Aerospace and Defense Contractors Accreditation Program (NADCAP)
Global cooperative program for special process quality in aerospace.
NSF-ISR
NSF International Strategic Registrations.
Orion Registrar Inc.
US-based certification body for management systems.
Sponsored listings
Frequently Asked Questions
EN 2436-003:2006 is a standard published by the European Committee for Standardization (CEN). Its full title is "Aerospace series - Paints and varnishes - Corrosion resistant chromate-free two component cold curing primer - Part 003: High corrosion and fluid resistance". This standard covers: This standard specifies the requirements for a two component, cold curing, chromate-free epoxy or polyurethane, high corrosion and fluid resistant primer which can be used with or without a finish for aerospace applications. The properties specified in this standard are obtained on defined aluminium alloy test pieces prepared in accordance with EN 3837 and ISO 3270. The ability of the material to be used for a specific application (e.g. alternative substrate, alternative primer, specific drying conditions etc.) shall be determined by supplementary tests to confirm that the requirements of this standard are met.
This standard specifies the requirements for a two component, cold curing, chromate-free epoxy or polyurethane, high corrosion and fluid resistant primer which can be used with or without a finish for aerospace applications. The properties specified in this standard are obtained on defined aluminium alloy test pieces prepared in accordance with EN 3837 and ISO 3270. The ability of the material to be used for a specific application (e.g. alternative substrate, alternative primer, specific drying conditions etc.) shall be determined by supplementary tests to confirm that the requirements of this standard are met.
EN 2436-003:2006 is classified under the following ICS (International Classification for Standards) categories: 49.040 - Coatings and related processes used in aerospace industry. The ICS classification helps identify the subject area and facilitates finding related standards.
EN 2436-003:2006 has the following relationships with other standards: It is inter standard links to EN 2334:1997, EN 2434-003:2010, EN 3840:2007, EN 4588:2007. Understanding these relationships helps ensure you are using the most current and applicable version of the standard.
EN 2436-003:2006 is available in PDF format for immediate download after purchase. The document can be added to your cart and obtained through the secure checkout process. Digital delivery ensures instant access to the complete standard document.

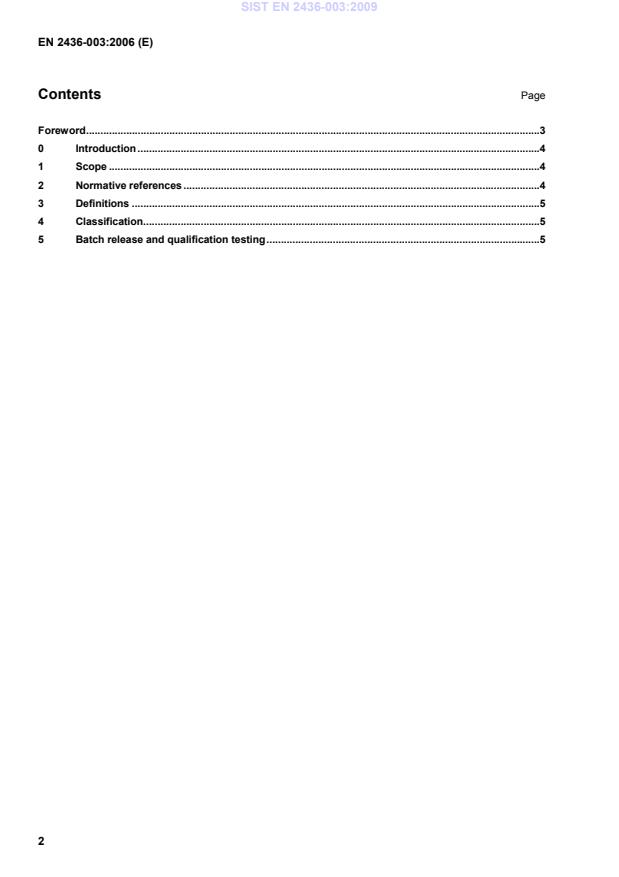

Standards Content (Sample)
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.R]LMVNRLuft- und Raumfahrt - Beschichtungsstoffe - Korrosionsbeständiger Zweikomponenten-Primer, kalthärtend chromatfrei - Teil 003: Hohe Beständigkeit gegen Korrosion und FlüssigkeitenSérie aérospatiale - Peintures et vernis - Peinture primaire anti-corrosion sans chromate à deux composants polymérisant à température ambiante - Partie 003 : Haute résistance à la corrosion et aux fluidesAerospace series - Paints and varnishes - Corrosion resistant chromate-free two component cold curing primer - Part 003: High corrosion and fluid resistance49.040Prevleke in z njimi povezani postopki, ki se uporabljajo v letalski in vesoljski industrijiCoatings and related processes used in aerospace industryICS:Ta slovenski standard je istoveten z:EN 2436-003:2006SIST EN 2436-003:2009en,de01-junij-2009SIST EN 2436-003:2009SLOVENSKI
STANDARD
EUROPEAN STANDARDNORME EUROPÉENNEEUROPÄISCHE NORMEN 2436-003June 2006ICS 49.040 English VersionAerospace series - Paints and varnishes - Corrosion resistantchromate-free two component cold curing primer - Part 003:High corrosion and fluid resistanceSérie aérospatiale - Peintures et vernis - Peinture primaireanti-corrosion sans chromate à deux composantspolymérisant à température ambiante - Partie 003 : Hauterésistance à la corrosion et aux fluidesLuft- und Raumfahrt - Anstrichstoffe -Korrosionsbeständiger Zweikomponenten-Grundanstrich,kalthärtend chromatfrei - Teil 003: Hohe Beständigkeitgegen Korrosion und FlüssigkeitenThis European Standard was approved by CEN on 9 March 2006.CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this EuropeanStandard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such nationalstandards may be obtained on application to the Central Secretariat or to any CEN member.This European Standard exists in three official versions (English, French, German). A version in any other language made by translationunder the responsibility of a CEN member into its own language and notified to the Central Secretariat has the same status as the officialversions.CEN members are the national standards bodies of Austria, Belgium, Cyprus, Czech Republic, Denmark, Estonia, Finland, France,Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania,Slovakia, Slovenia, Spain, Sweden, Switzerland and United Kingdom.EUROPEAN COMMITTEE FOR STANDARDIZATIONCOMITÉ EUROPÉEN DE NORMALISATIONEUROPÄISCHES KOMITEE FÜR NORMUNGManagement Centre: rue de Stassart, 36
B-1050 Brussels© 2006 CENAll rights of exploitation in any form and by any means reservedworldwide for CEN national Members.Ref. No. EN 2436-003:2006: ESIST EN 2436-003:2009
EN 3837, Aerospace series — Paints and varnishes — Nature and method for surface preparation of test pieces in aluminium alloys1) EN 2434-003, Aerospace series — Paints and varnishes — Two component cold curing polyurethane finish — Part 003: Flexible and high fluid resistance for interior 1) EN 3840, Aerospace series — Paints and varnishes — Technical specification1) EN 4385, Aerospace series — Non-metallic materials — General organisation of standardisation — Links be-tween types of standards1) ISO 1513, Paints and varnishes — Examination and preparation of samples for testing ISO 3270, Paints and varnishes and their raw materials — Temperature and humidities for conditioning and testing ISO 3696, Water for analytical laboratory use — Specification and test methods TR 7000-9, Aerospace series — Non-metallic materials — Rules for the drafting and presentation of material standards — Part 9: Paints and varnishes2)
1) Published as ASD Prestandard at the date of publication of this standard. 2) Published as ASD Technical Report at the date of publication of the standard. SIST EN 2436-003:2009
EN 2436-003
...
