EN 13167:2012

2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Toplotnoizolacijski proizvodi za stavbe - Proizvodi iz penjenega stekla (CG) - SpecifikacijaWärmedämmstoffe für Gebäude - Werkmässig hergestellte Produkte aus Schaumglas (CG) - SpezifikationProduits isolants thermiques pour le bâtiment - Produits manufacturés en verre cellulaire (CG) - SpécificationThermal insulation products for buildings - Factory made cellular glass (CG) products - Specification91.100.60Thermal and sound insulating materialsICS:Ta slovenski standard je istoveten z:EN 13167:2012SIST EN 13167:2013en,fr,de01-marec-2013SIST EN 13167:2013SLOVENSKI
STANDARDSIST EN 13167:20091DGRPHãþD

EUROPEAN STANDARD NORME EUROPÉENNE EUROPÄISCHE NORM
EN 13167
November 2012 ICS 91.100.60 Supersedes EN 13167:2008English Version
Thermal insulation products for buildings - Factory made cellular glass (CG) products - Specification
Produits isolants thermiques pour le bâtiment - Produits manufacturés en verre cellulaire (CG) - Spécification
Wärmedämmstoffe für Gebäude - Werkmäßig hergestellte Produkte aus Schaumglas (CG) - Spezifikation This European Standard was approved by CEN on 6 October 2012.
CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN-CENELEC Management Centre or to any CEN member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management Centre has the same status as the official versions.
CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, Former Yugoslav Republic of Macedonia, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION EUROPÄISCHES KOMITEE FÜR NORMUNG
Management Centre:
Avenue Marnix 17,
B-1000 Brussels © 2012 CEN All rights of exploitation in any form and by any means reserved worldwide for CEN national Members. Ref. No. EN 13167:2012: ESIST EN 13167:2013

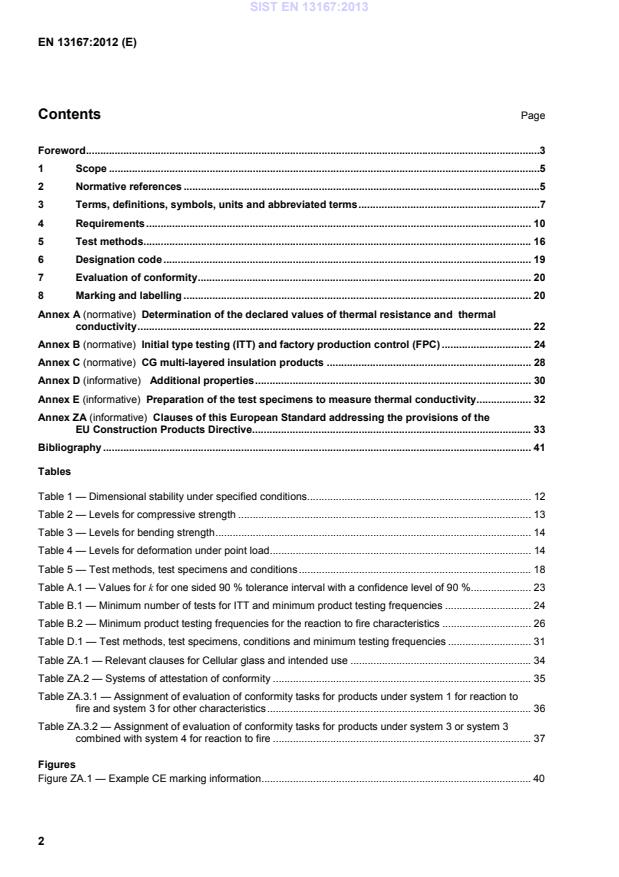

Determination of the declared values of thermal resistance and
thermal conductivity . 22Annex B (normative)
Initial type testing (ITT) and factory production control (FPC) . 24Annex C (normative)
CG multi-layered insulation products . 28Annex D (informative)
Additional properties . 30Annex E (informative)
Preparation of the test specimens to measure thermal conductivity . 32Annex ZA (informative)
Clauses of this European Standard addressing the provisions of the EU Construction Products Directive. 33Bibliography . 41 Tables Table 1 — Dimensional stability under specified conditions . 12Table 2 — Levels for compressive strength . 13Table 3 — Levels for bending strength . 14Table 4 — Levels for deformation under point load . 14Table 5 — Test methods, test specimens and conditions . 18Table A.1 — Values for k for one sided 90 % tolerance interval with a confidence level of 90 % . 23Table B.1 — Minimum number of tests for ITT and minimum product testing frequencies . 24Table B.2 — Minimum product testing frequencies for the reaction to fire characteristics . 26Table D.1 — Test methods, test specimens, conditions and minimum testing frequencies . 31Table ZA.1 — Relevant clauses for Cellular glass and intended use . 34Table ZA.2 — Systems of attestation of conformity . 35Table ZA.3.1 — Assignment of evaluation of conformity tasks for products under system 1 for reaction to fire and system 3 for other characteristics . 36Table ZA.3.2 — Assignment of evaluation of conformity tasks for products under system 3 or system 3 combined with system 4 for reaction to fire . 37 Figures Figure ZA.1 — Example CE marking information . 40 SIST EN 13167:2013

Compared with EN 13167:2008, the main changes are: a) better harmonisation between the individual standards of the package (EN 13162 to EN 13171) on definitions, requirements, classes and levels; b) new normative annex on multi-layered products; c) changes on some editorial and technical content and addition of information on some specific items, such as point load (move towards 4.3); compressive strength (additional levels); bending strength (additional levels); d) addition of links to EN 15715, Thermal insulation products — Instructions for mounting and fixing for reaction to fire testing — Factory made products; e) changes to the Annex ZA. This standard is one of a series of standards for thermal insulation products used in buildings but this standard may be used in other areas where appropriate. In pursuance of Resolution BT 20/1993 revised, CEN/TC 88 have proposed defining the standards listed below as a package of documents. The package of standards comprises the following group of interrelated standards for the specifications of factory made thermal insulation products, all of which come within the scope of CEN/TC 88: EN 13162, Thermal insulation products for buildings — Factory made mineral wool (MW) products —Specification EN 13163, Thermal insulation products for buildings — Factory made expanded polystyrene (EPS) products — Specification EN 13164, Thermal insulation products for buildings — Factory made extruded polystyrene foam (XPS) products — Specification SIST EN 13167:2013

1 Scope This European Standard specifies the requirements for factory made cellular glass (CG) products, with or without facings or coatings, which are used for the thermal insulation of buildings. The products are manufactured in the form of boards or slabs. Products covered by this standard are also used in prefabricated thermal insulation systems and composite panels; the performance of systems incorporating these products is not covered. This standard describes product characteristics and includes procedures for testing, evaluation of conformity, marking and labelling. This standard does not specify the required level of a given property to be achieved by a product to demonstrate fitness for purpose in a particular application. The levels required for a given application are to be found in regulations or non-conflicting standards. Products with a declared thermal resistance lower than 0,50 m2⋅K/W or a declared thermal conductivity greater than 0,065 W/(m⋅K) at 10 °C are not covered by this standard. This standard does not cover in situ insulation products and products intended to be used for the insulation of building equipment and industrial installations (covered by EN 14305). 2 Normative references The following documents, in whole or in part, are normatively referenced in this document and are indispensable for its application. For dated references, only the edition cited applies. For undated references, the latest edition of the referenced document (including any amendments) applies. EN 822, Thermal insulating products for building applications — Determination of length and width EN 823, Thermal insulating products for building applications — Determination of thickness EN 824, Thermal insulating products for building applications — Determination of squareness EN 825, Thermal insulating products for building applications — Determination of flatness EN 826:1996, Thermal insulating products for building applications — Determination of compression behaviour EN 1603, Thermal insulating products for building applications — Determination of dimensional stability under constant normal laboratory conditions (23 °C/50 % relative humidity) EN 1604, Thermal insulating products for building applications — Determination of dimensional stability under specified temperature and humidity conditions EN 1606, Thermal insulating products for building applications — Determination of compressive creep EN 1607, Thermal insulating products for building applications — Determination of tensile strength perpendicular to faces EN 1608, Thermal insulating products for building applications — Determination of tensile strength parallel to faces SIST EN 13167:2013

faced cellular glass board board of cellular glass with facing(s) with a maximum of 3 mm on one or two faces which may be roofing felt or metal foil or paper, cardboard, plastic foil, rendering or similar materials
Note 1 to entry: The core may consist of either one board, a part of a board or a number of boards bonded edge to edge in the factory, with an appropriate adhesive Note 2 to entry: Cellular glass boards may also be supplied in tapered form. 3.1.3 level value which is the upper or the lower limit of a requirement and given by the declared value of the characteristic concerned 3.1.4 class combination of two levels of the same property between which the performance shall fall 3.1.5 board; slab rigid or semi-rigid (insulation) product of rectangular shape and cross section in which the thickness is uniform and substantially smaller than the other dimensions Note 1 to entry: Board is usually thinner than slab. They may also be supplied in tapered form. 3.1.6 facing functional or decorative surface layer with a thickness of less than 3 mm, e.g. paper, plastic film, fabric or metal foil, which is not considered as separate thermal insulation layer to be added to the thermal resistance of the product 3.1.7 coating functional or decorative surface layer with a thickness of less than 3 mm usually applied by painting, spraying, pouring or trowelling, which is not considered as separate thermal insulation layer to be added to the thermal resistance of the product 3.1.8 composite insulation product product which can be faced or coated made from two or more layers bonded together by chemical or physical adhesion consisting of at least one factory made thermal insulation material layer SIST EN 13167:2013

W/(m⋅K) λU Is the design thermal conductivity W/(m⋅K) µ is the water vapour diffusion resistance factor – N is the number of test results – Pd is the deformation under point load mm R90/90 is a 90 % fractile with a confidence level of 90 % for the thermal resistance m2⋅K/W RD is the declared thermal resistance m2⋅K/W Ri is one test result of thermal resistance m2⋅K/W Rmean is the mean thermal resistance
m2⋅K/W RU is the design thermal resistance m2⋅K/W Sb is the deviation from squareness of the edge on length and width mm/m Sd is the deviation from squareness of the edge on thickness mm/m Smax is the deviation from flatness mm sR is the estimate of the standard deviation of the thermal resistance m2⋅K/W SIST EN 13167:2013

AP is the symbol of the declared level of practical sound absorption coefficient AW is the symbol of the declared level of weighted sound absorption coefficient BS Is the symbol of the declared level for bending strength CC(i1/i2/y) σc is the symbol of the declared level for compressive creep CS(Y) is the symbol of the declared level for compressive strength DS(N) is the symbol of the declared value for dimensional stability in normal condition DS(70,-) is the symbol of the declared value for dimensional stability at specified temperature DS(23,90) or
DS (70,90) is the symbol of the declared value for dimensional stability under specified temperatureand relative humidity conditions MU is the symbol of the declared value for water vapour diffusion resistance factor PL(P) is the symbol of the declared level for penetration under point load TR is the symbol of the declared level for tensile strength perpendicular to faces WL(P) is the symbol of the declared level for long term water absorption by partial immersion WS is the symbol of the declared level for short term water absorption Z is the symbol of the declared value for water vapour resistance Abbreviated terms used in this standard: CG is Cellular Glass ITT is Initial Type Test FPC is Factory Production Control RtF
is Reaction to Fire SIST EN 13167:2013

U and RU (design values) may be determined with reference to EN ISO 10456. SIST EN 13167:2013

± 2 mm for length and width  Faced board:
± 5 mm for length
± 2 mm for width 4.2.3 Thickness Thickness, d, shall be determined in accordance with EN 823. The load shall be 250 Pa. No test result shall deviate from the nominal thickness, dN, by more than ±2 mm.
4.2.4 Squareness Squareness shall be determined in accordance with EN 824. The deviation from squareness on length and width, Sb, of boards and slabs shall not exceed 5 mm/m. The deviation from squareness on thickness, Sd, shall not exceed 2 mm. 4.2.5 Flatness Flatness shall be determined in accordance with EN 825. The deviation from flatness, Smax, of boards and slabs, shall not exceed 2 mm. 4.2.6 Reaction to fire of the product as placed on the market
Reaction to fire classification of the product, as placed on the market, shall be determined in accordance with EN 13501-1 and the mounting and fixing rules given in EN 15715.
NOTE 1 This classification is compulsory and always included in the CE Marking label.
Detailed information about the test conditions and the field of application of the classification as stated in the reaction to fire classification report shall be given in the manufacturer's literature.
Manufacturers declaring Euroclass A1 without further test shall demonstrate by testing in accordance with
EN 13820 that the products do not contain more than 1,0 % by weight of organic matter.
NOTE 2 The commission decision 96/603/EC of 4 October 1996 amended by the commission Decision 2000/605/EC of 26 September 2000 and 2003/424/EG of 6 June 2003 gives the list of products to be considered as reaction to fire class Euroclass A1 without the need for testing. 4.2.7 Durability characteristics 4.2.7.1 General The appropriate durability characteristics have been considered and are covered in 4.2.7.2 and 4.2.7.3 and where appropriate in 4.3.8 on compressive creep. 4.2.7.2 Durability of reaction to fire of the product as placed on the market against ageing/ degradation The reaction to fire performance of CG products as declared by 4.2.6 does not change with time.
Dimensional stability under specified conditions shall be carried out for the conditions given in Table 1. The relative changes in length, ∆εl, and width, ∆εb, and the relative reduction in thickness, ∆εd, shall not exceed the values given in Table 1 for the declared level. Table 1 — Dimensional stability under specified conditions Designation Condition Test method Requirement (%) Length ∆εl and width ∆εb % thickness, ∆εd
% DS(N) 23/50 EN 1603 0,5 1 DS(70,-)
48 h, 70 ºC EN 1604 0,5 1 DS (23,90)
48 h, 23 ºC, 90 % R.H. EN 1604 0,5 1 DS(70,90)
48 h, 70 ºC, 90 % R.H. EN 1604 0,5 1
The test DS(70,-) and DS(23,90) need not be performed when the test DS(70,90) is used. NOTE For cellular glass DS(N) have no relevancy for testing since these products are sufficiently rigid. 4.3.3 Compressive strength Compressive strength, σm, shall be determined in accordance with EN 826:1996, Annex A. No test result for the compressive strength shall be less than the value, given in Table 2, for the declared level: SIST EN 13167:2013

4.3.4 Bending strength Bending strength, σb, shall be determined in accordance with EN 12089. No test result shall be less than the value, given in Table 3, for the declared level: SIST EN 13167:2013

Table 3 — Levels for bending strength level Requirement kPa BS200 ≥ 200 BS300 ≥ 300 BS400 ≥ 400 BS450 ≥ 450 BS500 ≥ 500 BS550 ≥ 550 BS600 ≥ 600 BS700 ≥ 700 BS800 ≥ 800 BS900 ≥ 900 BS1000 ≥ 1 000 BS1100 ≥ 1 100 BS1200 ≥ 1 200 BS1300 ≥ 1 300 BS1400 ≥ 1 400 4.3.5 Point load Deformation under a point load of 1000 N, Pd, shall be determined in accordance with EN 12430. No test result shall exceed the value, given in Table 4, for the declared value. Table 4 — Levels for deformation under point load level Requirement mm PL(P)2 ≤ 2,0 PL(P)1,5 ≤ 1,5 PL(P)1 ≤ 1 PL(P)0,5 ≤ 0,5 4.3.6 Tensile strength parallel to faces Tensile strength parallel to faces, σt, shall be determined in accordance with EN 1608. The value of tensile strength parallel to faces shall be declared in levels, TP, with steps of 50 kPa. No test result shall be less than the declared level. SIST EN 13167:2013

4.3.9 Water absorption 4.3.9.1 Short term water absorption Short term water absorption by partial immersion, Wp, shall be determined in accordance with EN 1609. No test result shall exceed 0,5 kg/m2. 4.3.9.2 Long term water absorption Long term water absorption by partial immersion, Wlp, shall be determined in accordance with EN 12087. No test result shall exceed 0,5 kg/m2. 4.3.10 Water vapour transmission Water vapour transmission properties shall be determined in accordance with EN 12086, and declared as the water vapour diffusion resistance factor, µ, for homogeneous products and as the water vapour resistance, Z, for faced or non-homogeneous products. No test result of µ shall be less than 40 000. No test result of Z shall be less than the declared value. Alternatively, for the declaration of the water vapour diffusion resistance, µ, of cellular glass products, either unfaced or faced, the value quoted in EN ISO 10456, µ, =~ infinite (∞), may be used. Within the design and the installation of the material in the works, special attention shall be given to respect the required vapour resistance of the building component. SIST EN 13167:2013

Reaction to fire classification of products in standardized assemblies simulating end-use applications excluding pipe insulation shall be determined in accordance with EN 13501-1 and the mounting and fixing rules given in EN 15715.
This classification offers the opportunity to give a complementary and optional declaration on reaction to fire for standard test configurations of assemblies which include the insulation product.
The number of the selected test configuration of assembly (Table 5 of EN 15715:2009) which is used in the test shall be quoted with the Euroclass.
Detailed information about the test conditions and the field of application of the classification as stated in the reaction to fire classification report shall be given in the manufacturer's literature.
4.3.14 Continuous glowing combustion NOTE A test method is under development and the standard will be amended when this is available.
5 Test methods 5.1 Sampling Test specimens shall be taken from the same sample with a total area not less than 1 m2 and sufficient to cover the needed tests. The shorter side of the sample shall not be less than 300 mm or full size of the product, whichever is the smaller. 5.2 Conditioning No special conditioning of the test specimens is needed unless otherwise specified in the test standard. In case of dispute, the test specimens shall be stored at (23 ± 2) °C and (50 ± 5) % relative humidity for at least 6 h prior to testing. For FPC no special conditioning of the test specimens is needed. SIST EN 13167:2013

Minimum number of measurements to get one test result Specific conditions No Title 4.2.1 Thermal resistance — thermal conductivity EN 12667 EN 12939 See EN 12667 or EN 12939 1 – 4.2.2 Length and width EN 822 Full-size 1 – 4.2.3 Thickness EN 823 Full-size 1 (250±5) Pa see 4.2.3 4.2.4 Squareness EN 824 Full-size 1 – 4.2.5 Flatness EN 825 Full-size 1 – 4.2.6 Reaction to fire of the product as placed on the market See EN 13501-1 and EN 15715 See Clause 5 of EN 15715:2009
4.3.2 Dimensional stability at specified temperature EN 1603 Full-size 1 Method A Dimensional stability under specified temperature and humidity conditions EN 1604 200 × 200 3 – 4.3.3 Compressive strength EN 826 Quarter board 3 (CS 400-1000) 4 (CS 1200-3000) Annex A
200 × 200 4.3.4 Bending strength EN 12089
4 Method B 4.3.5 Point load EN 12430 Full size 1 Annex A 4.3.6 Tensile strength parallel to faces EN 1608 500 × 250 5 – 4.3.7 Tensile strength perpendicular to faces EN 1607 150 × 150 3 – 4.3.8 Compressive creep EN 1606 200 × 200 3 Test specimen: see EN 826:1996, Annex A with use of reference points on the edge 4.3.9 Short term water absorption EN 1609 200 × 200 4 Method A Long term water absorption EN 12087 200 × 200 4 Method 1A 4.3.10 Water vapour transmission EN 12086 See 6.1 in EN 12086:1997 5 Set A – test conditions shall be chosen
4.3.11 Sound absorption EN ISO 354Minimum 10 m2 1 To be reported SIST EN 13167:2013

– – – 4.3.13 Reaction to fire of the product in standardized assemblies simulating end-use applications See EN 13501-1 and EN 15715 See Clause 6 of EN 15715:2009
4.3.14 Continuous glowing combustion b
– – – a Full-size product thickness except for 4.2.6 when the limits of test methods are exceeded. If for 4.3.3 and 4.3.8 the thickness of
the test specimen is greater than the width, the length and the width shall be at least equal to the thickness of the test specimen. b Not yet available. 6 Designation code A designation code for the product shall be given by the manufacturer. The following shall be included except when there is no requirement for a property described in 4.3.  The cellular glass abbreviated term CG  This document number EN 13167  Dimensional stability at specified temperature DS(70)  Dimensional stability under specified temperature and humidity conditions DS(23,90) or DS(70,90)  Compressive strength CS(Y)i  Bending strength BSi  Point load PL(P)i  Tensile strength parallel to faces TPi  Tensile strength perpendicular to faces TRi  Compressive creep CC(i1/i2,y) σc  Short term water absorption WS  Long term water absorption WL(P)  Water vapour transmission or resistance MUi or Zi  Practical sound absorption coefficient APi  Weighted sound absorption coefficient AWi SIST EN 13167:2013

For the EC certificate and declaration of conformity, as appropriate, see ZA.2.2. 7.2 Initial type testing All characteristics defined in 4.2 and those in 4.3 if declared, shall be subject to an initial type testing in accordance with Annex B of this standard. For the relevant characteristics, ITT on products corresponding also to EN 14305 may be used for the purpose of ITT and declaration according to this standard. 7.3 Factory production control The minimum frequencies of tests in the factory production control shall be in accordance with Annex B of this standard. When indirect testing is used, the correlation to direct testing shall be established in accordance with EN 13172. For the relevant characteristics, FPC on products corresponding also to EN 14305 may be used for the purpose of FPC and declaration according to this standard. 8 Marking and labelling Products conforming to this standard shall be marked clearly, either on the product or on the label or on the packaging, with the following information:
 reaction to fire class of the product as placed on the market. This classification shall be in accordance with 4.2.6.
If reaction to fire tests on standardised assemblies have been performed according to Clause 6 of EN 15715:2009, then the reaction to fire classification shall be added and identified with the designation "standardised assembly no. x" after the classification. This information shall be kept distinct from the CE-Marking. The number of the standardised assembly is taken from Table 5 of EN 15715:2009. Refer to the manufacturer's literature (ML) for further information (see note).  declared thermal resistance (RD);
 declared thermal conductivity (D);
 nominal thickness (dN);
 designation code as given in Clause 6;  nominal length (l);  nominal width (b);  type of facing, if any;  number of pieces and area in the package, as appropriate.
NOTE For CE marking and labelling see ZA.3
EXAMPLE Additional voluntary information:
Any other voluntary information on the product such as:
Reaction to fire for standardised assembly No. 1, 2, 3, 4
Voluntary marks
Determination of the declared values of thermal resistance and
thermal conductivity A.1 General It is the responsibility of the manufacturer to determine the declared values of thermal resistance and thermal conductivity. He will have to demonstrate conformity of the product to its declared values. The declared values of thermal resistance and thermal conductivity of a product are the expected values of these properties during an economically reasonable working life under normal conditions, assessed through measured data at reference conditions. A.2 Input data The manufacturer shall have at least ten test results for thermal resistance and thermal conductivity, obtained from internal or external direct measurements in order to calculate the declared values. The direct thermal resistance or thermal conductivity measurements shall be carried out at regular intervals spread over a time period of the last twelve months. If less than ten results are available , the time period may be extended, until ten test results a
...
