EN 13167:2008

2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Toplotnoizolacijski proizvodi za stavbe - Proizvodi iz penjenega stekla (CG) - SpecifikacijaWärmedämmstoffe für Gebäude - Werkmäßig hergestellte Produkte aus Schaumglas (CG) - SpezifikationProduits isolants thermiques pour le bâtiment - Produits manufacturés en verre cellulaire (CG) - SpécificationThermal insulation products for buildings - Factory made cellular glass (CG) products - Specification91.100.60Thermal and sound insulating materialsICS:Ta slovenski standard je istoveten z:EN 13167:2008SIST EN 13167:2009en,fr,de01-februar-2009SIST EN 13167:2009SLOVENSKI
STANDARDSIST EN 13167:2002/AC:2006SIST EN 13167:2002/A1:2004SIST EN 13167:20021DGRPHãþD

EUROPEAN STANDARDNORME EUROPÉENNEEUROPÄISCHE NORMEN 13167November 2008ICS 91.100.60Supersedes EN 13167:2001
English VersionThermal insulation products for buildings - Factory made cellularglass (CG) products - SpecificationProduits isolants thermiques pour le bâtiment - Produitsmanufacturés en verre cellulaire (CG) - SpécificationWärmedämmstoffe für Gebäude - Werkmäßig hergestellteProdukte aus Schaumglas (CG) - SpezifikationThis European Standard was approved by CEN on 11 October 2008.CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this EuropeanStandard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such nationalstandards may be obtained on application to the CEN Management Centre or to any CEN member.This European Standard exists in three official versions (English, French, German). A version in any other language made by translationunder the responsibility of a CEN member into its own language and notified to the CEN Management Centre has the same status as theofficial versions.CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Cyprus, Czech Republic, Denmark, Estonia, Finland,France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal,Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland and United Kingdom.EUROPEAN COMMITTEE FOR STANDARDIZATIONCOMITÉ EUROPÉEN DE NORMALISATIONEUROPÄISCHES KOMITEE FÜR NORMUNGManagement Centre: rue de Stassart, 36
B-1050 Brussels© 2008 CENAll rights of exploitation in any form and by any means reservedworldwide for CEN national Members.Ref. No. EN 13167:2008: ESIST EN 13167:2009

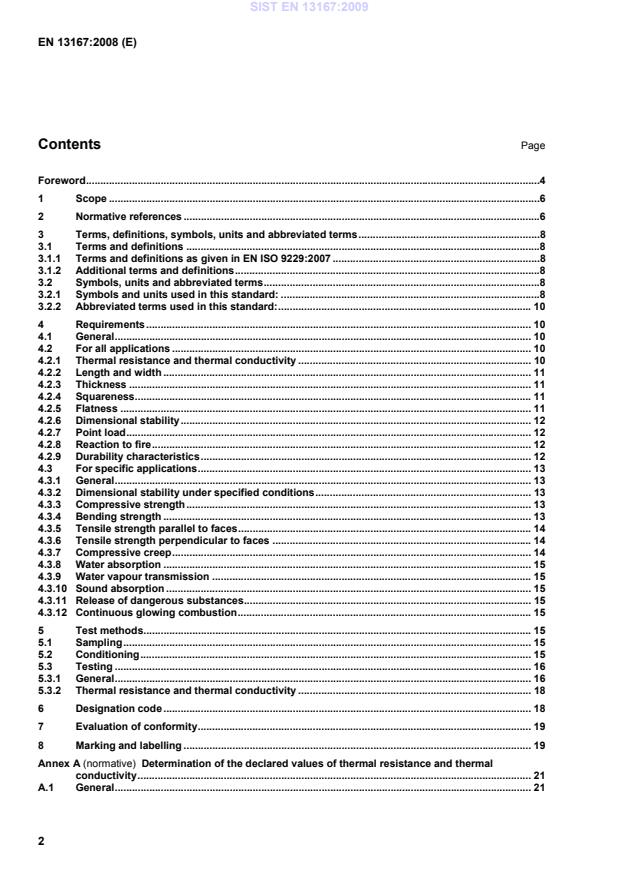

Determination of the declared values of thermal resistance and thermal conductivity . 21 A.1 General . 21 SIST EN 13167:2009

Factory production control. 23 Annex C (informative)
Preparation of the test specimens to measure thermal conductivity . 26 C.1 Introduction . 26 C.2 Procedure to get flat test specimen faces: method of the three rulers . 26 Annex D (informative)
Additional properties . 27 D.1 General . 27 D.2 Apparent density . 27 D.3 Compressive strength . 27 D.4 Deformation under specified compressive load and temperature conditions . 27 D.5 Shear strength . 27 D.6 Coefficient of thermal expansion . 28 Annex ZA (informative)
Clauses of this European Standard addressing the provisions of the EU Construction Products Directive . 29 ZA.1 Scope and relevant characteristics . 29 ZA.2 Procedures for attestation of conformity of factory made cellular glass products . 31 ZA.2.1 Systems of attestation of conformity . 31 ZA.2.2 EC certificate and declaration of conformity . 33 ZA.3 CE Marking and labelling . 35
Tables Table 1 — Levels for deformation under point load . 12 Table 2 — Levels for compressive strength . 13 Table 3 — Levels for bending strength . 14 Table 4 — Test methods, test specimens and conditions . 17 Table A.1 — Values for k for one sided 90 % tolerance interval with a confidence level of 90 % . 22 Table B.1 — Minimum product testing frequencies. 23 Table B.2 — Minimum product testing frequencies for the reaction to fire characteristics . 24 Table D.1 — Test methods, test specimens, conditions and minimum testing frequencies . 28 Table ZA.1 — Relevant clauses for cellular glass products and intended use . 30 Table ZA.2 — Systems of attestation of conformity . 31 Table ZA.3 — Assignment of evaluation of conformity tasks for products under system 1 . 32 Table ZA.4 — Assignment of evaluation of conformity tasks for products under system 3 or system 3 combined with system 4 for reaction to fire . 33
EN 822, Thermal insulating products for building applications — Determination of length and width EN 823, Thermal insulating products for building applications — Determination of thickness EN 824, Thermal insulating products for building applications — Determination of squareness EN 825, Thermal insulating products for building applications — Determination of flatness EN 826:1996, Thermal insulating products for building applications — Determination of compression behaviour EN 1602, Thermal insulating products for building applications — Determination of the apparent density
EN 1603, Thermal insulating products for building applications — Determination of dimensional stability under constant normal laboratory conditions (23 °C/50 % relative humidity) EN 1604, Thermal insulating products for building applications — Determination of dimensional stability under specified temperature and humidity conditions EN 1605, Thermal insulating products for building applications — Determination of deformation under specified compressive load and temperature conditions
EN 1606, Thermal insulating products for building applications — Determination of compressive creep SIST EN 13167:2009

EN 12430, Thermal insulating products for building applications — Determination of behaviour under point load EN 12667, Thermal performance of building materials and products — Determination of thermal resistance by means of guarded hot plate and heat flow meter methods — Products of high and medium thermal resistance EN 12939, Thermal performance of building materials and products — Determination of thermal resistance by means of guarded hot plate and heat flow meter methods — Thick products of high and medium thermal resistance EN 13172:2008, Thermal insulating products — Evaluation of conformity EN 13471:2001, Thermal insulating products for building equipment and industrial installations — Determination of the coefficient of thermal expansion
EN 13501-1, Fire classification of construction products and building elements — Part 1: Classification using data from reaction to fire test EN 13820, Thermal insulating materials for building applications — Determination of organic content EN 13823, Reaction to fire tests for building products — Building products excluding floorings exposed to the thermal attack by a single burning item EN ISO 354, Acoustics — Measurement of sound absorption in a reverberation room (ISO 354:2003)
EN ISO 1182, Reaction to fire tests for building products — Non-combustibility test (ISO 1182:2002) EN ISO 1716, Reaction to fire tests for building products — Determination of the heat of combustion (ISO 1716:2002)
EN ISO 9229:2007, Thermal insulation — Vocabulary (ISO 9229:2007)
EN ISO 11654, Acoustics — Sound absorbers for use in buildings — Rating of sound absorption (ISO 11654:1997) EN ISO 11925-2, Reaction to fire tests — Ignitability of building products subjected to direct impingement of flame – Part 2: Single-flame source test (ISO 11925-2:2002) ISO 12491, Statistical methods for quality control of building materials and components SIST EN 13167:2009

± 2 mm for width. 4.2.3 Thickness Thickness, d, shall be determined in accordance with EN 823. The load shall be 250 Pa. No test result shall deviate from the nominal thickness, dN, by more than ± 2 mm. The nominal thicknesses of faced products refer to the cellular glass without facings. The thickness of any facing exceeding 2 mm shall be indicated in the manufacturers’ literature. 4.2.4 Squareness Squareness shall be determined in accordance with EN 824. The deviation from squareness on length and width, Sb, shall not exceed 6 mm/m. The deviation from squareness on thickness, Sd, shall not exceed 2 mm. 4.2.5 Flatness Flatness shall be determined in accordance with EN 825. The deviation from flatness, Smax, shall not exceed 2 mm. SIST EN 13167:2009

4.2.8 Reaction to fire Reaction to fire classification (Euroclasses) shall be determined in accordance with EN 13501-1. 4.2.9 Durability characteristics 4.2.9.1 General The appropriate durability characteristics have been considered and are covered in 4.2.9.2, 4.2.9.3 and 4.2.9.4. 4.2.9.2 Durability of reaction to fire against ageing/degradation The reaction to fire performance of factory made cellular glass products does not change with time. 4.2.9.3 Durability of thermal resistance and thermal conductivity against ageing/degradation The thermal conductivity of factory made cellular glass products does not change with time. This is covered by 4.2.1 Thermal conductivity, 4.2.2 Length and width and 4.2.6 Dimensional stability or 4.3.2 Dimensional stability. SIST EN 13167:2009

NOTE For the declaration of the compressive strength, intermediary levels with steps of 100 kPa may also be used.
4.3.4 Bending strength Bending strength, σb, shall be determined in accordance with EN 12089. No test result shall be less than the value, given in Table 3, for the declared level. SIST EN 13167:2009

4.3.5 Tensile strength parallel to faces Tensile strength parallel to faces, σt, shall be determined in accordance with EN 1608. The value of tensile strength parallel to faces shall be declared in levels, TP, with steps of 50 kPa. No test result shall be less than the declared level. 4.3.6 Tensile strength perpendicular to faces Tensile strength perpendicular to faces, σmt, shall be determined in accordance with EN 1607. No test result shall be less than the declared level, TR, chosen from the following values: 100 kPa, 150 kPa, 200 kPa, 250 kPa, 300 kPa, 350 kPa, 400 kPa or 500 kPa. 4.3.7 Compressive creep Compressive creep, Xct, and total thickness reduction, Xt, shall be determined after at least one hundred and twenty two days of testing at a declared compressive stress, σc, given in steps of at least 1 kPa and the results extrapolated thirty times corresponding to ten years to obtain the declared levels in accordance with EN 1606. Compressive creep shall be declared in levels, i2, and the total thickness reduction shall be declared in levels, i1, with steps of 0,1 mm at the declared stress. No test result shall exceed the declared levels at the declared stress. NOTE 1 Examples for declaration of levels for compressive creep Level Test time Extrapolation time Declared stress Requirementa Days Years kPa mm CC(i1/i2mm/10) σc 122 10 σc i1/i2 ≤ i CC(i1/i2 mm/25) σc 304 25 σc i1/i2 ≤ i CC(i1/i2 mm/50) σc 608 50 σc i1/i2 ≤ i a The creep of the bitumen used for the facings is not taken into account in these values.
NOTE 2 Referring to the designation code CC(i1/i2/y)σc, according to Clause 6, a declared level CC(1,5/1/10)450, as for example, indicates a value not exceeding 1 mm for compressive creep and 1,5 mm for total thickness reduction after extrapolation at 10 years (i.e. 30 times one hundred and twenty two days of testing) under a declared stress of 450 kPa. SIST EN 13167:2009

5 Test methods 5.1 Sampling Test specimens shall be taken from the same sample with a total area not less than 5 m2 and sufficient to cover the needed tests. The shorter side of the sample shall not be less than 300 mm or full size of the product whichever is the smaller. 5.2 Conditioning No special conditioning of the test specimens is needed unless otherwise specified in the test standard. The outside surface of the test specimens shall be free from dust and water. In case of dispute, the test specimens shall be stored at (23 ± 2) °C and (50 ± 5) % relative humidity for at least 6 h prior to testing. SIST EN 13167:2009

4.2.2 Length and width EN 822 Full-size 1
4.2.3 Thickness EN 823 Full-size 1 Load: (250 ± 5) Pa 4.2.4 Squareness EN 824 Full-size 1 – 4.2.5 Flatness EN 825 Full-size 1 – 4.2.6 Dimensional stability under constant normal laboratory conditions EN 1603 Full-size 1 Method A Dimensional stability under specified temperature and humidity conditions EN 1604 200 × 200 3 – 4.2.7 Point load EN 12430 Full-size 1 Annex A 4.2.8 Reaction to fire See EN 13501-1 – 4.3.2 Dimensional stability at specified temperature EN 1604 200 × 200 3 – Dimensional stability under specified temperature and humidity conditions EN 1604 200 × 200 3 – 4.3.3 Compressive strength EN 826 Quarter board or200 × 200 CS(Y) 400; … 3 CS(Y) 700; … 3 CS(Y) 900; … 3 CS(Y) 1200; … 4 CS(Y) 1600; … 4 Annex A 4.3.4 Bending strength EN 12089 – 4 Method B 4.3.5 Tensile strength parallel to faces EN 1608 500 × 250 5 – 4.3.6 Tensile strength perpendicular to faces EN 1607 150 × 150 5 – 4.3.7 Compressive creep EN 1606 200 × 200 3 Test specimen preparation: see EN 826:1996, Annex A. Use of reference points on the edge 4.3.8 Water absorption EN 1609 200 × 200 4 Method B
EN 12087 200 × 200 4 Method 1B 4.3.9 Water vapour transmission EN 12086 See 6.1 in EN 12086: 1997 5 Set A of test conditions shall be chosen unless the application imposes set B or C 4.3.10 Sound absorption EN ISO 354 Minimum 10 m2 1 To be reported 4.3.11 Release of dangerous substances b – – – 4.3.12 Continuous glowing combustion b – – – a Full-size product thickness, except for 4.2.8. b When drafting this standard, no European harmonized test method was available.
...
