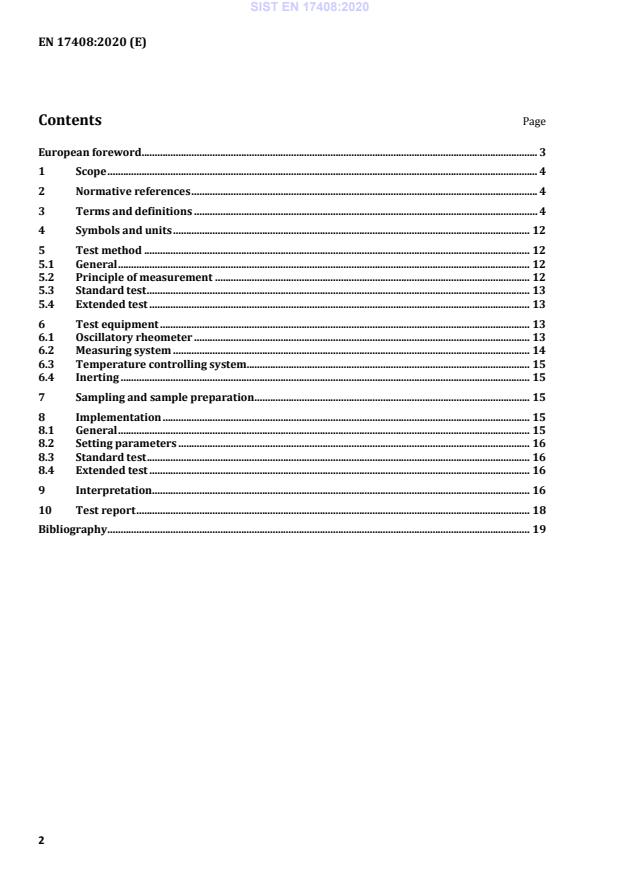

Contents Page
European foreword . 3
1 Scope . 4
2 Normative references . 4
3 Terms and definitions . 4
4 Symbols and units . 12
5 Test method . 12
5.1 General . 12
5.2 Principle of measurement . 12
5.3 Standard test . 13
5.4 Extended test . 13
6 Test equipment . 13
6.1 Oscillatory rheometer . 13
6.2 Measuring system . 14
6.3 Temperature controlling system . 15
6.4 Inerting . 15
7 Sampling and sample preparation . 15
8 Implementation . 15
8.1 General . 15
8.2 Setting parameters . 16
8.3 Standard test . 16
8.4 Extended test . 16
9 Interpretation . 16
10 Test report . 18
Bibliography . 19

European foreword
This document (EN 17408:2020) has been prepared by Technical Committee CEN/TC 193 “Adhesives”,
the secretariat of which is held by UNE.
This European Standard shall be given the status of a national standard, either by publication of an
identical text or by endorsement, at the latest by March 2021, and conflicting national standards shall
be withdrawn at the latest by March 2021.
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. CEN shall not be held responsible for identifying any or all such patent rights.
According to the CEN-CENELEC Internal Regulations, the national standards organisations of the
following countries are bound to implement this European Standard: Austria, Belgium, Bulgaria,
Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland,
Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Republic of
North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and the
United Kingdom.
SAFETY WARNING — Persons using this document are expected to be familiar with normal laboratory
practice. This document cannot address all safety problems that could be associated with its
application. It is the responsibility of the user to define measures for health and safety at work and
ensure that these correspond with the European and national regulations.
ENVIRONMENTAL PROTECTION NOTE — The materials approved in this document can have negative
effects on the environment. As soon as technological progress leads to better alternatives to these
materials, they will be removed from the standard as far as possible. At the end of the test, the user is
expected to ensure a suitable disposal of the waste according to regional conditions.
1 Scope
This document specifies a measuring method for the characterization of rheological properties of
structural adhesives using oscillatory rheometry. Moreover, the testing procedure can be applied to the
reactive mixture of several components or the components of a reactive bonding paste material. The
advantage of the method in comparison to rotational viscometry measurements lies in the separation of
elastic and viscous material properties, thus allowing the defining of the viscoelastic properties. This
enables more precise information concerning the flow behaviour of the materials, thereby resulting in a
better understanding of their processing properties.
The method described is particularly suitable for filled and paste-like adhesives. These are frequently
processed using automated pump and application systems in industrial applications and will be set
precisely considering their rheological properties. As the rheological behaviour of uncured adhesives is
mostly independent of their properties in the cured state, the document can also serve for the
examination of non-structural adhesives.
2 Normative references
The following documents are referred to in the text in such a way that some or all of their content
constitutes requirements of this document. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any amendments) applies.
EN 923, Adhesives - Terms and definitions
3 Terms and definitions
For the purposes of this document, the terms and definitions given in EN 923 and the following apply.
ISO and IEC maintain terminological databases for use in standardization at the following addresses:
— IEC Electropedia: available at http://www.electropedia.org/
— ISO Online browsing platform: available at https://www.iso.org/obp
3.1
shear deformation
γ
relation of deflection s to the distance between the plates geometry or gap width H of a sample located
between two plates at linear deflection of the upper plate in accordance with the tangent of the angle of
deflection φ (see Figure 1)
γϕ= s / H = tan (1)
( )
Figure 1 — Deflection s and angle of deflection φ of the test portion in the shear gap H [1]
Note 1 to entry: For a circular deflection in the plate/plate measuring system of a rheometer, this relation only
applies for an infinitesimal surface element. The deflection here depends on the distance to the axis of rotation
and is hence not uniform within the shear gap. The deformation value is, therefore, usually related to the plate
edge (i.e. to r ), sometimes also to a mean distance to the axis of rotation (e.g. 2/3 r ). In this document, the
max max
plate edge is used as a reference value. The cone/plate configuration yields a constant deformation based on the
gap width H raise equivalent to the deflection s increasing outwards in the entire shear gap.
3.2
deformation function
γ (t)
mathematical representation of the sinusoidal change in the deformation during oscillatory tests with
controlled deformation
γγ tt= sin()ω (2)
( )
A
where
γ (t) is the deformation at the time point t;
γ is the maximum deformation (deformation amplitude);
A
ω is the angular frequency, in rad/s, with ω = 2 π f.
3.3
shear stress function
τ (t)
the deformation as phase-shifted sinusoidal function of the shear stress related to the response of the
sample located in the gap (see Figure 2)
τ ttτ sin ωδ + (3)
( ) ( )
A
where
τ (t) is the shear stress at the time point t;
τ is the maximum shear stress (shear stress amplitude);
A
ω is the angular frequency, in rad/s, with ω = 2 π f;
δ is the angle phase shift (loss angle).
Note 1 to entry: In the case of ideal-elastic behaviour (according to Hooke), the loss angle δ is 0°, i.e.
deformation and shear stress are always in the same phase. Maximum shear stress is measured at maximum
deformation. In the case of ideal-viscous behaviour (according to Newton), the loss angle δ = is 90°, i.e. the shear
stress curve is ahead of the deformation curve by 90°. The maximum shear stress at deformation zero results
here, i.e. at highest angular velocity of the test specimen.

Figure 2 — Deformation and shear stress function during oscillation test [3]
=
3.4
storage modulus
G'
calculated from the energy stored during deformation, completely available for recovering after the end
of the deformation process
τ
A
G′ = cos δ (4)
( )
γ
A
where
τ is the maximum shear stress (shear stress amplitude);
A
γ is the maximum deformation (deformation amplitude);
A
δ is the angle phase shift (loss angle).
Note 1 to entry: The storage modulus represent the elastic portion of the applied energy and describes a typical
solid property (solid like).
3.5
loss modulus
G''
calculated from the energy irreversibly consumed during the deformation, dissipated as heat
τ
A
G′′ = sin()δ (5)
γ
A
where
τ is the maximum shear stress (shear stress amplitude);
A
γ is the maximum deformation (deformation amplitude);
A
δ is the angle phase shift (loss angle).
Note 1 to entry: The loss modulus represents the viscous (liquid like) portion of the applied energy dissipated
as heat or work.
3.6
complex shear modulus
G*
vector sum of storage modulus G' and loss modulus G''
*
G τγ t / t G′′ + iG · ′ (6)
( ) ( )
* ' 2 '' 2
G GG+ (7)
where
τ (t) is the shear stress at the time point t;
γ (t) is the deformation at the time point t;
G' is the storage modulus;
G'' is the loss modulus;
i is the imaginary part.
Note 1 to entry: When pe
...
