Aerospace series - Collar, swage locking, shear type, in aluminium alloy 6061, conversion coating - Inch series

This document specifies the characteristics of a collar, swage locking, shear type, in aluminium alloy 6061-T7, with a maximum operating temperature of 80 °C for aerospace application.
This document is applicable in combination with EN 6050, EN 6100 or EN 6120.

Luft- und Raumfahrt - Schließring für Quetschverriegelung, für Scherbeanspruchung, aus Aluminiumlegierung 6061, Schmierfilm behandelt - Zoll-Reihe

Série aérospatiale - Bague à sertir, type cisaillement, en alliage d'aluminium 6061, revêtement de conversion - Série en inches

Le présent document spécifie les caractéristiques d’une bague à sertir, de type cisaillement, en alliage d’aluminium 6061-T7, avec une température maximale d'utilisation de 80 °C pour les applications aérospatiales.
Ce document est applicable conjointement avec l’EN 6050, l’EN 6100 ou l’EN 6120.

Aeronavtika - Pritrdilni obroči, strižni tip, iz aluminijeve zlitine 6061, prevleke - Palčne mere

General Information

Status
Published
Publication Date
23-Dec-2025
ICS
49.030.99 - Other fasteners
Technical Committee
ASD-STAN - Aerospace
Drafting Committee
ASD-STAN/D 3/S 2 - Fasteners
Current Stage
6060 - Definitive text made available (DAV) - Publishing
Start Date
24-Dec-2025
Completion Date
24-Dec-2025
Ref Project
SIST EN 6054:2026 - Aerospace series - Collar, swage locking, shear type, in aluminium alloy 6061, conversion coating - Inch series

Overview

EN 6054:2025 is a European standard developed by CEN specifying requirements for aerospace collars-specifically, swage locking, shear-type collars made from aluminium alloy 6061-T7 with conversion coating, conforming to the inch series. Designed for aerospace applications, these collars operate reliably at temperatures up to 80 °C. The standard is intended for use in conjunction with related standards EN 6050, EN 6100, and EN 6120, which cover compatible pin types.

This standard ensures uniformity in collar characteristics including configuration, dimensions, material properties, surface treatment, and quality management, promoting safety, reliability, and interchangeability in aerospace fastener assemblies.

Keywords: Aerospace collars, swage locking, shear type, aluminium alloy 6061-T7, conversion coating, inch series, aerospace fasteners, EN 6054.

Key Topics

  • Material and Surface Treatment:
    Collars must be manufactured from aluminium alloy 6061-T7 with heat treatment and conversion coating per MIL-DTL-5541F (gold chromate with green dye). Lubrication uses cetyl alcohol in compliance with AS87132 to ensure minimal friction and corrosion resistance.

  • Configuration and Dimensions:
    Detailed specifications define collar shape, dimensions, tolerances, and mass to ensure precise fit and function. Dimensions are given in millimeters and must meet strict dimensional tolerances before lubrication.

  • Compatibility:
    EN 6054 collars are designed to be used with pins specified in EN 6050, EN 6100, or EN 6120, facilitating standardized assembly of aerospace fastener systems.

  • Marking and Identification:
    Marking requirements follow EN 2424, style F, with depressed markings up to 0.25 mm in depth, allowing traceability without compromising structural integrity.

  • Quality Management:
    Manufacturers must implement an aerospace-approved Quality Management System such as EN 9100 or equivalent. Qualification follows procedures like EN 9133 to verify compliance with design and performance requirements.

Applications

EN 6054 collars are critical components in aerospace engineering, used primarily for fastening applications that demand high shear strength, reliability, and resistance to environmental factors. Common applications include:

  • Aircraft structural assemblies where swage locking collars secure pins against shear forces
  • Aerospace hardware requiring lightweight yet durable fasteners with corrosion protection
  • Systems operating within a maximum temperature of 80 °C, ensuring stable mechanical properties under typical flight conditions
  • Assemblies involving pins compatible with EN 6050, EN 6100, or EN 6120 for modular and repairable connections

Implementing this standard supports enhanced safety and efficiency in aerospace manufacturing, maintenance, and repair operations, improving lifecycle performance of aerospace components.

Related Standards

  • EN 6050: Aerospace pins, close tolerance, swage locking, shear type, aluminium alloy 7050
  • EN 6100: Aerospace pins with 100° countersunk head, shear type, aluminium alloy 7050
  • EN 6120: Aerospace pins, protruding head, shear type, aluminium alloy 7050
  • EN 2424: Marking of aerospace products ensuring consistent product identification
  • EN 9100: Quality management system requirements for aviation, space, and defence industry
  • EN 9133: Qualification procedures for aerospace standard products
  • MIL-DTL-5541F: Chemical conversion coatings on aluminium and its alloys for corrosion resistance
  • AS87132: Lubricant specifications for aerospace fasteners

Compliance with EN 6054 alongside these standards guarantees a comprehensive, regulated approach to aerospace fastening solutions, facilitating interoperability and high performance across the aerospace sector.

Frequently Asked Questions

EN 6054:2025 is a standard published by the European Committee for Standardization (CEN). Its full title is "Aerospace series - Collar, swage locking, shear type, in aluminium alloy 6061, conversion coating - Inch series". This standard covers: This document specifies the characteristics of a collar, swage locking, shear type, in aluminium alloy 6061-T7, with a maximum operating temperature of 80 °C for aerospace application. This document is applicable in combination with EN 6050, EN 6100 or EN 6120.

This document specifies the characteristics of a collar, swage locking, shear type, in aluminium alloy 6061-T7, with a maximum operating temperature of 80 °C for aerospace application. This document is applicable in combination with EN 6050, EN 6100 or EN 6120.

EN 6054:2025 is classified under the following ICS (International Classification for Standards) categories: 49.030.99 - Other fasteners. The ICS classification helps identify the subject area and facilitates finding related standards.

EN 6054:2025 is available in PDF format for immediate download after purchase. The document can be added to your cart and obtained through the secure checkout process. Digital delivery ensures instant access to the complete standard document.

Standards Content (Sample)

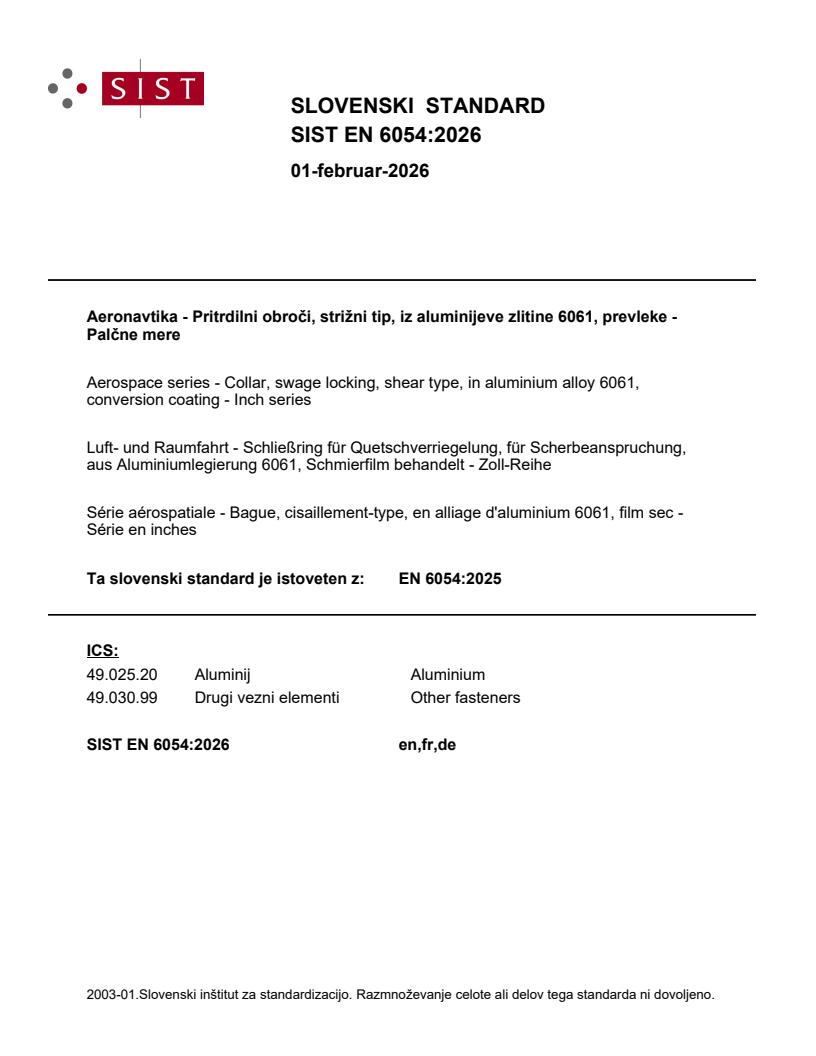

SLOVENSKI STANDARD
01-februar-2026
Aeronavtika - Pritrdilni obroči, strižni tip, iz aluminijeve zlitine 6061, prevleke -
Palčne mere
Aerospace series - Collar, swage locking, shear type, in aluminium alloy 6061,
conversion coating - Inch series
Luft- und Raumfahrt - Schließring für Quetschverriegelung, für Scherbeanspruchung,
aus Aluminiumlegierung 6061, Schmierfilm behandelt - Zoll-Reihe
Série aérospatiale - Bague, cisaillement-type, en alliage d'aluminium 6061, film sec -
Série en inches
Ta slovenski standard je istoveten z: EN 6054:2025
ICS:
49.025.20 Aluminij Aluminium
49.030.99 Drugi vezni elementi Other fasteners
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

EN 6054
EUROPEAN STANDARD
NORME EUROPÉENNE
December 2025
EUROPÄISCHE NORM
ICS 49.030.99
English Version
Aerospace series - Collar, swage locking, shear type, in
aluminium alloy 6061, conversion coating - Inch series
Série aérospatiale - Bague à sertir, type cisaillement, en Luft- und Raumfahrt - Schließring für
alliage d'aluminium 6061, revêtement de conversion - Quetschverriegelung, für Scherbeanspruchung, aus
Série en inches Aluminiumlegierung 6061, Schmierfilm behandelt -
Zoll-Reihe
This European Standard was approved by CEN on 26 October 2025.

CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this
European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references
concerning such national standards may be obtained on application to the CEN-CENELEC Management Centre or to any CEN
member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by
translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management
Centre has the same status as the official versions.

CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia,
Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway,
Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Türkiye and
United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION

EUROPÄISCHES KOMITEE FÜR NORMUNG

CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2025 CEN All rights of exploitation in any form and by any means reserved Ref. No. EN 6054:2025 E
worldwide for CEN national Members.

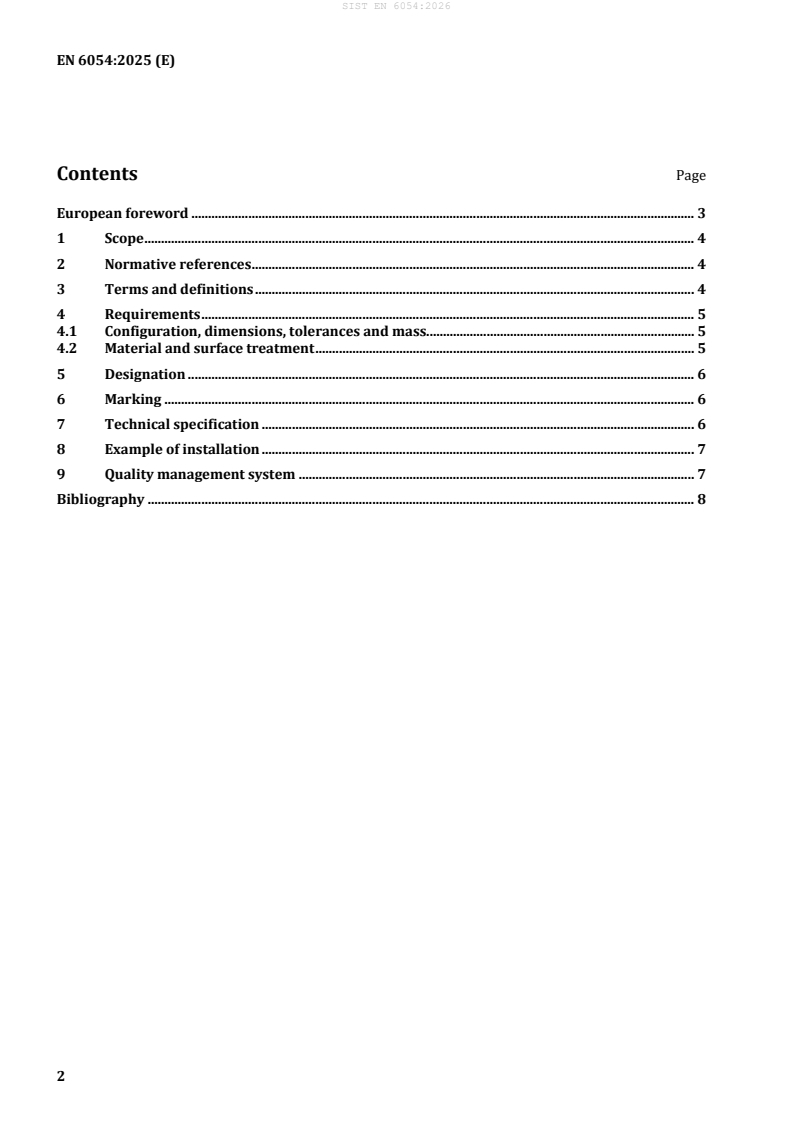

Contents Page
