EUROPEAN STANDARD NORME EUROPÉENNE EUROPÄISCHE NORM
EN 15722
June 2011 ICS 03.220.20; 35.240.60 Supersedes CEN/TS 15722:2009English Version
Intelligent transport systems - eSafety - eCall minimum set of data (MSD)
Télématique de la circulation et du transport routier - ESafety - Ensemble minimal de données (MSD) pour l'eCall
Straßenverkehrstelematik - eSicherheit - Minimaler Datensatz für den elektronischen Notruf This European Standard was approved by CEN on 11 May 2011.
CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN-CENELEC Management Centre or to any CEN member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management Centre has the same status as the official versions.
CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland and United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION EUROPÄISCHES KOMITEE FÜR NORMUNG
Management Centre:
Avenue Marnix 17,
B-1000 Brussels © 2011 CEN All rights of exploitation in any form and by any means reserved worldwide for CEN national Members. Ref. No. EN 15722:2011: ESIST EN 15722:2011

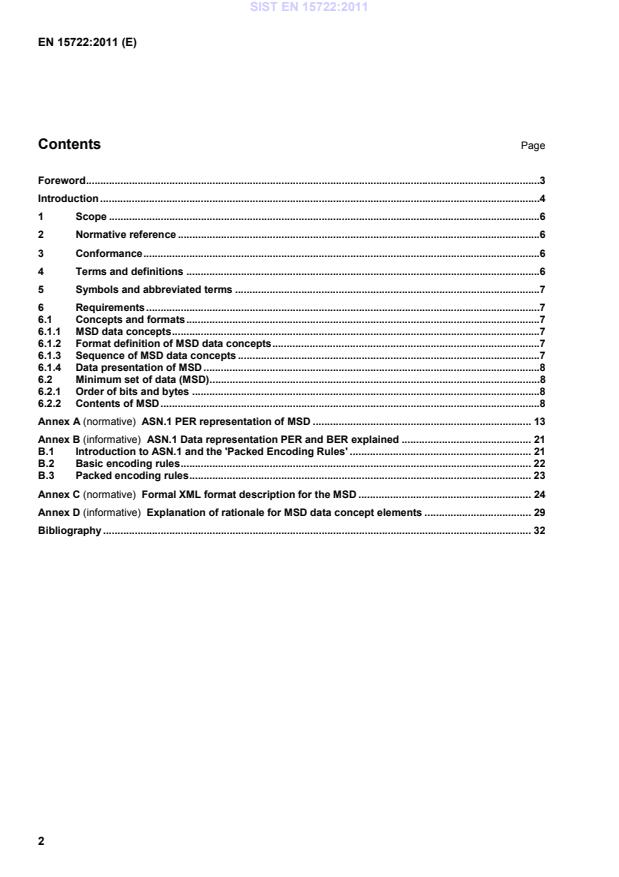

ASN.1 PER representation of MSD . 13Annex B (informative)
ASN.1 Data representation PER and BER explained . 21B.1 Introduction to ASN.1 and the 'Packed Encoding Rules' . 21B.2 Basic encoding rules . 22B.3 Packed encoding rules . 23Annex C (normative)
Formal XML format description for the MSD . 24Annex D (informative)
Explanation of rationale for MSD data concept elements . 29Bibliography . 32 SIST EN 15722:2011

EU-27 when fully deployed, and furthermore to reduce the severity of injuries, to bring significant savings to the society in and to reduce human suffering. Emergency calls made from vehicles or mobile telephones using wireless technologies, can assist with the objectives of significantly reducing road deaths and injuries, but drivers often have poor (imprecise) location-awareness, especially on interurban roads or abroad. Additionally, in many situations the car occupants may not be in a position to call using a normal mobile phone. The situation is worse for those travelling abroad. A high (and increasing) number of vehicles travelling outside their home country is thus also contributing to the need for automated emergency call system in vehicles. In EU there are over 100 million trips to another EU country per year (EU-15), 65 % of the people feel less protected while abroad and most do not know which number to call in an emergency (in some countries over 60 %). Language problems are pertinent and may render proper communication difficult .Yet, in the most crucial cases, the victim(s) may not be able to call because they have been injured/trapped, do not know the local number to call, and in many cases, particularly in rural situations and late at night, there may be no witnesses who happen to have a mobile phone and a sense of community. eCall, in the context of "Road Traffic and Transport Telematics" (otherwise known as "Intelligent Transport Systems" or "ITS"), can be described as a "user instigated or automatic system to provide notification to public safety answering points, by means of wireless communications, that a vehicle has crashed, and to provide coordinates and a defined minimum set of data, and where possible a voice link to the PSAP. The objective of implementing the pan-European in-vehicle emergency call system (eCall) is to automate the notification of a traffic accident, wherever in the European Union and associated countries, with the same technical standards and the same Quality of Services objectives of other emergency (TS12) services. This European Standard specifies the "Minimum Set of Data" (MSD) to be transferred by such an in-vehicle eCall system in the event of a crash or emergency. NOTE The communications media and means of transferring the eCall MSD are not defined in this European Standard. The European Committee for Standardization (CEN) draws attention to the fact that it is claimed that compliance with this European Standard may involve the use of a patent concerning eCall given in this European Standard. CEN takes no position concerning the evidence, validity and scope of this patent right. SIST EN 15722:2011

emergency call generated either automatically via activation of in-vehicle sensors or manually by the vehicle occupants; when activated it provides notification and relevant location information to the most appropriate 'Public Safety Answering Point’, by means of mobile wireless communications networks, carries a defined standardised Minimum Set of Data notifying that there has been an incident that requires response from the emergency services, and establishes an audio channel between the occupants of the vehicle and the most appropriate 'Public Safety Answering Point'
ETSI European telecommunications standards institute EC European Commission EU European Union
EU-27 27 countries that formed the European Union from 2007 GSM global system mobile GNSS global navigation satellite system ID identity IP Internet protocol LPG liquid propane gas M mandatory MSD minimum set of data O optional PER packed encoding rules (ASN.1) PSAP public safety answering point
6 Requirements 6.1 Concepts and formats 6.1.1 MSD data concepts NOTE The minimum set of data is important information to assist the provision of the most appropriate services to the crash or emergency site and to speed up the response. The minimum set of data makes it possible for the PSAP operator to respond to the eCall even without the voice connection. The "Minimum Set of Data" shall be a direct, timely message to the PSAP operator receiving the emergency call. 6.1.2 Format definition of MSD data concepts The definitions shown in this standard are shown below in semantic representation. Data presentation shall be as determined in 6.1.4. The real position of the element in the data-stream is defined by the ASN1 definition in Annex A; elements therefore do not necessarily start or end on a byte boundary. NOTE The information elements in the minimum set of data have been selected on the basis of their relevance in an emergency rescue situation. 6.1.3 Sequence of MSD data concepts The sequence of data presentation shall be as specified in 6.2, presented as defined in 6.1.4.
TestCall type: true = Test call false = Emergency
PositionCanBeTrusted: true = Position can be trusted false = Low confidence in position Precise vehicle type encoding is defined in Annex A. The supported vehicle types are as follows: passenger vehicle (Class M1) buses and coaches (Class M2) buses and coaches (Class M3) light commercial vehicles (Class N1) heavy duty vehicles (Class N2) heavy duty vehicles (Class N3) motorcycles (Class L1e) motorcycles (Class L2e) motorcycles (Class L3e) motorcycles (Class L4e) motorcycles (Class L5e) motorcycles (Class L6e) motorcycles (Class L7e) NOTE 1
Vehicle definitions class M, N according to directive 2007/46/EC; class L according directive 2002/24/EC. NOTE 2
The position confidence bit is to be set to “Low confidence in position” if the position is not within the limits of ± 150 m with 95 % confidence. 4 Vehicle identification String M VIN number according to ISO 3779
World Manufacturer Index (WMI) Vehicle Type Descriptor (VDS) Vehicle Identification Sequence (VIS)
false
= indicates a type of storage not present true = indicates type of storage which is present
The following storage types are supported:
 Gasoline tank  Diesel tank  Compressed natural gas (CNG)  liquid propane gas (LPG)  Electric energy storage (with more than 42 v and 100 Ah)  Hydrogen storage
All bits shall be set to zero to indicate an unknown or other type of energy storage. NOTE 1
This information may be unreliable if there has been a change of vehicle propulsion type (e.g. from gasoline to CNG). NOTE 2
More than one bit may be set if there is more than one type of energy storage present.
6 Time stamp Integer UTC sec M Timestamp of incident event
As seconds elapsed since midnight January 1st, 1970 UTC.
Failure value for time stamp set to “0”.
7 Vehicle Location Integer milliarcsec M Position latitude (WGS84) Value range (-324000000 to 324000000)
Maximum value Latitude = 90°00'00.000''
= 90*60*60.000'' = 324000.000''
= 324 000 000 Miliarcseconds = 0x134FD900 Minimum value Latitude = -90°00'00.000''
= -90*60*60.000'' = -324000.000''
= -324 000 000 Miliarcseconds = 0xECB02700
EXAMPLE 48°18'1.20" N = 48.3003333 lat = (48*3600)+(18*60)+1.20}’’ = 173881,200’’ which encodes to the following value:
= 173881200d = 0x0A5D3770 If latitude is invalid or unknown, the value SIST EN 15722:2011

Integer milliarcsec M Position longitude (WGS84) Value range (-648000000 to 648000000) Maximum value Longitude = 180°00'00.000''
= 180*60*60.000'' = 648000.000''
= 648 000 000 Miliarcseconds = 0x269FB200
Minimum value Longitude = -180°00'00.000''
= -180*60*60.000'' = -648000.000''
= -648 000 000 Miliarcseconds = 0xD9604E00
EXAMPLE. 11°37'2.52" E = 11.6173666 long = (11*3600)+(37*60)+2.52}’’ = 41822.520’’ which encodes to the following value:
= 41822520d = 0x027E2938
If longitude is invalid or unknown, the value 0x7FFFFFFF shall be used.
8 Vehicle direction Integer 2°-Degree M Direction of travel in 2°-degrees steps from magnetic north (0– 358, clockwise).
If direction of travel is invalid or unknown, the value 0xFF shall be used. 9 Recent Vehicle Location n-1 Integer 100 milliarcsec O Latitude Delta (+ for North and – for South) with respect to Current Vehicle location in Block 7.
1 Unit = 100 miliarcseconds (WGS84),
which is approximately 3m. Coded value range (-512.511)
representing - 51 200 to + 51 100 miliarcseconds, or from 51,2’’S to 51,1’’N from the current position.
Integer 100 milliarcsec O Longitude Delta (+ for East and – for West) with respect to Current Vehicle location in Block 7.
1 Unit = 100 miliarcseconds (WGS84)
Coded value range (-512.511)
representing - 51 200 to + 51 100 miliarcseconds, or from 51,2’’W to 51,1’’E from the current position.
1 Unit = 100 miliarcseconds (WGS84) which is approximately 3m.
Coded value range -512.511)
representing -51200 to +51100 miliarcseconds, or from 51,2’’S to 51,1’’N from the location represented by Recent Vehicle Location n-1.
Integer 100 milliarcsec O Longitude Delta (+ for East and – for West) with respect to Recent Vehicle Location n-1 in Block 9,
Coded value range (-512.511)
representing - 51 200 to + 51 100 miliarcseconds, or from 51,2’’W to 51,1’’E from the location represented by Recent Vehicle Location n-1
11 No. of passengers Integer O Minimum known number of fastened seatbelts, may be set to 0xFF or the optional parameter omitted if no information is available.
NOTE This information is indicative only as it may be not always be reliable in providing exact information about the number of passengers (e.g. because seatbelts may not be fastened by passengers or seatbelts may be fastened for other reasons).
12 Optional additional data String As specified O Further 103 bytes of data encoded as in ASN.1 definition.
NOTE 1
ASN.1 provides already the indication of whether optional data is included by simply identifying the optional additional data field as optional.
NOTE 2
Additional Data field may include an address where other relevant related data or functions are available. NOTE 3
The framework format of this field is defined in the ASN1 definition later in this document, which includes a method to uniquely identify the exact format of the data and may also be found in a data registry that is compliant to EN ISO 24978.
NOTE Except where explicitly specified or determined in a reference standard, negative values are not allowed. SIST EN 15722:2011

ASN.1 PER representation of MSD MSDASN1Module
DEFINITIONS AUTOMATIC TAGS ::= BEGIN
-- Version of this ASN.1 MSD specification CurrentId::= INTEGER (1)
-- ECallMessage is the top level information element -- The ECallMessage structure supports only one message type (msd)
-- Extendibility at this level is not allowed, thus ensuring that the -- ID (m
...
