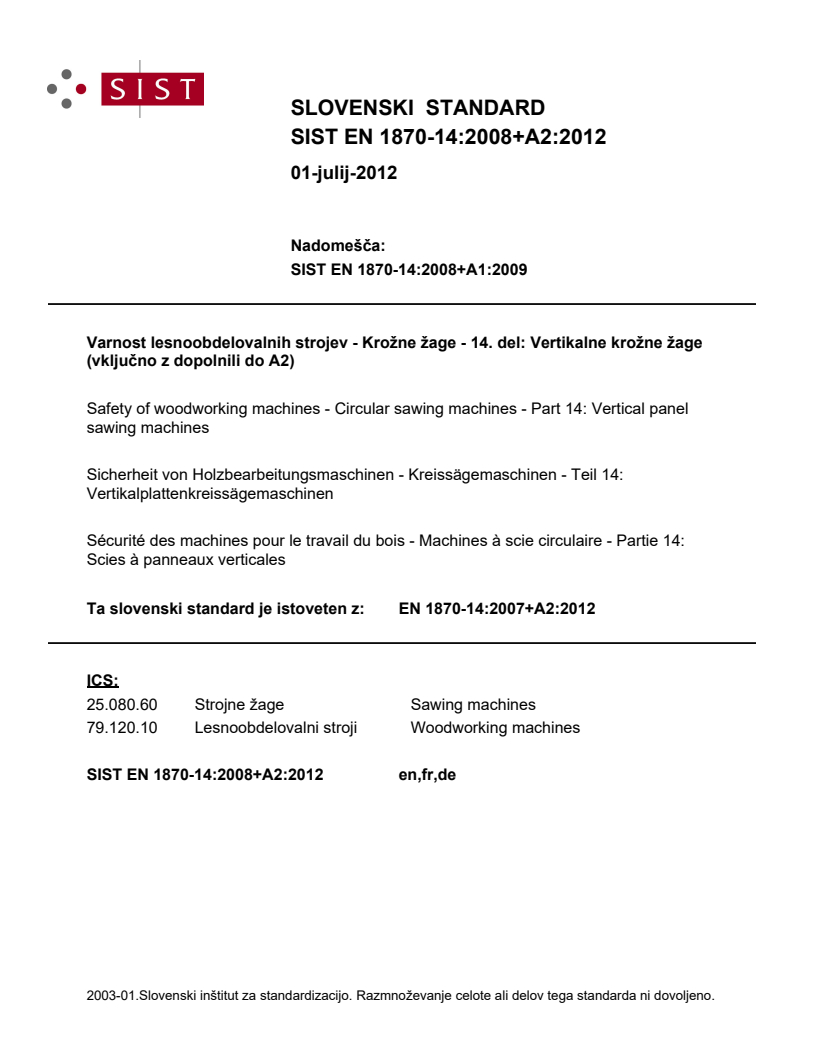

EN 1870-14:2007+A2:2012

SLOVENSKI STANDARD
01-julij-2012
1DGRPHãþD
SIST EN 1870-14:2008+A1:2009
9DUQRVWOHVQRREGHORYDOQLKVWURMHY.URåQHåDJHGHO9HUWLNDOQHNURåQHåDJH
YNOMXþQR]GRSROQLOLGR$
Safety of woodworking machines - Circular sawing machines - Part 14: Vertical panel
sawing machines
Sicherheit von Holzbearbeitungsmaschinen - Kreissägemaschinen - Teil 14:
Vertikalplattenkreissägemaschinen
Sécurité des machines pour le travail du bois - Machines à scie circulaire - Partie 14:
Scies à panneaux verticales
Ta slovenski standard je istoveten z: EN 1870-14:2007+A2:2012
ICS:
25.080.60 Strojne žage Sawing machines
79.120.10 Lesnoobdelovalni stroji Woodworking machines
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

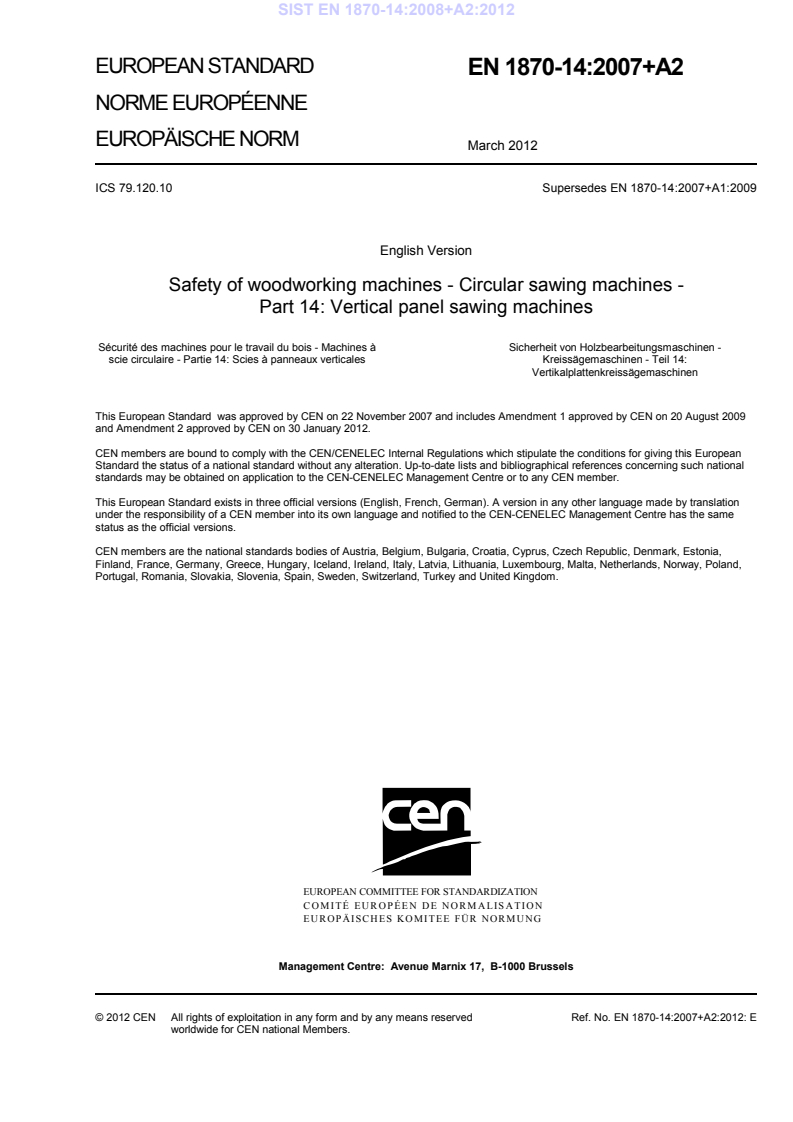

EUROPEAN STANDARD
EN 1870-14:2007+A2
NORME EUROPÉENNE
EUROPÄISCHE NORM
March 2012
ICS 79.120.10 Supersedes EN 1870-14:2007+A1:2009
English Version
Safety of woodworking machines - Circular sawing machines -
Part 14: Vertical panel sawing machines
Sécurité des machines pour le travail du bois - Machines à Sicherheit von Holzbearbeitungsmaschinen -
scie circulaire - Partie 14: Scies à panneaux verticales Kreissägemaschinen - Teil 14:
Vertikalplattenkreissägemaschinen
This European Standard was approved by CEN on 22 November 2007 and includes Amendment 1 approved by CEN on 20 August 2009
and Amendment 2 approved by CEN on 30 January 2012.

CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European
Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such national
standards may be obtained on application to the CEN-CENELEC Management Centre or to any CEN member.

This European Standard exists in three official versions (English, French, German). A version in any other language made by translation
under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management Centre has the same
status as the official versions.

CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia,
Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland,
Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and United Kingdom.

EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION

EUROPÄISCHES KOMITEE FÜR NORMUNG

Management Centre: Avenue Marnix 17, B-1000 Brussels
© 2012 CEN All rights of exploitation in any form and by any means reserved Ref. No. EN 1870-14:2007+A2:2012: E
worldwide for CEN national Members.

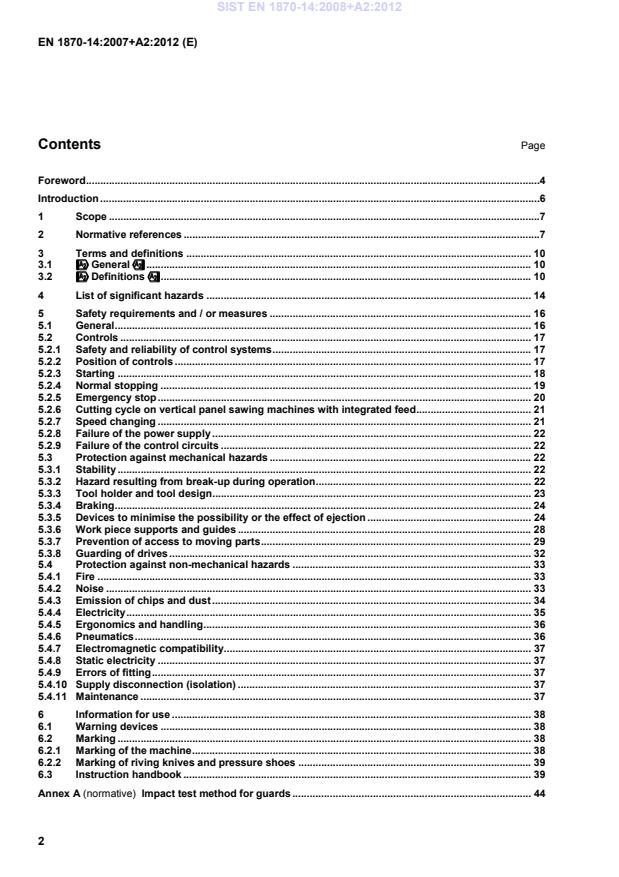

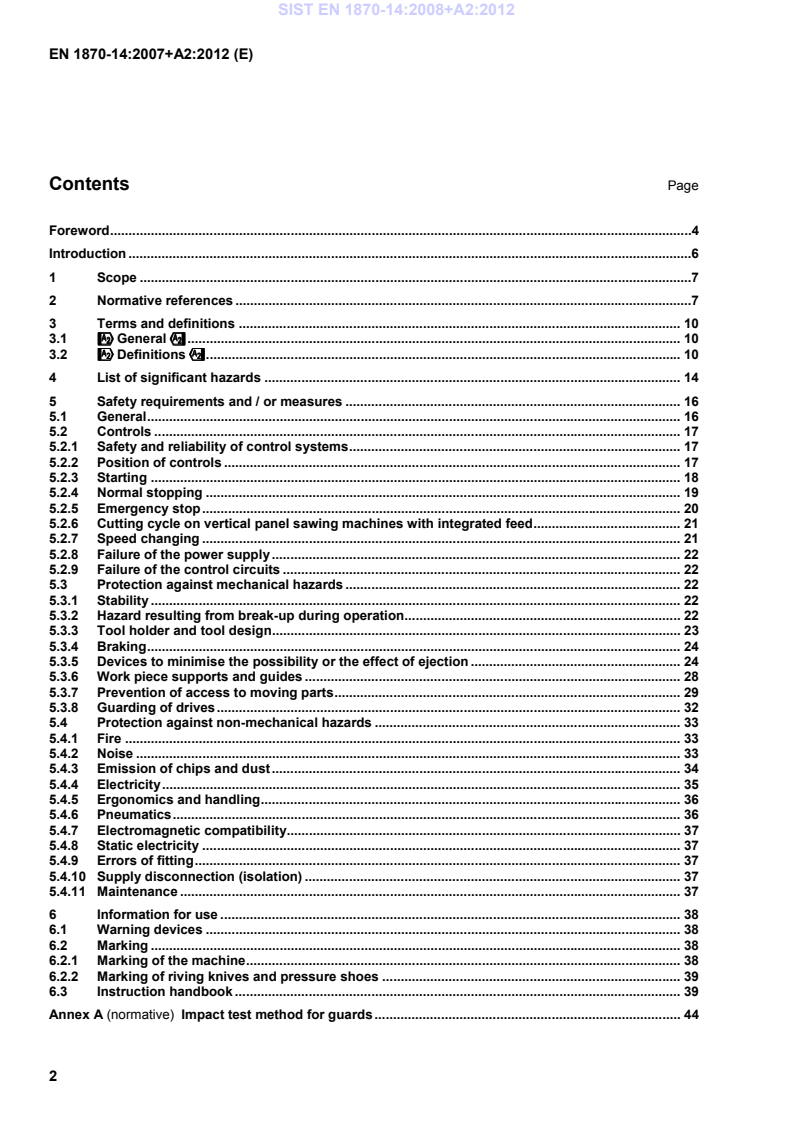

Contents Page
Foreword .4
Introduction .6
1 Scope .7
2 Normative references .7
3 Terms and definitions . 10
3.1 ####General$$$$ . 10
3.2 ####Definitions$$$$ . 10
4 List of significant hazards . 14
5 Safety requirements and / or measures . 16
5.1 General . 16
5.2 Controls . 17
5.2.1 Safety and reliability of control systems . 17
5.2.2 Position of controls . 17
5.2.3 Starting . 18
5.2.4 Normal stopping . 19
5.2.5 Emergency stop . 20
5.2.6 Cutting cycle on vertical panel sawing machines with integrated feed . 21
5.2.7 Speed changing . 21
5.2.8 Failure of the power supply . 22
5.2.9 Failure of the control circuits . 22
5.3 Protection against mechanical hazards . 22
5.3.1 Stability . 22
5.3.2 Hazard resulting from break-up during operation . 22
5.3.3 Tool holder and tool design . 23
5.3.4 Braking . 24
5.3.5 Devices to minimise the possibility or the effect of ejection . 24
5.3.6 Work piece supports and guides . 28
5.3.7 Prevention of access to moving parts . 29
5.3.8 Guarding of drives . 32
5.4 Protection against non-mechanical hazards . 33
5.4.1 Fire . 33
5.4.2 Noise . 33
5.4.3 Emission of chips and dust . 34
5.4.4 Electricity . 35
5.4.5 Ergonomics and handling . 36
5.4.6 Pneumatics . 36
5.4.7 Electromagnetic compatibility . 37
5.4.8 Static electricity . 37
5.4.9 Errors of fitting . 37
5.4.10 Supply disconnection (isolation) . 37
5.4.11 Maintenance . 37
6 Information for use . 38
6.1 Warning devices . 38
6.2 Marking . 38
6.2.1 Marking of the machine . 38
6.2.2 Marking of riving knives and pressure shoes . 39
6.3 Instruction handbook . 39
Annex A (normative) Impact test method for guards . 44
A.1 General . 44
A.2 Test method . 44
A.2.1 Preliminary remarks . 44
A.2.2 Testing equipment . 44
A.2.3 Projectile for guards . 44
A.2.4 Sampling. 44
A.2.5 Test procedure . 44
A.3 Results . 45
A.4 Assessment . 45
A.5 Test report . 45
A.6 Test equipment for impact test . 45
Annex B (normative) Saw spindle dimensional tolerances . 47
Annex C (normative) Riving knife mounting strength test . 48
Annex D (normative) Riving knife testing - Lateral stability . 49
Annex E (normative) Braking tests . 50
E.1 Conditions for all tests . 50
E.2 Tests . 50
E.2.1 Un-braked run-down time . 50
E.2.2 Braked run-down time . 50
Annex ZA (informative) !!Relationship between this European Standard and the Essential
!!
Requirements of EU Directive 2006/42/EC$$$$ . 53
Bibliography . 57

Foreword
This document (EN 1870-14:2007+A2:2012) has been prepared by Technical Committee CEN/TC 142
“Woodworking machines - Safety”, the secretariat of which is held by UNI.
This document shall be given the status of a national standard, either by publication of an identical text or by
endorsement, at the latest by September 2012 and conflicting national standards shall be withdrawn at the
latest by September 2012.
Attention is drawn to the possibility that some of the elements of this document may be the subject of patent
rights. CEN [and/or CENELEC] shall not be held responsible for identifying any or all such patent rights.
This document includes Amendment 1, approved by CEN on 2009-08-20, and Amendment 2, approved by
CEN on 2012-01-30.
This document supersedes #EN 1870-14:2007+A1:2009$.
The start and finish of text introduced or altered by amendment is indicated in the text by tags!" and
# $͘
This document has been prepared under a mandate given to CEN by the European Commission and the
European Free Trade Association, and supports essential requirements of the #Machinery Directive$.
#For relationship with EU Directive(s), see informative Annex ZA, which is an integral part of this
document.$
Organisations contributing to the preparation of this European Standard include the European Committee of
Woodworking Machinery Manufacturers Association "EUMABOIS".
The European Standards produced by CEN/TC 142 are particular to woodworking machines and complement
the relevant A and B Standards on the subject of general safety (see introduction of
#EN ISO 12100:2010$ for a description of A, B and C standards).
EN 1870 Safety of woodworking machines — Circular sawing machines consists of the following parts:
 Part 1: Circular saw benches (with and without sliding table), dimension saws and building site saws;
!deleted text"
 Part 3: Down cutting cross-cut saws and dual purpose down cutting cross-cut saws/circular saw benches;
 Part 4: Multiblade rip sawing machines with manual loading and/or unloading;
 Part 5: Circular saw benches/up-cutting cross-cut sawing machines;
 Part 6: Circular sawing machines for firewood and dual purpose circular sawing machines for
firewood/circular saw benches, with manual loading and/or unloading;
 Part 7: Single blade log sawing machines with integrated feed table and manual loading and/or unloading;
 Part 8: Single blade edging circular rip sawing machines with power driven saw unit and manual loading
and/or unloading;
 Part 9: Double blade circular sawing machines for cross-cutting with integrated feed and with manual
loading and/or unloading;
 Part 10: Single blade automatic and semi-automatic up-cutting cross-cut sawing machines;
 Part 11: Semi-automatic and automatic horizontal cross-cut sawing machines with one saw unit (radial
arm saws);
 Part 12: Pendulum cross-cut sawing machines;
 Part 13: Horizontal beam panel sawing machines;
 Part 14: Vertical panel sawing machines;
 Part 15: Multiblade cross-cut sawing machines with integrated feed of the workpiece and manual loading
and/or unloading;
 Part 16: Double mitre sawing machines for V-cutting;
 Part 17: Manual horizontal cutting cross-cut sawing machines with one saw unit (manual radial arm
saws);
#
 Part 18: Dimension saws;
 Part 19: Circular saw benches (with and without sliding table) and building site saws.$
According to the CEN/CENELEC Internal Regulations, the national standards organizations of the following
countries are bound to implement this European Standard: Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech
Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia,
Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain,
Sweden, Switzerland, Turkey and the United Kingdom.

Introduction
This document has been prepared to be a harmonised standard to provide one means of conforming to the
essential safety requirements of the Machinery Directive, and associated EFTA regulations.
This document is a type C standard as defined in #EN ISO 12100:2010$.
The machinery concerned and the extent to which hazards, hazardous situations and events covered are
indicated in the scope of this document.
When provisions of this type C standard are different from those which are stated in type A or B standards, the
provisions of this type C standard take precedence over the provisions of other standards, for machines that
have been designed and built according to the provisions of this type C standard.
The requirements of this document are directed to manufacturers and their authorised representatives of
vertical panel sawing machines. This document is also useful for designers and importers.
This document also includes provision and examples of information to be provided by the manufacturer to the
user.
Common requirements for tooling are given in #EN 847-1:2005+A1:2007$.
1 Scope
This document !specifies all" significant hazards, hazardous situations and events as listed in Clause 4
which are relevant to manually loaded and unloaded vertical panel sawing (with or without integrated feed)
machines fitted with:
 the facility for scoring;
 an angle cutting device;
 a middle support device;
 a programmable stop for parallel vertical cuts;
 the facility for grooving with a width of at most 20 mm in one pass by using a milling tools,
hereinafter referred to as "machines" when they are used as intended and under the conditions foreseen by
the manufacturer #including reasonably foreseeable misuse$.
The machines are designed for cutting panels of the following materials:
a) wood based materials such as chipboard, fibreboard, plywood and also these materials where they are
covered with plastic / light alloy laminates;
b) solid wood;
c) hardened rubber and hardened plastic material;
d) non ferrous materials e.g. light alloy;
e) compound materials with core consisting of polyurethane or mineral material laminated with light alloy.
This document does not apply to vertical panel saws with pressure beam and saw unit mounted behind the
workpiece support.
This document does not deal with hazards relating to the combination of a single machine being used with any
other machine (as part of a line).
This document is not applicable to vertical panel saws which are manufactured before the date of its
publication as EN.
NOTE Machines covered by this standard are listed under #1.4$ of Annex IV of the Machinery Directive.
2 Normative references
The following referenced documents are indispensable for the application of this document. For dated
references, only the edition cited applies. For undated references, the latest edition of the referenced
document (including any amendments) applies.
!deleted text"
#EN 847-1:2005+A1:2007$, Tools for woodworking — Safety requirements — Part 1: Milling tools,
circular saw blades
#EN 894-1:1997+A1:2008$ Safety of machinery — Ergonomics requirements for the design of display
and control actuators — Part 1: General principles for human interactions with displays and control actuators
#EN 894-2:1997+A1:2008$, Safety of machinery — Ergonomics requirements for the design of displays
and control actuators — Part 2: Displays
#EN 894-3:2000+A1:2008$, Safety of machinery — Ergonomics requirements for the design of display
and control actuators — Part 3: Control actuators
#deleted text$
#EN 1005-1:2001+A1:2008$, Safety of machinery — Human physical performance — Part 1: Terms and
definitions
#EN 1005-2:2003+A1:2008, Safety of machinery — Human physical performance — Part 2: Manual
handling of machinery and component parts of machinery$
#EN 1005-3:2002+A1:2008$, Safety of machinery — Human physical performance — Part 3:
Recommended force limits for machinery operation
#EN 1005-4:2005+A1:2008, Safety of machinery — Human physical performance — Part 4: Evaluation of
working postures and movements in relation to machinery$
#EN 1037:1995+A1:2008$, Safety of machinery — Prevention of unexpected start-up
#EN 1088:1995+A2:2008$, Safety of machinery — Interlocking devices associated with guards —
Principles for design and selection
EN 50178:1997, Electronic equipment for use in power installations
EN 50370-1:2005, Electromagnetic compatibility (EMC) — Product family standard for machine-tools —
Part 1: Emission
EN 50370-2:2003, Electromagnetic compatibility (EMC) — Product family standard for machine-tools —
Part 2: Immunity
EN 60204-1:2006, Safety of machinery — Electrical equipment of machines — Part 1: General requirements
(IEC 60204-1:2005, modified)
1)
#EN 60439-1:1999 ,$ Low-voltage switchgear and controlgear assemblies — Part 1: Type-tested and
partially type-tested assemblies (IEC 60439-1:1999)
2)
#EN 60529:1991 ,$ Degrees of protection provided by enclosures (IP Code) (IEC 60529:1989)
!EN 61310-1:2008, Safety of machinery — Indication, marking and actuation — Part 1: Requirements for
visual, acoustic and tactile signals (IEC 61310-1:2007)"
EN 61496-1:2004, Safety of machinery — Electro−sensitive protective equipment — Part 1: General
requirements and tests (IEC 61496-1:2004, modified)
#deleted text$
#EN 61800-5-2:2007, Adjustable speed electrical power drive systems  Part 5-2: Safety requirements 
Functional (IEC 61800-5-2:2007)$

#1) EN 60439-1:1999 is impacted by EN 60439-1:1999/A1:2004.$
#2)EN 60529:1991 is impacted by EN 60529:1991/A1:2000.$
#EN ISO 3743-1:2010, Acoustics  Determination of sound power levels and sound energy levels of noise
sources using sound pressure  Engineering methods for small movable sources in reverberant fields 
Part 1: Comparison method for a hard-walled test room (ISO 3743-1:2010)$
#EN ISO 3743-2:2009$, Acoustics — Determination of sound power levels of noise sources using sound
pressure — Engineering methods for small movable sources in reverberant fields — Part 2: Methods for
special reverberant test rooms (ISO 3743-2:1994)
#EN ISO 3744:2010, Acoustics — Determination of sound power levels and sound energy levels of noise
sources using sound pressure — Engineering methods for an essentially free field over a reflecting plane
(ISO 3744:2010)$
#EN ISO 3745:2009$, Acoustics — Determination of sound power levels of noise sources using sound
pressure — Precision methods for anechoïc and semi-anechoïc rooms (ISO 3745:2003)
#EN ISO 3746:2010, Acoustics — Determination of sound power levels and sound energy levels of noise
sources using sound pressure — Survey method using an enveloping measurement surface over a reflecting
plane (ISO 3746:2010)$
#EN ISO 4414:2010, Pneumatic fluid power — General rules and safety requirements for systems and their
components (ISO 4414:2010)$
#EN ISO 4871:2009$, Acoustics — Declaration and verification of noise emission values of machinery
and equipment (ISO 4871:1996)
#EN ISO 9614-1:2009$, Acoustics — Determination of sound power levels of noise sources using sound
intensity — Part 1: Measurement at discreet points (ISO 9614-1:1993)
#EN ISO 11202:2010, Acoustics - Noise emitted by machinery and equipment - Determination of emission
sound pressure levels at a work station and at other specified positions applying approximate environmental
corrections (ISO 11202:2010)$
#EN ISO 11204:2010, Acoustics — Noise emitted by machinery and equipment — Determination of
emission sound pressure levels at a work station and at other specified positions applying accurate
environmental corrections (ISO 11204:2010)$
#EN ISO 11688-1:2009$, Acoustics — Recommended practice for the design of low-noise machinery and
equipment — Part 1: Planning (ISO/TR 11688-1:1995)
#EN ISO 12100:2010, Safety of machinery — General principles for design — Risk assessment and risk
reduction (ISO 12100:2010)$
!EN ISO 13849-1:2008", Safety of machinery — Safety-related parts of control systems — Part 1:
General principles for design (ISO 13849-1:2006)
!EN ISO 13849-2:2008", Safety of machinery — Safety-related parts of control systems — Part 2:
Validation (ISO 13849-2:2003)
#EN ISO 13850:2008, Safety of machinery — Emergency stop — Principles for design
(ISO 13850:2006)$
!EN ISO 13857:2008, Safety of machinery — Safety distances to prevent hazard zones being reached by
upper and lower limbs (ISO 13857:2008)"
ISO 7960:1995, Airborne noise emitted by woodworking machine tools — Operating conditions for
woodworking machines
3 Terms and definitions
#
3.1 General$$$$
For the purposes of this document, the terms and definitions given in #EN ISO 12100:2010$ and the
following apply.
#
3.2 Definitions$$$$
##3.2.1$$
## $$
vertical panel sawing machine
#machine designed for cutting panels where the work piece is supported in a near vertical plane during
cutting where the saw unit is mounted in front of the workpiece support (example, see Figure 1)
NOTE The cut takes place either in a single straight vertical line by moving the saw unit along the moving beam or in
a single horizontal line by moving the moving beam along the work piece support. The work piece is manually loaded and
unloaded. The machine may have any of the following main features:
a) the facility for scoring;
b) an angle cutting device;
c) a middle support device;
d) a programmable stop for parallel vertical cuts;
e) the facility for using grooving tools.$
Key
1 frame
2 moving beam
3 saw unit
4 base of workpiece support
5 middle support device
Figure 1 — Example of a vertical panel sawing machine
####3.2.2$$$$
vertical panel sawing machine with hand feed
machine where the saw unit incorporating the saw blade is manually guided along the moving beam for
vertical cuts or manually guided together with the moving beam along the workpiece support for horizontal
cuts
####3.2.3$$$$
vertical panel sawing machine with integrated feed
#machine where the saw unit incorporating the saw blade has integrated feed for its vertical movement
along the moving beam and / or for its horizontal movement by moving the moving beam along the work piece
support
NOTE The saw blade is automatically projected through the work piece during the cutting stroke and then retracted
together with the saw unit from the work piece to its rest position followed by the return stroke of the saw unit to its rest
position.$
####3.2.4$$$$
manual loading
where the operator puts the work piece on the workpiece support i.e. there is no intermediate loading device
to receive and transfer the work piece from the operator to the cutting position
####3.2.5$$$$
manual unloading
where the operator removes the work piece from the workpiece support i.e. there is no intermediate unloading
device to transfer the work piece from the cutting position to the operator
####3.2.6$$$$
saw unit
supporting unit of the tool(s) e.g. saw blade(s), milling tool, which performs the cutting stroke
####3.2.7$$$$
main saw blade
circular saw blade which is used for separating the work piece
####3.2.8$$$$
scoring
the making of a shallow cut in the surface of a work piece, deep enough to pass through any veneer or plastic
facing on the workpiece so as to prevent surface damage when the main saw blade makes its cut
####3.2.9$$$$
scoring saw blade
saw blade mounted in front of the main saw blade which is designed for scoring
##3.2.10$$
## $$
saw blade/saw unit rest position
position to which the saw unit returns at the end of each cut either power driven on integrated fed machines or
manually on machines with hand feed
##3.2.11$$
## $$
cutting cycle on integrated feed machines
#movements of the saw unit incorporating the tool during the machining operation
NOTE The cutting cycle comprises:
a) movement of the saw unit with the tool from its rest position to the cutting position;
b) movement of the saw unit from its cutting position either along the moving beam (vertical cutting) or together
with the moving beam through the cutting stroke (horizontal cutting);
c) returning of the saw unit to its rest position.
A further movement of the saw unit along the moving beam or of the moving beam with saw unit back to their starting
positions may follow.$
##3.2.12$$
## $$
middle support device
device for supporting a work piece with small dimensions fitted to the work piece support
####3.2.13$$$$
angle cutting device
device fitted to the work piece support of the machine (example see Figure 2)
Key
1 support system
2 lockable device for adjusting the cutting angle
3 scale for indicating the adjusted cutting angle
4 work piece support
5 work piece clamping
6 cutting line
Figure 2 — Example of an angle cutting device
####3.2.14$$$$
programmable stop for vertical cuts
device fitted to the work piece support of the machine designed for vertical cuts at predetermined dimensions
##3.2.15$$
## $$
machine actuator
power mechanism used to effect motion on the machine
####3.2.16$$$$
run-down time
time elapsed from the actuation of the stop control device up to spindle standstill
##3.2.17$$
## $$
information from the supplier
statements, sales literature, leaflets or other documents where the manufacturer (or supplier) declares either
the characteristics or the compliance of the material or product to a relevant standard
#deleted text$
####3.2.18$$$$
safety related part of a control system
(SRP(CS))
part or subpart(s) of a control system that responds to input signals and generates safety-related output
signals
NOTE The combined safety-related parts of a control system start at the point where the safety-related signals are
initiated (including e.g. the actuating cam and the roller of the position switch) and end at the output of the power control
elements (including e.g. the main contacts of the contactor). This also includes monitoring systems
#(EN ISO 13849-1:2008, 3.1)$ .
##3.2.19$$
## $$
####embedded software (SRESW)
software that is part of the system supplied by the control manufacturer and which is not accessible for
modification by the user of the machinery
NOTE 1 Firmware or system software are examples of embedded software (EN ISO 13849-1:2008, 3.1.37).$
NOTE 2 Manufacturer means manufacturer of the system.
NOTE 3 For example the operating system of a speed monitoring device.
####3.2.20$$$$
##application software (SRASW)
##
software specific to the application, implemented by the machine manufacturer, and generally containing logic
sequences, limits and expressions that control the appropriate inputs, outputs, calculations and decisions
necessary to meet the SRP/CS requirements
[EN ISO 13849-1:2008, 3.1.36]$
####3.2.21
performance level PL
discrete level used to specify the ability of safety-related parts of control systems to perform a safety function
under foreseeable conditions
[EN ISO 13849-1:2008, 3.1.23]$
4 List of significant hazards
This clause !contains all" significant hazards, hazardous situations and events (see
#EN ISO 12100:2010$) #deleted text$, identified by risk assessment as significant for the machines
as defined in the scope and which require action to eliminate or reduce the risk. This document deals with
these significant hazards by defining safety requirements and / or measures or by reference to relevant
standards.
#These hazards are listed in Table 1.$
####Table 1 — List of significant hazards
Hazards, hazardous situations and hazardous Relevant
No events EN ISO 12100:2010 clause of this
document
1 Mechanical hazards related to:
- machine parts or workpieces due to:

5.3.3, 5.3.5,
5.3.6, 5.3.7,
a) shape;
6.2.2.1, 6.2.2.2, 6.3
5.4.3, 6.2, 6.3,
Annex B
b) relative location; 5.2.2, 5.3.7, 6.2
c) mass and stability (potential energy of elements 5.2.6, 5.3.6
which may move under the effect of gravity);
d) mass and velocity (kinetic energy of elements in 5.3.6
controlled or uncontrolled motion);
e) mechanical strength. 5.3.2, 5.3.6,
5.3.7, Annex A,
Annex C,
Annex D,
Annex E
- accumulation of energy inside the machinery by:
6.2.10, 6.3.5.4
f) elastic elements (springs); 5.4.5
g) gases under pressure. 5.4.6, 5.4.10,
6.3
5.3.6, 5.3.7,
1.1 Crushing hazard
5.3.8
5.3.7, 5.3.8
1.2 Shearing hazard
5.2.6, 5.3.7, 6.1
1.3 Cutting or severing hazard
5.3.7, 5.3.8
1.4 Entanglement hazard
5.3.7, 5.3.8
1.5 Drawing-in or trapping hazard
5.2.6, 5.3.6,
1.6 Impact hazard
5.3.7
5.3.2, 5.3.5, 6.3
1.9 High pressure fluid injection or ejection hazard 6.2.10
Electrical hazards due to:
6.2.9, 6.3.5.4 5.4.4, 5.4.10
2.1 Contact of persons with live parts (direct contact)
6.2.9 5.4.4, 5.4.10
2.2 Contact of persons with parts which have become
live under faulty conditions (indirect contact)
6.2.9 5.4.8
2.4 Electrostatic phenomena
Hazards generated by noise, resulting in:
6.2.2.2, 6.3 5.4.2
4.1 Hearing loss (deafness), other physiological
disorders (loss of balance, loss of awareness)
6.2.2.2, 6.3 6.3
4.2 Interference with speech communication, acoustic
signals
(to be continued)
Table 1 — List of significant hazards (concluded)
Hazards generated by materials and substances (and their constituent elements) processed
or used by the machinery
6.2.3b, 6.2.4 5.4.3, 6.3
7.1 Hazards from contact with or inhalation of harmful
fluids and dusts
6.2.4 5.4.1
7.2 Fire
Hazards generated by neglecting ergonomic principles in machinery design:
6.2.7, 6.2.8.2, 6.2.11.12, 5.2.2, 5.4.5
8.1 Unhealthy postures or excessive effort
6.3.5.5, 6.3.5.6
6.2.8.3 5.4.5
8.2 Hand-arm or foot-leg anatomy
6.2.8.6 6.3
8.4 Local lighting
6.3
8.5 Mental overload and underload, stress 6.2.8.5
6.2.8, 6.2.11.8, 6.2.11.10, 5.4.9, 6.3
8.6 Human error, human behaviour
6.3.5.2, 6.4
6.2.8.7, 6.2.11.8 5.2.2
8.7 Design, location or identification of manual controls
6.2.8.8, 6.4.2 5.2.2
8.8 Design or location of visual display units
5.2.3, 5.2.5,
9 Combination of hazards 6.3.2.1
5.2.6, 5.2.9,
5.3.5, 5.4.10,
5.4.11
Unexpected start-up, unexpected overrun / overspeed (or any similar malfunction) from:
6.2.11, 6.3.5.4 5.2.1, 5.2.9,
10.1 Failure/disorder of the control system
5.4.11, 6.1
6.2.11.4 5.2.8, 5.4.6
10.2 Restoration of energy supply after an interruption
6.2.11.11 5.2.1, 5.4.7
10.3 External influences on electrical equipment
5.3.3, 5.3.5
10.4 Other external influences (gravity) 6.2.12.1
5.2.1
10.5 Errors in the software 6.2.11.7
6.2.8, 6.2.11.8, 6.2.11.10, 5.2.2, 5.4.5, 6.3
10.6 Errors made by the operator (due to mismatch of
6.3.5.2, 6
machinery with human characteristics and abilities,
see 8.6)
5.2.4, 5.2.5,
11 Impossibility of stopping the machine in the 6.2.11.1, 6.2.11.3, 6.3.5.2
5.4.10
best possible conditions
5.2.7
12 Variations in the rotational speed of tools 6.2.2.2, 6.3.3
5.2.8
13 Failure of the power supply 6.2.11.1, 6.2.11.4
5.2.9
14 Failure of the control circuit 6.2.11, 6.3.5.4
5.4.9
15 Errors of fitting 6.2.7, 6.4.5
5.3.2
16 Break-up during operation 6.2.3
5.3.5
17 Falling or ejected objects or fluids 6.2.3, 6.2.10
5.3.1
18 Loss of stability / overturning of machinery 6.3.2.6
$
5 Safety requirements and / or measures
5.1 General
The machine shall comply with the safety requirements and / or protective measures of Clause 5.
NOTE 1 In addition, the machine should be designed according to the principles of #EN ISO 12100:2010$ for
hazards relevant but not significant, which are not dealt with by this document (e.g. sharp edges of the machine frame).
NOTE 2 For guidance in connection with risk reduction by design see #EN ISO 12100:2010, 6.2$ and for
safeguarding measures see #EN ISO 12100:2010, 6.3$.
5.2 Controls
5.2.1 Safety and reliability of control systems
#deleted text$
#For the purpose of this document, safety related part of a control system means the system from the initial
actuator or position detector or sensor up to and including the power control element of the final machine final
actuator e.g. motor or brake. Safety related parts of the control system of this machine comprise parts
concerning the following functions and they shall fulfil at least the requirements of the PL given below in
accordance with the requirements of EN ISO 13849-1:2008:$
a) for starting and restarting: #PL = c$ (see 5.2.3, 5.2.6);
b) for prevention of unexpected start up: #PL = c$ (see 5.2.9);
c) for normal stopping: #PL = c$ (see 5.2.4);
d) for emergency stop: #PL = c$ (see 5.2.5);
e) for enabling devices: #PL = c$ (see 5.3.6.4 and 5.3.7.3);
f) for hold-to-run control devices: #PL = c$ (#PL = b$ is allowed if the hold-to-run control device is
combined with an enabling device #PL = c$) (see 5.3.6.4 and 5.3.7.3);
g) for interlocking of guards: #PL = c$ (see 5.3.7, 5.3.8);
h) for interlocking of functions: #PL = c$ (see 5.2.3.1, 5.2.6, 5.2.7, 5.3.4, 5.3.7.3);
i) for speed changing and indication of the selected speed: #PL = b$ (see 5.2.7);
j) for powered movement of the saw blade, saw unit and moving beam: #PL = c$ (see 5.2.3, 5.2.4,
5.2.5, 5.2.6, 5.3.7);
k) for monitoring the operating maximum speed of the stroke of the saw unit and of the moving beam on
machines with integrated feed: #PL = c$ (see 5.2.6);
l) for powered movement of the programmable stop: #PL = c$ (see 5.3.6.4);
m) for braking: #PL = b or PL = c$ (see 5.3.4).
#Where magnetic / proximity switches are used they shall be in accordance with the requirements of 6.2 of
EN 1088:1995+A2:2008 and the related control system shall conform to at least PL = c in accordance with the
requirements of EN ISO 13849-1:2008.$
Verification: By checking the relevant drawings and / or circuit diagrams and inspection of the machine.
#deleted text$
5.2.2 Position of controls
All electrical hand-operated controls shall be positioned ≥ 600 mm and ≤ 1 800 mm above floor level.
The electrical hand-operated controls of the machine i.e. for starting, normal stopping, cutting stroke / return
stroke (machines with integrated feed), for the programmable stop (if fitted) and for tool spindle speed
changing (if fitted) shall be positioned on the front side of the main control panel fixed at the moving beam.
The hand-operated controls for the power driven saw unit infeed / outfeed movement shall be positioned either on
the saw unit or on the front side of the main control panel fixed at the moving beam.
An emergency stop control device shall be provided on the front side of the main control panel together with the
normal start and stop controls.
For machines with integrated feed additional emergency stop control devices shall be provided at each end of the
machine frame and on any auxiliary control panel.
Verification: By checking the relevant drawings, inspection of the machine, measurement and relevant functional
testing of the machine.
5.2.3 Starting
Before starting or restarting of the machine all interlocked guards shall be in place and functional. This is
achieved by the interlocking arrangements described in 5.3.7.
For electrically operated machines the requirements of 9.2.5.2 of EN 60204-1:2006 apply but the exceptions
referred to and described in 9.2.4 of EN 60204-1:2006 are not relevant.
Start or restart shall only be possible by actuation of the start control device provided for that purpose.
#The safety related part of the control systems (see also 5.2.1) for:
a) starting or restarting the tool spindle;
b) pivoting movement of the saw unit;
c) infeed / outfeed movement of the saw unit on machines with hand feed;
d) starting the cutting cycle or for initiation of the start of the cutting cycle on machines with integrated feed
shall be at least PL = c in accordance with the requirements of EN ISO 13849-1:2008.
The safety related part of the control system for the cutting cycle movements on machines with integrated
feed shall be at least PL = b in accordance with the requirements of EN ISO 13849-1:2008.$
Only one powered integrated feed movement shall be possible at any one time.
At the end of the integrated feed / pivoting movement power is cut to the corresponding machine actuators. A
time delay device of fail safe technique may be used for cutting power with time delay corresponding to the
maximum time for the integrated feed movement #, e.g. of capacity type conforming to PL = c in accordance
with the requirements of EN ISO 13849-1:2008$. Either the time delay shall be fixed or the time delay
adjustment device shall be sealed. A new initiation shall be necessary to perform an additional integrated feed
movement.
Starting the saw unit pivoting movement shall only be possible when the saw unit is in its rest position.
Verification: By checking the relevant drawings and / or circuit diagrams, inspection of the machine and
relevant functional testing of the machine.
5.2.4 Normal stopping
5.2.4.1 General
The machine shall be fitted with a normal stop control which, when actuated sh
...
