EN ISO 14946:2021
(Main)Small craft - Maximum load capacity (ISO 14946:2021)
Small craft - Maximum load capacity (ISO 14946:2021)
This document specifies the items included in the maximum load of small craft, without exceeding the limits set by other ISO standards for stability, freeboard, and flotation. It further sets requirements for seating and occupancy areas of crew members.
Personal watercraft are excluded from the Scope of this document.
Kleine Wasserfahrzeuge - Maximale Zuladung (ISO 14946:2021)
Dieses Dokument legt die Positionen fest, die in die maximale Zuladung von kleinen Wasserfahrzeugen einzubeziehen sind, ohne dass die Grenzen überschritten werden, die von anderen ISO Normen für Stabilität, Freibord und Auftrieb festgelegt sind. Sie legt weiterhin Anforderungen an Sitzplätze und Aufenthaltsbereiche für die Mannschaft fest.
Wasserskooter sind vom Anwendungsbereich dieses Dokuments ausgeschlossen.
Petits navires - Capacité de charge maximale (ISO 14946:2021)
Le présent document spécifie les éléments inclus dans la charge maximale d'un petit navire sans dépasser les limites fixées par d'autres normes ISO relatives à la stabilité, au franc-bord, à la flottabilité. Il établit également les exigences concernant les sièges et les zones d’occupation pour les membres de l’équipage.
Les motos aquatiques sont exclues du domaine d'application de ce document.
Mala plovila - Največja obremenitev (ISO 14946:2021)
General Information
- Status
- Published
- Publication Date
- 29-Jun-2021
- Withdrawal Date
- 30-Dec-2021
- Technical Committee
- CEN/TC 464 - Small Craft
- Drafting Committee
- CEN/TC 464 - Small Craft
- Current Stage
- 6060 - Definitive text made available (DAV) - Publishing
- Start Date
- 30-Jun-2021
- Completion Date
- 30-Jun-2021
Relations
- Effective Date
- 07-Jul-2021
- Effective Date
- 07-Jul-2021
Overview
EN ISO 14946:2021 (Small craft - Maximum load capacity) defines the items to be included when determining the maximum load of small recreational craft. The standard clarifies seating and occupancy-area requirements, what mass must be counted in maximum load calculations, and the information manufacturers must provide on the builder's plate and in the owner's manual. Personal watercraft are explicitly excluded from the scope.
This edition supersedes EN ISO 14946:2001 and aligns with related ISO standards such as ISO 12217 (stability, buoyancy and flotation) and ISO 8666 (principal data). It also supports conformity to Directive 2013/53/EU where applicable.
Key Topics
- Scope and exclusions: Applies to small craft up to 24 m length of hull; personal watercraft excluded.
- Seat and occupancy definitions:
- Seat minimum dimensions: 400 mm × 750 mm (including clear foot space).
- Occupancy area: clear space within the craft with at least 400 mm × 400 mm per standing person.
- Crew mass assumption: Each person is limited at 75 kg for load calculations (with references to ISO 12217 and ISO 6185 for child allowances).
- Items included in maximum load (Clause 5): The maximum load (m_ML) includes:
- crew mass (75 kg each), personal effects, stores and cargo;
- contents of permanently installed tanks filled to 95 % (fuel, water, oils, live wells);
- ballast water (100 % capacity);
- consumable liquids in portable tanks (95 % capacity);
- dinghies and associated outboards, liferafts beyond the essential minimum, and additional non-standard equipment.
- Manufacturer’s values:
- Maximum recommended load: determined in accordance with stability, freeboard, buoyancy and flotation requirements.
- Builder’s plate load (m_B_P): displayed load that excludes the weight of contents of fixed tanks when full (per Clause 7).
- Owner's manual requirements: Manufacturer must state the maximum recommended number of persons and the builder’s plate maximum load.
Applications
This standard is essential for:
- Boat designers and builders calculating safe load limits and producing compliant builder’s plates.
- Certification bodies and conformity assessment tied to maritime safety directives.
- Owners and operators who need clear guidance in the owner’s manual for safe loading, seating and occupancy.
Practical benefits include consistent load accounting across small craft, clear seating/occupancy rules, and harmonized information for regulatory compliance and safe operation.
Related Standards
- ISO 12217 (all parts) - Stability and buoyancy assessment and categorization
- ISO 8666:2020 - Small craft principal data
- ISO 6185 (all parts) - Inflatable boats
For design validation always refer to the normative clauses of EN ISO 14946:2021 together with ISO 12217 and ISO 8666. Consult the owner’s manual and builder’s plate for the manufacturer’s specified limits before operation.
Frequently Asked Questions
EN ISO 14946:2021 is a standard published by the European Committee for Standardization (CEN). Its full title is "Small craft - Maximum load capacity (ISO 14946:2021)". This standard covers: This document specifies the items included in the maximum load of small craft, without exceeding the limits set by other ISO standards for stability, freeboard, and flotation. It further sets requirements for seating and occupancy areas of crew members. Personal watercraft are excluded from the Scope of this document.
This document specifies the items included in the maximum load of small craft, without exceeding the limits set by other ISO standards for stability, freeboard, and flotation. It further sets requirements for seating and occupancy areas of crew members. Personal watercraft are excluded from the Scope of this document.
EN ISO 14946:2021 is classified under the following ICS (International Classification for Standards) categories: 47.080 - Small craft. The ICS classification helps identify the subject area and facilitates finding related standards.
EN ISO 14946:2021 has the following relationships with other standards: It is inter standard links to EN ISO 14946:2001, EN ISO 14946:2001/AC:2005. Understanding these relationships helps ensure you are using the most current and applicable version of the standard.
EN ISO 14946:2021 is associated with the following European legislation: EU Directives/Regulations: 2013/53/EU; Standardization Mandates: M/075, M/542. When a standard is cited in the Official Journal of the European Union, products manufactured in conformity with it benefit from a presumption of conformity with the essential requirements of the corresponding EU directive or regulation.
You can purchase EN ISO 14946:2021 directly from iTeh Standards. The document is available in PDF format and is delivered instantly after payment. Add the standard to your cart and complete the secure checkout process. iTeh Standards is an authorized distributor of CEN standards.
Standards Content (Sample)
SLOVENSKI STANDARD
01-september-2021
Nadomešča:
SIST EN ISO 14946:2002
SIST EN ISO 14946:2002/AC:2006
Mala plovila - Največja obremenitev (ISO 14946:2021)
Small craft - Maximum load capacity (ISO 14946:2021)
Kleine Wasserfahrzeuge - Maximale Zuladung (ISO 14946:2021)
Petits navires - Capacité de charge maximale (ISO 14946:2021)
Ta slovenski standard je istoveten z: EN ISO 14946:2021
ICS:
47.080 Čolni Small craft
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.
EN ISO 14946
EUROPEAN STANDARD
NORME EUROPÉENNE
June 2021
EUROPÄISCHE NORM
ICS 47.080 Supersedes EN ISO 14946:2001
English Version
Small craft - Maximum load capacity (ISO 14946:2021)
Petits navires - Capacité de charge maximale (ISO Kleine Wasserfahrzeuge - Maximale Zuladung (ISO
14946:2021) 14946:2021)
This European Standard was approved by CEN on 20 February 2021.
CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this
European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references
concerning such national standards may be obtained on application to the CEN-CENELEC Management Centre or to any CEN
member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by
translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management
Centre has the same status as the official versions.
CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia,
Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway,
Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and
United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION
EUROPÄISCHES KOMITEE FÜR NORMUNG
CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2021 CEN All rights of exploitation in any form and by any means reserved Ref. No. EN ISO 14946:2021 E
worldwide for CEN national Members.

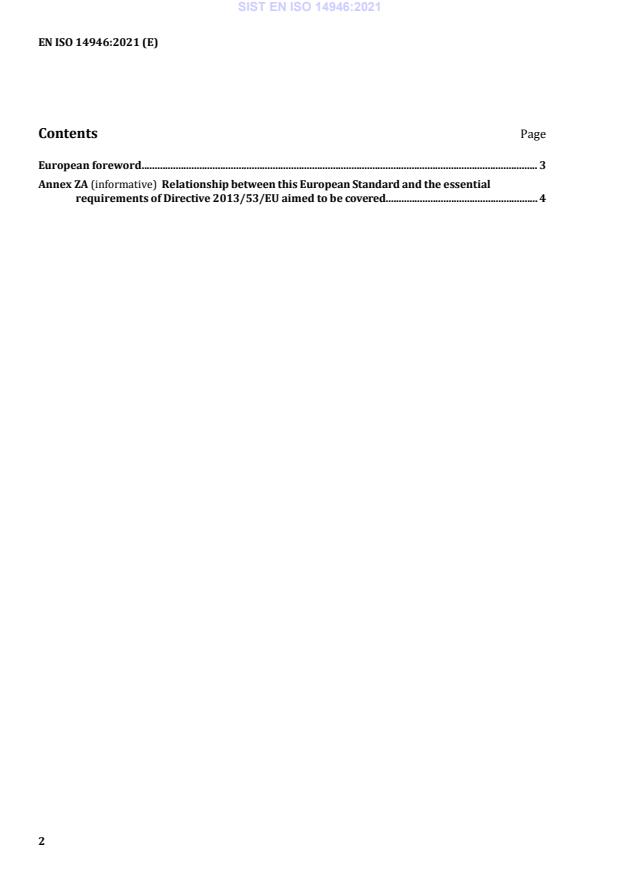

Contents Page
European foreword . 3
Annex ZA (informative) Relationship between this European Standard and the essential
requirements of Directive 2013/53/EU aimed to be covered. 4
European foreword
This document (EN ISO 14946:2021) has been prepared by Technical Committee ISO/TC 188 "Small
craft" in collaboration with CCMC.
This European Standard shall be given the status of a national standard, either by publication of an
identical text or by endorsement, at the latest by December 2021, and conflicting national standards
shall be withdrawn at the latest by December 2021.
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. CEN shall not be held responsible for identifying any or all such patent rights.
This document supersedes EN ISO 14946:2001.
This document has been prepared under a mandate given to CEN by the European Commission and the
European Free Trade Association, and supports essential requirements of EU Directive(s).
For the relationship with EU Directive(s) see informative Annex ZA, which is an integral part of this
document.
According to the CEN-CENELEC Internal Regulations, the national standards organizations of the
following countries are bound to implement this European Standard: Austria, Belgium, Bulgaria,
Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland,
Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Republic of
North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and the
United Kingdom.
Endorsement notice
The text of ISO 14946:2021 has been approved by CEN as EN ISO 14946:2021 without any modification.
Annex ZA
(informative)
Relationship between this European Standard and the essential
requirements of Directive 2013/53/EU aimed to be covered
This European Standard has been prepared under a Commission’s standardization request
M/542/C(2015) 8736 final to provide one voluntary means of conforming to essential requirements of
Directive 2013/53/EU.
Once this standard is cited in the Official Journal of the European Union under that Directive,
compliance with the normative clauses of this standard given in Table ZA.1 confers, within the limits of
the scope of this standard, a presumption of conformity with the corresponding essential requirements
of that Directive, and associated EFTA regulations.
Table ZA.1 — Correspondence between this European Standard and Annex I and Annex II of
Directive 2013/53/EU
Essential Requirements of Clause(s)/sub-clause(s) of Remarks/Notes
Directive 2013/53/EU this EN
Annex I.A.2.2 (d) Manufacturer’s Clause 7
Maximum Recommended Load
excluding the weight of the contents
of the fixed tanks
Annex I.A.2.5 Owner’s Manual Clause 8 In respect of information to be
included in the owner’s manual
Annex I.A.3.6 Manufacturer’s Clause 6
Maximum Recommended Load
WARNING 1 — Presumption of conformity stays valid only as long as a reference to this European
Standard is maintained in the list published in the Official Journal of the European Union. Users of this
standard should consult frequently the latest list published in the Official Journal of the European
Union.
WARNING 2 — Other Union legislation may be applicable to the product(s) falling within the scope of
this standard.
INTERNATIONAL ISO
STANDARD 14946
Second edition
2021-04
Small craft — Maximum load capacity
Petits navires — Capacité de charge maximale
Reference number
ISO 14946:2021(E)
©
ISO 2021
ISO 14946:2021(E)
© ISO 2021
All rights reserved. Unless otherwise specified, or required in the context of its implementation, no part of this publication may
be reproduced or utilized otherwise in any form or by any means, electronic or mechanical, including photocopying, or posting
on the internet or an intranet, without prior written permission. Permission can be requested from either ISO at the address
below or ISO’s member body in the country of the requester.
ISO copyright office
CP 401 • Ch. de Blandonnet 8
CH-1214 Vernier, Geneva
Phone: +41 22 749 01 11
Email: copyright@iso.org
Website: www.iso.org
Published in Switzerland
ii © ISO 2021 – All rights reserved
ISO 14946:2021(E)
Contents Page
Foreword .iv
1 Scope . 1
2 Normative references . 1
3 Terms and definitions . 1
4 Maximum recommended number of persons (crew) . 2
5 Maximum load, m . 2
ML
6 Manufacturer’s maximum recommended load . 3
7 Maximum load for the buil
...
기사 제목: EN ISO 14946:2021 - Small craft - Maximum load capacity (ISO 14946:2021) 기사 내용: 이 문서는 작은 보트의 최대 하중을 정하는데 있어서 다른 ISO 표준에서 안전성, 띄워뜨림 높이 및 부력에 대한 제한을 초과하지 않는 항목을 명시한다. 또한 선원의 좌석 및 점유 구역에 대한 요구 사항을 설정한다. 개인용 수상기는이 문서의 적용 범위에서 제외된다.
기사 제목: EN ISO 14946:2021 - 소형 선박 - 최대 하중 수용량 (ISO 14946:2021) 기사 내용: 이 문서는 소형 선박의 최대 하중에 포함되는 항목들을 다루며, 안정성, 선박 상부 높이 및 부유력과 관련된 다른 ISO 표준의 제한을 초과하지 않는다. 또한 선원의 좌석 및 점유 영역에 대한 요구 사항을 제시한다. 개인용 수상스키는 이 문서의 범위에서 제외된다.
記事のタイトル：EN ISO 14946：2021 -船舶 - 最大荷重能力（ISO 14946：2021） 記事の内容：この文書は、他のISO基準による安定性、フリーボード、浮力の制限を超えることなく、小型船舶の最大荷重に含まれる項目を指定します。さらに、乗組員の座席と占有エリアの要件も設定されます。 ただし、パーソナルウォータークラフトはこの文書の対象から除外されています。
記事のタイトル：EN ISO 14946:2021 - 小型船舶 - 最大積載量（ISO 14946:2021） 記事内容：この文書では、安定性、フリーボード、浮力に関する他のISO規格で設定された制限を超えずに、小型船舶の最大積載量に含まれる項目を明示しています。また、乗員の座席と利用可能エリアに関する要件も定めています。 個人用のウォータークラフトは、この文書の対象外です。
The article discusses a standard, EN ISO 14946:2021, which outlines the maximum load capacity for small watercraft. This standard ensures that the maximum load of these boats is within the limits specified in other ISO standards related to stability, freeboard, and flotation. Additionally, the document also includes requirements for seating arrangements and occupancy areas for crew members. However, it is important to note that personal watercraft are not covered under this standard.
The article discusses EN ISO 14946:2021, which is a standard for small craft regarding their maximum load capacity. It outlines what is considered part of the maximum load without surpassing the limits established by other ISO standards related to stability, freeboard, and flotation. The document also includes requirements for seating and crew occupancy areas. However, it excludes personal watercraft from its scope.
