EN 14154-1:2005+A2:2011
(Main)Water meters - Part 1: General requirements
Water meters - Part 1: General requirements
This document applies to water meters intended for residential, commercial, light industrial and industrial use, and specifies the requirements and certification procedures for water meters, irrespective of the design technologies used to meter the actual volume of clean cold potable water or heated water, flowing through a fully charged, closed conduit. These water meters shall incorporate devices, which indicate the integrated volume.
This document also applies to water meters based on electrical or electronic principles, and to water meters based on mechanical principles incorporating electronic devices, used to meter the actual volume flow of cold potable water or heated water. It provides metrological requirements for electronic ancillary devices when they are subject to metrological control. As a rule the ancillary devices are optional. However national or international regulations make some ancillary devices mandatory in relation to the utilisation of the water meter.
Wasserzähler - Teil 1: Allgemeine Anforderungen
Dieses Dokument gilt für Wasserzähler, die für den Einsatz in privaten und gewerblichen Bereichen sowie im Bereich der Leichtindustrie und Industrie bestimmt sind. Es legt, ungeachtet der Technologie, die Anforderungen und Zertifizierungsverfahren für Wasserzähler fest, die zur Messung des tatsächlichen Volumens von sauberem, kaltem Trinkwasser oder erwärmtem Wasser, das durch eine voll gefüllte, geschlossene Leitung fließt, eingesetzt werden. Diese Zähler müssen mit Einrichtungen versehen sein, die das summierte Volumen anzeigen.
Dieses Dokument gilt ebenso für Wasserzähler nach elektrischem oder elektronischem Funktionsprinzip und für Wasserzähler nach mechanischem Funktionsprinzip mit elektronischen Einrichtungen, die zur Messung des tatsächlichen Durchflussvolumens von kaltem Trinkwasser oder erwärmtem Wasser dienen. Es legt messtechnische Anforderungen an elektronische Zusatzeinrichtungen fest, soweit diese messtechnisch zu überwachen sind. In der Regel sind Zusatzeinrichtungen nicht zwingend erforderlich. Jedoch werden in nationalen oder internationalen Regelungen einige Zusatzeinrichtungen für die Verwendung von Wasserzählern verbindlich vorgeschrieben.
Compteurs d'eau - Partie 1: Exigences générales
Le présent document s’applique aux compteurs d’eau destinés à une utilisation résidentielle, commerciale, industrielle légère et industrielle, et spécifie les exigences et les procédures de certification pour les compteurs d’eau, indépendamment des technologies de conception, utilisés pour mesurer le volume réel d’eau potable froide ou d’eau chaude s’écoulant dans une conduite fermée et à pleine charge. Ces compteurs d’eau doivent incorporer des dispositifs indiquant le volume intégré.
Le présent document s’applique aussi aux compteurs d’eau conçus à partir de principes électriques ou électroniques ainsi qu’aux compteurs d’eau conçus à partir de principes mécaniques incorporant des dispositifs électroniques, utilisés pour mesurer le volume débité réel d’eau potable froide ou d’eau chaude. Il fournit des exigences métrologiques pour les dispositifs électroniques auxiliaires lorsqu’ils sont soumis à un contrôle métrologique. Généralement, les dispositifs auxiliaires sont facultatifs. Cependant, des réglementations nationales ou internationales peuvent rendre certains dispositifs auxiliaires obligatoires selon l’utilisation du compteur d’eau.
Vodomeri - 1. del: Splošne zahteve
Ta dokument velja za vodomere, namenjene stanovanjski, gospodarski, lahki industrijski in industrijski uporabi ter določa zahteve in postopke certificiranja za vodomere, ne glede na tehnologije načrtovanja, uporabljene za merjenje dejanskega volumna čiste hladne pitne vode ali segrete vode, ki teče skozi popolnoma poln, zaprt vod. Ti vodomeri vsebujejo naprave, ki navajajo celoten volumen.
Ta dokument prav tako velja za vodomere, zasnovane na električnih ali elektronskih principih, in za vodomere, zasnovane na mehanskih principih, ki vsebujejo elektronske naprave, uporabljene za merjenje dejanskega volumna pretoka hladne pitne vode ali segrete vode. Zagotavlja metrološke zahteve za elektronske pomožne naprave, kadar so predmet metrološkega nadzora. Praviloma so pomožne naprave izbirne. Vendar državni ali mednarodni predpisi navajajo nekatere pomožne naprave kot obvezne v povezavi z uporabo vodomerov.
General Information
- Status
- Withdrawn
- Publication Date
- 05-Apr-2011
- Withdrawal Date
- 03-Jun-2014
- Technical Committee
- CEN/TC 92 - Test methods and equipment for cold water meters
- Drafting Committee
- CEN/TC 92/WG 2 - General requirements
- Current Stage
- 9960 - Withdrawal effective - Withdrawal
- Start Date
- 04-Jun-2014
- Completion Date
- 04-Jun-2014
Relations
- Effective Date
- 19-Jan-2023
- Effective Date
- 08-Jun-2022
- Effective Date
- 08-Jun-2022
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
Get Certified
Connect with accredited certification bodies for this standard
ICC Evaluation Service
Nonprofit organization that performs technical evaluations of building products.
Aboma Certification B.V.
Specialized in construction, metal, and transport sectors.
BBA (British Board of Agrément)
UK construction product certification.
Sponsored listings
Frequently Asked Questions
EN 14154-1:2005+A2:2011 is a standard published by the European Committee for Standardization (CEN). Its full title is "Water meters - Part 1: General requirements". This standard covers: This document applies to water meters intended for residential, commercial, light industrial and industrial use, and specifies the requirements and certification procedures for water meters, irrespective of the design technologies used to meter the actual volume of clean cold potable water or heated water, flowing through a fully charged, closed conduit. These water meters shall incorporate devices, which indicate the integrated volume. This document also applies to water meters based on electrical or electronic principles, and to water meters based on mechanical principles incorporating electronic devices, used to meter the actual volume flow of cold potable water or heated water. It provides metrological requirements for electronic ancillary devices when they are subject to metrological control. As a rule the ancillary devices are optional. However national or international regulations make some ancillary devices mandatory in relation to the utilisation of the water meter.
This document applies to water meters intended for residential, commercial, light industrial and industrial use, and specifies the requirements and certification procedures for water meters, irrespective of the design technologies used to meter the actual volume of clean cold potable water or heated water, flowing through a fully charged, closed conduit. These water meters shall incorporate devices, which indicate the integrated volume. This document also applies to water meters based on electrical or electronic principles, and to water meters based on mechanical principles incorporating electronic devices, used to meter the actual volume flow of cold potable water or heated water. It provides metrological requirements for electronic ancillary devices when they are subject to metrological control. As a rule the ancillary devices are optional. However national or international regulations make some ancillary devices mandatory in relation to the utilisation of the water meter.
EN 14154-1:2005+A2:2011 is classified under the following ICS (International Classification for Standards) categories: 91.140.60 - Water supply systems. The ICS classification helps identify the subject area and facilitates finding related standards.
EN 14154-1:2005+A2:2011 has the following relationships with other standards: It is inter standard links to EN 14154-1:2005+A1:2007, EN ISO 4064-1:2014, EN ISO 4064-4:2014, EN ISO 11064-3:1999, EN 1333:1996, EN 14015:2004, EN ISO 228-1:2003, EN 14154-2:2005+A2:2011, EN ISO 6708:1995, EN 14154-3:2005+A2:2011. Understanding these relationships helps ensure you are using the most current and applicable version of the standard.
EN 14154-1:2005+A2:2011 is associated with the following European legislation: EU Directives/Regulations: 2004/22/EC; Standardization Mandates: M/347, M/374. When a standard is cited in the Official Journal of the European Union, products manufactured in conformity with it benefit from a presumption of conformity with the essential requirements of the corresponding EU directive or regulation.
EN 14154-1:2005+A2:2011 is available in PDF format for immediate download after purchase. The document can be added to your cart and obtained through the secure checkout process. Digital delivery ensures instant access to the complete standard document.
Standards Content (Sample)
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Vodomeri - 1. del: Splošne zahteveWasserzähler - Teil 1: Allgemeine AnforderungenCompteurs d'eau - Partie 1: Exigences généralesWater meters - Part 1: General requirements91.140.60Sistemi za oskrbo z vodoWater supply systemsICS:Ta slovenski standard je istoveten z:EN 14154-1:2005+A2:2011SIST EN 14154-1:2005+A2:2011en,de01-junij-2011SIST EN 14154-1:2005+A2:2011SLOVENSKI
STANDARD
EUROPEAN STANDARD NORME EUROPÉENNE EUROPÄISCHE NORM
EN 14154-1:2005+A2
April 2011 ICS 91.140.60 Supersedes EN 14154-1:2005+A1:2007English Version
Water meters - Part 1: General requirements
Compteurs d'eau - Partie 1: Exigences générales
Wasserzähler - Teil 1: Allgemeine Anforderungen This European Standard was approved by CEN on 26 August 2004 and includes Amendment 1 approved by CEN on 6 March 2007 and Amendment 2 approved by CEN on 3 January 2011.
CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN-CENELEC Management Centre or to any CEN member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management Centre has the same status as the official versions.
CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland and United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION EUROPÄISCHES KOMITEE FÜR NORMUNG
Management Centre:
Avenue Marnix 17,
B-1000 Brussels © 2011 CEN All rights of exploitation in any form and by any means reserved worldwide for CEN national Members. Ref. No. EN 14154-1:2005+A2:2011: ESIST EN 14154-1:2005+A2:2011

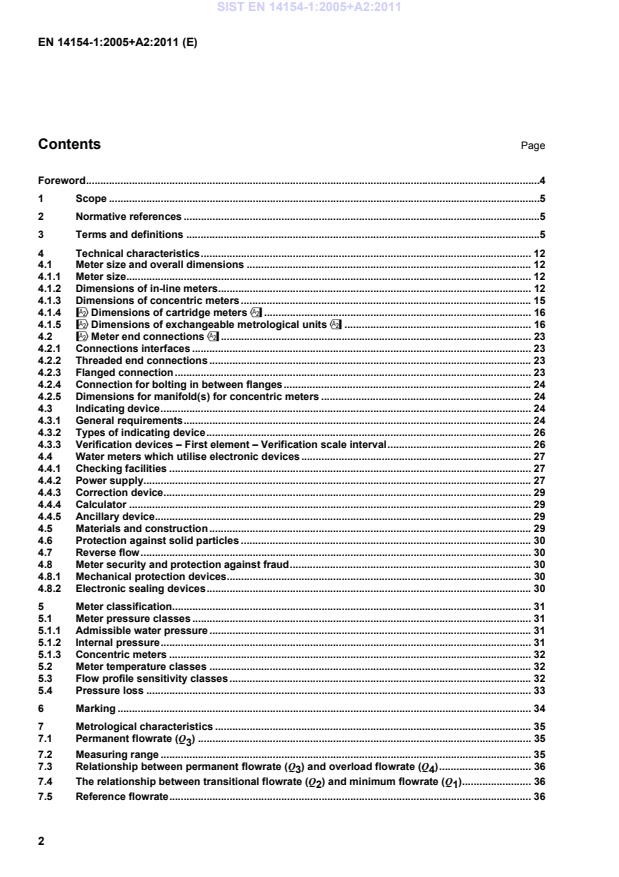

Checking facilities . 43A.1Action of checking facilities . 43A.2Checking facilities for the measurement transducer . 43A.2.1Pulse input solutions . 43A.2.2Other technologies . 44A.3Checking facilities for the calculator . 44A.3.1Checking of correct functioning . 44A.3.2Checking of the validity of calculations . 45A.4Checking facility for the indicating device . 45A.4.1First possibility . 45A.4.2Second possibility . 46A.5Checking facilities for ancillary devices . 46A.6Checking facilities for the associated measuring instruments . 46Annex B (normative)
In-line meter dimensions (including alternative lengths) . 47Annex C (informative)
Table of rated operating, limiting and references conditions . 50Annex D (informative)
Test program . 52Annex ZA (informative)
!Relationship between this European Standard and the Essential Requirements of EU Directive 22/2004/EC on Measuring Instruments" . 53Bibliography . 63 SIST EN 14154-1:2005+A2:2011
and # $. This European Standard has been prepared under a mandate given to CEN by the European Commission and the European Free Trade Association, and supports essential requirements of EU Directive(s). For relationship with EU Directive(s), see informative Annex ZA, which is an integral part of this document. The standard consists of 3 parts. The other parts are: Part 2: Installation and conditions of use Part 3: Test methods and equipment In developing a new Standard, CEN/TC 92 aimed to harmonise it with existing standards and recommendations for water meters, to accommodate new technologies and anticipating the requirements of the Directive 22/2004/EC on Measuring Instruments. In respect of potential adverse affects on the quality of water intended for human consumption, caused by the product covered in this standard: 1. This standard provides no information as to whether the product may be used without restriction in any of the Member States of the EU of EFTA; 2. It should be noted that, while awaiting the adoption of verifiable European criteria, existing national regulations concerning the use and/or the characteristics of this product remain in force. According to the CEN/CENELEC Internal Regulations, the national standards organizations of the following countries are bound to implement this European Standard: Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland and United Kingdom.
H1, H2, L, W1 and W2 define the height, length and width respectively of a cuboid within which the water meter can be contained (the cover being at right angles to its closed position). H1, H2, W1 and W2 are maximum dimensions. L is a fixed value with specified tolerances. NOTE 1 Where there is a separate indicating device or calculator, the overall size specified in Figure 1 applies only to the housing of the measurement transducer (flow sensor). NOTE 2 Flange diameter sizes of in-line meters with flanges may lay outside the W and/or H sizes of the cuboid. Key 1 Pipe axis Figure 1 — In-line meter dimensions SIST EN 14154-1:2005+A2:2011
Dimensions in mm DN L (preferred) W1, W2 H1 H2 15 165 65 60 220 20 190 65 60 240 25 260 85 65 260 32 260 85 70 280 40 300 105 75 300 50 200 65 200 80 200 100 250 125 250 150 300 200 350 250 450 300 500 400 600 500 600 600 800 ≥ 800 1,25 × DN Table 2 — Combination meter dimensions
Dimensions in mm DN L (preferred) W1, W2 50 300 220 65 300 240 80 350 260 100 350 350 125 350 350 150 500 400 200 500 400 SIST EN 14154-1:2005+A2:2011
NOTE Where there is a separate indicating device or calculator, the overall size specified in Figure 2 applies only to the housing of the measurement transducer. Figure 2 — Concentric meter dimensions SIST EN 14154-1:2005+A2:2011
L J φφφφ K Type 1 (G 1½ B) a 220 110 Type 2 (G 2 B) a 220 135 #deleted text$ a Metric or Whitworth threading at the choice of the manufacturer. The relative annex in #EN 14154-2:2005+A2$ gives a set of figures, which is one of many solutions at the choice of the manufacturer. J and K define respectively the height and diameter of a cylinder enclosing the meter. 4.1.4 #Dimensions of cartridge meters Meter dimensions for cartridge meters are defined by a cylinder into which the water meter fits (see Figure 2 and Table 4). Table 4 — Cartridge meter dimensions
Maximum dimensions in millimetres Dimension L J ØK
90 200 150 J and K define respectively the height and diameter of a cylinder enclosing the meter. $ 4.1.5 #Dimensions of exchangeable metrological units Figure 5 to Figure 9 show examples of meters with exchangeable metrological units: SIST EN 14154-1:2005+A2:2011
Figure 3 — Dimensions of exchangeable metrological units – meters with horizontal or vertical flow pattern (WP or WS)
Maximum dimensions in millimetres DN A B C D E 40 210 125 125 190 147 50 210 125 125 190 147 65 210 125 125 190 147 80 235 147 145 190 180 100 235 147 145 190 180 125 235 147 145 190 180 150 370 252 210 290 245 200 370 258 220 290 276 250 370 258 220 290 276 300 370 258 220 290 276
Table 6 — Exchangeable metrological units dimensions - meters with vertical flow pattern (WS)
Maximum dimensions in millimetres DN A B C D E 50 232 150 130 160 170 65 250 168 130 202 170 80 270 177 166 250 218 100 310 204 168 252 218 150 425 290 255 345 292 200 440 340 280 400 360
Figure 4 — Dimensions of exchangeable metrological units - Combination meters
Table 7 — Exchangeable metrological units dimensions - Combination meters
Maximum dimensions in millimetres DN A B C D E F 50 310 195 260 300 266 150 65 345 215 260 330 280 150 80 365 235 260 320 290 150 100 385 255 260 335 300 150
Figure 5 — Meter with exchangeable metrological unit - Axial flow pattern Figure 6 — Meter with exchangeable metrological unit – Vertical flow pattern
Figure 7 — Meter with exchangeable metrological unit - Axial flow pattern, combination meter SIST EN 14154-1:2005+A2:2011
Figure 8 — Meter with exchangeable metrological unit - Concentric flow pattern, inferential
Figure 9 — Meter with exchangeable metrological unit - Concentric flow pattern, volumetric$ SIST EN 14154-1:2005+A2:2011
4.2 #Meter end connections$ 4.2.1 Connections interfaces #Five meter to conduit connection interfaces are standardised: a) connection of meters to conduit with male threads; b) connection of meters to conduit with flanges; c) connection of meters to a concentric manifold; d) connection of meters to a concentric, axial or vertical connection interface; e) connection of meters by means of bolting between two (conduit) flanges.$ 4.2.2 #Threaded end connections$ The thread shall comply with EN ISO 228-1:2000, Class B. Acceptable minimum thread dimensions are indicated in #Table 8$. #Figure 10$ defines dimensions a and b. #Table 8 — Threaded and connections dimensions for inline-meters$ Minimum dimensions in mm Thread a b G 3/4 B 10 12 G 1 B 12 14 G 1 1/4 B 12 16 G 1 1/2 B 13 18 G 2 B 13 20 G 21/2 B 14 22
#Figure 10 — Threaded end connections for inline-meters$ 4.2.3 Flanged connection Flanged end connections shall comply with ISO 7005-2 and ISO 7005-3 for a nominal pressure corresponding to that of the water meter. SIST EN 14154-1:2005+A2:2011
Annexes A, B and C.$ 4.3 Indicating device 4.3.1 General requirements 4.3.1.1 Function The indicating device of the water meter shall provide an easily read, reliable and unambiguous visual indication of the indicated volume. The indicating device may include elements for testing and calibration by other methods, e.g. for automatic testing and calibration. 4.3.1.2 Unit of measurement, symbol and its placement The volume of water shall be indicated in cubic metres. The symbol m3 shall appear on the dial or immediately adjacent to the numbered display. 4.3.1.3 Indicating range The indicating range shall fulfil provisions formulated in #Table 9$: SIST EN 14154-1:2005+A2:2011
6,3 < Q3 ≤ 63 99 999 63 < Q3 ≤ 630 999 999 630 < Q3 ≤ 6 300 9 999 999 4.3.1.4 Colour coding for indicating devices The colour black should be used to indicate the cubic metre and its multiples. The colour red should be used to indicate sub-multiples of a cubic
...
