EN 1014-4:2010
(Main)Wood preservatives - Creosote and creosoted timber - Methods of sampling and analysis - Part 4: Determination of the water-extractable phenols content of creosote
Wood preservatives - Creosote and creosoted timber - Methods of sampling and analysis - Part 4: Determination of the water-extractable phenols content of creosote
This European Standard specifies a high performance liquid chromatographic (HPLC) method for the determination of the water-extractable phenols content of creosote.
For reasons of precision, this standard is applicable to the determination of the water-extractable phenols content of creosotes containing more than 10 g of water-extractable phenols per kilogram of creosote.
Holzschutzmittel - Kreosot (Teerimprägnieröl) und damit imprägniertes Holz - Probenahme und Analyse - Teil 4: Bestimmung des Gehaltes an wasserextrahierbaren Phenolen im Kreosot
Diese Europäische Norm legt ein Hochdruckflüssigchromatographie-Verfahren (HPLC) für die Bestimmung des Gehaltes an wasserextrahierbaren Phenolen im Kreosot (Teerimprägnieröl) fest.
Aus Gründen der Präzision ist diese Norm anwendbar zur Bestimmung des Gehaltes an wasserextrahier-baren Phenolen in Kreosoten mit einem Gehalt von mehr als 10 g wasserextrahierbarer Phenole je Kilogramm Kreosot.
Produits de préservation du bois - Créosote et bois créosoté - Méthodes d'échantillonnage et d'analyse - Partie 4 : Détermination de la teneur en phénols extractibles à l'eau de la créosote
La présente norme européenne spécifie une méthode de chromatographie en phase liquide à haute performance (HPLC) pour la détermination de la teneur en phénols extractibles à l’eau de créosote.
Pour des raisons de fidélité, la présente norme est applicable à la détermination de la teneur en phénols extractibles à l’eau des créosotes contenant plus de 10g de phénols extractibles à l’eau par kilogramme de créosote.
Zaščitna sredstva za les - Kreozotno olje in s kreozotnim oljem zaščiten les - Metode vzorčenja in analize - 4. del: Ugotavljanje deleža vodotopnih fenolov v kreozotnem olju
Ta evropski standard določa metodo tekočinske kromatografije visoke ločljivosti (HPLC) za ugotavljanje deleža vodotopnih fenolov v kreozotnem olju. Zaradi natančnosti ta standard velja za ugotavljanje deleža vodotopnih fenolov v kreozotnem olju, ki presega 10 g vodotopnih fenolov na kilogram kreozotnega olja.
General Information
- Status
- Published
- Publication Date
- 08-Jun-2010
- Withdrawal Date
- 30-Dec-2010
- Technical Committee
- CEN/TC 38 - Durability of wood and derived materials
- Drafting Committee
- CEN/TC 38/WG 26 - Physical/chemical factors (analytical methods)
- Current Stage
- 9093 - Decision to confirm - Review Enquiry
- Start Date
- 19-Nov-2020
- Completion Date
- 23-Sep-2025
- Directive
- 89/106/EEC - Construction products
Relations
- Effective Date
- 12-Jun-2010
Overview
EN 1014-4:2010 (CEN) specifies a high performance liquid chromatography (HPLC) method for the determination of the water-extractable phenols content of creosote. The standard is intended for creosotes containing more than 10 g of water-extractable phenols per kilogram. The method is widely used for phenolic analysis in creosote quality control, regulatory compliance and environmental monitoring of creosoted timber.
Key Topics
- Analytical principle: Water extraction of creosote followed by reversed-phase HPLC with isocratic elution. Detection is by ultraviolet absorbance at 276 nm.
- Scope & applicability: Applicable for creosotes with >10 g/kg water-extractable phenols for reasons of precision.
- Sample preparation: Procedures are provided for both "large" (e.g. 100 g creosote mixed with equal water in a separating funnel) and "small" samples (e.g. 1 g creosote with twice the water in a screw-capped vial). Duplicate test samples are required.
- Calibration & standards: A combined standard phenols solution is prepared and calibration solutions are made daily. The method uses a multi-phenol reference to quantify individual phenols and their sum.
- HPLC configuration: Typical column is C18, 250 mm × 4 mm (5 µm). Flow is commonly set at 1.0 ml/min; detection at 276 nm. Mobile phase composition and mixing options are defined in the standard.
- Precision: Repeatability: duplicate results from the same operator suspect if differing by more than 5% of the smaller. Reproducibility between labs suspect if differing by more than 15% of the smaller.
Practical notes:
- Ensure the creosote sample is a single phase; heat gently if crystals are present.
- Prepare calibration solutions each day and store standards in brown glass below 10 °C when not in use.
- Report results as grams of water-extractable phenols per kilogram of creosote, rounded to the nearest 1 g/kg.
Applications
- Regulatory compliance: Demonstrates compliance with limits or specifications for creosote formulations and treated timber.
- Quality control: Routine laboratory testing during production or acceptance testing to monitor phenolic content and batch consistency.
- Environmental monitoring: Assessment of creosote-derived phenols in creosoted timber or leachates to inform environmental risk and service-life assessments.
- Forensic & product investigation: Useful when evaluating changes in creosote composition in service, noting that measured water-extractable phenols in timber extracts may be lower than in the original creosote due to evaporation or leaching.
Related Standards
- EN 1014-1: Procedure for sampling creosote.
- EN 1014-2: Procedure for obtaining creosote samples from creosoted timber.
- EN 1014-3: Determination of benzo(a)pyrene content of creosote.
These related parts form a complete series covering sampling and key analytical methods for creosote and creosoted timber. Follow EN 1014-4:2010 alongside the other parts for full compliance and robust phenolic analysis.
Frequently Asked Questions
EN 1014-4:2010 is a standard published by the European Committee for Standardization (CEN). Its full title is "Wood preservatives - Creosote and creosoted timber - Methods of sampling and analysis - Part 4: Determination of the water-extractable phenols content of creosote". This standard covers: This European Standard specifies a high performance liquid chromatographic (HPLC) method for the determination of the water-extractable phenols content of creosote. For reasons of precision, this standard is applicable to the determination of the water-extractable phenols content of creosotes containing more than 10 g of water-extractable phenols per kilogram of creosote.
This European Standard specifies a high performance liquid chromatographic (HPLC) method for the determination of the water-extractable phenols content of creosote. For reasons of precision, this standard is applicable to the determination of the water-extractable phenols content of creosotes containing more than 10 g of water-extractable phenols per kilogram of creosote.
EN 1014-4:2010 is classified under the following ICS (International Classification for Standards) categories: 71.100.50 - Wood-protecting chemicals. The ICS classification helps identify the subject area and facilitates finding related standards.
EN 1014-4:2010 has the following relationships with other standards: It is inter standard links to EN 1014-4:1995. Understanding these relationships helps ensure you are using the most current and applicable version of the standard.
EN 1014-4:2010 is associated with the following European legislation: EU Directives/Regulations: 305/2011, 89/106/EEC. When a standard is cited in the Official Journal of the European Union, products manufactured in conformity with it benefit from a presumption of conformity with the essential requirements of the corresponding EU directive or regulation.
You can purchase EN 1014-4:2010 directly from iTeh Standards. The document is available in PDF format and is delivered instantly after payment. Add the standard to your cart and complete the secure checkout process. iTeh Standards is an authorized distributor of CEN standards.
Standards Content (Sample)
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Holzschutzmittel - Kreosot (Teerimprägnieröl) und damit imprägniertes Holz - Probenahme und Analyse - Teil 4: Bestimmung des Gehaltes an wasserextrahierbaren Phenolen im KreosotProduits de préservation du bois - Créosote et bois créosoté - Méthodes d'échantillonnage et d'analyse - Partie 4 : Détermination de la teneur en phénols extractibles à l'eau de la créosoteWood preservatives - Creosote and creosoted timber - Methods of sampling and analysis - Part 4: Determination of the water-extractable phenols content of creosote71.100.50Wood-protecting chemicalsICS:Ta slovenski standard je istoveten z:EN 1014-4:2010SIST EN 1014-4:2011en,fr,de01-marec-2011SIST EN 1014-4:2011SLOVENSKI
STANDARD
EUROPEAN STANDARD NORME EUROPÉENNE EUROPÄISCHE NORM
EN 1014-4
June 2010 ICS 71.100.50 Supersedes EN 1014-4:1995English Version
Wood preservatives - Creosote and creosoted timber - Methods of sampling and analysis - Part 4: Determination of the water-extractable phenols content of creosote
Produits de préservation du bois - Créosote et bois créosoté - Méthodes d'échantillonnage et d'analyse -Partie 4 : Détermination de la teneur en phénols extractibles à l'eau de la créosote
Holzschutzmittel - Kreosot (Teerimprägnieröl) und damit imprägniertes Holz - Probenahme und Analyse - Teil 4: Bestimmung des Gehaltes an wasserextrahierbaren Phenolen im Kreosot This European Standard was approved by CEN on 12 May 2010.
CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN Management Centre or to any CEN member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation under the responsibility of a CEN member into its own language and notified to the CEN Management Centre has the same status as the official versions.
CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland and United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION EUROPÄISCHES KOMITEE FÜR NORMUNG
Management Centre:
Avenue Marnix 17,
B-1000 Brussels © 2010 CEN All rights of exploitation in any form and by any means reserved worldwide for CEN national Members. Ref. No. EN 1014-4:2010: ESIST EN 1014-4:2011

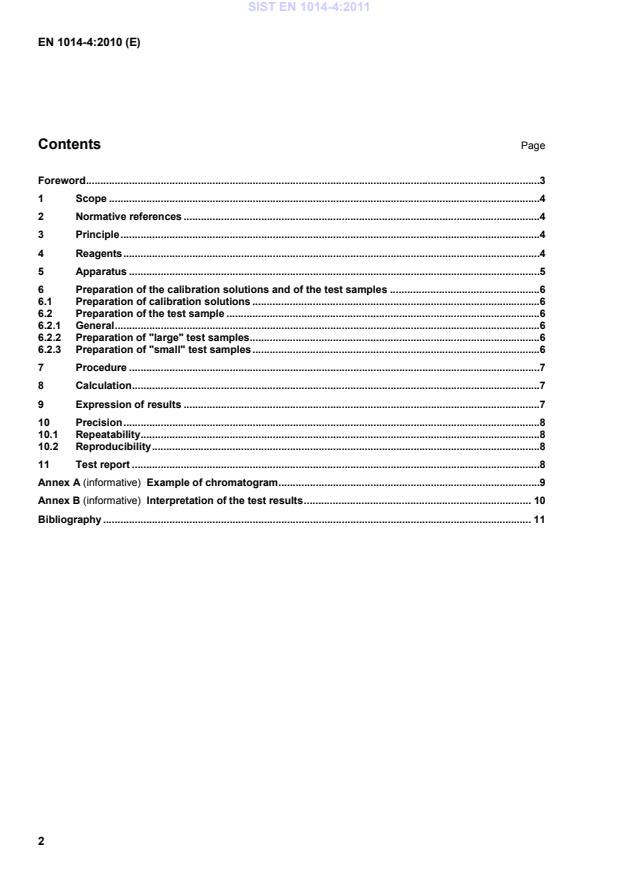

2 Contents Page Foreword .31Scope .42Normative references .43Principle .44Reagents .45Apparatus .56Preparation of the calibration solutions and of the test samples .66.1Preparation of calibration solutions .66.2Preparation of the test sample .66.2.1General .66.2.2Preparation of "large" test samples.66.2.3Preparation of "small" test samples .67Procedure .78Calculation .79Expression of results .710Precision .810.1Repeatability .810.2Reproducibility .811Test report .8Annex A (informative)
Example of chromatogram .9Annex B (informative)
Interpretation of the test results . 10Bibliography . 11 SIST EN 1014-4:2011
This European Standard shall be given the status of a national standard, either by publication of an identical text or by endorsement, at the latest by December 2010, and conflicting national standards shall be withdrawn at the latest by December 2010. Attention is drawn to the possibility that some of the elements of this document may be the subject of patent rights. CEN [and/or CENELEC] shall not be held responsible for identifying any or all such patent rights.
This document supersedes EN 1014-4:1995. This standard forms part of a series of standards relating to the sampling and analysis of creosote and creosoted timber. The other standards of the series are: EN 1014-1, Wood preservatives
Creosote and creosoted timber
Methods of sampling and analysis
Part 1: Procedure for sampling creosote EN 1014-2, Wood preservatives
Creosote and creosoted timber
Methods of sampling and analysis
Part 2: Procedure for obtaining a sample of creosote from creosoted timber for subsequent analysis EN 1014-3, Wood preservatives
Creosote and creosoted timber
Methods of sampling and analysis
Part 3: Determination of the benzo(a)pyrene content of creosote According to the CEN/CENELEC Internal Regulations, the national standards organizations of the following countries are bound to implement this European Standard: Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland and the United Kingdom.
4 1 Scope This European Standard specifies a high performance liquid chromatographic (HPLC) method for the determination of the water-extractable phenols content of creosote. For reasons of precision, this standard is applicable to the determination of the water-extractable phenols content of creosotes containing more than 10 g of water-extractable phenols per kilogram of creosote. 2 Normative references The following referenced documents are indispensable for the application of this document. For dated references, only the edition cited applies. For undated references, the latest edition of the referenced document (including any amendments) applies. EN ISO 3696:1995, Water for analytical laboratory use – Specification and test methods (ISO 3696:1987) 3 Principle The creosote sample is extracted with water. The aqueous extract is analyzed using high performance chromatography (HPLC) at constant temperature with a reversed phase packed column and isocratic elution. The result is compared with that from a known reference standard containing various phenols known to be extracted by water from creosote. 4 Reagents 4.1 Acetonitrile HPLC grade. 4.2 Water according to grade 1 of EN ISO 3696:1995. 4.3 Methanol HPLC grade. 4.4 Acetic acid, HPLC grade. 4.5 Phenol purity 98 % (m/m) minimum. 4.6 2-methylphenol (o-cresol) purity 98 % (m/m) minimum. 4.7 3-methylphenol (m-cresol) purity 98 % (m/m) minimum. 4.8 4-methylphenol (p-cresol) purity 98 % (m/m) minimum. 4.9 1,2-dihydroxybenzene (catechol) purity 98 % (m/m) minimum. 4.10 1,3-dihydroxybenzene (resorcinol) purity 98 % (m/m) minimum. 4.11 1,4-dihydroxy
...
