EN 840-3:2012

2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Fahrbare Abfall- und Wertstoffbehälter - Teil 3: Behälter mit 4 Rädern und einem Nennvolumen bis 1 300 l mit Schiebedeckel(n), für Schüttungen mit Zapfenaufnahme und/oder für Kammschüttungen - Maße und FormgebungConteneurs roulants à ordures ménagères et recyclables - Partie 3: Conteneurs à 4 roues de capacité inférieure ou égale à 1300 l à couvercle(s) bombé(s), pour lève-conteneurs par tourillon et/ou à peigne - Dimensions et conceptionMobile waste and recycling containers - Part 3: Containers with 4 wheels with a capacity up to 1 300 l with dome lid(s), for trunnion and/or comb lifting devices - Dimensions and design13.030.40Naprave in oprema za odstranjevanje in obdelavo odpadkovInstallations and equipment for waste disposal and treatmentICS:Ta slovenski standard je istoveten z:EN 840-3:2012SIST EN 840-3:2014en,fr,de01-marec-2014SIST EN 840-3:2014SLOVENSKI
STANDARDSIST EN 840-3:20041DGRPHãþD

EUROPEAN STANDARD NORME EUROPÉENNE EUROPÄISCHE NORM
EN 840-3
December 2012 ICS 13.030.40 Supersedes EN 840-3:2004English Version
Mobile waste and recycling containers - Part 3: Containers with 4 wheels with a capacity up to 1 300 l with dome lid(s), for trunnion and/or comb lifting devices - Dimensions and design
Conteneurs roulants à ordures ménagères et recyclables - Partie 3 : Conteneurs à 4 roues de capacité jusqu' à 1 300 l à couvercle(s) bombé(s), pour lève-conteneurs par tourillon et/ou à peigne - Dimensions et conception
Fahrbare Abfall- und Wertstoffbehälter - Teil 3: Behälter mit 4 Rädern und einem Nennvolumen bis 1 300 l mit Schiebedeckel(n), für Schüttungen mit Zapfenaufnahme und/oder für Kammschüttungen - Maße und Formgebung This European Standard was approved by CEN on 22 September 2012.
CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN-CENELEC Management Centre or to any CEN member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management Centre has the same status as the official versions.
CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, Former Yugoslav Republic of Macedonia, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION EUROPÄISCHES KOMITEE FÜR NORMUNG
Management Centre:
Avenue Marnix 17,
B-1000 Brussels © 2012 CEN All rights of exploitation in any form and by any means reserved worldwide for CEN national Members. Ref. No. EN 840-3:2012: ESIST EN 840-3:2014

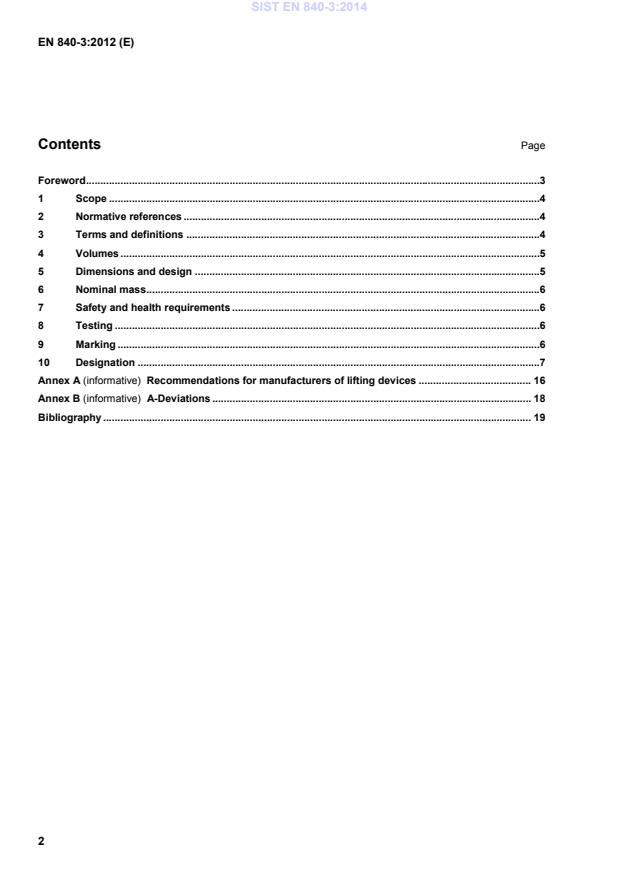

Recommendations for manufacturers of lifting devices . 16Annex B (informative)
A-Deviations . 18Bibliography . 19 SIST EN 840-3:2014

3.2 lifting device structure which picks-up, tilts and empties containers 3.3 comb lifting device lifting device in which the picking-up system consists of a row of teeth and a locking system to retain the container during emptying 3.4 trunnion lifting device lifting device in which the picking-up system consists of a pair of arms with automatic locking mechanism to fit the trunnion to retain the container during emptying 3.5 volume total space inside the container when the lid is closed
Note 1 to entry: See Table 1 without tolerances. Note 2 to entry: The English term "capacity" and the French term "capacité" are translated in the German version by the term "Nennvolumen". 3.7 nominal mass mass, which is calculated as given in Clause 6 3.8 total permissible mass mass of the container plus the nominal load 3.9 functional and safety dimensions essential dimensions which ensure the functionality and interchangeability of the container with the compatible lifting device and which are necessary for the operator's safety and health 4 Volumes This part of EN 840 identifies the two classes of containers:  Class I - small size (nominal volume up to 1 000 l);  Class II - large size (nominal volume between 1 000 l and 1 300 l). Within the two above-mentioned classes of containers the following volumes are identified: 770 l, 1 000 l, 1 100 l and 1 300 l. Nominal volumes different from those referenced can be used by agreement between user and manufacturer. The tolerance of the volumes shall be ± 5 % maximum measured according to EN 840-5. 5 Dimensions and design 5.1 The design of the containers nee
...
