EN 12365-3:2003
(Main)Building hardware - Gasket and weatherstripping for doors, windows, shutters and curtain walling - Part 3: Deflection recovery test method
Building hardware - Gasket and weatherstripping for doors, windows, shutters and curtain walling - Part 3: Deflection recovery test method
This part 3 of prEN 33/WI 131/246 specifies the method to be used to select, percentage of recovery after being deflected through its working range under the conditions laid down in the test. The test has been devised to cover all likely gasket and weatherstripping shapes or materials.
Baubeschläge - Dichtungen und Dichtungenprofile für Fenster, Türen und andere Abschlüsse sowie vorgehängte Fassaden - Teil 3: Rückstellvermögen, Prüfverfahren
Dieser Teil der EN WI 33246 legt das Verfahren fest, das für die Auswahl, Konditionierung und Prüfung von Proben von Dichtungen und Dichtungsprofilen anzuwenden ist, um dann an ihnen den prozentualen Anteil des Ruckstellvermögens nach einer Durchbiegung innerhalb des Wirkungsbereichs unter den für die Prüfung vorgeschriebenen Bedingungen zu bestimmen. Die Prüfung gilt für alle möglichen Formen oder Materialien von Dichtungen und Dichtungsprofilen.
Quincaillerie pour le bâtiment - Profilés d'étanchéité de vitrage et entre ouvrant et dormant pour portes, de fenêtres, fermeture et façades rideaux - Partie 3: Méthode d'essai pour déterminer la reprise élastique
La présente partie de l'EN 12365 spécifie la méthode devant être utilisée pour sélectionner, préparer, conditionner et soumettre aux essais des échantillons de profilés d'étanchéité de vitrage et entre ouvrant et dormant, afin de déterminer le pourcentage de reprise élastique après compression ou déformation à l'épaisseur minimale, à l'intérieur de la plage de travail dans les conditions fixées pour l'essai.
Stavbno okovje – Tesnila in tesnilni trakovi za vrata, okna, polkna in obešene fasade – 3. del: Preskusna metoda za ugotavljanje povratnih deformacij
General Information
- Status
- Published
- Publication Date
- 16-Sep-2003
- Technical Committee
- CEN/TC 33 - Doors, windows, shutters and building hardware
- Drafting Committee
- CEN/TC 33/WG 4 - Building hardware
- Current Stage
- 9093 - Decision to confirm - Review Enquiry
- Start Date
- 08-Mar-2023
- Completion Date
- 28-Jan-2026
- Directive
- 89/106/EEC - Construction products
Relations
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Effective Date
- 22-Dec-2008
Overview
EN 12365-3:2003 (CEN) specifies the test method to determine the percentage of deflection recovery for gaskets and weatherstripping used in doors, windows, shutters and curtain walling. The standard covers sample selection, conditioning, test apparatus and measurement procedures. Its purpose is to provide repeatable, comparable results to support performance classification and informed product selection.
Why it matters: consistent deflection recovery measurement helps manufacturers, test houses and specifiers assess durability, fit and sealing performance under realistic working ranges.
Key Topics
- Scope: selection, preparation, conditioning and testing of gasket/weatherstripping samples to determine percentage recovery after compression/deflection to minimum working width.
- Working temperature ranges: six grades are identified (examples from the standard):
- Grade 1: 0 °C to +45 °C
- Grade 2: -10 °C to +55 °C
- Grade 3: -20 °C to +85 °C
- Grade 4: -25 °C to +100 °C
- Grade 5: -40 °C to +70 °C
- Grade 6: 0 °C to +200 °C
- Deflection recovery performance grades: eight grades from 0 (no requirement) to 7 (> 90 %), with intermediate bands (>30–40 %, >40–50 %, etc.).
- Test apparatus: a compression block for mounting and compressing test pieces (see informative Annex A) and an electrically heated oven compliant with ISO 188 Method A.
- Test tolerances and sample preparation: laboratory temperature and humidity tolerances, deflection and measurement tolerances (e.g. temperature ±1 °C, deflection ±0.5 mm, free‑height measurement accuracy ±0.05 mm). Test pieces typically 100–500 mm long and conditioned at 23 °C ±2 °C, RH 50 % ±5 % before testing.
- Result calculation: deflection recovery Dr is expressed as a percentage using the formula Dr = (a - a1) / WR × 100, where a is free height before test, a1 is free height after test and WR is working range. Three replicate specimens are tested and the average (to one decimal) is reported.
Applications
- Selection and specification of gaskets and weatherstripping for doors, windows, shutters and curtain wall systems.
- Quality control and product development to verify recovery performance across working temperature grades.
- Supporting compliance with building hardware performance classifications and lifecycle expectations.
Related Standards
- EN 12365-1:2003 - Performance requirements and classification
- EN 12365-2 - Linear compression force test methods
- EN 12365-4 - Recovery after accelerated ageing test method
- ISO 188 - Rubber accelerated ageing and heat resistance (referenced for heating chamber)
- prEN 12519 - Windows and doors terminology
For practitioners, EN 12365-3:2003 provides a standardized, reproducible approach to measure deflection recovery and supports consistent performance grading and product selection for building hardware sealing applications.
Get Certified
Connect with accredited certification bodies for this standard
ICC Evaluation Service
Nonprofit organization that performs technical evaluations of building products.
Aboma Certification B.V.
Specialized in construction, metal, and transport sectors.
BBA (British Board of Agrément)
UK construction product certification.
Sponsored listings
Frequently Asked Questions
EN 12365-3:2003 is a standard published by the European Committee for Standardization (CEN). Its full title is "Building hardware - Gasket and weatherstripping for doors, windows, shutters and curtain walling - Part 3: Deflection recovery test method". This standard covers: This part 3 of prEN 33/WI 131/246 specifies the method to be used to select, percentage of recovery after being deflected through its working range under the conditions laid down in the test. The test has been devised to cover all likely gasket and weatherstripping shapes or materials.
This part 3 of prEN 33/WI 131/246 specifies the method to be used to select, percentage of recovery after being deflected through its working range under the conditions laid down in the test. The test has been devised to cover all likely gasket and weatherstripping shapes or materials.
EN 12365-3:2003 is classified under the following ICS (International Classification for Standards) categories: 91.060.50 - Doors and windows. The ICS classification helps identify the subject area and facilitates finding related standards.
EN 12365-3:2003 has the following relationships with other standards: It is inter standard links to EN 12519:2004, EN 12365-1:2003, EN 14351-2:2018, EN 12365-4:2003; is excused to EN 12365-1:2003. Understanding these relationships helps ensure you are using the most current and applicable version of the standard.
EN 12365-3:2003 is associated with the following European legislation: EU Directives/Regulations: 305/2011, 89/106/EEC. When a standard is cited in the Official Journal of the European Union, products manufactured in conformity with it benefit from a presumption of conformity with the essential requirements of the corresponding EU directive or regulation.
EN 12365-3:2003 is available in PDF format for immediate download after purchase. The document can be added to your cart and obtained through the secure checkout process. Digital delivery ensures instant access to the complete standard document.

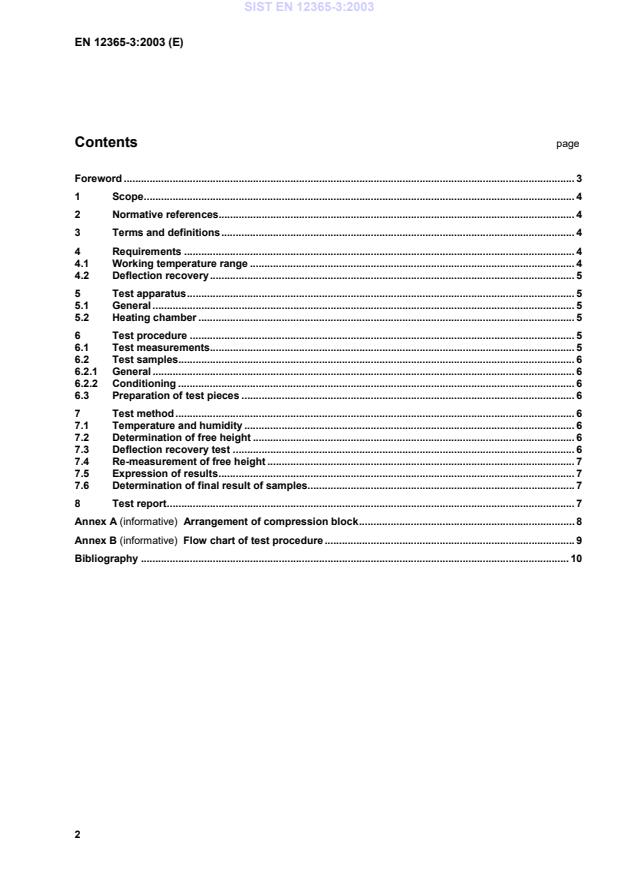

Standards Content (Sample)
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Stavbno okovje – Tesnila in tesnilni trakovi za vrata, okna, polkna in obešene fasade – 3. del: Preskusna metoda za ugotavljanje povratnih deformacijBaubeschläge - Dichtungen und Dichtungenprofile für Fenster, Türen und andere Abschlüsse sowie vorgehängte Fassaden - Teil 3: Rückstellvermögen, PrüfverfahrenQuincaillerie pour le bâtiment - Profilés d'étanchéité de vitrage et entre ouvrant et dormant pour portes, de fenetres, fermeture et façades rideaux - Partie 3: Méthode d'essai pour déterminer la reprise élastiqueBuilding hardware - Gasket and weatherstripping for doors, windows, shutters and curtain walling - Part 3: Deflection recovery test method91.060.50Vrata in oknaDoors and windowsICS:Ta slovenski standard je istoveten z:EN 12365-3:2003SIST EN 12365-3:2003en,fr,de01-november-2003SIST EN 12365-3:2003SLOVENSKI
STANDARD
EUROPEAN STANDARDNORME EUROPÉENNEEUROPÄISCHE NORMEN 12365-3September 2003ICS 91.060.50; 91.190English versionBuilding hardware - Gasket and weatherstripping for doors,windows, shutters and curtain walling - Part 3: Deflectionrecovery test methodQuincaillerie pour le bâtiment - Profilés d'étanchéité devitrage et entre ouvrant et dormant pour portes, fenêtres,fermetures et façades rideaux - Partie 3: Méthode d'essaipour déterminer la reprise élastiqueBaubeschläge - Dichtungen und Dichtungenprofile fürFenster, Türen und andere Abschlüsse sowie vorgehängteFassaden - Teil 3: Rückstellvermögen, PrüfverfahrenThis European Standard was approved by CEN on 1 August 2003.CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this EuropeanStandard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such nationalstandards may be obtained on application to the Management Centre or to any CEN member.This European Standard exists in three official versions (English, French, German). A version in any other language made by translationunder the responsibility of a CEN member into its own language and notified to the Management Centre has the same status as the officialversions.CEN members are the national standards bodies of Austria, Belgium, Czech Republic, Denmark, Finland, France, Germany, Greece,Hungary, Iceland, Ireland, Italy, Luxembourg, Malta, Netherlands, Norway, Portugal, Slovakia, Spain, Sweden, Switzerland and UnitedKingdom.EUROPEAN COMMITTEE FOR STANDARDIZATIONCOMITÉ EUROPÉEN DE NORMALISATIONEUROPÄISCHES KOMITEE FÜR NORMUNGManagement Centre: rue de Stassart, 36
B-1050 Brussels© 2003 CENAll rights of exploitation in any form and by any means reservedworldwide for CEN national Members.Ref. No. EN 12365-3:2003 ESIST EN 12365-3:2003
Arrangement of compression block.8Annex B (informative)
Flow chart of test procedure.9Bibliography.10SIST EN 12365-3:2003
...
