EN 4056-006:2014
(Main)Aerospace series - Cable ties for harnesses - Part 006: Peek cable ties - For operating temperatures -55 °C to 240 °C - Product standard
Aerospace series - Cable ties for harnesses - Part 006: Peek cable ties - For operating temperatures -55 °C to 240 °C - Product standard
This European Standard defines the characteristics of cable ties with either internal or external serrations manufactured entirely from PEEK material, for installation under controlled tension on aircraft cable harnesses. It shall be used together with EN 4056-001.
Luft- und Raumfahrt - Befestigungsbänder für Leitungsbündel - Teil 006: Kabelbinder aus Peek - Betriebstemperatur von -55 °C bis 240 °C - Produktnorm
Série aérospatiale - Frettes de câblage pour harnais - Partie 006: Frettes en peek - Températures d'utilisation -55 °C à 240 °C - Norme de produit
Aeronavtika - Kabelske spojke za vezalno pasovje - 006. del: Kabelske spojke iz PEEK-a - Obratovalne temperature med –55 °C do 240 °C - Standard za proizvod
Standard EN 4056-006 določa značilnosti kabelskih spojk z notranjo ali zunanjo nazobčanostjo, v celoti proizvedenih iz materiala PEEK, za vgradnjo med nadzorovano napetostjo v letalsko vezalno pasovje. Uporabljati ga je treba s standardom EN 4056-001.
General Information
- Status
- Published
- Publication Date
- 15-Jul-2014
- Withdrawal Date
- 30-Jan-2015
- Technical Committee
- ASD-STAN - Aerospace
- Drafting Committee
- ASD-STAN/D 2 - Electrical
- Current Stage
- 9093 - Decision to confirm - Review Enquiry
- Start Date
- 21-Jan-2025
- Completion Date
- 21-Jan-2026
Relations
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Refers
EN 4057-100:2006 - Aerospace series - Cable ties for harnesses - Test methods - Part 100: General - Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
Overview
EN 4056-006:2014 is a CEN product standard in the Aerospace series that specifies the characteristics of PEEK cable ties for aircraft cable harnesses. It covers cable ties manufactured entirely from PEEK (polyetheretherketone), with either internal or external serrations, intended for controlled-tension installation and continuous use in the operating temperature range -55 °C to 240 °C. This standard is intended to be used together with EN 4056-001 (technical specification).
Key topics and requirements
- Materials & temperature rating
- Ties made entirely from PEEK; temperature rating code H = -55 °C to 240 °C (non‑UV resistant).
- Standard colour: unpigmented light brown/beige (colour code 9); other colours per EN 4056-001.
- Dimensions and mechanical strength
- Two size codes defined with minimum loop tensile strengths: Size A = 230 N, Size B = 380 N.
- Application must use a controlled tensioning tool; maximum recommended application forces: A = 170 N, B = 280 N (verify per MS 90387 and EN 4057-407).
- Serration variants
- Variant A = external serration; Variant B = internal serration (internal serration requires continuous support at both sides of the serrations).
- Burning behaviour, smoke and toxicity
- Smoke density limits: Dm ≤ 200 (flaming) and ≤ 150 (non‑flaming) per EN 2825.
- Toxic gas concentration limits (after 4 min) include HF 100 ppm, HCl 150 ppm, HCN 150 ppm, SO2 100 ppm, H2S 100 ppm, NO/NO2 100 ppm, CO 1000 ppm as tested to EN 2826.
- Flammability classification requires flames to extinguish within 5 s (Class 1 or 2 criteria).
- Testing & conditioning
- Required tests listed (EN 4057 series): visual, dimensional, flammability, resistance to fluids, loop tensile (room and temperature/aging), life cycle (vibration), low temperature installation, application tool verification.
- Conditioning for PEEK ties: (23 ± 2) °C with uncontrolled humidity (non‑hygroscopic).
Applications and users
- Practical uses: securing and routing cable harnesses in aircraft and aerospace platforms where high temperature resistance, low smoke and controlled toxicity are required (e.g., engine bay, environmental control/avionics enclosures).
- Primary users:
- Aerospace designers and wiring harness manufacturers
- Component suppliers and cable‑tie manufacturers
- QA/qualification engineers, procurement and maintenance teams
- Certification bodies validating materials and flammability/smoke performance
Related standards
- EN 4056-001 (Technical specification)
- EN 4056-002 (Index of product standards)
- EN 4057 (Test methods series)
- EN 2825 / EN 2826 (smoke density and gas component tests)
- MS 90387 (tensioning tool reference)
Keywords: EN 4056-006:2014, PEEK cable ties, aerospace cable ties, cable harnesses, temperature -55 °C to 240 °C, cable tie product standard.
Get Certified
Connect with accredited certification bodies for this standard
National Aerospace and Defense Contractors Accreditation Program (NADCAP)
Global cooperative program for special process quality in aerospace.
NSF-ISR
NSF International Strategic Registrations.
Orion Registrar Inc.
US-based certification body for management systems.
Sponsored listings
Frequently Asked Questions
EN 4056-006:2014 is a standard published by the European Committee for Standardization (CEN). Its full title is "Aerospace series - Cable ties for harnesses - Part 006: Peek cable ties - For operating temperatures -55 °C to 240 °C - Product standard". This standard covers: This European Standard defines the characteristics of cable ties with either internal or external serrations manufactured entirely from PEEK material, for installation under controlled tension on aircraft cable harnesses. It shall be used together with EN 4056-001.
This European Standard defines the characteristics of cable ties with either internal or external serrations manufactured entirely from PEEK material, for installation under controlled tension on aircraft cable harnesses. It shall be used together with EN 4056-001.
EN 4056-006:2014 is classified under the following ICS (International Classification for Standards) categories: 49.060 - Aerospace electric equipment and systems. The ICS classification helps identify the subject area and facilitates finding related standards.
EN 4056-006:2014 has the following relationships with other standards: It is inter standard links to EN 4057-202:2005, EN 4057-405:2005, EN 4057-407:2005, EN 4057-304:2006, EN 4057-404:2006, EN 2826:2011, EN 4057-303:2005, EN 4057-201:2005, EN 4057-301:2005, EN 4057-306:2006, EN 4057-100:2006, EN 4057-406:2006, EN 2825:2011, EN 4057-401:2006, EN 4057-305:2005. Understanding these relationships helps ensure you are using the most current and applicable version of the standard.
EN 4056-006:2014 is available in PDF format for immediate download after purchase. The document can be added to your cart and obtained through the secure checkout process. Digital delivery ensures instant access to the complete standard document.
Standards Content (Sample)
SLOVENSKI STANDARD
01-oktober-2014
Aeronavtika - Kabelske spojke za vezalno pasovje - 006. del: Kabelske spojke iz
PEEK-a - Obratovalne temperature med –55 °C do 240 °C - Standard za proizvod
Aerospace series - Cable ties for harnesses - Part 006: Peek cable ties - For operating
temperatures -55 °C to 240 °C - Product standard
Luft- und Raumfahrt - Befestigungsbänder für Leitungsbündel - Teil 006: Kabelbinder aus
Peek - Betriebstemperatur von -55 °C bis 240 °C - Produktnorm
Série aérospatiale - Frettes de câblage pour harnais - Partie 006: Frettes en peek -
Températures d'utilisation -55 °C à 240 °C - Norme de produit
Ta slovenski standard je istoveten z: EN 4056-006:2014
ICS:
49.060 /HWDOVNDLQYHVROMVND Aerospace electric
HOHNWULþQDRSUHPDLQVLVWHPL equipment and systems
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.
EUROPEAN STANDARD
EN 4056-006
NORME EUROPÉENNE
EUROPÄISCHE NORM
July 2014
ICS 49.060
English Version
Aerospace series - Cable ties for harnesses - Part 006: Peek
cable ties - For operating temperatures -55 °C to 240 °C -
Product standard
Série aérospatiale - Frettes de câblage pour harnais - Partie Luft- und Raumfahrt - Befestigungsbänder für
006: Frettes en peek - Températures d'utilisation -55 °C à Leitungsbündel - Teil 006: Kabelbinder aus Peek -
240 °C - Norme de produit Betriebstemperatur von -55 °C bis 240 °C - Produktnorm
This European Standard was approved by CEN on 12 October 2013.
CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European
Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such national
standards may be obtained on application to the CEN-CENELEC Management Centre or to any CEN member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation
under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management Centre has the same
status as the official versions.
CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia,
Finland, Former Yugoslav Republic of Macedonia, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania,
Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and United
Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION
EUROPÄISCHES KOMITEE FÜR NORMUNG
CEN-CENELEC Management Centre: Avenue Marnix 17, B-1000 Brussels
© 2014 CEN All rights of exploitation in any form and by any means reserved Ref. No. EN 4056-006:2014 E
worldwide for CEN national Members.

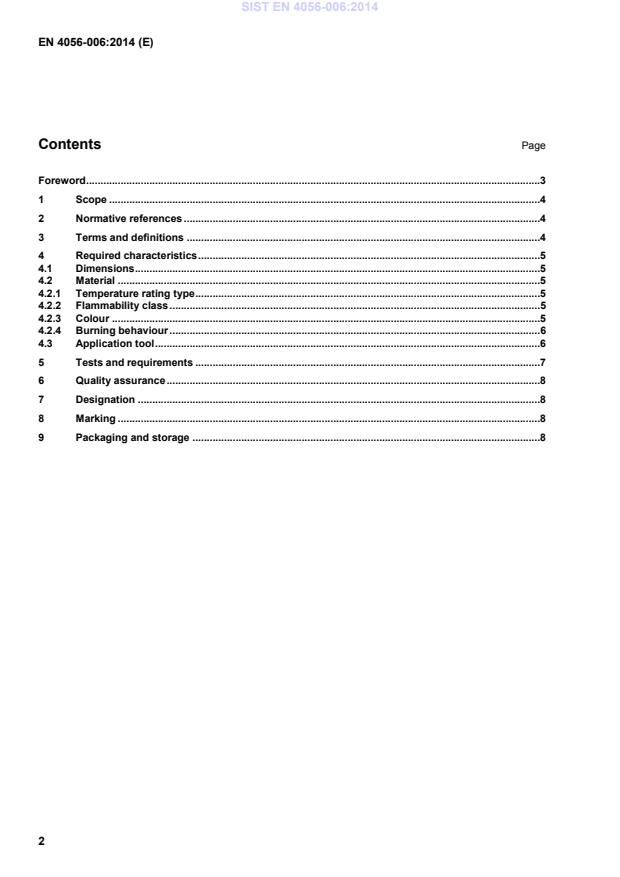

Contents Page
Foreword .3
1 Scope .4
2 Normative references .4
3 Terms and definitions .4
4 Required characteristics .5
4.1 Dimensions .5
4.2 Material .5
4.2.1 Temperature rating type .5
4.2.2 Flammability class .5
4.2.3 Colour .5
4.2.4 Burning behaviour .6
4.3 Application tool .6
5 Tests and requirements .7
6 Quality assurance .8
7 Designation .8
8 Marking .8
9 Packaging and storage .8
Foreword
This document (EN 4056-006:2014) has been prepared by the Aerospace and Defence Industries Association
of Europe - Standardization (ASD-STAN).
After enquiries and votes carried out in accordance with the rules of this Association, this Standard has
received the approval of the National Associations and the Official Services of the member countries of ASD,
prior to its presentation to CEN.
This European Standard shall be given the status of a national standard, either by publication of an identical
text or by endorsement, at the latest by January 2015, and conflicting national standards shall be withdrawn at
the latest by January 2015.
Attention is drawn to the possibility that some of the elements of this document may be the subject of patent
rights. CEN [and/or CENELEC] shall not be held responsible for identifying any or all such patent rights.
According to the CEN-CENELEC Internal Regulations, the national standards organizations of the following
countries are bound to implement this European Standard: Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech
Republic, Denmark, Estonia, Finland, Former Yugoslav Republic of Macedonia, France, Germany, Greece,
Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg
...
