EN 4057-405:2005
(Main)Aerospace series - Cable ties for harnesses - Test methods - Part 405: Compass safe distance
Aerospace series - Cable ties for harnesses - Test methods - Part 405: Compass safe distance
This standard specifies the procedure to determine the compass safe distance of cable ties with metallic lock-ing devices.
It shall be used together with EN 4057-100.
Luft- und Raumfahrt - Befestigungsbänder für Leitungsbündel - Prüfverfahren - Teil 405: Kompasssicherheitsabstand
Diese Norm legt das Verfahren zur Bestimmung des Kompasssicherheitsabstandes von Befestigungsbändern mit Verriegelungen aus Metall fest.
Sie ist in Verbindung mit EN 4057 100 anzuwenden.
Série aérospatiale - Frettes de câblage pour harnais - Méthodes d'essais - Partie 405 : Distance de sécurité de compas
Aeronavtika – Kabelske spojke za vezalno pasovje – Preskusne metode – 405. del: Varnostna razdalja kompasa
General Information
- Status
- Published
- Publication Date
- 15-Nov-2005
- Withdrawal Date
- 30-May-2006
- Technical Committee
- ASD-STAN - Aerospace
- Drafting Committee
- ASD-STAN/D 2 - Electrical
- Current Stage
- 6060 - Definitive text made available (DAV) - Publishing
- Start Date
- 16-Nov-2005
- Completion Date
- 16-Nov-2005
Relations
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Referred By
EN 4056-001:2006 - Aerospace series - Cable ties for harnesses - Part 001: Technical specification - Effective Date
- 28-Jan-2026
- Referred By
EN 4056-001:2015 - Aerospace series - Cable ties for harnesses - Part 001: Technical specification - Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Referred By
EN 4057-100:2006 - Aerospace series - Cable ties for harnesses - Test methods - Part 100: General - Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
Overview
EN 4057-405:2005 - "Aerospace series - Cable ties for harnesses - Test methods - Part 405: Compass safe distance" is a CEN-adopted test method that defines how to determine the compass safe distance of cable ties that use metallic locking devices. The procedure quantifies the distance at which a cable tie produces a 1° deviation on a compass (magnetometer) and is intended to be used together with EN 4057-100 (General test methods).
Key topics and requirements
- Purpose: Measure magnetic interference from cable ties with metal locks and establish the minimum safe separation from a magnetic compass.
- Apparatus: A sensitive magnetometer/compass readable to within a fifth of a degree (0.2°) with corresponding sensitivity.
- Magnetic field condition: Tests are performed in a uniform magnetic field whose horizontal component has a value of 0,18 line/cm2 ± 10% (as specified in the standard).
- Test layout:
- Mark an area with magnetic North–South and East–West lines.
- Place the magnetometer at the intersection point.
- Position the cable tie on the East–West line with the head closest to the magnetometer.
- Start at a distance giving ≈2° deviation, move outward until ≈0.5°, and record deviations at intervals.
- Plot deviation vs. distance for outward and inward movements to check reproducibility.
- Result: The compass safe distance is the measured distance (in millimetres) from the compass pivot to the nearest point on the cable tie that corresponds to a 1° compass deviation.
- Conformance: Samples tested must meet requirements specified in the applicable product standard (see EN 4057 product requirements).
Applications
- Establishing installation and routing rules in aircraft harnesses to prevent compass interference.
- Incoming inspection and type testing for aerospace cable ties with metallic locks.
- Supplier qualification, procurement specifications, and quality assurance testing for avionics and aircraft harness manufacturers.
- Laboratory test protocols for aerospace testing facilities and certification bodies verifying magnetic compatibility.
Who uses this standard
- Aerospace engineers and harness designers
- Quality assurance and compliance teams
- Test laboratories and certification bodies
- Cable tie manufacturers and suppliers to the aviation industry
Related standards
- EN 4057-100 - Aerospace series - Cable ties for harnesses - Test methods - Part 100: General (mandatory companion document)
- References to AECMA-STAN and CEN adoption are applicable for national implementation and regulatory alignment.
Keywords: EN 4057-405:2005, compass safe distance, cable ties, metallic locking devices, aerospace, magnetometer, test methods, EN 4057-100.
Get Certified
Connect with accredited certification bodies for this standard
National Aerospace and Defense Contractors Accreditation Program (NADCAP)
Global cooperative program for special process quality in aerospace.
NSF-ISR
NSF International Strategic Registrations.
Orion Registrar Inc.
US-based certification body for management systems.
Sponsored listings
Frequently Asked Questions
EN 4057-405:2005 is a standard published by the European Committee for Standardization (CEN). Its full title is "Aerospace series - Cable ties for harnesses - Test methods - Part 405: Compass safe distance". This standard covers: This standard specifies the procedure to determine the compass safe distance of cable ties with metallic lock-ing devices. It shall be used together with EN 4057-100.
This standard specifies the procedure to determine the compass safe distance of cable ties with metallic lock-ing devices. It shall be used together with EN 4057-100.
EN 4057-405:2005 is classified under the following ICS (International Classification for Standards) categories: 49.060 - Aerospace electric equipment and systems. The ICS classification helps identify the subject area and facilitates finding related standards.
EN 4057-405:2005 has the following relationships with other standards: It is inter standard links to EN 4056-005:2023, EN 4056-003:2019, EN 4056-004:2014, EN 4056-001:2006, EN 4056-001:2015, EN 4056-003:2016, EN 4057-100:2006, EN 4056-006:2014. Understanding these relationships helps ensure you are using the most current and applicable version of the standard.
EN 4057-405:2005 is available in PDF format for immediate download after purchase. The document can be added to your cart and obtained through the secure checkout process. Digital delivery ensures instant access to the complete standard document.

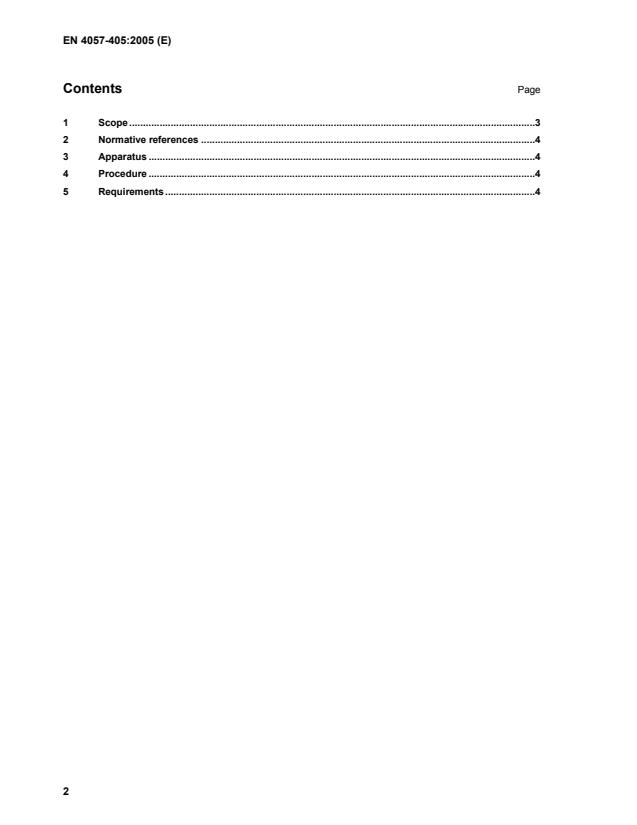

Standards Content (Sample)
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Aerospace series - Cable ties for harnesses - Test methods - Part 405: Compass safe distanceAeronavtika – Kabelske spojke za vezalno pasovje – Preskusne metode – 405. del: Varnostna razdalja kompasaSérie aérospatiale - Frettes de câblage pour harnais - Méthodes d'essais - Partie 405 : Distance de sécurité de compasLuft- und Raumfahrt - Befestigungsbänder für Leitungsbündel - Prüfverfahren - Teil 405: Kompass SicherheitsabstandTa slovenski standard je istoveten z:EN 4057-405:2005SIST EN 4057-405:2006en49.060ICS:SLOVENSKI
STANDARDSIST EN 4057-405:200601-julij-2006
EUROPEAN STANDARDNORME EUROPÉENNEEUROPÄISCHE NORMEN 4057-405November 2005ICS 49.060 English VersionAerospace series - Cable ties for harnesses - Test methods -Part 405: Compass safe distanceSérie aérospatiale - Frettes de câblage pour harnais -Méthodes d'essais - Partie 405 : Distance de sécurité decompasLuft- und Raumfahrt - Befestigungsbänder fürLeitungsbündel - Prüfverfahren - Teil 405: KompassSicherheitsabstandThis European Standard was approved by CEN on 28 October 2005.CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this EuropeanStandard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such nationalstandards may be obtained on application to the Central Secretariat or to any CEN member.This European Standard exists in three official versions (English, French, German). A version in any other language made by translationunder the responsibility of a CEN member into its own language and notified to the Central Secretariat has the same status as the officialversions.CEN members are the national standards bodies of Austria, Belgium, Cyprus, Czech Republic, Denmark, Estonia, Finland, France,Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Slovakia,Slovenia, Spain, Sweden, Switzerland and United Kingdom.EUROPEAN COMMITTEE FOR STANDARDIZATIONCOMITÉ EUROPÉEN DE NORMALISATIONEUROPÄISCHES KOMITEE FÜR NORMUNGManagement Centre: rue de Stassart, 36
B-1050 Brussels© 2005 CENAll rights of exploitation in any form and by any means reservedworldwide for CEN national Members.Ref. No. EN 4057-405:2005: E
...
