EN 4057-306:2006
(Main)Aerospace series - Cable ties for harnesses - Test methods - Part 306: Heat ageing test
Aerospace series - Cable ties for harnesses - Test methods - Part 306: Heat ageing test
This standard specifies the procedure to determine the force to failure of cable ties for harnesses for aero-space applications after a heat ageing exposure.
It shall be used together with EN 4057 100.
Luft- und Raumfahrt - Befestigungsbänder für Leitungsbündel - Prüfverfahren - Teil 306: Alterungstest
Diese Norm legt das Verfahren zur Ermittlung der Kraft bis zum Versagen von Befestigungsbändern für Leitungsbündel für Anwendungen in der Luft und Raumfahrt fest, die einer Temperaturalterung ausgesetzt wurden.
Sie ist in Verbindung mit EN 4057 100 anzuwenden.
Série aérospatiale - Frettes de câblage pour harnais - Méthodes d'essais - Partie 306 : Vieillissement en température
Aeronavtika - Kabelske spojke za vezalno pasovje - Preskusne metode - 306. del: Preskusi s toplotnim staranjem
General Information
- Status
- Published
- Publication Date
- 12-Dec-2006
- Withdrawal Date
- 29-Jun-2007
- Technical Committee
- ASD-STAN - Aerospace
- Drafting Committee
- ASD-STAN/D 2 - Electrical
- Current Stage
- 9093 - Decision to confirm - Review Enquiry
- Start Date
- 01-Jun-2017
- Completion Date
- 28-Jan-2026
Relations
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Referred By
EN 4056-001:2006 - Aerospace series - Cable ties for harnesses - Part 001: Technical specification - Effective Date
- 28-Jan-2026
- Referred By
EN 4056-001:2015 - Aerospace series - Cable ties for harnesses - Part 001: Technical specification - Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Referred By
EN 4057-100:2006 - Aerospace series - Cable ties for harnesses - Test methods - Part 100: General - Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
Overview
EN 4057-306:2006 is a CEN aerospace test method that defines the heat ageing test for cable ties used in harnesses. The standard specifies how to expose cable ties to elevated temperature and then determine their force to failure (tensile strength) and elongation at break after ageing. EN 4057-306 is intended to be used together with EN 4057-100 (general test methods) and refers to EN 4057-401 for loop tensile test apparatus.
Key topics and requirements
- Scope: Determines the force-to-failure of cable ties for aerospace harness applications after heat ageing exposure.
- Specimens: Nine specimens per material code and cross section are required.
- Three specimens are mounted on split mandrels (for loop tensile testing).
- Three specimens are aged flat in an oven.
- Three specimens remain unaged as controls.
- Apparatus:
- Tensile tester as per EN 4057-401 (loop tensile strength).
- Laboratory oven capable of reaching the product standard’s maximum rated temperature (with the specified increase and exposure duration defined in EN 4057-306).
- Equipment to measure elongation.
- Procedure highlights:
- Age the specified specimens at the defined elevated temperature for the prescribed duration (nominally 500 h with tolerances given in the standard).
- Condition specimens per EN 4057-100 before testing.
- Perform loop tensile strength testing on mandrel-mounted specimens within 30 minutes of conditioning.
- Prepare flat strap specimens with 25 mm free length between grips for tensile testing at (25 ± 2.5) mm/min; record elongation percentage to break.
- Pass/fail criteria:
- Tensile strength after ageing shall meet or exceed the values specified in the appropriate product standard.
- Elongation at break of aged flat samples shall not be less than the specified percentage compared with unaged samples, as defined in the product standard.
Applications and practical value
- Ensures long-term thermal reliability of cable ties used in aircraft wiring harnesses.
- Helps manufacturers and suppliers demonstrate compliance with aerospace material durability requirements.
- Supports qualification, acceptance testing, production control and materials selection for:
- Aircraft OEMs and Tier suppliers
- Aerospace cable tie manufacturers
- Independent test laboratories
- Certification and quality engineers
Related standards
- EN 4057-100 - Aerospace series: Cable ties for harnesses - Test methods - Part 100: General
- EN 4057-401 - Aerospace series: Cable ties for harnesses - Test methods - Part 401: Loop tensile strength
Keywords: EN 4057-306:2006, cable ties, heat ageing test, aerospace, harnesses, tensile strength, elongation, test methods, EN 4057.
Get Certified
Connect with accredited certification bodies for this standard
National Aerospace and Defense Contractors Accreditation Program (NADCAP)
Global cooperative program for special process quality in aerospace.
NSF-ISR
NSF International Strategic Registrations.
Orion Registrar Inc.
US-based certification body for management systems.
Sponsored listings
Frequently Asked Questions
EN 4057-306:2006 is a standard published by the European Committee for Standardization (CEN). Its full title is "Aerospace series - Cable ties for harnesses - Test methods - Part 306: Heat ageing test". This standard covers: This standard specifies the procedure to determine the force to failure of cable ties for harnesses for aero-space applications after a heat ageing exposure. It shall be used together with EN 4057 100.
This standard specifies the procedure to determine the force to failure of cable ties for harnesses for aero-space applications after a heat ageing exposure. It shall be used together with EN 4057 100.
EN 4057-306:2006 is classified under the following ICS (International Classification for Standards) categories: 49.060 - Aerospace electric equipment and systems. The ICS classification helps identify the subject area and facilitates finding related standards.
EN 4057-306:2006 has the following relationships with other standards: It is inter standard links to EN 4057-401:2006, EN 4056-003:2019, EN 4056-004:2014, EN 4056-001:2006, EN 4056-001:2015, EN 4056-003:2016, EN 4057-100:2006, EN 4056-005:2023, EN 4056-006:2014. Understanding these relationships helps ensure you are using the most current and applicable version of the standard.
EN 4057-306:2006 is available in PDF format for immediate download after purchase. The document can be added to your cart and obtained through the secure checkout process. Digital delivery ensures instant access to the complete standard document.

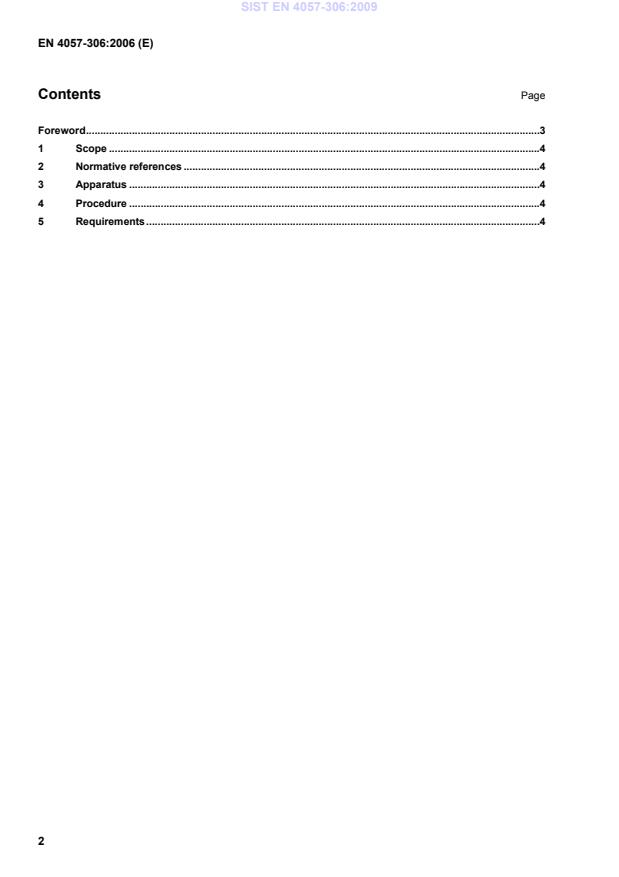

Standards Content (Sample)
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Aeronavtika - Kabelske spojke za vezalno pasovje - Preskusne metode - 306. del: Preskusi s toplotnim staranjemLuft- und Raumfahrt - Befestigungsbänder für Leitungsbündel - Prüfverfahren - Teil 306: AlterungstestSérie aérospatiale - Frettes de câblage pour harnais - Méthodes d'essais - Partie 306 : Vieillissement en températureAerospace series - Cable ties for harnesses - Test methods - Part 306: Heat ageing test49.060Aerospace electric equipment and systemsICS:Ta slovenski standard je istoveten z:EN 4057-306:2006SIST EN 4057-306:2009en,de01-maj-2009SIST EN 4057-306:2009SLOVENSKI
STANDARD
EUROPEAN STANDARDNORME EUROPÉENNEEUROPÄISCHE NORMEN 4057-306December 2006ICS 49.060 English VersionAerospace series - Cable ties for harnesses - Test methods -Part 306: Heat ageing testSérie aérospatiale - Frettes de câblage pour harnais -Méthodes d'essais - Partie 306 : Vieillissement entempératureLuft- und Raumfahrt - Befestigungsbänder fürLeitungsbündel - Prüfverfahren - Teil 306: AlterungstestThis European Standard was approved by CEN on 28 October 2005.CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this EuropeanStandard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such nationalstandards may be obtained on application to the Central Secretariat or to any CEN member.This European Standard exists in three official versions (English, French, German). A version in any other language made by translationunder the responsibility of a CEN member into its own language and notified to the Central Secretariat has the same status as the officialversions.CEN members are the national standards bodies of Austria, Belgium, Cyprus, Czech Republic, Denmark, Estonia, Finland, France,Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania,Slovakia, Slovenia, Spain, Sweden, Switzerland and United Kingdom.EUROPEAN COMMITTEE FOR STANDARDIZATIONCOMITÉ EUROPÉEN DE NORMALISATIONEUROPÄISCHES KOMITEE FÜR NORMUNGManagement Centre: rue de Stassart, 36
B-1050 Brussels© 2006 CENAll rights of exploitation in any form and by any means reservedworldwide for CEN national Members.Ref. No. EN 4057-306:2006: ESIST EN 4057-306:2009
...
