prEN 15269-3

SLOVENSKI oSIST prEN 15269-3:2005

PREDSTANDARD
oct 2005
Razširjena uporaba rezultatov preskusov požarne odpornosti za vrata in
zaporne elemente - 3. del: Lesena krilna vrata
Extended application of test results for fire resistance for doorsets and shutter
assemblies - Part 3: Timber hinged and pivoted doorsets
ICS 13.220.50; 91.060.50 Referenčna številka
©  Standard je založil in izdal Slovenski inštitut za standardizacijo. Razmnoževanje ali kopiranje celote ali delov tega dokumenta ni dovoljeno

EUROPEAN STANDARD
DRAFT
NORME EUROPÉENNE
EUROPÄISCHE NORM
August 2005
ICS
English Version
Extended application of test results for fire resistance for
doorsets and shutter assemblies - Part 3: Timber hinged and
pivoted doorsets
Application élargie des résultats d'essais de résistance au
feu des blocs-portes et blocs-fermetures - Pour portes et
fermetures - Partie 3 : Blocs-portes et blocs-fermetures en
bois, pivotants ou battants
This draft European Standard is submitted to CEN members for enquiry. It has been drawn up by the Technical Committee CEN/TC 127.
If this draft becomes a European Standard, CEN members are bound to comply with the CEN/CENELEC Internal Regulations which
stipulate the conditions for giving this European Standard the status of a national standard without any alteration.
This draft European Standard was established by CEN in three official versions (English, French, German). A version in any other language
made by translation under the responsibility of a CEN member into its own language and notified to the Management Centre has the same
status as the official versions.
CEN members are the national standards bodies of Austria, Belgium, Cyprus, Czech Republic, Denmark, Estonia, Finland, France,
Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Slovakia,
Slovenia, Spain, Sweden, Switzerland and United Kingdom.
Recipients of this draft are invited to submit, with their comments, notification of any relevant patent rights of which they are aware and to
provide supporting documentation.
Warning : This document is not a European Standard. It is distributed for review and comments. It is subject to change without notice and
shall not be referred to as a European Standard.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION
EUROPÄISCHES KOMITEE FÜR NORMUNG
Management Centre: rue de Stassart, 36  B-1050 Brussels
© 2005 CEN All rights of exploitation in any form and by any means reserved Ref. No. prEN 15269-3:2005: E
worldwide for CEN national Members.

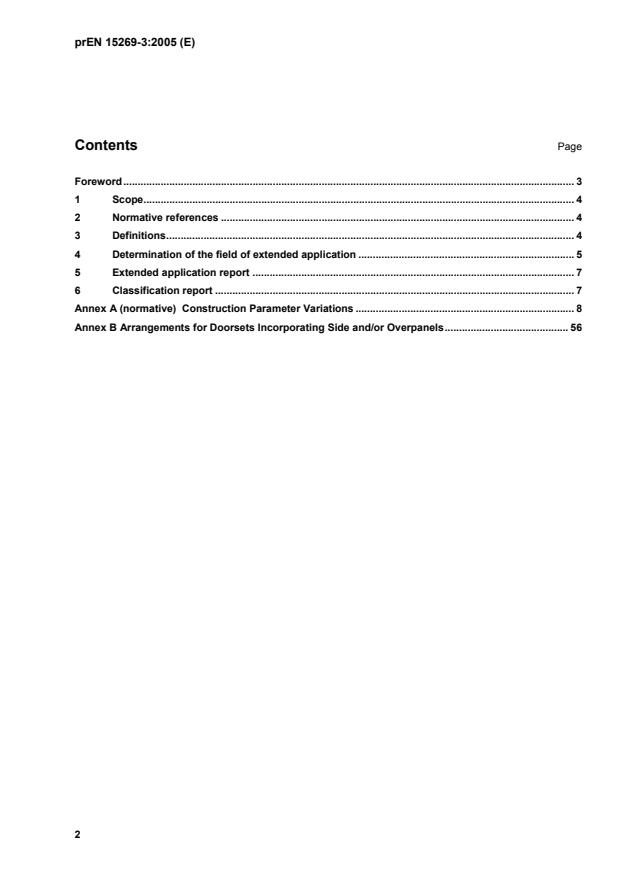

Contents Page
Foreword. 3
1 Scope. 4
2 Normative references . 4
3 Definitions. 4
4 Determination of the field of extended application . 5
5 Extended application report . 7
6 Classification report . 7
Annex A (normative) Construction Parameter Variations . 8
Annex B Arrangements for Doorsets Incorporating Side and/or Overpanels. 56

Foreword
This document (prEN 15269-3:2005) has been prepared by Technical Committee CEN/TC 127 “Fire
safety in buildings”, the secretariat of which is held by BSI.
This document is currently submitted to the CEN Enquiry.
This document is one of a series of Standards intended to be used by experts or competent bodies
for the purpose of producing an extended application report (EXAP). It is not intended to be used for
the interpretation of test results by non-fire experts.
NOTE Clarification is needed to establish if such experts are Bodies Notified for either testing and/or
Certification
prEN 15269 ‘Extended application of test results for fire resistance for doorsets and shutter
assemblies – For doors and shutters’ consists of the following:
Part  1 General requirements
2 Steel hinged and pivoted doorsets
3 Timber hinged and pivoted doorsets
4 Glass hinged and pivoted doorsets
5 Aluminium hinged and pivoted doorsets
6 Timber sliding doorsets
7 Steel sliding doorsets
8 Timber horizontally folding doorsets
9 Steel horizontally folding doorsets
1 Scope
This document covers hinged or pivoted, doorsets with timber based leaves. It prescribes the
methodology for extending the application of test results obtained from test(s) conducted in
accordance with EN 1634-1.
Subject to the completion of the appropriate test or tests selected from those identified in Clause 5 the
extended application may cover all or some of the following:
 uninsulated (E), radiation (EW) or insulated (EI or EI ) classifications;
1 2
 glazed elements, louvres and/or vents;
 side, transom or overpanels;
 items of building building hardware;
 decorative finishes;
 intumescent, smoke, draught or acoustic seals;
 alternative supporting construction(s);
2 Normative references
The following referenced documents are indispensable for the application of this document. For dated
references, only the edition cited applies. For undated references, the latest edition of the referenced
document (including any amendments) applies.
EN 1363-1, Fire resistance tests — Part 1: General requirements
EN 1634-1, Fire resistance tests for door and shutter assemblies — Part 1: Fire doors and shutters
prEN 1634-2, Fire resistance tests for door and shutter assemblies — Part 2: Fire door hardware
EN 13501-2, Fire classification of construction products and building elements — Part 2: Classification
using test data from fire resistance tests excluding ventilation services
EN ISO 13943, Fire safety — Vocabulary
prEN EXAP 15269, Extended application of test results for fire resisting and smoke control doorsets
and shutter assemblies, Part 1 — General requirements for fire resistance
3 Definitions
For the purposes of this part, the definitions given in EN1363-1, ISO 13943, EN 1634-1, prEN 1634-2
and EXAP prEN 15269-1 together with the following apply:
3.1
coniferous
wood or tree of the order of coniferales, typically bearing cones and needle-like leaves
3.2
core
material fitted centrally within the thickness of a door leaf. It may consist of a single sheet of material
or a combination either of sheets of the same material or layers of different materials
3.3
deciduous
tree shedding its leaves annually
3.4
effective rebate depth
the dimension of the door leaf thickness of overlapping adjacent edges of door leaf relative to the door
frame, transom or side panel or flush overpanel. At the meeting edges and for rebated leaves the
dimension shall be the depth of the largest rebate or the rebate where the intumescent seal is fitted
3.5
leaf symmetry
the construction of a door leaf, without consideration of any leaf edge rebates, viewed either side of
an imaginary line drawn centrally in the thickness of the leaf. A symmetrical doorleaf will be identical
either side of this imaginary line, whilst an asymmetrical door leaf will differ
4 Determination of the field of extended application
4.1 General
4.1.1 Before there can be any consideration for extended application the doorset must have been
tested and classified in accordance with EN1634-1 and EN 13501-2 respectively in order to establish
a classification for the doorset.
4.1.2 Evaluation to a higher classification is not possible.
4.1.3 All evaluations shall be made on the basis of retaining the classification obtained from testing
to EN1634-1.
4.1.4 If, by following the ensuing procedure, any part of the classification cannot be achieved by
extended application theory, that element of classification shall be omitted from the subsequent
extended application report and classification report.
4.2 Procedure for Evaluation
4.2.1 Identify the variations from the original test specimen(s) which are required to be covered by
an extended application report.
4.2.2 Locate the variations in the appropriate parameter variation by reference to columns (1) and
(2) of annex A.
4.2.3 Review the type of classification to be retained from column (3) and establish from the
contents of column (4) whether any extended application is available beyond the direct application
rules in EN 1634-1 without the need for further testing.
4.2.4 Where this is deemed to be possible this can be recorded in the extended application report
together with any appropriate restrictions and the stated rules from column (4).
4.2.5 Where the variations required can only be achieved from additional testing, the additional test
can be made on a similar specimen type (e.g. single-leaf doorset) to the original test against which the
extended application is sought. Alternatively, column (5) identifies an option for alternative testing and
relevant test parameters.
4.2.6 It is a requirement of this document that all items of building hardware are in accordance with
the relevant product standard and that the door assembly onto which the building hardware will be
fitted is appropriate to that class of use. When considering a change in a parameter of building
hardware, the effect on the durability of self-closing must be considered.
4.3 Procedure for maximum field of extended application
4.3.1 It is possible to provide an entended field of application from a single test. However, where a
manufacturer envisages to manufacture a range of doors incorporating single doors and also double
doors with or without side, transom or over panels, with or without glazing, louvres or ventilation grilles,
with alternative element of builders building hardware, etc., it is recommended that careful
consideration is given to the complete range of doorset designs and options in order to minimise the
testing required before testing commences.
4.3.2 Establish all the parameter variations which are required to be part of the product range, and
in particular for single leaf hinged or pivoted timber based doorsets into rebated frames.
4.3.3 Determine which are the most important specification requirements and incorporate as many
as possible into the specimen(s) for the first tests in the series.
4.3.4 Complete the first test or a series of tests and prepare a field of direct application and a
classification report from the results of the test(s).
4.3.5 Establish which of the original desired parameter variations have not been covered by the
direct application classification report.
4.3.6 Identify these parameter variations in annex A and establish if any extended application is
possible without further testing.
4.3.7 Record this for the extended application report together with any restrictions and rules given
in column (5).
4.3.8 Evaluate which, if any, of the desired parameter variations have not been covered by the field
of direct application or the initial field of extended application derived from 4.3.6. above.
4.3.9 Determine if the product range is to include only single leaf doorsets or if the range is to also
include double leaf configurations. Where only single doorsets are to be part of the product range then
the outstanding construction parameter variations shall only be incorporated into specimens for the
single leaf doorset. Where single leaf and double leaf doorsets are to be included in the product range,
the outstanding construction parameter variations for the extended application of single leaf doorsets
may be incorporated into either repeated single leaf doorset tests or in the weakest option double leaf
doorset configurations.
4.3.10 Select the required outstanding parameter variations from column (1) and column (2) of
annex A and observe from column (5) which are the most appropriate weakest specimen options for
further testing.
If the complete selection of required parameter variations have not been covered by the tests
completed in accordance with 4.3.9 and 4.3.10 above, then an appropriate test or tests may be
repeated with the additional product variations incorporated.
4.4 Interpretation of Test Results
4.4.1 In order to maximise the field of extended application, it is important that the test reports shall
record details of any premature integrity and/or insulation failure.
4.4.2 Where a series of tests have been conducted, the field of extended application shall be based
on the lowest performance achieved from the complete series of tests unless premature failure has
been attributed to one or more specific construction parameter variation.
4.4.3 Where it has been possible, to identify specific parameter failures, the extended application
for all other construction parameter variations can be based on the performance achieved after
isolating the premature failure(s).
5 Extended application report
5.1 Prepare an extended application report in accordance with the requirements of Clause 5 of
EXAP prEN 15269-1, based on the results of evaluations in accordance with the above.
6 Classification report
6.1 The classification report shall be determined from the results of the extended application report
and presented in accordance with EN 13501-2.

Annex A
(normative)
Construction Parameter Variations
This table is designed to be used by competent experts in the field of fire resistance testing of hinged
or pivoted doorsets with timber based leaves.
The table shall only be used to evaluate a field of extended application when at least one positive fire
resistance test to EN 1634-1 has resulted in a classification according to EN 13501-2.
The first two columns identify possible variations to the construction details of the specimen tested.
The type of classification achieved from the test can be identified as the ‘Type’ section of column 3 as
insulated, radiation control or integrity only. For some parameters, it is necessary to evaluate whether
the specimen displayed a high, medium or low level of distortion during the test. Where this is the
case the following levels should be used to provide high, medium and low distortion doorsets as
measured using the maximum relative movement at any position between the edge of the door leaf
and door frame or between the meeting edges of door leaves or the relative movement of the framing
members for panelled systems from the start of the test at any time during the complete required
classification period (suggested measuring positions are given in EN 1634-1):
 low <40 % of effective rebate depth
 medium >40 % and <85 % of effective rebate depth
 high >85 % of effective rebate depth
The effect of the change in each parameter is evaluated for each characteristic in column 3 under E
for effects on integrity, I for effects on insulation (whether an I or I class) and W for the effects on
1 2
radiation control for EW doors.
These evaluations lead to the judgement of the possibility of the extension of the field of application
the results of which are given in column 4. In certain cases in Column 4, it is a requirement to acheive
Category B, the requirements for this are given in EN1634-1.
Where additional tests are deemed to be necessary the type of specimen approved for incorporation
of the changed parameter is defined in column 5. Where it is possible to use information from tests
performed on one configuration for evidence on a different configuration , this allowance has been
made in order to reduce the overall number of tests required for extended application evaluation e.g.
single action doorsets to double action doorsets
In order to maximise the possible field of extended application from a minimum number of tests the
parameter changes have been spread over a series of test specimens. The recommended tests for
each parameter are dependant on the classification required and the preferred options.
In all cases following the evaluation, the relationship between the leaf and the frame (e.g. gaps) must
remain the same as must the relationship between intumescent material and the faces and/or edges
of the leaf i.e. the distance between the edges of the intumescent material and the leaf face must not
change, nor must the distance between the intumescent material and the leaf edge.
Group Type of timber medium density
Nr. [kg/m ]
Solid timber can be replaced by other solid
timber of the same group of equal or higher
1 Coniferous and < 450 (regardless of
density or solid timber of a higher group. Glued
Beech density for Beech)
timber with solid pieces of min. 10 mm thickness
may be used as solid timber. Composite wood
2 Deciduous excluding < 450
products (mdf etc.) may not be replaced with
Beech
other materials or composites.
3 Coniferous ≥ 450
Each construction parameter variation may only
be applied in isolation from other variations. If
4 Deciduous excluding ≥ 450
after consideration of a specific variation,
Beech
additional changes are required to be made to
the specimen, these may be made providing the
implications on other variations are also taken into account. (see Clause 4.4 above)

Construction Parameter Variation Influence of variation Possibility of extension Additional Evidence

on performance Required
h ti ti
(1) (2) (3) (4) (5)
E I W
A Door leaf.
In certain cases, the rules given in Section A are also appropriate to side and overpanels or the door frame; where this is the case it is clearly indicated in column (1). For double leaf doorsets, both
leaves shall be of the same basic construction.
A.1 General
A.1.1 number of leaves Single leaf from double door = = = Possible for doorsets with exposed intumescent seals only
test and when the distortion of the leaf is low. In doorsets
where there is an inactive and an active leaf, only the
construction and parameters of the active leaf may be
used for the single leaf doorset otherwise not possible
without additional test.
A.1.2 number of leaves Double leaf from single leaf < = = Not possible (see Section A2 for suggested test Additional test…
door test configuration)
A.1.3 intumescent seals (fitted at leaf to Location towards the frame < = = not possible without additional test Additional test to include seal
frame interface) – See Figure 1 rebate fitted in the required position.
Test can be single or double
leaf
A.1.4 intumescent seals (fitted at leaf to location away from the frame < = = not possible without additional test Additional test to include seal
frame interface) – See Figure 2 rebate fitted in the required position.
Test can be single or double
leaf
Construction Parameter Variation Influence of variation Possibility of extension Additional Evidence

on performance Required
h ti ti
(1) (2) (3) (4) (5)
E I W
A.1.5 intumescent seals (fitted in meeting Location change < = = Possible to change the tested seal arrangement from the
edges) leaf in which it was tested to the opposite leaf providing
the leaves were low distortion and the seal arrangement
is replicated and the minimum tested length of
intumescent seal is retained (including at building
hardware positions) otherwise not possible without
additional test.
A.1.6 non intumescent seals (draught / Location change < = = Possible to change from leaf to frame and vice versa and Additional test to include seal
smoke / acoustic etc.) – Euroclass A1, from one leaf to the opposing leaf at the meeting edges fitted in the required position.
e.g. ceramic products (fitted in leaf or providing the seal arrangement is replicated, otherwise not Test can be single or double
frame) possible without additional test.  leaf
A.1.7 non intumescent seals (draught Location change < = = Possible to change from leaf to frame and vice versa and Additional test to include seal
/smoke / acoustic etc.) – , < Euroclass A1 from one leaf to the opposing leaf at the meeting edges fitted in the required position.
(fitted in leaf or frame) providing the seal arrangement is replicated, otherwise not Test can be single or double
possible without additional test. leaf
A.1.8 non intumescent seals (draught / Add >=< = = Possible providing the gap is not increased and the Additional test to include seal
smoke / acoustic etc.) - Euroclass A1, reaction of the intumescent seal is not affected otherwise fitted in the required position.
e.g. ceramic products (fitted in leaf or not possible without additional test. Test can be single or double
frame) leaf
A.1.9 non intumescent seals (draught / Remove < = = not possible without additional test |Further test to prove the leaf to
smoke / acoustic etc.) - Euroclass A1, frame detail with no seal fitted.
e.g. ceramic products (fitted in leaf or Test can be single or double
frame) leaf
Construction Parameter Variation Influence of variation Possibility of extension Additional Evidence

on performance Required
h ti ti
(1) (2) (3) (4) (5)
E I W
A.1.10 non intumescent seals (draught / Add < = = not possible without additional test Additional test to include seal
smoke / acoustic etc.) – < Euroclass A1 fitted in the required position.
(fitted in leaf or frame) Test can be single or double
leaf
A.1.11 non intumescent seals (draught / Remove < = = not possible without additional test Additional test to include seal
smoke / acoustic etc. – < Euroclass A1 fitted in the required position.
(fitted in leaf or frame) Test can be single or double
leaf
A.1.12 Louvres in door leaf or panel Add < = = not possible without additional test Additional test to include louvre
fitted in the required position.
Test can be single or double
leaf
A.1.13 Louvres in door leaf or panel Remove => = = Possible providing tested louvre size is 25 % or less of Test can be single or double
the tested leaf area (per leaf), or for up to 30% of leaf area leaf
for low distortion doors, otherwise not possible without
additional test
A.1.4 Louvres in door leaf or panel tested Fitting higher or lower in the < = = Tested positions will define the maximum and minimum Additional test to include louvre
with louvre leaf fitting positions, subject to the rules given in A1.17 and fitted in the required position.
A1.18, otherwise not possible without additional test Test can be single or double
leaf
A.1.15 Louvres in door leaf or panel Fitting to the side of the tested => = = Possible providing the minimum distance between the Test can be single or double
tested with louvre position edge of the leaf and the aperture is not reduced, otherwise leaf
not possible without additional test
Construction Parameter Variation Influence of variation Possibility of extension Additional Evidence

on performance Required
h ti ti
(1) (2) (3) (4) (5)
E I W
Test to include louvre at 25% of
A.1.16 Louvres in door leaf or panel smaller size or remove => = = Possible to reduce the size of the louvre by 50 % and
tested with louvre – See Figure 3 possible to remove the louvre if the size is 25 % or less leaf area. Test can be single or
than the leaf area and minimum distance between the double leaf
edge of the leaf and the aperture is not reduced, otherwise
a separate test is required and then sizes between the 2
tested louvre sizes are acceptable
A.1.17 Louvres in door leaf or panel larger size (for area or < = = Possible up to a maximum 15 % increase in height and/or Further test required with
tested with louvre dimensions) width or 20 % in area for louvre tested in a door which maximum louvre required. Test
achieved category B overrun time and providing the can be single or double leaf
distance between the edge of louvre and the perimeter of
the door leaf / panel is not decreased otherwise not
possible without an additional test.
A.1.18 Louvre tested in double leaf Change louvre from one leaf to >=< = = Possible to change tested louvre from the active leaf to the To enable complete
doorset the opposite leaf inactive leaf but not vice versa and providing louvre is not interchangability it is suggested
greater than 25% of the leaf area, otherwise not possible that both door leaves are active
without additional test or the louvres are tested in
active leaves only.
Construction Parameter Variation Influence of variation Possibility of extension Additional Evidence

on performance Required
h ti ti
(1) (2) (3) (4) (5)
E I W
Add (added material shown ≥ = ≥ Drawings 4a, 4b & 4c
A.1.19 Leaf edge rebate (to door leaf or
panel – not at the meeting edges. See shaded in drawings) Possible, with a maximum of 30mm overlap, for timber
section A2 for meeting edge parameters) based materials or for drawing 4b, materials with a melting Additional test to include the
- See Figure 4 point <450ºC if the leaf thickness is increased by the required rebate and leaf detail .
addition of a ‘panel’ or ‘astragal’ to create the rebate and Test can be single or double
the hinges, locking devices, intumescent seals, pivots and leaf
any protective (sub)facings remain as tested e.g. not cut.
Also providing the symmetry of the leaf construction is
maintained. For double leaf doorsets, both leaves will
include the same rebate detail.
Otherwise the required rebate and leaf detail shall be
tested
A.1.20 Leaf edge rebate (to door leaf or Remove >=< = = Possible for over-rebated and under-rebated door leaves The required detail must be
panel – not at the meeting edges. See providing the leaf thickness is maintained and therefore tested. Test can be single or
section A2 for meeting edge parameters) the rebate depth increased and the position of the double leaf
lock/latch, hinges or pivots and intumescent seal is
maintained For double leaf doorsets, both leaves will
include the same rebate detail otherwise not possible
without additional test
A.1.21 Change in mode of operation Alternative <= <= = Not possible to provide a double acting doorset from a Test to be on the required
single or vice versa mode of operation.
A.1.22 Latched condition for single leaf Change in latching condition >=< = = Possible in line with the following relationship: Additional test to include the
doorsets required latching condition.
tested tested with a tested with a
without a latch/lock but latch/lock
latch/lock unlatched latched
Construction Parameter Variation Influence of variation Possibility of extension Additional Evidence

on performance Required
h ti ti
(1) (2) (3) (4) (5)
E I W
extension to: possible not possible
without a
lock/latch
extension to: not not possible
with possible
lock/latch but
unlatched
extension to: not possible
with a possible
lock/latch,
latched
A.1.23 Latched condition for double leaf Change in latching condition >=< = = Possible in line with the following relationship and Additional test to include the
doorsets – see Figure 5 (see also C1.10 providing the latch and bolt have been included in the required latching condition.
tested doorsets
Tested Tested Testedlatched
unlatched unlatched and bolted
and but bolted
unbolted
Extension to not possible not possible
unlatched
and unbolted
Extension to possible not possible
unlatched
but bolted
Construction Parameter Variation Influence of variation Possibility of extension Additional Evidence

on performance Required
h ti ti
(1) (2) (3) (4) (5)
E I W
Extension to Possible Possible for
latched and for low low distortion
bolted distortion door leaves
door only
leaves
only
A.2 Meeting edge detail
A.2.1 Rebated, or plain meeting edge Change in edge detail >=< >=< = Possible to add a rebate up to 30mm maximum overlap Test must be double leaf
detail – see Figure 6 per rebate if the rebate is created by the addition of extra
leaf thickness which may be by applied ‘panels’ for timber
based materials or for materials with a melting point
<450ºC or an increase in core thickness (see also A1.19
for principles). The building hardware must be shown to be
appropriate to the intended application. Otherwise not
possible and the required meeting stile detail, including
seal and building hardware arrangement must be tested.
Not possible to remove one or more rebates
A.2.2 Plain meeting edge detail – see Change between plain edge >=< = = Possible to change from plain to chamfered (by a Test must be double leaf
Figure 6 details maximum of 5º) for Category B doors and vice versa for
Category A and B doors and from rounded/radiused to
plain or chamfered otherwise not possible without
additional test.
A.2.3 astragal detail Add < = = Possible to change from plain edge detail to astragal detail
if the rebate is created by the addition of a timber based or
low melt material of 450ºC melting point, astragal above
that tested and the seal arrangement remains as tested,
otherwise not possible without additional test.
Construction Parameter Variation Influence of variation Possibility of extension Additional Evidence

on performance Required
h ti ti
(1) (2) (3) (4) (5)
E I W
A.2.4 astragal detail Remove  not possible without additional test Test must be double leaf

A.3. Size variations
A.3.1 Size of leaf or panel (area, width, Decrease >=< >=< = Possible in line with direct application otherwise not Additional test to include the
height) possible. For equal width double leaf doorsets both door required leaf size
leaves shall be reduced by the same % in width unless the
door leaves were of low distortion in which case each of
the leaves may be reduced by a maximum of 50% in width
and the difference in width between the leaves shall not
exceed 1:2. Where unequal width leaves are tested, the
width of the primary leaf may be reduced to the width of
the tested secondary leaf, otherwise not possible without
additional test
A.3.2 Height of leaf or panel Increase >=< >=< >=< Possible in line with the following classification For sizes above that allowed by
period/overrun period relationship (distortion measured the adjacent column, the
throughout required classification period only). For double specific size shall be tested
leaf doorsets, both leaves shall be of the same
construction, otherwise not possible without additional test
Low distortion leaf or panel  Possible to increase the leaf height by the same % as
achieved overrun when factored by 0.50 for doorsets
intended to be classified 15, 20, 30, 45 or 60 and when
factored by 0.75 for 90 minute classifications and when
factored by 1.00 for 120 minute classification.
Construction Parameter Variation Influence of variation Possibility of extension Additional Evidence

on performance Required
h ti ti
(1) (2) (3) (4) (5)
E I W
Medium distortion leaf or panel  Possible to increase the leaf height by the same % as
achieved overrun when factored by 0.33 for doorsets
intended to be classified 15, 20,30, 45 or 60 and when
factored by 0.50 for 90 minute classifications and when
factored by 0. 66 for 120 minute classification.
High distortion leaf or panel  Possible to increase the leaf height by the same % as
achieved overrun when factored by 0.25 for doorsets
intended to be classified 15, 20, 30, 45 or 60 and when
factored by 0.375 for 90 minute classifications and when
factored by 0.50 for 120 minute classification.
A.3.3 width of leaf or panel Increase >=< >=< >=< Possible in line with the principles given above for height For sizes above that allowed by
increase except for double leaf doorsets. For double leaf the adjacent column, the
doorsets a test is required on equal leaves of maximum specific size shall be tested
required width and on unequal leaves with leaves of
maximum and minimum required width. A successful test
on both doorsets will allow all widths inbetween, otherwise
not possible without additional test.
A.3.4 area of leaf or panel Increase >=< >=< >=< Possible in line with the principles given above for height For sizes above that allowed by
increase except for double leaf doorsets which shall be the adjacent column, the
subject to the principles for width proportions given in specific size shall be tested
A3.1, otherwise not possible without additional test.
Construction Parameter Variation Influence of variation Possibility of extension Additional Evidence

on performance Required
h ti ti
(1) (2) (3) (4) (5)
E I W
A.3.5 thickness of the door leaf or panel Increase >=< >=< >=< Possible in line with direct application based upon a pro-
rata increase in the core material only and the position of
any intumescent material should remain in the same
position in relation to the frame rebate. For double leaf
doorsets, both leaves shall be of the same thickness. For
double acting double leaf doorsets, the gap between
leaves at the meeting edge may not be increased to allow
operation of the doorset, otherwise not possible without
additional test.
A.3.6 thickness of the door leaf or panel Decrease < < < Not possible without additional test Additional test to include the
required thickness of leaf or
panel
A.4. Materials and constructions
A.4.1 density of core material of leaf or Increase >=< >=< >=< Possible providing the type of material remains as tested Test on higher density material
panel and the leaf symmetry is not affected, otherwise not different core material
possible without additional test
A.4.2 density of core material of leaf or Decrease ≤ ≤ ≤ Not possible without additional test Additional test to include the
panel required density of core
material
A.4.3 thickness of core material of leaf or Increase >=< >= >= Possible in line with A3.5 providing the core material is
panel clearly identifiable as the primary core material, otherwise
not possible without additional test
A.4.4 thickness of core material of leaf or Decrease ≤ ≤ ≤ Not possible without additional test
panel
Construction Parameter Variation Influence of variation Possibility of extension Additional Evidence

on performance Required
h ti ti
(1) (2) (3) (4) (5)
E I W
Test must be on a leaf with the
A.4.5 pattern of core material of leaf or increase number of pieces >=< = = Possible up to 50 % providing the test included more than
panel – See figure 7 one joint. For double leaf doorsets, the rule shall be maximum number of required
applied to each leaf separately, otherwise not possible pieces
without additional test.
A.4.6 pattern of core material of leaf or Decrease number of pieces >=< = = Possible by up to 50 % providing one joint in the core Test must be on a leaf with the
panel material remains. For double leaf doorsets, the rule shall minimum number of required
be applied to each leaf separately, otherwise not possible pieces
without additional test. .
A.4.7 number of layers of identical core decrease number of layers >=< = = Possible up to 50 % for category B doors. For double leaf Test must be on a leaf with the
material of leaf or panel doorsets, the rule shall be applied to each leaf separately. minimum number of required
In all cases, the core thickness shall remain as tested, pieces
otherwise not possible without additional test.
A.4.8 number of layers of identical core Increase number of layers >=< = = Not possible unless the increase results in a thicker door Test must be on a leaf with the
material of leaf or panel leaf i.e. by adding an extra layer, otherwise not possible maximum number of required
without additional test layers
A.4.9 number of layers of different Decrease ≤ ≤ ≤ not possible without additional test Test must be on a leaf with the
materials in leaf or panel minimum number of required
layers
A.4.10 type of core material in leaf or change of manufacturer (same >=< >=< >=< Possible providing the following aspects are the same or Further test to be on the
panel (single thickness or in combination basic product typ A4.e) with a higher performance: specific type of core material
of different layers) - Group No. as shown on Page 6
- Shrinkage under heating
- Distortion characteristics under heating
- Insulation properties
- Euroclass reaction to fire performance
otherwise not possible without additional test
Construction Parameter Variation Influence of variation Possibility of extension Additional Evidence

on performance Required
h ti ti
(1) (2) (3) (4) (5)
E I W
Further test using the specific
A.4.11 type of core material in leaf or alternative composition of same >=< >=< >=< Possible providing the following aspects are the same or
panel (single thickness or in combination basic product type with a higher performance: type of core material
of different layers) - Group No. as shown on Page 6
- Shrinkage under heating
- Distortion characteristics under heating
- Insulation properties
- Euroclass reaction to fire performance
otherwise not possible without additional test
A.4.12 Structural subfacing Alternative type A4. >=< >=< >=< Possible to change timber based types providing the Additional test using the
alternative is of the same or higher density and the same specific type of material
or greater thickness (subject to A4.13), otherwise not
possible without additional test
A.4.13 Structural subfacing Change in thickness >=< >=< >=< For timber based subfacings, it is possible to increase the Further test using the specific
thickness of the tested subfacing by up to 50 % and to thickness of material
decrease the thickness by up to 30 % for low distortion or
Category B doors, otherwise not possible without
additional test
A.4.14 amount of adhesives / g/m – Increase >=< >=< >=< Possible up to 25 % increase in g/m²
Euroclass A1 based used in leaf or panel
A.4.15 amount of adhesives / g/m – Decrease ≤ ≤ ≤ Not possible Additional test to include the
Euroclass A1 based used in leaf or panel minimum amount of adhesive
A.4.16 amount of adhesives / g/m – < Increase >=< >=< >=< Possible up to 25 % increase in g/m²
Euroclass A1 based used in leaf or panel
A.4.17 amount of adhesives / g/m – < Decrease ≤ ≤ ≤ Not possible Additional test to include the
Euroclass A1 based used in leaf or panel minimum amount of adhesive
Construction Parameter Variation Influence of variation Possibility of extension Additional Evidence

on performance Required
h ti ti
(1) (2) (3) (4) (5)
E I W
A.4.18 type of adhesives used in leaf or change of >=< >=< >=< Possible
panel supplier/manufacturer for
identical composition
A.4.19 type of adhesives used in leaf or alternative composition ≤ ≤ ≤ Not possible Additional test to include the
panel alternative adhesive
A.4.20 metal protective sheet (internally Add >=< >=< >=< If placed adjacent to the subfacings, possible for metals Further test to include the
mounted) used in leaf or panel with a melting point of less than 660 degrees C with total required sheets
thickness for all the required sheets not exceeding 1mm
and providing the symmetry of the leaf is maintained
A.4.21 metal protective sheet (internally Remove ≤ ≤ ≤ Not possible Additional test to include a door
mounted) used in leaf or panel leaf with no sheet
A.4.22 electronic security mesh in leaf or Add >=< >=< >=< Possible for mesh with a maximum of 1mm thickness If Further test to include the
panel placed under the subfacings required mesh
A.4.23 electronic security mesh in leaf or Remove ≤ ≤ ≤ Not Possible. Further test to include no mesh
panel
A.4.24 cross - section dimension of Increase >=< >=< >=< Possible to increase the depth of the elements in line with
perimeter framing elements in leaf or an increase in leaf thickness and to increase the width by
panel up to 25 % for each element
A.4.25 Change of species of perimeter solid timber >=< >=< >=< Possible to change species for other solid timber within
framing elements in leaf or panel the same Group as described on Page 6 for the same or
higher density timber only.
A.4.26 Change of material of perimeter change of material ≤ ≤ ≤ not possible without further test. Additional test to include the
framing elements in leaf or panel required material
Construction Parameter Variation Influence of variation Possibility of extension Additional Evidence

on performance Required
h ti ti
(1) (2) (3) (4) (5)
E I W
Additional test to include the
A.4.27 cross - section dimension of Decrease ≤ ≤ ≤ Not possible to decrease the depth without further test
perimeter framing elements in leaf or Possible to decrease the width by a maximum of 10 % for minimum dimension of framing
panel Category B doors with low distortion otherwise not element
possible without further test
A.4.28 Timber threshold at the bottom of Add ≤ ≤ ≤ possible providing the doorset included timber component The required threshold detail
the door leaf or panel – See Figure 8 at the base of the leaf (may be a flat timber threshold as a must be tested
simulant for a rebated threshold) otherwise additional test
is required
A.4.29 tested threshold at the bottom of Remove ≤ ≤ ≤ Not possible The required threshold detail
the door leaf or panel must be tested
A.4.30 Decorative leaf or panel edge Shape >=< >=< >=< Possible only if adding amount of leaf material at leaf edge Further test to include the
detail – See Figure 9 i.e. the cross section must increase. The modification shall required minimum cross section
not affect the detail within the rebate.
Otherwise not possible without further test
A.4.31 jointing technique of internal leaf alternative >=< ≤ ≤ Not possible The required jointing method &
or panel framing detail must be tested
A.4.32 dimension of intumescent seals Increase >=< >=< >=< Possible without limitation for non pressure forming seals Additional test to include
(fitted in leaf or frame) otherwise, possible for pressure forming seals, by up to maximum size of intumescent
10 % in cross sectional area or by a proportionate amount seals
with a leaf thickness increase and if used on latched door
leaves otherwise further test required
A.4.33 dimension of intumescent seals decrease ≤ ≤ ≤ Not possible Test to include minimum size of
(fitted in leaf or frame) intumescent seals
...
