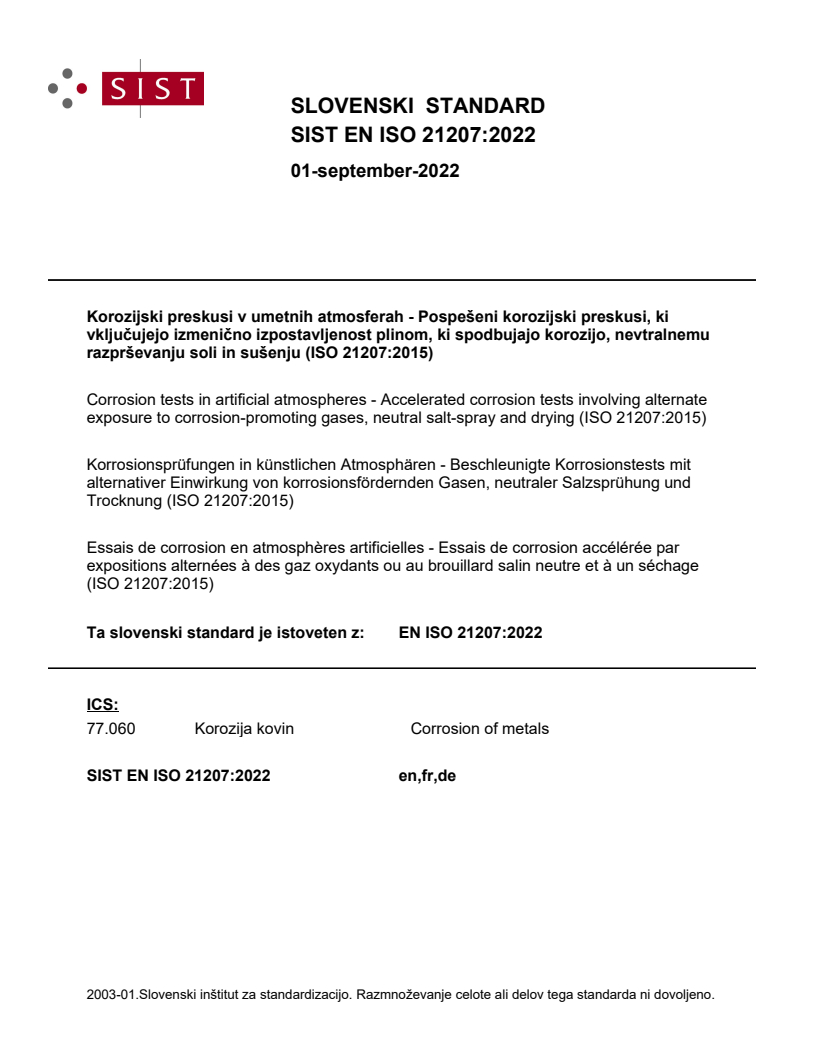

EN ISO 21207:2022

SLOVENSKI STANDARD
01-september-2022
Korozijski preskusi v umetnih atmosferah - Pospešeni korozijski preskusi, ki
vključujejo izmenično izpostavljenost plinom, ki spodbujajo korozijo, nevtralnemu
razprševanju soli in sušenju (ISO 21207:2015)
Corrosion tests in artificial atmospheres - Accelerated corrosion tests involving alternate
exposure to corrosion-promoting gases, neutral salt-spray and drying (ISO 21207:2015)
Korrosionsprüfungen in künstlichen Atmosphären - Beschleunigte Korrosionstests mit
alternativer Einwirkung von korrosionsfördernden Gasen, neutraler Salzsprühung und
Trocknung (ISO 21207:2015)
Essais de corrosion en atmosphères artificielles - Essais de corrosion accélérée par
expositions alternées à des gaz oxydants ou au brouillard salin neutre et à un séchage
(ISO 21207:2015)
Ta slovenski standard je istoveten z: EN ISO 21207:2022
ICS:
77.060 Korozija kovin Corrosion of metals
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

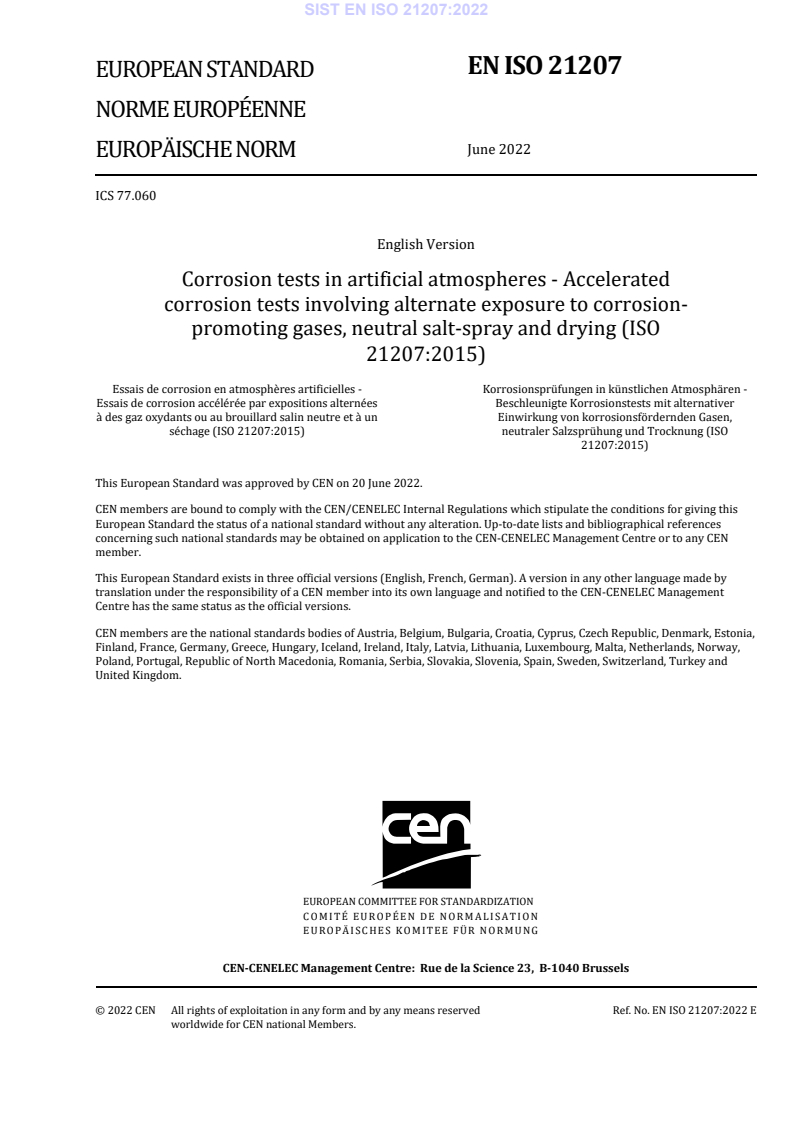

EN ISO 21207
EUROPEAN STANDARD
NORME EUROPÉENNE
June 2022
EUROPÄISCHE NORM
ICS 77.060
English Version
Corrosion tests in artificial atmospheres - Accelerated
corrosion tests involving alternate exposure to corrosion-
promoting gases, neutral salt-spray and drying (ISO
21207:2015)
Essais de corrosion en atmosphères artificielles - Korrosionsprüfungen in künstlichen Atmosphären -
Essais de corrosion accélérée par expositions alternées Beschleunigte Korrosionstests mit alternativer
à des gaz oxydants ou au brouillard salin neutre et à un Einwirkung von korrosionsfördernden Gasen,
séchage (ISO 21207:2015) neutraler Salzsprühung und Trocknung (ISO
21207:2015)
This European Standard was approved by CEN on 20 June 2022.

CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this
European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references
concerning such national standards may be obtained on application to the CEN-CENELEC Management Centre or to any CEN
member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by
translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management
Centre has the same status as the official versions.

CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia,
Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway,
Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and
United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION

EUROPÄISCHES KOMITEE FÜR NORMUNG

CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2022 CEN All rights of exploitation in any form and by any means reserved Ref. No. EN ISO 21207:2022 E
worldwide for CEN national Members.

Contents Page
European foreword . 3

European foreword
The text of ISO 21207:2015 has been prepared by Technical Committee ISO/TC 156 "Corrosion of
metals and alloys” of the International Organization for Standardization (ISO) and has been taken over
as EN ISO 21207:2022 by Technical Committee CEN/TC 262 “Metallic and other inorganic coatings,
including for corrosion protection and corrosion testing of metals and alloys” the secretariat of which is
held by BSI.
This European Standard shall be given the status of a national standard, either by publication of an
identical text or by endorsement, at the latest by December 2022, and conflicting national standards
shall be withdrawn at the latest by December 2022.
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. CEN shall not be held responsible for identifying any or all such patent rights.
Any feedback and questions on this document should be directed to the users’ national standards body.
A complete listing of these bodies can be found on the CEN website.
According to the CEN-CENELEC Internal Regulations, the national standards organizations of the
following countries are bound to implement this European Standard: Austria, Belgium, Bulgaria,
Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland,
Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Republic of
North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and the
United Kingdom.
Endorsement notice
The text of ISO 21207:2015 has been approved by CEN as EN ISO 21207:2022 without any modification.

INTERNATIONAL ISO
STANDARD 21207
Second edition
2015-12-15
Corrosion tests in artificial
atmospheres — Accelerated corrosion
tests involving alternate exposure to
corrosion-promoting gases, neutral
salt-spray and drying
Essais de corrosion en atmosphères artificielles — Essais de corrosion
accélérée par expositions alternées à des gaz oxydants ou au
brouillard salin neutre et à un séchage
Reference number
ISO 21207:2015(E)
©
ISO 2015
ISO 21207:2015(E)
© ISO 2015, Published in Switzerland
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized otherwise in any form
or by any means, electronic or mechanical, including photocopying, or posting on the internet or an intranet, without prior
written permission. Permission can be requested from either ISO at the address below or ISO’s member body in the country of
the requester.
ISO copyright office
Ch. de Blandonnet 8 • CP 401
CH-1214 Vernier, Geneva, Switzerland
Tel. +41 22 749 01 11
Fax +41 22 749 09 47
copyright@iso.org
www.iso.org
ii © ISO 2015 – All rights reserved

ISO 21207:2015(E)
Contents Page
Foreword .iv
Introduction .v
1 Scope . 1
2 Normative references . 1
3 Apparatus and reagents . 1
4 Evaluation of the corrosivity of the tests . 2
4.1 Reference test panels . 2
4.2 Arrangement of the reference panels during testing . 3
4.3 Determination of mass loss after testing . 3
4.4 Satisfactory performance of test . 3
5 Test objects . 4
6 Procedure. 4
6.1 Test method A . 4
6.1.1 Test cycle . 4
6.1.2 Salt spray testing followed by drying (step a) . 4
6.1.3 Exposure to corrosive gases followed by drying (step b) . 5
6.1.4 Test duration . 5
6.2 Test method B . 5
6.2.1 Test cycle . 5
6.2.2 Salt spray testing followed by drying (step a or step c) . 6
6.2.3 Exposure to corrosive gases (step b or step d) . 6
6.2.4 Test duration . 6
7 Evaluation of results . 6
8 Test report . 7
Annex A (informative) Recommended test periods . 8
Bibliography . 9
ISO 21207:2015(E)
Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards
bodies (ISO member bodies). The work of preparing International Standards is normally carried out
through ISO technical committees. Each member body interested in a subject for which a technical
committee has been established has the right to be represented on that committee. International
organizations, governmental and non-governmental, in liaison with ISO, also take part in the work.
ISO collaborates closely with the International Electrotechnical Commission (IEC) on all matters of
electrotechnical standardization.
The procedures used to develop this document and those intended for its further maintenance are
described in the ISO/IEC Directives, Part 1. In particular the different approval criteria needed for the
different types of ISO documents should be noted. This document was drafted in accordance with the
editorial rules of the ISO/IEC Directives, Part 2 (see www.iso.org/directives).
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. ISO shall not be held responsible for identifying any or all such patent rights. Details of
any patent rights identified during the development of the document will be in the Introduction and/or
on the ISO list of patent declarations received (see www.iso.org/patents).
Any trade name used in this document is information given for the convenience of users and does not
constitute an endorsement.
For an explanation on the meaning of ISO specific terms and expressions related to conformity
assessment, as well as information about ISO’s adherence to the WTO principles in the Technical
Barriers to Trade (TBT) see the following URL: Foreword - Supplementary information
The committee responsible for this document is ISO/TC 156, Corrosion of metals and alloys.
This second edition cancels and replaces the first edition (ISO 21207:2004), of which it constitutes a
minor revision. It also incorporates the Technical Corrigendum ISO 21207:2004/Cor 1:2008.
iv © ISO 2015 – All rights reserved

ISO 21207:2015(E)
Introduction
Corrosion of metallic materials with or without corrosion protection is influenced by many
environmental factors, the importance of which can vary with the type of metallic material and with
the type of environment. Laboratory tests are designed to simulate the effects of the most important
factors that enhance the corrosion of metallic materials.
The accelerated corrosion test methods described in this International Standard, methods A and B,
are designed to simulate and enhance the environmental influence of exposure to an outdoor climate
where salt-contaminated conditions and corrosion-promoting gases from an industrial or a traffic
environment occur which might promote corrosion. Test method A simulates a moderately aggressive
traffic environment while test method B simulates a more severe industrial or traffic environment.
Test method A involves exposure of the test objects to the following test cycle:
a) neutral salt spray testing (ISO 9227) for 2 h in a mist of a sodium chloride salt solution of mass
fraction 5 % at 35 °C, followed by drying for 22 h in a standard laboratory climate;
b) exposure for 120 h in a test atmosphere containing a mixture of corrosion-promoting gases, volume
−6 −6
fraction of NO equal to 1,5 × 10 and of SO equal to 0,5 × 10 , at a relative humidity of 95 % and
2 2
at a temperature of 25 °C, followed by drying for 24 h in a standard laboratory climate.
Test method B involves exposure of the test objects to the following test cycle:
a) neutral salt spray testing (ISO 9227) for 2 h in a mist of a sodium chloride salt solution of mass
fraction 5 % at 35 °C, followed by drying for 22 h in a standard laboratory climate;
b) exposure for 48 h in a test atmosphere containing a mixture of corrosion-promoting gases, volume
−6 −6
fraction of NO equal to 10 × 10 and of SO equal to 5 × 10 , at a relative humidity of 95 % and at
2 2
a temperature of 25 °C;
c) neutral salt spray testing (ISO 9227) for 2 h in a mist of a sodium chloride salt solution of mass
fraction 5 % at 35 °C, followed by drying for 22 h in a standard laboratory climate;
d) exposure for 72 h in a test atmosphere containing a mixture of corrosion-promoting gases, volume
−6 −6
fraction of NO equal to 10 × 10 and of SO equal to 5 × 10 , at a relative humidity of 95 % and at
2 2
a temperature of 25 °C.
The results obtained do not permit far-reaching conclusions on the corrosion resistance of the tested
product under the whole range of environmental conditions in which it may be used.
INTERNATIONAL STANDARD ISO 21207:2015(E)
Corrosion tests in artificial atmospheres — Accelerated
corrosion tests involving alternate exposure to corrosion-
promoting gases, neutral salt-spray and drying
1 Scope
This International Standard defines two accelerated corrosion test methods to be used in assessing the
corrosion resistance of products with metals in environments where there is a significant influence of
chloride ions, mainly as sodium chloride from a marine source or by winter road de-icing salt, and of
corrosion-promoting gases from industrial or traffic air pollution.
This International Standard specifies both the test apparatus and test procedures to be used in
executing the accelerated corrosion tests.
The methods are especially suitable for assessing the corrosion resistance of sensitive products with
metals, e.g. electronic components, used in traffic and industrial environments.
2 Normative references
The following documents, in whole or in part, are normatively referenced in this document and are
indispensable for its application. For dated references, only the edition cited applies. For undated
references, the latest edition of the referenced document (including any amendments) applies.
ISO 8407, Corrosion of metals and alloys — Removal of corrosion products from corrosion test specimens
ISO 9227, Corrosion tests in artificial atmospheres — Salt spray tests
ISO 10062, Corrosion tests in artificial atmosphere at very low concentrations of polluting gas(es)
ISO 10289, Methods for corrosion testing of metallic and other inorganic coatings on metallic substrates —
Rating of test specimens and manufactured articles subjected to corrosion tests
3 Apparatus and reagents
3.1 Exposure of test objects to mixtures of NO and SO at a relative humidity of 95 % and a
2 2
temperature of 25 °C.
The climatic cabinet with inner chamber and gas flow system shall comply with the requirements
of ISO 10062.
The equipment used for testing shall be constructed for the following reasons.
a) The inner chamber and gas flow system consist of inert materials, e.g. PTFE
(polytetrafluoroethylene) or glass, to avoid or minimize adsorption of hostile gases on surfaces
other than of that of the test panels.
b) Airflow and hostile gas injection system are designed to ensure uniform test conditions in the inner
chamber or working space of cabinet.
In the most common design of test equipment, the test atmosphere in the working space is obtained
by continuously introducing the necessary quantity of the mixture of corrosion-promoting gases
into a damp airflow to obtain the required concentration. The corrosion-promoting gases and
conditioned air are mixed outside the cabinet. The conditioned air is taken from the outer chamber
of the climatic cabinet. The airflow after injection of the corrosion-promoting gases is then mixed
ISO 21207:2015(E)
with a flow of re-circulated test atmosphere and the resulting gas flow admitted into the inner
chamber or working space of the cabinet. Half of the flow of the test atmosphere through the inner
chamber may be re-circulated.
To ensure uniform test conditions in the working space, the test atmosphere is normally supplied
to the working space from the bottom and the outlet is placed at the top. Perforated plates are
placed in front of the openings to ensure uniform airflow through the working space.
c) Uniformity of temperature in the working space shall be better than ±1 °C and uniformity of relative
humidity better than ±3 %. In terms of corrosivity, expressed as the corrosion rate of copper
...
