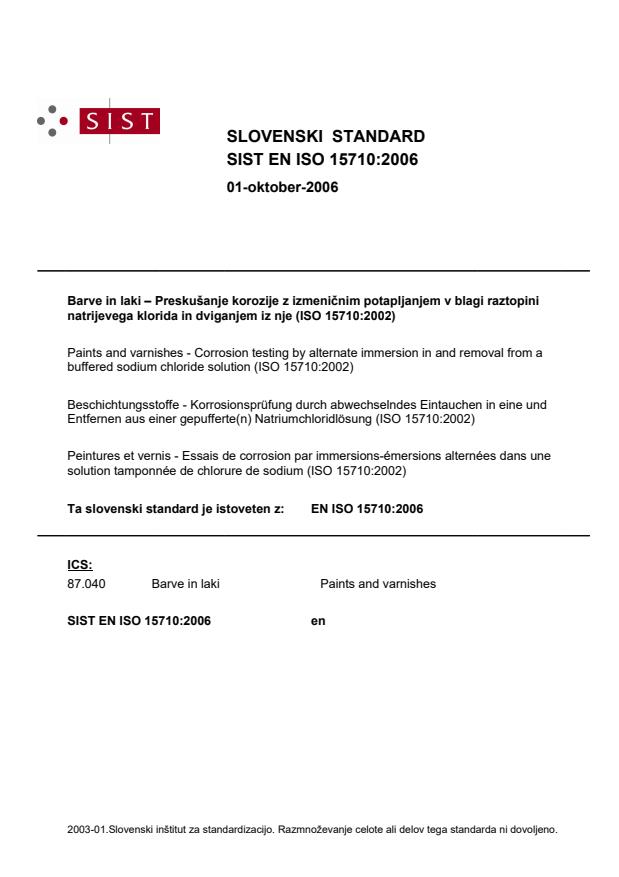

EN ISO 15710:2006

SLOVENSKI STANDARD
01-oktober-2006
%DUYHLQODNL±3UHVNXãDQMHNRUR]LMH]L]PHQLþQLPSRWDSOMDQMHPYEODJLUD]WRSLQL
QDWULMHYHJDNORULGDLQGYLJDQMHPL]QMH,62
Paints and varnishes - Corrosion testing by alternate immersion in and removal from a
buffered sodium chloride solution (ISO 15710:2002)
Beschichtungsstoffe - Korrosionsprüfung durch abwechselndes Eintauchen in eine und
Entfernen aus einer gepufferte(n) Natriumchloridlösung (ISO 15710:2002)
Peintures et vernis - Essais de corrosion par immersions-émersions alternées dans une
solution tamponnée de chlorure de sodium (ISO 15710:2002)
Ta slovenski standard je istoveten z: EN ISO 15710:2006
ICS:
87.040 Barve in laki Paints and varnishes
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

EUROPEAN STANDARD
EN ISO 15710
NORME EUROPÉENNE
EUROPÄISCHE NORM
June 2006
ICS 87.040
English Version
Paints and varnishes - Corrosion testing by alternate immersion
in and removal from a buffered sodium chloride solution (ISO
15710:2002)
Peintures et vernis - Essais de corrosion par immersions- Beschichtungsstoffe - Korrosionsprüfung durch
émersions alternées dans une solution tamponnée de abwechselndes Eintauchen in eine und Entfernen aus einer
chlorure de sodium (ISO 15710:2002) gepufferte(n) Natriumchloridlösung (ISO 15710:2002)
This European Standard was approved by CEN on 19 May 2006.
CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European
Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such national
standards may be obtained on application to the Central Secretariat or to any CEN member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation
under the responsibility of a CEN member into its own language and notified to the Central Secretariat has the same status as the official
versions.
CEN members are the national standards bodies of Austria, Belgium, Cyprus, Czech Republic, Denmark, Estonia, Finland, France,
Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania,
Slovakia, Slovenia, Spain, Sweden, Switzerland and United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION
EUROPÄISCHES KOMITEE FÜR NORMUNG
Management Centre: rue de Stassart, 36  B-1050 Brussels
© 2006 CEN All rights of exploitation in any form and by any means reserved Ref. No. EN ISO 15710:2006: E
worldwide for CEN national Members.

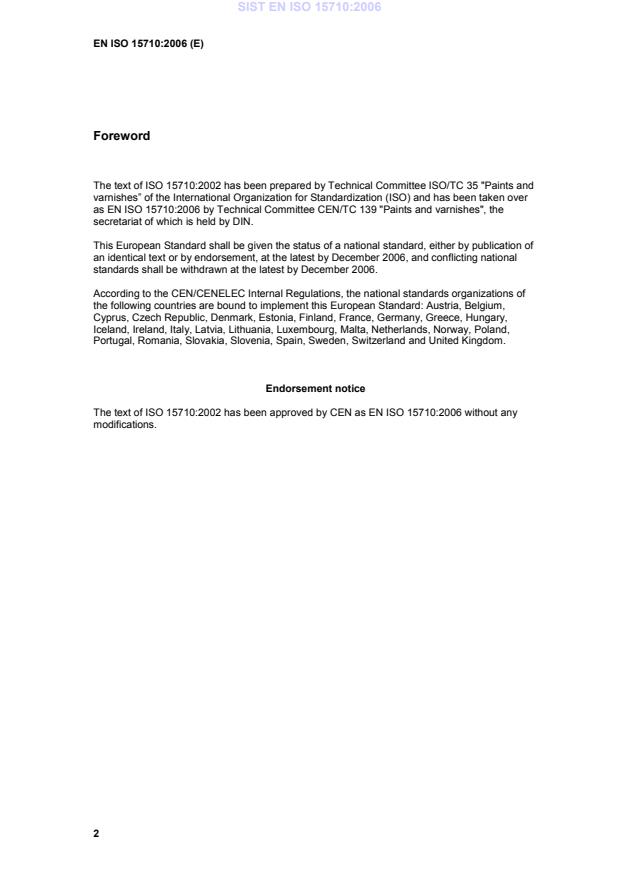

Foreword
The text of ISO 15710:2002 has been prepared by Technical Committee ISO/TC 35 "Paints and
varnishes” of the International Organization for Standardization (ISO) and has been taken over
as EN ISO 15710:2006 by Technical Committee CEN/TC 139 "Paints and varnishes", the
secretariat of which is held by DIN.

This European Standard shall be given the status of a national standard, either by publication of
an identical text or by endorsement, at the latest by December 2006, and conflicting national
standards shall be withdrawn at the latest by December 2006.

According to the CEN/CENELEC Internal Regulations, the national standards organizations of
the following countries are bound to implement this European Standard: Austria, Belgium,
Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary,
Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland,
Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland and United Kingdom.

Endorsement notice
The text of ISO 15710:2002 has been approved by CEN as EN ISO 15710:2006 without any
modifications.
INTERNATIONAL ISO
STANDARD 15710
First edition
2002-10-01
Paints and varnishes — Corrosion testing
by alternate immersion in and removal from
a buffered sodium chloride solution
Peintures et vernis — Essais de corrosion par immersions-émersions
alternées dans une solution tamponnée de chlorure de sodium

Reference number
ISO 15710:2002(E)
ISO 15710:2002(E)
PDF disclaimer
This PDF file may contain embedded typefaces. In accordance with Adobe's licensing policy, this file may be printed or viewed but shall not be
edited unless the typefaces which are embedded are licensed to and installed on the computer performing the editing. In downloading this file,
parties accept therein the responsibility of not infringing Adobe's licensing policy. The ISO Central Secretariat accepts no liability in this area.
Adobe is a trademark of Adobe Systems Incorporated.
Details of the software products used to create this PDF file can be found in the General Info relative to the file; the PDF-creation parameters
were optimized for printing. Every care has been taken to ensure that the file is suitable for use by ISO member bodies. In the unlikely event
that a problem relating to it is found, please inform the Central Secretariat at the address given below.
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form or by any means,
electronic or mechanical, including photocopying and microfilm, without permission in writing from either ISO at the address below or ISO's
member body in the country of the requester.
ISO copyright office
Case postale 56  CH-1211 Geneva 20
Tel. + 41 22 749 01 11
Fax + 41 22 749 09 47
E-mail copyright@iso.ch
Web www.iso.ch
Printed in Switzerland
©
ii ISO 2002 – All rights reserved

ISO 15710:2002(E)
Contents Page
1 Scope . 1
2 Normative references . 1
3 Principle . 1
4 Required supplementary information . 1
5 Initial test solution . 2
6 Apparatus . 2
7 Sampling . 2
8 Test panels . 3
9 Procedure . 4
10 Inspection of test panels . 5
11 Precision . 5
12 Test report . 5
Annex
A Required supplementary information. 6
©
ISO 2002 – All rights reserved iii

ISO 15710:2002(E)
Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards bodies (ISO
member bodies). The work of preparing International Standards is normally carried out through ISO technical
committees. Each member body interested in a subject for which a technical committee has been established has
the right to be represented on that committee. International organizations, governmental and non-governmental, in
liaison with ISO, also take part in the work. ISO collaborates closely with the International Electrotechnical
Commission (IEC) on all matters of electrotechnical standardization.
International Standards are drafted in accordance with the rules given in the ISO/IEC Directives, Part 3.
Draft International Standards adopted by the technical committees are circulated to the member bodies for voting.
Publication as an International Standard requires approval by at least 75 % of the member bodies casting a vote.
Attention is drawn to the possibility that some of the elements of this International Standard may be the subject of
patent rights. ISO shall not be held responsible for identifying any or all such patent rights.
International Standard ISO15710 was prepared by Technical Committee ISO/TC35, Paints and varnishes,
Subcommittee SC 9, General test methods for paints and varnishes.
Annex A forms a normative part of this International Standard.
©
iv ISO 2002 – All rights reserved

ISO 15710:2002(E)
Introduction
Coatings of paints, varnishes and similar materials are exposed to alternating wet and dry (humid) cyclic conditions
using a specified salt solution in a cabinet in order to simulate, in the laboratory, processes occurring in aggressive
outdoor conditions. Generally, correlations between such outdoor weathering and laboratory testing cannot be
expected because of the large number of factors influencing the breakdown process. Correlation can only be
expected if the effect on the coating of important parameters (e.g. nature of the salt, spectral distribution of the
incident radiation in the relevant photochemical region, temperature of the specimen, type and cycle of wetting and
relative humidity) is known. In contrast to outdoor weathering, laboratory testing in a cabinet is performed under a
reduced number of variables which can be controlled and therefore the effects are more reproducible. The method
may also give a means of checking that the quality of a paint or paint system is being maintained.
The method has been found to be useful in comparing the alternate immersion/emersion salt solution resistance of
different coatings. It is most useful in providing relevant ratings for a series of coated panels exhibiting significant
differences in alternate immersion/emersion salt solution resistance.
This method is intended principally for testing paints used in aerospace applications. The types of conditions
specified may occur as an aircraft flies through a variety of environments including sudden changes in temperature
and pressure. The results of the test specified in this International Standard will give an indication of the ability of a
paint system to withstand these corrosive atmospheres.
©
ISO 2002 – All rights reserved v

INTERNATIONAL STANDARD ISO 15710:2002(E)
Paints and varnishes — Corrosion testing by alternate immersion in
and removal from a buffered sodium chloride solution
1 Scope
This International Standard describes a test procedure for assessing the protection offered by coatings of paints or
varnishes on aluminium and aluminium alloys against corrosion arising against a scribe mark cut through the
coating, when the coated panel is subjected to a test regime of alternate immersion in and removal fr
...
