EN 16506:2014
(Main)Systems for renovation of drains and sewers - Lining with a rigidly anchored plastics inner layer (RAPL)
Systems for renovation of drains and sewers - Lining with a rigidly anchored plastics inner layer (RAPL)
This European Standard specifies performance requirements and describes test methods for pipes and fittings for the renovation of underground drain and sewer systems by lining with a single rigid annulus of structural cementitious grout formed behind a plastics inner layer. This plastics layer serves as permanent formwork anchored to the grout. It is applicable to plastics inner layers and grout systems with or without steel reinforcement.
This European Standard does not apply to the structural design of the lining system.
NOTE Systems with multiple annuli are available, but these are controlled by patent rights and not covered by this European Standard.
Systeme für die Renovierung von Abwasserkanälen und -leitungen - Lining mit fest verankerter Kunststoffauskleidung
Diese Europäische Norm legt Anforderungen und Prüfverfahren für Rohre und Formstücke fest, die für die Renovierung von erdverlegten Abwasserkanälen und -leitungen durch Lining mit einem biegesteifen Ringraum aus statisch tragender Zementmörtelverfüllung, der hinter einer Kunststoffauskleidung geformt wird, verwendet werden. Die mit dem Mörtel verankerte Kunststoffauskleidung dient als dauerhafte Verschalung. Sie gilt für Kunststoffauskleidungen und Mörtel-Systeme mit oder ohne Stahlbewehrung.
Diese Europäische Norm gilt nicht für die statische Bemessung des Lining Systems.
ANMERKUNG Systeme mit mehreren Ringräumen sind verfügbar, jedoch durch Patente geschützt und deshalb nicht im Anwendungsbereich der vorliegenden Europäischen Norm enthalten.
Systèmes de rénovation des réseaux d'assainissement - Chemisage par revêtement de plastique interne rigidement ancré
La présente Norme européenne spécifie les exigences de performance et les méthodes d’essai des tuyaux et raccords pour la rénovation des systèmes de branchements et de collecteurs enterrés par chemisage avec un seul espace annulaire rigide injecté de coulis structurel à base de ciment formé derrière un revêtement de plastique interne. Ce revêtement de plastique sert essentiellement de coffrage permanent ancré dans le coulis. La présente Norme européenne s'applique aux revêtements internes de plastique et aux systèmes de coulis avec ou sans renforcement en acier.
La présente Norme européenne ne s'applique pas au dimensionnement structurel du système de chemisage.
NOTE Des systèmes avec plusieurs espaces annulaires sont disponibles, mais ils font l’objet de droits de propriété intellectuelle ou de droits analogues et ne sont pas couverts par la présente Norme européenne.
Sistemi za obnovo odvodov odpadne vode in kanalizacije - Oblaganje s togo pritrjeno polimerno notranjo oblogo (RAPL)
Ta evropski standard določa zahteve glede zmogljivosti in opisuje preskusne metode za cevi ter spojnike za obnovo odvodov odpadne vode in kanalizacije z oblaganjem z enim togo pritrjenim vmesnim prostorom strukturne cementne injekcijske mase za polimerno notranjo oblogo. Ta polimerna obloga služi kot stalen opaž, ki je pritrjen na maso. Uporablja se za polimerne notranje obloge in sisteme za nanašanje malte z jekleno armaturo ali brez nje.
Ta evropski standard se ne uporablja za projektiranje konstrukcij sistema oblog.
OPOMBA: Sistemi z več vmesnimi prostori so na voljo, vendar so nadzorovani s patentnimi pravicami in niso vključeni v tem evropskem standardu.
General Information
- Status
- Published
- Publication Date
- 14-Oct-2014
- Technical Committee
- CEN/TC 165 - Waste water engineering
- Drafting Committee
- CEN/TC 165/WG 13 - Renovation and repair of drains and sewers
- Current Stage
- 9093 - Decision to confirm - Review Enquiry
- Start Date
- 13-Nov-2020
- Completion Date
- 23-Sep-2025
Overview
EN 16506:2014 - Systems for renovation of drains and sewers - Lining with a rigidly anchored plastics inner layer (RAPL) - is a CEN European Standard that specifies performance requirements and test methods for pipes and fittings used to renovate underground drains and sewers by forming a single rigid annulus of structural cementitious grout behind a plastics inner layer. The plastics inner layer acts as permanent formwork and is anchored to the grout. The standard covers grout systems with or without steel reinforcement but does not cover structural design of the lining. Multi‑annulus patented systems are excluded.
Key topics and requirements
- Scope and terminology: Definitions for RAPL, anchored plastics inner layer, annulus, grout system, M stage (manufactured components) and I stage (installed, grout-cured assembly).
- Materials and appearance: Requirements for plastics inner layer materials and cementitious grout systems; applicable material characteristics and testing methods.
- Geometric and jointing requirements: Dimensional characteristics for profiled plastics strips, PE sheets with integral anchors, and jointing/welding or mechanical connection methods.
- Performance tests: Normative test methods include:
- Annex A - anchoring strength (pull‑off) test for the plastics inner layer.
- Annex B - I‑stage crushing strength test for the cured lining.
- Fittings and lateral connections: Material, geometric and performance requirements for fittings and lateral reconnection collars.
- Installation, marking and documentation: Guidance on preparatory work, handling, storage, equipment, lining termination in manholes, reconnection procedures, final inspection, product marking and required documentation.
Practical applications
EN 16506 is intended for use in the renovation of underground drain and sewer systems where a plastics inner layer is permanently anchored to a cementitious grout annulus. Typical applications:
- Lining and rehabilitation of sewers and drains to restore structural integrity and provide corrosion protection.
- Rehabilitation projects requiring a durable inside surface provided by plastics formwork and structured grout.
- Systems with or without embedded steel reinforcement where the plastics layer serves as permanent formwork.
Who uses this standard
- Manufacturers of RAPL pipe components and grout systems
- Design and civil/municipal engineers specifying renovation solutions
- Installation contractors and rehabilitation specialists
- Testing laboratories and conformity assessment bodies
- Asset owners and utilities procuring sewer renovation works
Related standards (selection)
- EN ISO 11296 series (plastic piping systems for renovation)
- EN 13380 (M and I stage definitions)
- EN 1542, EN 14117 and other cementitious and testing standards referenced in EN 16506
Keywords: EN 16506:2014, RAPL, lining with a rigidly anchored plastics inner layer, sewer renovation, drain lining, cementitious grout, plastics inner layer, anchoring strength, pull‑off test, I‑stage crushing strength.
Frequently Asked Questions
EN 16506:2014 is a standard published by the European Committee for Standardization (CEN). Its full title is "Systems for renovation of drains and sewers - Lining with a rigidly anchored plastics inner layer (RAPL)". This standard covers: This European Standard specifies performance requirements and describes test methods for pipes and fittings for the renovation of underground drain and sewer systems by lining with a single rigid annulus of structural cementitious grout formed behind a plastics inner layer. This plastics layer serves as permanent formwork anchored to the grout. It is applicable to plastics inner layers and grout systems with or without steel reinforcement. This European Standard does not apply to the structural design of the lining system. NOTE Systems with multiple annuli are available, but these are controlled by patent rights and not covered by this European Standard.
This European Standard specifies performance requirements and describes test methods for pipes and fittings for the renovation of underground drain and sewer systems by lining with a single rigid annulus of structural cementitious grout formed behind a plastics inner layer. This plastics layer serves as permanent formwork anchored to the grout. It is applicable to plastics inner layers and grout systems with or without steel reinforcement. This European Standard does not apply to the structural design of the lining system. NOTE Systems with multiple annuli are available, but these are controlled by patent rights and not covered by this European Standard.
EN 16506:2014 is classified under the following ICS (International Classification for Standards) categories: 23.040.05 - Pipeline and its parts for external sewage systems; 23.040.20 - Plastics pipes; 23.040.45 - Plastics fittings; 23.040.99 - Other pipeline components; 93.030 - External sewage systems. The ICS classification helps identify the subject area and facilitates finding related standards.
You can purchase EN 16506:2014 directly from iTeh Standards. The document is available in PDF format and is delivered instantly after payment. Add the standard to your cart and complete the secure checkout process. iTeh Standards is an authorized distributor of CEN standards.
Standards Content (Sample)
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Sistemi za obnovo odvodov odpadne vode in kanalizacije - Oblaganje s togo pritrjeno polimerno notranjo oblogo (RAPL)Systeme für die Renovierung von Abwasserkanälen und -leitungen - Lining mit fest verankerter KunststoffauskleidungSystèmes de rénovation des réseaux d'assainissement - Chemisage par revêtement de plastique interne rigidement ancréSystems for renovation of drains and sewers - Lining with a rigidly anchored plastics inner layer (RAPL)93.030Zunanji sistemi za odpadno vodoExternal sewage systems91.140.80Drenažni sistemiDrainage systemsICS:Ta slovenski standard je istoveten z:EN 16506:2014SIST EN 16506:2015en,fr,de01-januar-2015SIST EN 16506:2015SLOVENSKI
STANDARD
EUROPEAN STANDARD NORME EUROPÉENNE EUROPÄISCHE NORM
EN 16506
October 2014 ICS 23.040.20; 23.040.45; 23.040.99; 93.030 English Version
Systems for renovation of drains and sewers - Lining with a rigidly anchored plastics inner layer (RAPL)
Systèmes de rénovation des réseaux d'assainissement - Chemisage par revêtement de plastique interne rigidement ancré
Systeme für die Renovierung von Abwasserkanälen und -leitungen - Lining mit fest verankerter KunststoffauskleidungThis European Standard was approved by CEN on 18 July 2014.
CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN-CENELEC Management Centre or to any CEN member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management Centre has the same status as the official versions.
CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, Former Yugoslav Republic of Macedonia, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION EUROPÄISCHES KOMITEE FÜR NORMUNG
CEN-CENELEC Management Centre:
Avenue Marnix 17,

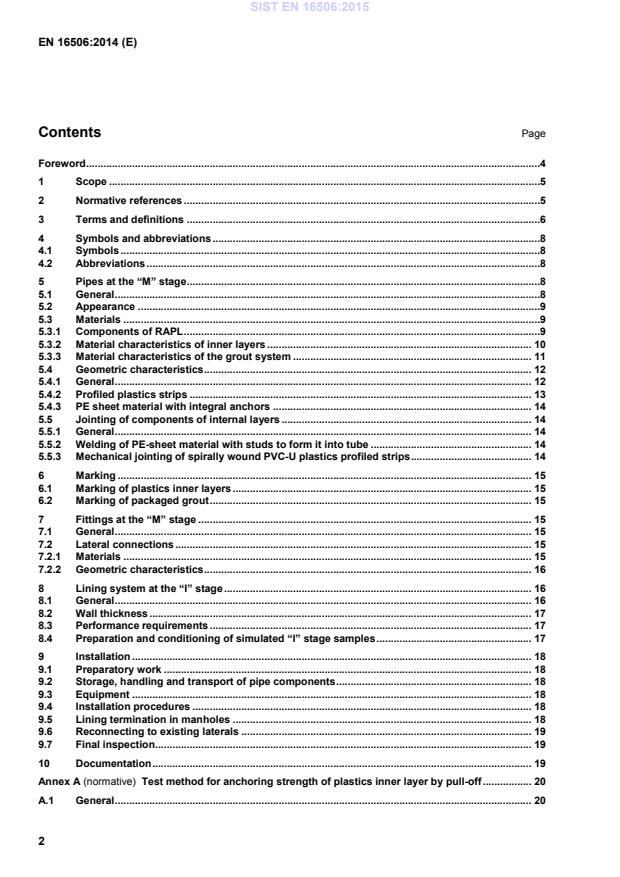

B-1000 Brussels © 2014 CEN All rights of exploitation in any form and by any means reserved worldwide for CEN national Members. Ref. No. EN 16506:2014 ESIST EN 16506:2015
Test method for anchoring strength of plastics inner layer by pull-off . 20 A.1 General . 20 SIST EN 16506:2015
“I” stage crushing strength test . 26 B.1 Scope . 26 B.2 Principle. 26 B.3 Equipment . 26 B.4 Preparation . 26 B.5 Carrying out test . 27 B.6 Calculation and expression of results . 27 B.7 Test report . 28 Bibliography . 29
minimum outside diameter of inner plastics layer in circular pipes eo overall profile height ew
waterway wall thickness ea height of neutral axis of the strip above its base e1 thickness of plastic at any point over the top (short side) of an encapsulated steel strip e2
thickness of plastic at any point over the height (long side) of an encapsulated steel strip fbt bending tensile stress from crushing strength fh anchoring strength of plastics inner layer Iw second moment of area of the strip Rc,28 compressive strength after 28 days Rf,28 flexural strength after 28 days re,min minimum local radius of curvature of inner plastics layer in non-circular pipe w
effective width of the strip 4.2 Abbreviations RAPL Rigidly anchored plastics inner layer PE Polyethylene PVC-U Unplasticized poly(vinyl chloride) 5 Pipes at the “M” stage 5.1 General Since by definition RAPL is partly manufactured on site, requirements of the finished product can only be verified at the “I” stage. “I” stage requirements are specified in Clause 8. The lining pipes shall consist of at least the following components: — anchored plastics inner layer; — grout system; and optionally: — reinforcement; — spacers to ensure grout thickness and prevent flotation; — external layer. An example of a lining system with RAPL is shown in Figure 1. SIST EN 16506:2015
Key 1 anchored plastics inner layer 2 grout system 3 existing pipe 4 spacer (technique dependent) 5 anti-flotation spacers A
height of anchors (equivalent to e0) B
minimum thickness of grout above height of anchors Figure 1 — Example of wall construction of a lining system with RAPL The anchored plastics inner layer shall consist of one of the following: a) PE sheet material with integral anchors; b) PVC-U profiled strips with integral or separate seam locking mechanisms. NOTE The anchored plastics inner layer can incorporate steel stiffening elements. 5.2 Appearance When viewed without magnification the surfaces of the anchored plastics inner layer shall be smooth, clean and free from scoring, cavities and other defects which can affect their performance. 5.3 Materials 5.3.1 Components of RAPL The detailed structure of the lining system shall be declared in the manufacturer's product specification. RAPL components shall comprise the materials specified in Table 1. SIST EN 16506:2015
e ≤ 12 mm
e > 12 mm (100 ± 10) mm/min
(25 ± 2,5) mm/min EN ISO 6259-1 Temperature 23 °C Elongation at break > 350 % Test piece shape and initial gauge length Specimen type 1B in accordance with EN ISO 527-2:2012 Ball indentation hardness (26 ± 1,5) N/mm2 EN ISO 2039-1 Dimensional stability in heat ≥ 54 °C EN ISO 75-2:2013, Method B Melt mass-flow rate (MFR-value) ≤ 3 g/10 min (permitted max. change by processing the compound: ± 20 %) Test temperature Test period Load
190 °C 10 min 5 kg EN ISO 1133-1:2011 or EN ISO 1133-2:2011, as applicable Thermal stability (OIT) ≥ 20 min Temperature 200 °C EN 728 Variation in longitudinal and transversal dimensions ≤ 1 % EN 1107-2 The material characteristics of the PE anchored plastics inner layer and external layer, if applicable, shall be demonstrated through a declaration of compliance. 5.3.2.2 Requirements for profiled plastics strips Materials used for profiled plastics strips shall conform to EN ISO 11296-7. 5.3.3 Material characteristics of the grout system The characteristics of the grout shall be in accordance with Table 3. To allow for different viscosities of the fresh grout mix specified by different systems suppliers either the marsh cone test in accordance with EN 14117 or the flow table method in accordance with EN 1015-3 may be used to define workable life. The heat of hydration of the grout mix shall not distort or otherwise damage the plastics inner layer during the curing process. Except where an external layer is provided, the resistance of the grout system against chemical attack from the environment of the host pipe, its soil surround and ground water shall be classified as XA1, XA2 or XA3 in accordance with EN 206:2013, Table 1. SIST EN 16506:2015
5 min, 15 min and 30 min and at end of declared workable life EN 14117 with modified discharge tube diameter b Or Flow diameter Declared values within tolerances specified by the lining system supplier Time intervals from completion of mixing 5 min and 15 min and at end of declared workable life EN 1015-3 Stability of the mixture after 3 h Bleeding < 1 % of initial volume – – EN 445:2007, 4.4 Cured grout system Compressive strength Rc,28 Declared value but not less than 35 MPa – – EN 196-1 c Flexural strength Rf,28 Declared value but not less than 5 MPa – – EN 196-1 c E-Modulus > 20 GPa after 28 d – – EN 13412, Method 2 Change in volume after 24 h −1 % to +
...
