EN 3660-011:2010
(Main)Aerospace series - Cable outlet accessories for circular and rectangular electrical and optical connectors - Part 011: Cable outlet, style K, 90°, shielded, sealed, for heat shrinkable boot - Product standard
Aerospace series - Cable outlet accessories for circular and rectangular electrical and optical connectors - Part 011: Cable outlet, style K, 90°, shielded, sealed, for heat shrinkable boot - Product standard
This European Standard defines a range of cable outlets, style K, 90°, shielded, sealed for heat shrinkable boots, for use under the following conditions.
Associated electrical connector(s) : EN 3660-002
Temperature range Class N : - 65 °C to 200 °C
Class W : - 65 °C to 175 °C
Class K : - 65 °C to 260 °C
Luft- und Raumfahrt - Endgehäuse für elektrische und optische Rund- und Rechtecksteckverbinder - Teil 011: Endgehäuse, Bauform K, 90°-Ausführung, abgeschirmt, abgedichtet, für wärmeschrumpfende Bauteile - Produktnorm
für wärmeschrumpfende Bauteile für die Verwendung unter folgenden Bedingungen fest:
Zugehörige(r) Steckverbinder : EN 3660-002
Temperaturbereich Klasse N : −65 °C bis 200 °C
Klasse W : −65 °C bis 175 °C
Klasse K : −65 °C bis 260 °C
Série aérospatiale - Accessoires arrière pour connecteurs circulaires et rectangulaires électriques et optiques - Partie 011: Raccord, type K, coudé 90 °, blindé, étanche, pour manchon thermorétractable - Norme de produit
Aeronavtika - Dodatki za okrogle in pravokotne električne in optične konektorje - 011. del: Kabelska spojka, tip K, 90°, oklopljena, tesnjena, za toplotno skrčljive dele - Standard za proizvod
Ta evropski standard določa nabor kabelskih spojk, tipa K, 90°, oklopljenih, tesnjenih in za toplotno skrčljive dele za uporabo v naslednjih pogojih. Pripadajoči električni konektorji: EN 3660-002. Temperaturni razpon, razred N: - od 65 °C do 200 °C. Razred W: - od 65 °C do 175 °C. Razred K: - od 65 °C do 260 °C.
General Information
- Status
- Published
- Publication Date
- 22-Jun-2010
- Withdrawal Date
- 30-Dec-2010
- Technical Committee
- ASD-STAN - Aerospace
- Drafting Committee
- ASD-STAN/D 2 - Electrical
- Current Stage
- 6060 - Definitive text made available (DAV) - Publishing
- Start Date
- 23-Jun-2010
- Completion Date
- 23-Jun-2010
Relations
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
Overview
EN 3660-011:2010 (CEN) is a European product standard in the Aerospace series that specifies style K, 90° cable outlets - shielded and sealed - designed for use with heat-shrinkable boots on circular and rectangular electrical and optical connectors. The standard defines dimensional interfaces, materials/finishes, screening methods, mechanical requirements and qualification/test criteria for use in aerospace and defence environments.
Key topics and technical requirements
- Scope & associated connector: Intended for use with connector family referenced in EN 3660-002.
- Temperature classes:
- Class N: −65 °C to 200 °C
- Class W: −65 °C to 175 °C
- Class K: −65 °C to 260 °C
- Variants:
- Variant A (Classes N and W): screen attachment via banding (see EN 3660-033).
- Variant B (Class K only): manufacturer pre-terminated screen/shield.
- Materials & finishes:
- Class N: aluminium / electroless nickel plated
- Class W: aluminium / olive-drab cadmium plated
- Class K: stainless steel / passivated
- Interface & dimensions: Standard AS85049 interface is covered; a modified AS85049 interface is specified for Class K. Detailed shell sizes, cable-entry codes and dimensional tables are provided.
- Electrical/EM performance: Housing continuity limits (Class N < 2.5 mΩ; W < 5 mΩ; K < 10 mΩ) and surface transfer impedance/attenuation requirements across 100 MHz–1 GHz are specified.
- Mechanical requirements: Assembly torques and coupling-thread test torques are listed; mechanical strength, locking-wire strength and endurance cycles are defined.
- Environmental & qualification tests: Tests reference EN 2591-100 and EN 3660-001, and include shock, vibration, salt mist (class-dependent durations), thermal cycling, immersion at low pressure and other aerospace qualification tests.
Applications and who uses this standard
- Manufacturers of aerospace electrical/optical connector accessories specifying or producing 90° cable outlets for harnesses and equipment.
- Design engineers integrating sealed, shielded cable exits for avionics, sensors and mission-critical systems.
- Test laboratories and qualification teams performing environmental, mechanical and EMC tests to ensure compliance.
- Procurement and quality managers specifying product acceptance criteria and verifying material/finish, marking and identification per EN 3660-011.
Keywords: EN 3660-011, aerospace standard, cable outlet, style K, 90° cable outlet, shielded sealed, heat shrinkable boot, AS85049, cable outlet accessories.
Related standards
- EN 3660-001 (technical specification)
- EN 3660-002 (index of product standards)
- EN 3660-033 (band / screen attachment)
- EN 2591-100 (test methods)
- SAE AS85049 (connector interface reference)
Get Certified
Connect with accredited certification bodies for this standard
National Aerospace and Defense Contractors Accreditation Program (NADCAP)
Global cooperative program for special process quality in aerospace.
NSF-ISR
NSF International Strategic Registrations.
Orion Registrar Inc.
US-based certification body for management systems.
Sponsored listings
Frequently Asked Questions
EN 3660-011:2010 is a standard published by the European Committee for Standardization (CEN). Its full title is "Aerospace series - Cable outlet accessories for circular and rectangular electrical and optical connectors - Part 011: Cable outlet, style K, 90°, shielded, sealed, for heat shrinkable boot - Product standard". This standard covers: This European Standard defines a range of cable outlets, style K, 90°, shielded, sealed for heat shrinkable boots, for use under the following conditions. Associated electrical connector(s) : EN 3660-002 Temperature range Class N : - 65 °C to 200 °C Class W : - 65 °C to 175 °C Class K : - 65 °C to 260 °C
This European Standard defines a range of cable outlets, style K, 90°, shielded, sealed for heat shrinkable boots, for use under the following conditions. Associated electrical connector(s) : EN 3660-002 Temperature range Class N : - 65 °C to 200 °C Class W : - 65 °C to 175 °C Class K : - 65 °C to 260 °C
EN 3660-011:2010 is classified under the following ICS (International Classification for Standards) categories: 49.060 - Aerospace electric equipment and systems. The ICS classification helps identify the subject area and facilitates finding related standards.
EN 3660-011:2010 has the following relationships with other standards: It is inter standard links to EN 3660-033:2019, EN 3660-002:2016, EN 3660-001:2019, EN 2591-100:2024, EN 2591-318:2018, EN 3660-002:2006, EN 2591-326:2018. Understanding these relationships helps ensure you are using the most current and applicable version of the standard.
EN 3660-011:2010 is available in PDF format for immediate download after purchase. The document can be added to your cart and obtained through the secure checkout process. Digital delivery ensures instant access to the complete standard document.
Standards Content (Sample)

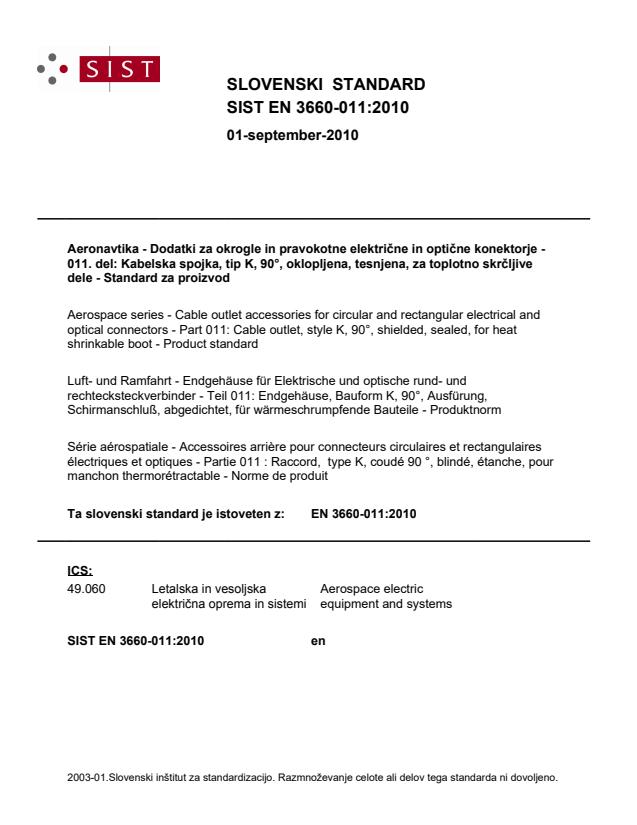

2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Luft- und Ramfahrt - Endgehäuse für Elektrische und optische rund- und rechtecksteckverbinder - Teil 011: Endgehäuse, Bauform K, 90°, Ausfürung, Schirmanschluß, abgedichtet, für wärmeschrumpfende Bauteile - ProduktnormSérie aérospatiale - Accessoires arrière pour connecteurs circulaires et rectangulaires électriques et optiques - Partie 011 : Raccord,
type K, coudé 90 °, blindé, étanche, pour manchon thermorétractable - Norme de produitAerospace series - Cable outlet accessories for circular and rectangular electrical and optical connectors - Part 011: Cable outlet, style K, 90°, shielded, sealed, for heat shrinkable boot - Product standard49.060Aerospace electric equipment and systemsICS:Ta slovenski standard je istoveten z:EN 3660-011:2010SIST EN 3660-011:2010en01-september-2010SIST EN 3660-011:2010SLOVENSKI
STANDARD
EUROPEAN STANDARD NORME EUROPÉENNE EUROPÄISCHE NORM
EN 3660-011
June 2010 ICS 49.060 English Version
Aerospace series - Cable outlet accessories for circular and rectangular electrical and optical connectors - Part 011: Cable outlet, style K, 90°, shielded, sealed, for heat shrinkable boot - Product standard
Série aérospatiale - Accessoires arrière pour connecteurs circulaires et rectangulaires électriques et optiques -Partie 011: Raccord,
type K, coudé 90 °, blindé, étanche, pour manchon thermorétractable - Norme de produit
Luft- und Ramfahrt - Endgehäuse für Elektrische und optische rund- und rechtecksteckverbinder - Teil 011: Endgehäuse, Bauform K, 90°, Ausfürung, Schirmanschluß, abgedichtet, für wärmeschrumpfende Bauteile - Produktnorm This European Standard was approved by CEN on 19 May 2010.
CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN Management Centre or to any CEN member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation under the responsibility of a CEN member into its own language and notified to the CEN Management Centre has the same status as the official versions.
CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland and United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION EUROPÄISCHES KOMITEE FÜR NORMUNG
Management Centre:
Avenue Marnix 17,
B-1000 Brussels © 2010 CEN All rights of exploitation in any form and by any means reserved worldwide for CEN national Members. Ref. No. EN 3660-011:2010: ESIST EN 3660-011:2010
Class W : − 65 °C to 175 °C
Class K : − 65 °C to 260 °C 2 Normative references The following referenced documents are indispensable for the application of this document. For dated references, only the edition cited applies. For undated references, the latest edition of the referenced document (including any amendments) applies. EN 2591-100*, Aerospace series — Elements of electrical and optical connection — Test methods — Part 100: General EN 3660-001, Aerospace series — Cable outlet accessories for circular and rectangular electrical and optical connectors — Part 001: Technical specification EN 3660-002, Aerospace series — Cable outlet accessories for circular and rectangular electrical and optical connectors — Part 002: Index of product standards EN 3660-033, Aerospace series — Cable outlet accessories for circular and rectangular electrical and optical connectors — Part 033: Band — Product standard 1) SAE AS85049, Connector accessories, electrical general specification 2)
3 Terms and definitions For the purposes of this document, the terms and definitions given in EN 3660-001 apply. 4 Characteristics 4.1 Dimensions and mass 4.1.1 General For interface dimensions, see 4.2.
* All parts quoted in this standard. 1) In preparation at the date of publication of this standard. 2) Published by: Society of Automotive Engineers (SAE), (www.sae.org). SIST EN 3660-011:2010
Key 1 Thread A 2 Knurl style, manu
...
