EN 12163:2016

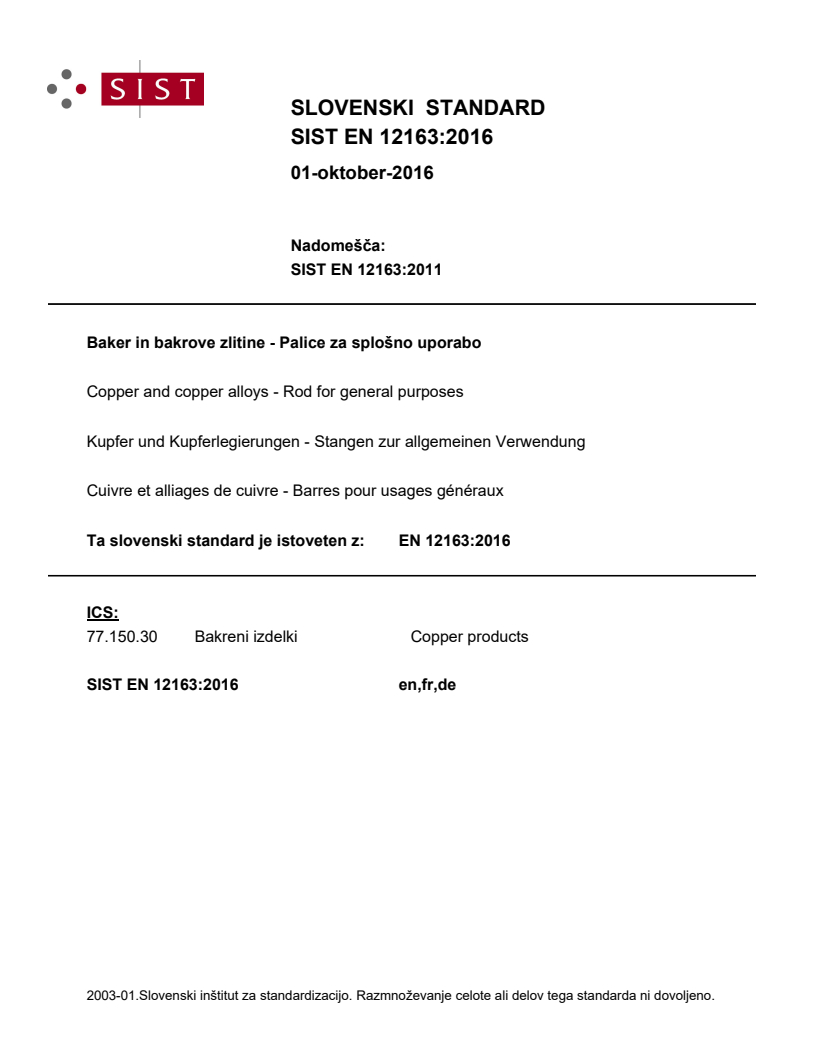

2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Baker in bakrove zlitine - Palice za splošno uporaboKupfer und Kupferlegierungen - Stangen zur allgemeinen VerwendungCuivre et alliages de cuivre - Barres pour usages générauxCopper and copper alloys - Rod for general purposes77.150.30Bakreni izdelkiCopper productsICS:Ta slovenski standard je istoveten z:EN 12163:2016SIST EN 12163:2016en,fr,de01-oktober-2016SIST EN 12163:2016SLOVENSKI
STANDARDSIST EN 12163:20111DGRPHãþD

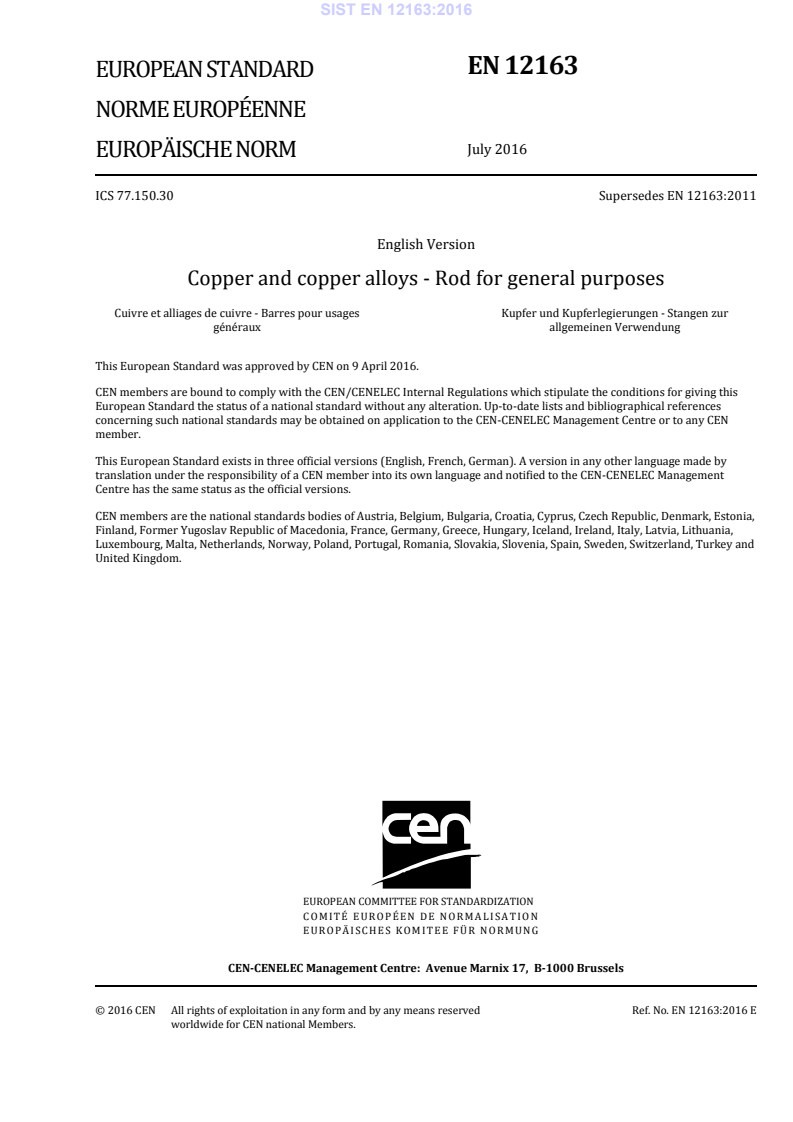

EUROPEAN STANDARD NORME EUROPÉENNE EUROPÄISCHE NORM
EN 12163
July
t r s x ICS
y yä s w rä u r Supersedes EN
s t s x uã t r s sEnglish Version
Copper and copper alloys æ Rod for general purposes Cuivre et alliages de cuivre æ Barres pour usages généraux
Kupfer und Kupferlegierungen æ Stangen zur allgemeinen Verwendung This European Standard was approved by CEN on
{ April
t r s xä
egulations which stipulate the conditions for giving this European Standard the status of a national standard without any alterationä Upætoædate lists and bibliographical references concerning such national standards may be obtained on application to the CENæCENELEC Management Centre or to any CEN memberä
translation under the responsibility of a CEN member into its own language and notified to the CENæCENELEC Management Centre has the same status as the official versionsä
CEN members are the national standards bodies of Austriaá Belgiumá Bulgariaá Croatiaá Cyprusá Czech Republicá Denmarká Estoniaá Finlandá Former Yugoslav Republic of Macedoniaá Franceá Germanyá Greeceá Hungaryá Icelandá Irelandá Italyá Latviaá Lithuaniaá Luxembourgá Maltaá Netherlandsá Norwayá Polandá Portugalá Romaniaá Slovakiaá Sloveniaá Spainá Swedená Switzerlandá Turkey andUnited Kingdomä
EUROPEAN COMMITTEE FOR STANDARDIZATION COMITÉ EUROPÉEN DE NORMALISATION EUROPÄISCHES KOMITEE FÜR NORMUNG
CEN-CENELEC Management Centre:
Avenue Marnix 17,
B-1000 Brussels
t r s x CEN All rights of exploitation in any form and by any means reserved worldwide for CEN national Membersä Refä Noä EN
s t s x uã t r s x ESIST EN 12163:2016

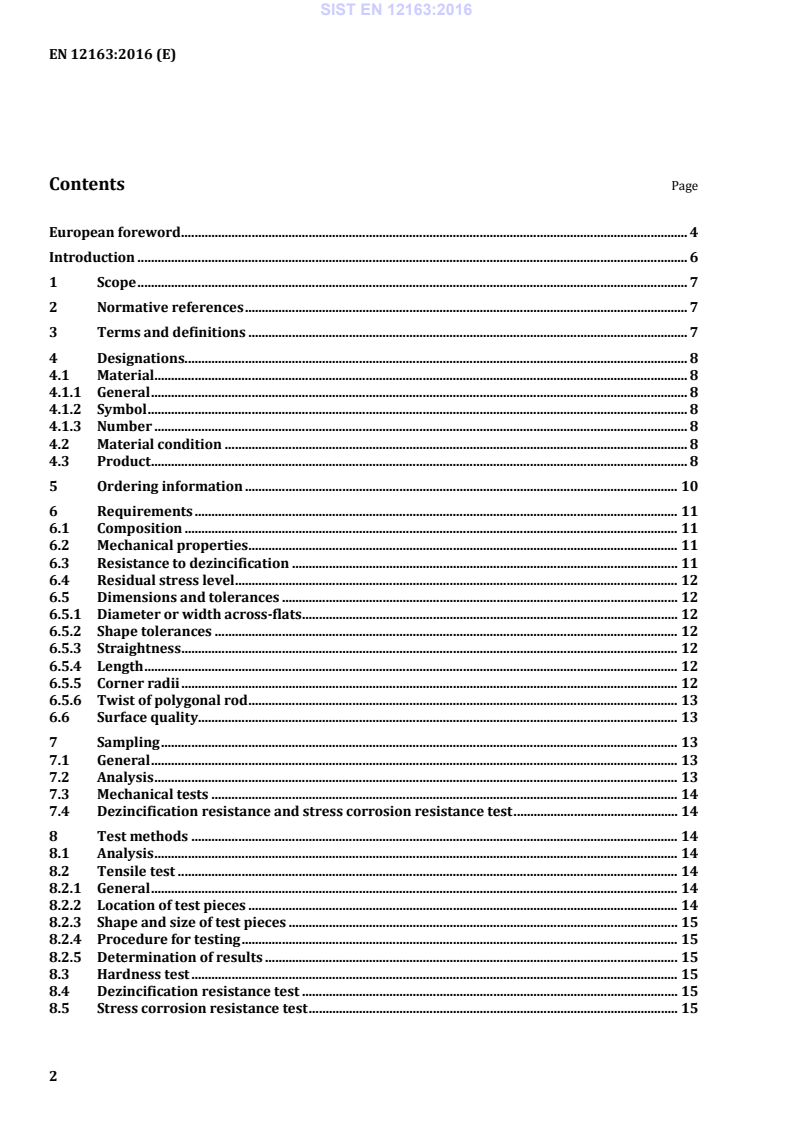

Page European foreword . 4 Introduction . 6 1 Scope . 7 2 Normative references . 7 3 Terms and definitions . 7 4 Designations. 8 4.1 Material . 8 4.1.1 General . 8 4.1.2 Symbol . 8 4.1.3 Number . 8 4.2 Material condition . 8 4.3 Product . 8 5 Ordering information . 10 6 Requirements . 11 6.1 Composition . 11 6.2 Mechanical properties . 11 6.3 Resistance to dezincification . 11 6.4 Residual stress level . 12 6.5 Dimensions and tolerances . 12 6.5.1 Diameter or width across-flats . 12 6.5.2 Shape tolerances . 12 6.5.3 Straightness . 12 6.5.4 Length . 12 6.5.5 Corner radii . 12 6.5.6 Twist of polygonal rod . 13 6.6 Surface quality. 13 7 Sampling . 13 7.1 General . 13 7.2 Analysis . 13 7.3 Mechanical tests . 14 7.4 Dezincification resistance and stress corrosion resistance test . 14 8 Test methods . 14 8.1 Analysis . 14 8.2 Tensile test . 14 8.2.1 General . 14 8.2.2 Location of test pieces . 14 8.2.3 Shape and size of test pieces . 15 8.2.4 Procedure for testing . 15 8.2.5 Determination of results . 15 8.3 Hardness test . 15 8.4 Dezincification resistance test . 15 8.5 Stress corrosion resistance test . 15 SIST EN 12163:2016

Figures Figure 1 — Measurement of twist of polygonal rod . 13
Tables Table 1 — Composition of low alloyed copper alloys . 18 Table 2 — Composition of copper-aluminium alloys . 19 Table 3 — Composition of copper-nickel alloys . 19 Table 4 — Composition of copper-nickel-zinc alloys . 19 Table 5 — Composition of copper-tin alloys . 20 Table 6 — Composition of copper-zinc alloys . 20 Table 7 — Composition of complex copper-zinc alloys. 22 Table 8 — Mechanical properties of rod of low alloyed copper alloys . 23 Table 9 — Mechanical properties of rod of copper-aluminium alloys . 27 Table 10 — Mechanical properties of rod of copper-nickel alloys . 29 Table 11 — Mechanical properties of rod of copper-nickel-zinc alloys . 30 Table 12 — Mechanical properties of rod of copper-tin alloys . 32 Table 13 — Mechanical properties of rod of copper-zinc alloys . 34 Table 14 — Mechanical properties of rod of complex copper-zinc alloys . 39 Table 15 — Dimensional tolerances for rod . 43 Table 16 — Tolerances on straightness of rod . 43 Table 17 — Corner radii for square and polygonal rod . 43 Table 18 — Maximum twist of square and polygonal rod . 44 Table 19 — Sampling rate . 44
5 Ordering information In order to facilitate the enquiry, order and confirmation of order procedures between the purchaser and the supplier, the purchaser shall state on his enquiry and order the following information: a) mass of product required; b) denomination (Rod); c) number of this European Standard (EN 12163); d) material designation (see Tables 1 to 7); e) material condition designation (see 4.2 and Tables 8 to 14) if it is other than M; f) DW for compliance in the chemical composition according to the 4 MS Common Composition List. This information is mandatory in the case in which the product is used for drinking water applications according to the 4 MS Common Composition List and not to be given in other cases; g) cross-sectional shape; h) nominal cross-sectional dimension (diameter or width across-flats); i) whether other than class A tolerances are required (see Table 15); j) for polygonal rod: whether “sharp” or “rounded” corners are required unless the corner radii shall be left to the discretion of the supplier (see 6.5.5 and Table 17); SIST EN 12163:2016

500 kg Rod EN 12163 — CuZn40 — DW — R410 — HEX14B — RD
— length 3 000 mm ± 100 mm
or
500 kg Rod EN 12163 — CW509L — DW — R410 — HEX14B — RD
— length 3 000 mm ± 100 mm 6 Requirements 6.1 Composition The composition shall conform to the requirements for the appropriate material given in Tables 1 to 7. Due to developing legislation, specific applications (see 4.3) may require restrictions in the chemical composition. In this case the limitations shall be specified in the ordering information [see Clause 5, list entry f)]. 6.2 Mechanical properties The tensile or the hardness properties shall conform to the appropriate requirements given in Tables 8 to 14. The tests shall be carried out in accordance with 8.2 or 8.3. 6.3 Resistance to dezincification The maximum depth of dezincification, in any direction, of CuZn38As (CW511L) and CuZn21Si3P (CW724R)) products shall be 100 µm. The test shall be carried out in accordance with 8.4. SIST EN 12163:2016

Key 1 reference plane V twist W width across-flats Figure 1 — Measurement of twist of polygonal rod 6.6 Surface quality The surfaces shall be clean and smooth. The rods may have a superficial film of drawing lubricant or, if annealed or thermally stress relieved, a superficial, dull, iridescent oxide film, securely adherent on the surfaces. Discontinuous irregularities on the surfaces of the rods are permitted if they are within the dimensional tolerances. Special requirements (e.g. pickling, degreasing, etc.) relating to the surface quality shall be agreed between the purchaser and the supplier [see Clause 5, list entry n)]. 7 Sampling 7.1 General When required (e.g. if necessary in accordance with specified procedures of a supplier's quality system, or when the purchaser requests inspection documents with test results, or for use in cases of dispute), an inspection lot shall be sampled in accordance with 7.2 to 7.4. 7.2 Analysis The sampling rate shall be in accordance with Table 19. A test sample, depending on the analytical technique to be employed, shall be prepared from each sampling unit and used for the determination of the composition. SIST EN 12163:2016
...
