EN 16451:2015
(Main)Railway applications - Braking - Brake pad holder
Railway applications - Braking - Brake pad holder
The requirements contained in this European Standard apply to the brake pad holders with which the rail vehicles of main-line railways, regional and suburban railways are fitted. Brake pad holders pursuant to this standard are to be made from ferrous materials e.g. cast iron, cast steel or forged steel. Brake pad holders made of non-ferrous materials are not subject of this standard.
Bahnanwendungen - Bremse - Bremsbelaghalter
Die in dieser Europäischen Norm enthaltenen Anforderungen gelten für Bremsbelaghalter für Schienen-fahrzeuge des öffentlichen Verkehrs sowie für Privatbahnen (Regionalbahnen, Werksbahnen). Bremsbelag-halter, die dieser Norm entsprechen, können aus Grau- bzw. Stahlguss oder aus geschmiedetem Stahl sein. Bremsbelaghalter, die aus Nichteisen-Werkstoffen bestehen, werden in dieser Norm nicht behandelt.
Applications ferroviaires - Freinage - Porte-garnitures
Les exigences contenues dans la présente Norme européenne s'appliquent aux porte-garnitures de freins qui équipent les véhicules ferroviaires utilisés par les réseaux principaux nationaux, les réseaux urbains, métropolitains, les tramways et les réseaux privés (chemins de fer régionaux, compagnies privées, etc.). Les porte-garnitures de freins conformes à la présente norme peuvent être en fonte, en acier moulé ou en acier forgé. Les porte-garnitures de freins en matériaux non ferreux ne relèvent pas de la présente norme.
Železniške naprave - Zavore - Nosilec zavorne obloge
Ta dokument določa zahteve za proizvodnjo, nadzor proizvodnje, načrtovanje in preskušanje nosilcev zavornih oblog za namestitev na železniška vozila. Ta dokument velja za nosilce zavornih oblog, ki so izdelani iz litega ali kovanega železa. Ta dokument ne velja za nosilce zavornih oblog iz neželeznih materialov. Ta dokument velja za nosilce zavornih oblog, ki so nameščeni na železniška vozila na glavnih ali zasebnih progah ali progah podjetij.
General Information
- Status
- Withdrawn
- Publication Date
- 16-Jun-2015
- Withdrawal Date
- 20-Jan-2026
- Technical Committee
- CEN/TC 256 - Railway applications
- Drafting Committee
- CEN/TC 256/SC 3/WG 47 - Braking
- Current Stage
- 9960 - Withdrawal effective - Withdrawal
- Start Date
- 10-Apr-2024
- Completion Date
- 28-Jan-2026
Relations
- Effective Date
- 19-Jan-2023
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Refers
EN ISO 9227:2022 - Corrosion tests in artificial atmospheres - Salt spray tests (ISO 9227:2022) - Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
Get Certified
Connect with accredited certification bodies for this standard
Bureau Veritas Railway Certification
Railway and transportation certification.
Deutsch Quality Systems (India) Pvt. Ltd. (DQS India)
Subsidiary of DQS Holding GmbH, founding member of IQNet. CDSCO Notified Body.
Excellence Ireland Quality Association (EIQA)
Irish national quality association.
Sponsored listings
Frequently Asked Questions
EN 16451:2015 is a standard published by the European Committee for Standardization (CEN). Its full title is "Railway applications - Braking - Brake pad holder". This standard covers: The requirements contained in this European Standard apply to the brake pad holders with which the rail vehicles of main-line railways, regional and suburban railways are fitted. Brake pad holders pursuant to this standard are to be made from ferrous materials e.g. cast iron, cast steel or forged steel. Brake pad holders made of non-ferrous materials are not subject of this standard.
The requirements contained in this European Standard apply to the brake pad holders with which the rail vehicles of main-line railways, regional and suburban railways are fitted. Brake pad holders pursuant to this standard are to be made from ferrous materials e.g. cast iron, cast steel or forged steel. Brake pad holders made of non-ferrous materials are not subject of this standard.
EN 16451:2015 is classified under the following ICS (International Classification for Standards) categories: 45.040 - Materials and components for railway engineering. The ICS classification helps identify the subject area and facilitates finding related standards.
EN 16451:2015 has the following relationships with other standards: It is inter standard links to EN 16451:2024, EN ISO 14284:2022, EN ISO 24478:2024, EN 22768-1:1993, EN ISO 6506-1:2014, EN ISO 6508-1:2023, EN ISO 9227:2022, EN ISO 6892-1:2019, EN ISO 148-1:2016, EN 10204:2004, EN ISO 6507-1:2023, EN ISO 18203:2022, EN 15328:2020, EN 15328:2020+A1:2024. Understanding these relationships helps ensure you are using the most current and applicable version of the standard.
EN 16451:2015 is associated with the following European legislation: EU Directives/Regulations: 2008/57/EC; Standardization Mandates: M/483. When a standard is cited in the Official Journal of the European Union, products manufactured in conformity with it benefit from a presumption of conformity with the essential requirements of the corresponding EU directive or regulation.
EN 16451:2015 is available in PDF format for immediate download after purchase. The document can be added to your cart and obtained through the secure checkout process. Digital delivery ensures instant access to the complete standard document.
Standards Content (Sample)
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Železniške naprave - Zavore - Nosilec zavorne oblogeBahnanwendungen - Bremse - BremsbelaghalterApplications ferroviaires - Freinage - Porte-garnitures de freinRailway applications - Braking - Brake pad holder45.040Materiali in deli za železniško tehnikoMaterials and components for railway engineeringICS:Ta slovenski standard je istoveten z:EN 16451:2015SIST EN 16451:2015en,fr,de01-september-2015SIST EN 16451:2015SLOVENSKI
STANDARD
EUROPEAN STANDARD NORME EUROPÉENNE EUROPÄISCHE NORM
EN 16451
June 2015 ICS 45.040 English Version
Railway applications - Braking - Brake pad holder
Applications ferroviaires - Freinage - Porte-garnitures
Bahnanwendungen - Bremse - Bremsbelaghalter This European Standard was approved by CEN on 13 May 2015.
CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN-CENELEC Management Centre or to any CEN member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management Centre has the same status as the official versions.
CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, Former Yugoslav Republic of Macedonia, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION EUROPÄISCHES KOMITEE FÜR NORMUNG
CEN-CENELEC Management Centre:
Avenue Marnix 17,
B-1000 Brussels © 2015 CEN All rights of exploitation in any form and by any means reserved worldwide for CEN national Members. Ref. No. EN 16451:2015 ESIST EN 16451:2015

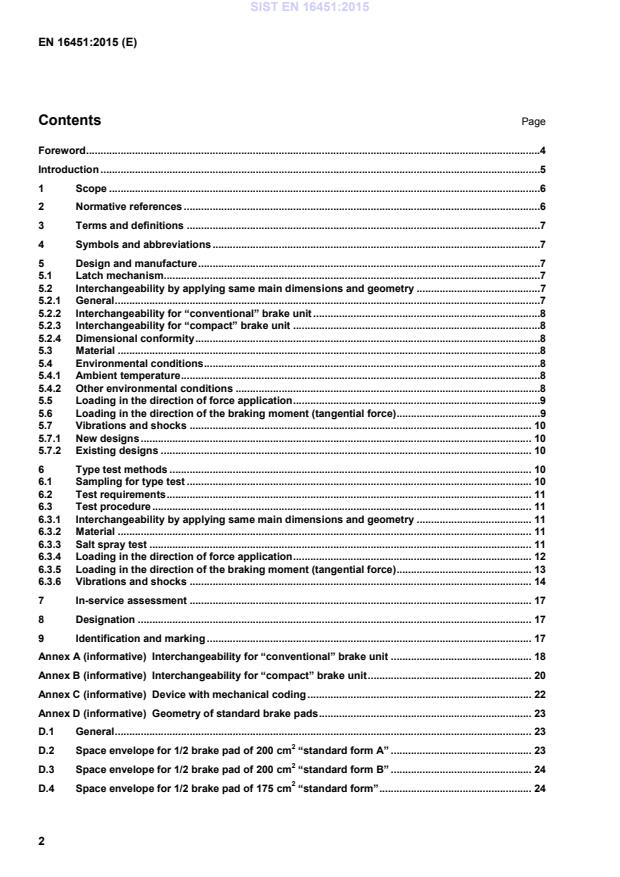

Interchangeability for “conventional” brake unit . 18 Annex B (informative)
Interchangeability for “compact” brake unit . 20 Annex C (informative)
Device with mechanical coding . 22 Annex D (informative)
Geometry of standard brake pads . 23 D.1 General . 23 D.2 Space envelope for 1/2 brake pad of 200 cm2 “standard form A” . 23 D.3 Space envelope for 1/2 brake pad of 200 cm2 “standard form B” . 24 D.4 Space envelope for 1/2 brake pad of 175 cm2 “standard form” . 24 SIST EN 16451:2015
In-service assessment . 26 E.1 General . 26 E.2 Test set-up and sampling . 26 E.3 Procedure . 26 E.4 Pass/fail criteria . 26
Percentage elongation after fracture (as specified by EN ISO 6892-1) F Force g Gravity acceleration 9,81 m/s2 KV Absorbed energy for a V-notch test piece (as specified by EN ISO 148-1) KU Absorbed energy for a U-notch test piece (as specified by EN ISO 148-1) SL1 and SL2 Classes of loading T1 and TX Classes of temperature as specified by EN 50125–1 VL and VH
Classes of vibration 5 Design and manufacture 5.1 Latch mechanism The design of the latch mechanism to retain the brake pads shall satisfy the following principle: — there shall be a positive retention (generation of strain to obtain unlocking) of the latch when in the closed position; — no single point failure of the latch mechanism and its attachment to the pad holder shall result in a loss of brake pads; — ease of operation – no special tools to open and close the latch mechanism. Preferably designed to allow use of simple flat bladed screw driver; — during pad renewal the latch mechanism should remain attached to the brake pad holder; — renewal of a defective latch mechanism should not require the dismantling of the brake pad holder from the brake unit. 5.2 Interchangeability by applying same main dimensions and geometry 5.2.1 General Brake pad holders can be designed based on different concepts. The requirements specially for interchangeability are defined below. SIST EN 16451:2015
...
