EN ISO 3823-1:1998
(Main)Dental rotary instruments - Burs - Part 1: Steel and carbide burs (ISO 3823-1:1997)
Dental rotary instruments - Burs - Part 1: Steel and carbide burs (ISO 3823-1:1997)
Migrated from Progress Sheet (TC Comment) (2000-07-10): Revision of EN 23823-1:1991.
Zahnärztliche rotierende Instrumente - Bohrer - Teil 1: Stahl- und Hartmetallbohrer (ISO 3823-1:1997)
Dieser Teil von ISO 3823 legt maßliche und andere relevante Anforderungen für die 10 am häufigsten verwendeten Formen von Stahl- und Hartmetallbohrern fest und enthält eine Qualitätskontrolle für diese Instrumente.
Instruments rotatifs dentaires - Fraises - Partie 1: Fraises en acier et en carbure (ISO 3823-1:1997)
La présente partie de l'ISO 3823 prescrit les exigences dimensionnelles et autres exigences essentielles relatives aux 10 formes les plus communément utilisées de fraises en acier et en carbure, y compris la maîtrise de la qualité de ces instruments.
Dental rotary instruments - Burs - Part 1: Steel and carbide burs (ISO 3823-1:1997)
General Information
- Status
- Published
- Publication Date
- 17-Nov-1998
- Technical Committee
- CEN/TC 55 - Dentistry
- Drafting Committee
- CEN/TC 55 - Dentistry
- Current Stage
- 9093 - Decision to confirm - Review Enquiry
- Start Date
- 26-Feb-2008
- Completion Date
- 26-Feb-2008
Relations
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
Overview
EN ISO 3823-1:1998 (ISO 3823-1:1997) specifies requirements for dental rotary instruments - burs, focusing on steel and carbide burs. The standard defines permitted shapes, dimensions, shank types, performance limits and test methods to ensure safety, interchangeability and functional performance of burs used in dentistry.
Key topics and technical requirements
- Shapes and dimensions: Detailed dimensional tables and permitted tolerances for common head shapes (round, inverted cone, pear, straight/tapered fissure, wheel, cross‑cut variants) and nominal diameters.
- Shank types: Shank shall conform to Type 1, 2 or 3 per ISO 1797.
- Run‑out (radial runout): Maximum total indicated run‑out is specified:
- Steel burs: 0.08 mm
- Carbide burs: 0.05 mm Measurement procedures referenced to ISO 8325.
- Corrosion resistance: If declared corrosion‑resistant, burs must show no signs of corrosion or functional deterioration after autoclave testing (non‑vacuum autoclave at 134–138 °C and 0.22 MN·m‑2 / 2.2 bar). Slight galvanic corrosion at the carbide/neck junction is permitted.
- Neck strength: After corrosion testing, the instrument shall not fracture or take a permanent set exceeding:
- Steel burs: 0.08 mm
- Carbide burs: 0.05 mm Test loads for specific head types and nominal diameters are provided in the standard’s tables.
- Testing procedures: Measurement and test methods (shapes/dimensions, run‑out, corrosion, neck strength) are specified, with reference to ISO 8325 and related methods.
- Quality control & AQL:
- Sampling: batches tested with sample sizes of 100–150 burs, including at least 20 burs of each of ≥5 sizes and all shank types.
- Acceptance: check 20 burs per defect type; accept if ≤3 failures; ≥4 failures = non‑compliant.
- Acceptable Quality Level (AQL): 6.5 max defects per 100 pieces.
- Labelling & packaging: Minimum package labelling requirements (manufacturer/trademark, working material, shank type, shape number, size, lot number, “sterile” if applicable). Packaging otherwise at manufacturer’s discretion.
Applications and target users
- Dental instrument manufacturers and product designers - for design, production tolerances and performance verification.
- Quality control and testing laboratories - to perform run‑out, corrosion and neck strength tests and sampling plans.
- Regulatory and procurement teams - to verify conformity of burs for clinical use and supply specifications.
- Dental device auditors and compliance managers - to establish acceptance criteria and labelling requirements.
Related standards
- ISO 1797 - shank types
- ISO 8325 - measurement/test methods for dental rotary instruments
- ISO 3696 - water purity for testing
- ISO 6360 - labelling recommendations
Keywords: dental rotary instruments, burs, steel burs, carbide burs, ISO 3823-1, run‑out, corrosion resistance, neck strength, shank types, AQL, dental instrument standards.
Get Certified
Connect with accredited certification bodies for this standard
BSI Group
BSI (British Standards Institution) is the business standards company that helps organizations make excellence a habit.
TÜV Rheinland
TÜV Rheinland is a leading international provider of technical services.
TÜV SÜD
TÜV SÜD is a trusted partner of choice for safety, security and sustainability solutions.
Sponsored listings
Frequently Asked Questions
EN ISO 3823-1:1998 is a standard published by the European Committee for Standardization (CEN). Its full title is "Dental rotary instruments - Burs - Part 1: Steel and carbide burs (ISO 3823-1:1997)". This standard covers: Migrated from Progress Sheet (TC Comment) (2000-07-10): Revision of EN 23823-1:1991.
Migrated from Progress Sheet (TC Comment) (2000-07-10): Revision of EN 23823-1:1991.
EN ISO 3823-1:1998 is classified under the following ICS (International Classification for Standards) categories: 11.060.20 - Dental equipment. The ICS classification helps identify the subject area and facilitates finding related standards.
EN ISO 3823-1:1998 has the following relationships with other standards: It is inter standard links to EN 12790:2002, EN 13141-7:2004, EN 12527:1998, EN 1302:1999, EN 12868:1999, EN 1639:2009. Understanding these relationships helps ensure you are using the most current and applicable version of the standard.
EN ISO 3823-1:1998 is available in PDF format for immediate download after purchase. The document can be added to your cart and obtained through the secure checkout process. Digital delivery ensures instant access to the complete standard document.
Standards Content (Sample)

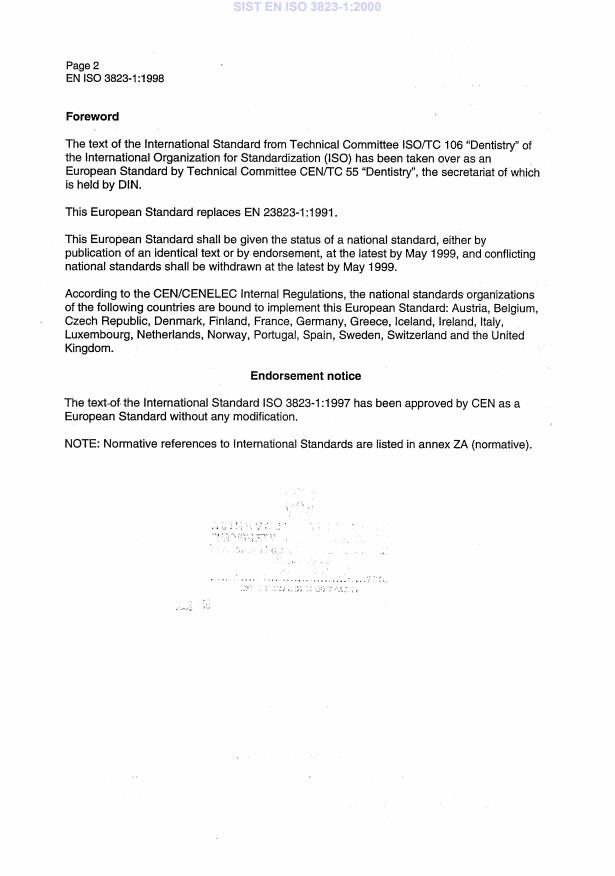

2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Dental rotary instruments - Burs - Part 1: Steel and carbide burs (ISO 3823-1:1997)Zahnärztliche rotierende Instrumente - Bohrer - Teil 1: Stahl- und Hartmetallbohrer (ISO 3823-1:1997)Instruments rotatifs dentaires - Fraises - Partie 1: Fraises en acier et en carbure (ISO 3823-1:1997)Dental rotary instruments - Burs - Part 1: Steel and carbide burs (ISO 3823-1:1997)11.060.25Dental instrumentsICS:Ta slovenski standard je istoveten z:EN ISO 3823-1:1998SIST EN ISO 3823-1:2000en01-januar-2000SIST EN ISO 3823-1:2000SLOVENSKI
