EN 16382:2016
(Main)Thermal insulation products for building applications - Determination of the pull-through resistance of plate anchors through thermal insulation products
Thermal insulation products for building applications - Determination of the pull-through resistance of plate anchors through thermal insulation products
This European Standard specifies equipment and procedures for determining the pull-through resistance of plate anchors through thermal insulation products.
Wärmedämmstoffe für das Bauwesen - Bestimmung des Durchzugwiderstandes von Tellerdübeln durch Wärmedämmstoffe
Diese Europäische Norm legt Prüfeinrichtungen und Verfahren zur Bestimmung des Durchzugwiderstands von Tellerdübeln durch Wärmedämmstoffe fest.
Produits isolants thermiques destinés aux applications du bâtiment - Détermination de la résistance au déboutonnage des chevilles à rosace dans les produits isolants thermiques
La présente Norme européenne spécifie les équipements nécessaires et les modes opératoires à suivre pour déterminer la résistance au déboutonnage des chevilles à rosace dans les produits isolants thermiques.
Toplotnoizolacijski proizvodi za uporabo v gradbeništvu - Ugotavljanje odpornosti sider proti potegu skozi toplotnoizolacijske proizvode
Ta evropski standard določa opremo in postopke za ugotavljanje odpornosti sider proti potegu skozi toplotnoizolacijske proizvode.
General Information
Relations
Overview
EN 16382:2016 (CEN) specifies equipment, specimen preparation and test procedures to determine the pull-through resistance of plate anchors through thermal insulation products used in buildings. The method measures the tensile load required to pull a plate-type anchor (e.g., ETICS/insulation anchors) through an insulation board by applying a direct tensile load perpendicular to the insulation face until failure.
Keywords: EN 16382:2016, pull-through resistance, plate anchors, thermal insulation, tensile test, ETICS
Key topics and technical requirements
- Test principle: A rigid circular tension plate glued to the insulation transmits a tensile load to the anchor until failure (breaking cone or other failure modes).
- Apparatus:
- Square rigid templates with a centred circular recess (template side b ≥ ds + 50 mm; materials: laminated wood ≥ 20 mm or steel ≥ 7 mm).
- Tension plate diameter dz = ds − 10 mm; connected to the machine via a self‑alignment device.
- Clamps to fix specimen edges; at least two per edge.
- Suitable glue (solvent‑free epoxy or polyurethane) that does not alter insulation mechanical properties.
- Tensile testing machine capable of continuous load/displacement recording, force error ≤ 1 % and crosshead speed (20 ± 1) mm/min.
- Specimen preparation and conditioning:
- Specimens sized to template; arrangements defined for middle area, joint, edge/corner positions.
- Condition at (23 ± 3) °C and (50 ± 10) % RH for at least 24 h before testing.
- Minimum 5 valid test specimens per series for statistical evaluation.
- Geometrical relations:
- Minimum circular recess diameter ds ≥ dp + 2 × tI + 50 (dp = anchor plate diameter; tI = insulation thickness).
- Evaluation:
- Record force–displacement and maximum tensile force Fmax.
- Calculate mean failure load and the F5% pull‑through resistance (5th percentile) using statistical methods (EN 1990 & ISO 12491). Example: for n = 5, statistical coefficient ks = 2.46.
- Rejection criteria: reject tests if failure occurs at glue interface, in the substrate/fixation, outside the insulation, or if cone mode distance < 25 mm to template edge.
Applications and users
- Practical use:
- Assess mechanical performance of insulation anchors in ETICS and other insulated façades.
- Support product development, quality control, CE marking, and specification of anchor systems.
- Typical users:
- Insulation manufacturers and R&D labs
- Anchor/hardware manufacturers
- Independent testing laboratories and notified bodies
- Façade/ETICS designers, specifiers, and building control authorities
Related standards
- EN 1607 - tensile strength perpendicular to faces (referenced measurement practice)
- EN 823 - determination of insulation thickness
- EN 206 - concrete specification (when anchors are fixed in concrete)
- EN 1990 - structural design basis (statistical confidence procedures)
- EN ISO 9229 - thermal insulation vocabulary
- ISO 12491 - statistical methods for quality control
This summary helps you quickly understand the scope, test setup, and practical uses of EN 16382:2016 for evaluating pull‑through resistance of plate anchors in thermal insulation systems.
Frequently Asked Questions
EN 16382:2016 is a standard published by the European Committee for Standardization (CEN). Its full title is "Thermal insulation products for building applications - Determination of the pull-through resistance of plate anchors through thermal insulation products". This standard covers: This European Standard specifies equipment and procedures for determining the pull-through resistance of plate anchors through thermal insulation products.
This European Standard specifies equipment and procedures for determining the pull-through resistance of plate anchors through thermal insulation products.
EN 16382:2016 is classified under the following ICS (International Classification for Standards) categories: 91.100.60 - Thermal and sound insulating materials. The ICS classification helps identify the subject area and facilitates finding related standards.
EN 16382:2016 has the following relationships with other standards: It is inter standard links to EN 16382:2026. Understanding these relationships helps ensure you are using the most current and applicable version of the standard.
You can purchase EN 16382:2016 directly from iTeh Standards. The document is available in PDF format and is delivered instantly after payment. Add the standard to your cart and complete the secure checkout process. iTeh Standards is an authorized distributor of CEN standards.
Standards Content (Sample)

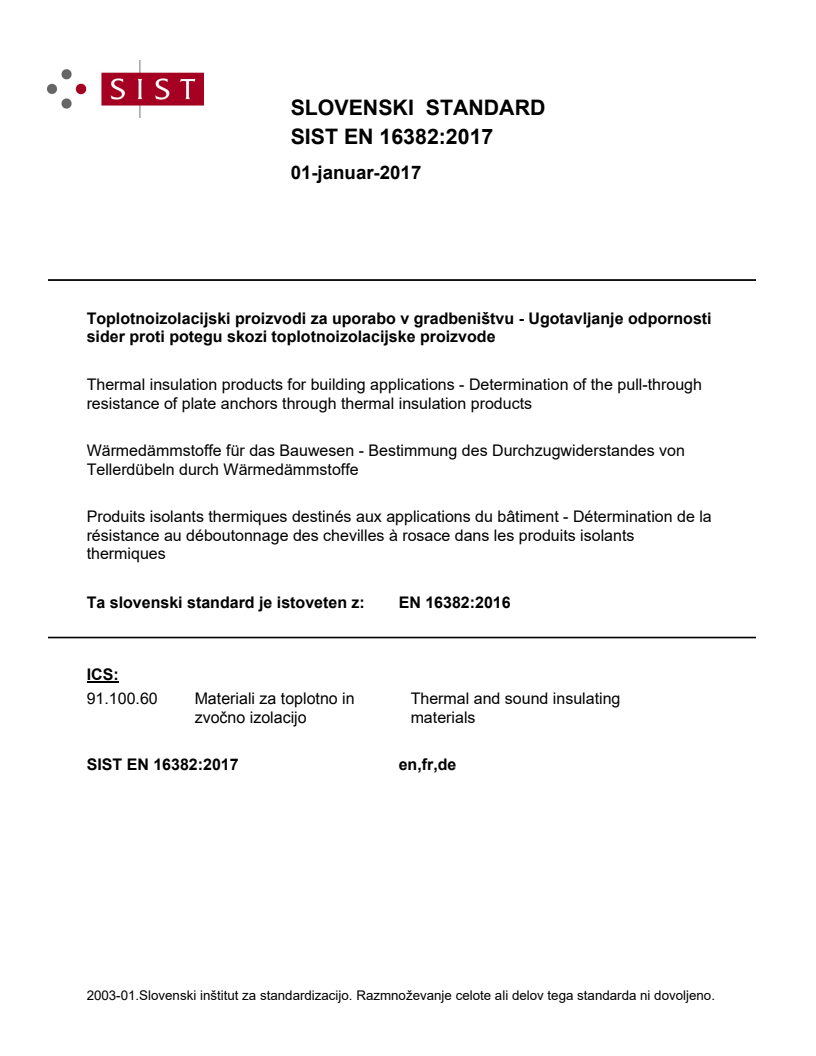

2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Toplotnoizolacijski proizvodi za uporabo v gradbeništvu - Ugotavljanje odpornosti sider proti potegu skozi toplotnoizolacijske proizvodeWärmedämmstoffe für das Bauwesen - Bestimmung des Durchzugwiderstandes von Tellerdübeln durch WärmedämmstoffeProduits isolants thermiques destinés aux applications du bâtiment - Détermination de la résistance au déboutonnage des chevilles à rosace dans les produits isolants thermiquesThermal insulation products for building applications - Determination of the pull-through resistance of plate anchors through thermal insulation products91.100.60Thermal and sound insulating materialsICS:Ta slovenski standard je istoveten z:EN 16382:2016SIST EN 16382:2017en,fr,de01-januar-2017SIST EN 16382:2017SLOVENSKI
STANDARD
EUROPEAN STANDARD NORME EUROPÉENNE EUROPÄISCHE NORM
EN 16382
October
t r s x ICS
{ sä s r rä x r English Version
Thermal insulation products for building applications æ Determination of the pullæthrough resistance of plate anchors through thermal insulation products Produits isolants thermiques destinés aux applications du bâtiment æ Détermination de la résistance au déboutonnage des chevilles à rosace dans les produits isolants thermiques
Wärmedämmstoffe für das Bauwesen æ Bestimmung des Durchzugwiderstandes von Tellerdübeln durch Wärmedämmstoffe This European Standard was approved by CEN on
x August
t r s xä
egulations which stipulate the conditions for giving this European Standard the status of a national standard without any alterationä Upætoædate lists and bibliographical references concerning such national standards may be obtained on application to the CENæCENELEC Management Centre or to any CEN memberä
translation under the responsibility of a CEN member into its own language and notified to the CENæCENELEC Management Centre has the same status as the official versionsä
CEN members are the national standards bodies of Austriaá Belgiumá Bulgariaá Croatiaá Cyprusá Czech Republicá Denmarká Estoniaá Finlandá Former Yugoslav Republic of Macedoniaá Franceá Germanyá Greeceá Hungaryá Icelandá Irelandá Italyá Latviaá Lithuaniaá Luxembourgá Maltaá Netherlandsá Norwayá Polandá Portugalá Romaniaá Slovakiaá Sloveniaá Spainá Swedená Switzerlandá Turkey and United Kingdomä
EUROPEAN COMMITTEE FOR STANDARDIZATION COMITÉ EUROPÉEN DE NORMALISATION EUROPÄISCHES KOMITEE FÜR NORMUNG
CEN-CENELEC Management Centre:
Avenue Marnix 17,
B-1000 Brussels
t r s x CEN All rights of exploitation in any form and by any means reserved worldwide for CEN national Membersä Refä Noä EN
s x u z tã t r s x ESIST EN 16382:2017
Key 1 plate anchor covered with a suitable non-adhesive foil 2 template 3 thermal insulation product 4 suitable device for fixation the anchorage area of the anchor 5 tension plate 6 glue 7 clamp
b width of the square template dp diameter of the anchor plate including additional plates if used ds diameter of the circular recess in the template dz diameter of the tension plate F tensile load tI thickness of the thermal insulation product Figure 1 — Principle of the test arrangement SIST EN 16382:2017
Key F tensile load r distance from the centre of the anchor sleeve to the remotest point of the breaking cone Figure 2 — Schematic presentation of a failure with a breaking cone of the insulation product after pull-through testing
Key r distance from the centre of the anchor sleeve to the remotest point of the breaking cone Figure 3 — Determination of the distance r by a breaking cone 5.1 Glue The glue shall be suitable for the thermal insulation product and for the tension plate (e.g. solvent-free epoxy or polyurethane based). The glue shall not influence the mechanical properties of the insulation product. 5.2 Template The square templates with circular openings shall be rigid. Test results are valid if every distance of the circular recess to the breaking cone is at least 25 mm. SIST EN 16382:2017
...
