Aerospace series - Aluminium alloy AL-P2024- Al Cu4Mg1 - T3 - Sheet and strip - 0,4 mm ≤ a ≤ 6 mm

This standard specifies the requirements relating to:
Aluminium alloy AL-P2024- Al Cu4Mg1
T3
Sheet and strip
0,4 mm ≤ a ≤ 6 mm
for aerospace applications.

Luft- und Raumfahrt - Aluminiumlegierung AL-P2024- Al Cu4Mg1 - T3 - Bleche und Bänder - 0,4 mm ≤ a ≤ 6 mm

Diese Norm legt die Anforderungen an
Aluminiumlegierung AL-P2024- Al Cu4Mg1
T3
Bleche und Bänder
0,4 mm ≤ a ≤ 6 mm
für Anwendungen in der Luft- und Raumfahrt fest.

Série aérospatiale - Alliage d'aluminium AL-P2024- Al Cu4Mg1 - T3 - Tôles et bandes - 0,4 mm ≤ a ≤ 6 mm

Aeronavtika - Aluminijeva zlitina AL-P2024-Al Cu4Mg1 - T3 - Pločevina in trakovi - 0,4 mm ≤ a ≤ 6 mm

Ta standard določa zahteve glede:
aluminijeve zlitine AL-P2024- Al Cu4Mg1,
T3
pločevine in trakov
0,4 mm < a ≤ 6 mm,
za uporabo v aeronavtiki.

General Information

Status
Published
Publication Date
17-Nov-2015
Withdrawal Date
30-May-2016
Technical Committee
ASD-STAN - Aerospace
Drafting Committee
ASD-STAN/D 4 - Metallic
Current Stage
6060 - Definitive text made available (DAV) - Publishing
Start Date
18-Nov-2015
Completion Date
18-Nov-2015

Relations

Effective Date
08-Jun-2022
Effective Date
28-Jan-2026
Effective Date
28-Jan-2026
Effective Date
28-Jan-2026

Overview

EN 3997:2015 (CEN) is a European aerospace material standard that specifies requirements for aluminium alloy AL‑P2024 (Al Cu4Mg1) in the T3 temper, supplied as sheet and strip with thicknesses 0.4 mm ≤ a ≤ 6 mm. Prepared by ASD‑STAN and approved by CEN, this standard is intended for aerospace applications where controlled chemical composition, processing, mechanical performance and test methods are required.

Key topics and requirements

  • Material designation: AL‑P2024 (Al Cu4Mg1) - temper T3 (solution heat treated, water quenched, natural aging).
  • Form & production: Rolled sheet and strip; thickness range 0.4–6 mm.
  • Heat treatment / delivery condition: Solution temperature 490 °C – 500 °C, water quench to ≤ 40 °C, natural aging ≥ 5 days; slight levelling permitted.
  • Chemical composition: Limits for Si, Fe, Cu, Mn, Mg, Cr, Zn, Ti and Al are defined in the standard (see EN 3997 for full tables).
  • Mechanical properties (typical requirement summary):
    • Proof stress Rp0.2: generally ≥ 325 MPa (longitudinal), ≥ 290 MPa (transverse) depending on thickness.
    • Tensile strength Rm: generally ≥ 440 MPa (some thicker ranges ≥ 450 MPa).
    • Elongation A (50 mm): ≥ 15% across thickness ranges.
  • Other characteristics: bending performance, fatigue and crack propagation data (specified test directions and limits), intergranular corrosion penetration depth limits, electrical conductivity (typical value ~19 MS/m), marking and dimensional inspection rules.
  • Testing & inspection: Refers to EN 4400‑2 for technical specification, test pieces, sampling, product qualification and inspection procedures.

Applications and users

EN 3997 targets the aerospace supply chain and materials engineering functions that require a consistent specification for 2024‑T3 aluminium sheet and strip. Typical users include:

  • Aircraft OEMs and tier‑1/2 suppliers specifying structural skins, stiffeners and components where 2xxx‑series high‑strength aluminium is appropriate;
  • Material engineers and designers selecting alloys for strength-to-weight critical parts;
  • Procurement and quality departments issuing purchase specifications and verifying supplier compliance;
  • Test laboratories performing mechanical, corrosion and fatigue testing per aerospace requirements.

Related standards

  • EN 4400‑2 - Aerospace series: Aluminium and aluminium alloy wrought products - Technical specification (Sheet and strip)
  • EN 4258 - Organisation of aerospace metallic material standards
  • EN 4500‑2 - Rules for drafting/presentation of aluminium/magnesium alloy material standards

Keywords: EN 3997:2015, AL‑P2024, Al Cu4Mg1, T3, aerospace aluminium, sheet and strip, 0.4–6 mm, mechanical properties, CEN, ASD‑STAN.

Get Certified

Connect with accredited certification bodies for this standard

Element Materials Technology

Materials testing and product certification.

UKAS United Kingdom Verified

DEKRA North America

DEKRA certification services in North America.

ANAB United States Verified

Eagle Registrations Inc.

American certification body for aerospace and defense.

ANAB United States Verified

Sponsored listings

Frequently Asked Questions

EN 3997:2015 is a standard published by the European Committee for Standardization (CEN). Its full title is "Aerospace series - Aluminium alloy AL-P2024- Al Cu4Mg1 - T3 - Sheet and strip - 0,4 mm ≤ a ≤ 6 mm". This standard covers: This standard specifies the requirements relating to: Aluminium alloy AL-P2024- Al Cu4Mg1 T3 Sheet and strip 0,4 mm ≤ a ≤ 6 mm for aerospace applications.

This standard specifies the requirements relating to: Aluminium alloy AL-P2024- Al Cu4Mg1 T3 Sheet and strip 0,4 mm ≤ a ≤ 6 mm for aerospace applications.

EN 3997:2015 is classified under the following ICS (International Classification for Standards) categories: 49.025.20 - Aluminium; 77.150.10 - Aluminium products. The ICS classification helps identify the subject area and facilitates finding related standards.

EN 3997:2015 has the following relationships with other standards: It is inter standard links to EN 3997:2007, EN 4258:2024, EN 4400-2:2019, EN 2437:2001. Understanding these relationships helps ensure you are using the most current and applicable version of the standard.

EN 3997:2015 is available in PDF format for immediate download after purchase. The document can be added to your cart and obtained through the secure checkout process. Digital delivery ensures instant access to the complete standard document.

Standards Content (Sample)


SLOVENSKI STANDARD
01-januar-2016
1DGRPHãþD
SIST EN 3997:2009
$HURQDYWLND$OXPLQLMHYD]OLWLQD$/3$O&X0J73ORþHYLQDLQWUDNRYL
PP”D”PP
$HURVSDFHVHULHV$OXPLQLXPDOOR\$/3$O&X0J76KHHWDQGVWULS
PP”D”PP
/XIWXQG5DXPIDKUW$OXPLQLXPOHJLHUXQJ$/3$O&X0J7%OHFKHXQG
%lQGHUPP”D”PP
6pULHDpURVSDWLDOH$OOLDJHG
DOXPLQLXP$/3$O&X0J77{OHVHWEDQGHV
PP”D”PP
Ta slovenski standard je istoveten z: EN 3997:2015
ICS:
49.025.20 Aluminij Aluminium
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

EN 3997
EUROPEAN STANDARD
NORME EUROPÉENNE
November 2015
EUROPÄISCHE NORM
ICS 49.025.20 Supersedes EN 3997:2007
English Version
Aerospace series - Aluminium alloy AL-P2024- Al Cu4Mg1
- T3 - Sheet and strip - 0,4 mm  a  6 mm
Série aérospatiale - Alliage d'aluminium AL-P2024- Al Luft- und Raumfahrt - Aluminiumlegierung AL-P2024-
Cu4Mg1 - T3 - Tôles et bandes - 0,4 mm  a  6 mm Al Cu4Mg1 - T3 - Bleche und Bänder - 0,4 mm  a  6
mm
This European Standard was approved by CEN on 14 March 2013.

CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this
European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references
concerning such national standards may be obtained on application to the CEN-CENELEC Management Centre or to any CEN
member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by
translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management
Centre has the same status as the official versions.

CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia,
Finland, Former Yugoslav Republic of Macedonia, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania,
Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and
United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION

EUROPÄISCHES KOMITEE FÜR NORMUNG

CEN-CENELEC Management Centre: Avenue Marnix 17, B-1000 Brussels
© 2015 CEN All rights of exploitation in any form and by any means reserved Ref. No. EN 3997:2015 E
worldwide for CEN national Members.

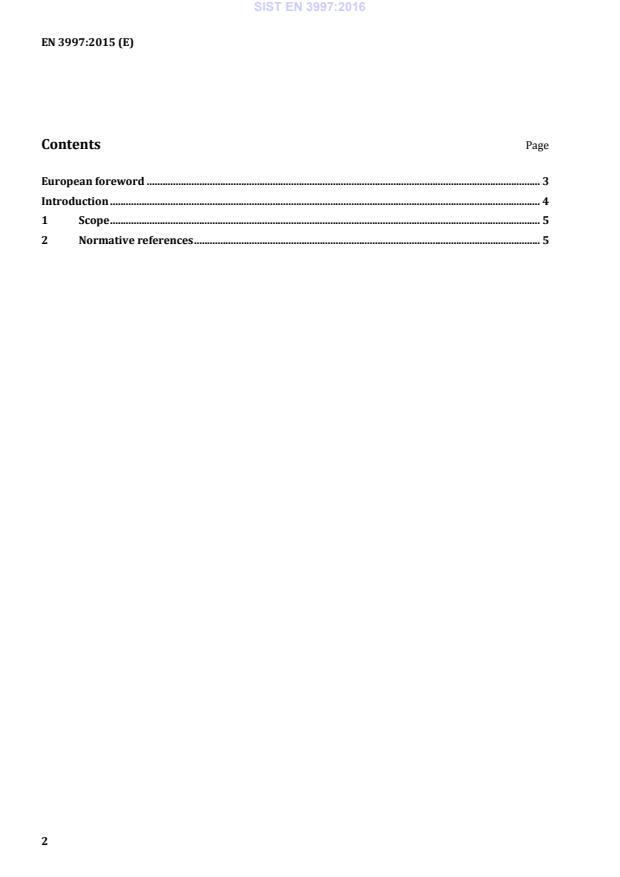

Contents Page
European foreword . 3
Introduction . 4
1 Scope . 5
2 Normative references . 5

European foreword
This document (EN 3997:2015) has been prepared by the Aerospace and Defence Industries
Association of Europe - Standardization (ASD-STAN).
After enquiries and votes carried out in accordance with the rules of this Association, this Standard has
received the approval of the National Associations and the Official Services of the member countries of
ASD, prior to its presentation to CEN.
This European Standard shall be given the status of a national standard, either by publication of an
identical text or by endorsement, at the latest by May 2016, and conflicting national standards shall be
withdrawn at the latest by May 2016.
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. CEN [and/or CENELEC] shall not be held responsible for identifying any or all such patent
rights.
This document supersedes EN 3997:2007.
According to the CEN-CENELEC Internal Regulations, the national standards organizations of the
following countries are bound to implement this European Standard: Austria
...
