EN 3155-032:2009
(Main)Aerospace series - Electrical contacts used in elements of connection - Part 032: Contacts, electrical, coaxial, 50 ohms, size 5, male, type D, crimp, class R - Product standard
Aerospace series - Electrical contacts used in elements of connection - Part 032: Contacts, electrical, coaxial, 50 ohms, size 5, male, type D, crimp, class R - Product standard
This standard specifies the required characteristics, tests and tooling applicable to male electrical coaxial
contacts, size 5, type D, crimp, class R, used in elements of connection according to EN 3155-002.
It shall be used together with EN 3155-001.
The associated female contacts are defined in EN 3155-033.
Luft- und Raumfahrt - Elektrische Kontakte zur Verwendung in Verbindungselementen - Teil 032: Elektrische koaxiale Stiftkontakte, 50 Ohm, Größe 5, Typ D, crimpbar, Klasse R - Produktnorm
Diese Norm legt die Anforderungen, Prüfungen und Werkzeuge für elektrische koaxiale Stiftkontakte,
Gröβe 5, Typ D, crimpbar, Klasse R, zur Verwendung in elektrischen Verbindungselementen nach
EN 3155-002 fest.
Die vorliegende Norm ist in Verbindung mit EN 3155-001 zu verwenden.
Die zugehörigen Buchsenkontakte sind in EN 3155-033 festgelegt.
Série aérospatiale - Contacts électriques utilisés dans les organes de connexion - Partie 032 : Contacts électriques coaxiaux, 50 ohms, taille 5, mâles, type D, à sertir, classe R - Norme de produit
Aeronavtika - Električni kontakti za uporabo v veznih elementih - 032. del: Kontakti, električni, koaksialni, 50 ohmov, velikost 5, moški, tip D, nagubani, razred R - Standard za proizvod
General Information
- Status
- Published
- Publication Date
- 12-May-2009
- Withdrawal Date
- 29-Nov-2009
- Technical Committee
- ASD-STAN - Aerospace
- Drafting Committee
- ASD-STAN/D 2 - Electrical
- Current Stage
- 9093 - Decision to confirm - Review Enquiry
- Start Date
- 21-Jan-2025
- Completion Date
- 28-Jan-2026
Relations
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
Overview
EN 3155-032:2009 is a CEN product standard in the Aerospace series that defines the required characteristics, tests and tooling for male coaxial electrical contacts, 50 ohm, size 5, type D, crimp, class R. It is intended for use with EN 3155-001 (technical specification) and EN 3155-002 (elements of connection). Associated female contacts are covered by EN 3155-033. The contacts are derived from SAE-AS39029/99 and are intermateable with SAE-AS39029/100.
Key topics and technical requirements
- Contact type & class: Male, size 5, Type D, crimp termination, Class R (operating temperature range −65 °C to 150 °C).
- Electrical performance:
- Characteristic impedance: 50 ohm.
- VSWR: ≤ 1.30:1 from 0–500 MHz.
- Insertion loss: ≤ 0.3 dB from 0–500 MHz.
- Contact resistance (central): initial ≤ 10 mΩ, after tests ≤ 15 mΩ.
- Insulation resistance: ≥ 5 000 MΩ at ambient, ≥ 2 000 MΩ at 150 °C.
- Dielectric proof: 750 VAC r.m.s. at sea level; 125 VAC at 1.1 kPa (altitude test).
- Materials & plating:
- Outer body, centre contact and ferrule: copper alloy.
- Dielectric: PTFE (or equivalent).
- Surface: gold over appropriate undercoat; selective protection permitted.
- Mechanical & environmental:
- Mass (typical): 48 g.
- Endurance: 1 000 h at 150 °C.
- Tensile strength (crimped): central > 53 N, outer > 265 N (for XA cable group).
- Tests referenced to EN 2591-100 (visual, contact resistance, shock, vibration, salt mist, fluid resistance, thermal cycling, etc.).
- Tooling & assembly:
- Crimp tools per MIL-DTL-22520G; insertion/extraction tools per MIL-I-81969/28.
- Cable group codes (TR 6058): typical compatibility includes XA, XG, XF, WM.
Applications and users
This standard is used by:
- Aerospace connector manufacturers and component suppliers for design, production and qualification of aerospace coaxial contacts.
- Design and systems engineers specifying 50 Ω coaxial connections in avionics, RF subsystems, radar and communication equipment.
- Quality and test laboratories performing acceptance and environmental testing.
- Procurement and maintenance teams ensuring intermateability and compliance in spare parts and repairs.
Practical applications include RF and high-frequency signal paths where rugged, screened coaxial terminations are required in harsh aerospace environments.
Related standards
- EN 3155-001: Technical specification (use together)
- EN 3155-002: Elements of connection (connector requirements)
- EN 3155-033: Female counterpart (50 Ω, size 5, type D, crimp, class R)
- SAE-AS39029/99 and SAE-AS39029/100 (origin/intermateability)
- MIL-DTL-22520G (crimp tooling), MIL-I-81969/28 (insertion/extraction tools)
Keywords: EN 3155-032:2009, aerospace coaxial contacts, 50 ohm, size 5, crimp contacts, male type D, class R, connector standards, electrical contacts.
Get Certified
Connect with accredited certification bodies for this standard
National Aerospace and Defense Contractors Accreditation Program (NADCAP)
Global cooperative program for special process quality in aerospace.
NSF-ISR
NSF International Strategic Registrations.
Orion Registrar Inc.
US-based certification body for management systems.
Sponsored listings
Frequently Asked Questions
EN 3155-032:2009 is a standard published by the European Committee for Standardization (CEN). Its full title is "Aerospace series - Electrical contacts used in elements of connection - Part 032: Contacts, electrical, coaxial, 50 ohms, size 5, male, type D, crimp, class R - Product standard". This standard covers: This standard specifies the required characteristics, tests and tooling applicable to male electrical coaxial contacts, size 5, type D, crimp, class R, used in elements of connection according to EN 3155-002. It shall be used together with EN 3155-001. The associated female contacts are defined in EN 3155-033.
This standard specifies the required characteristics, tests and tooling applicable to male electrical coaxial contacts, size 5, type D, crimp, class R, used in elements of connection according to EN 3155-002. It shall be used together with EN 3155-001. The associated female contacts are defined in EN 3155-033.
EN 3155-032:2009 is classified under the following ICS (International Classification for Standards) categories: 49.060 - Aerospace electric equipment and systems. The ICS classification helps identify the subject area and facilitates finding related standards.
EN 3155-032:2009 has the following relationships with other standards: It is inter standard links to EN 2591-503:2001, EN 2591-301:1996, EN 2591-207:1996, EN 2591-402:2012, EN 2591-403:2025, EN 2591-501:2002, EN 2591-418:2001, EN 2591-315:2015, EN 2591-206:1996, EN 2591-212:2005, EN 2591-201:1996, EN 3682-001:2013, EN 2591-508:2023, EN 2591-102:1996, EN 2591-417:2001. Understanding these relationships helps ensure you are using the most current and applicable version of the standard.
EN 3155-032:2009 is available in PDF format for immediate download after purchase. The document can be added to your cart and obtained through the secure checkout process. Digital delivery ensures instant access to the complete standard document.
Standards Content (Sample)

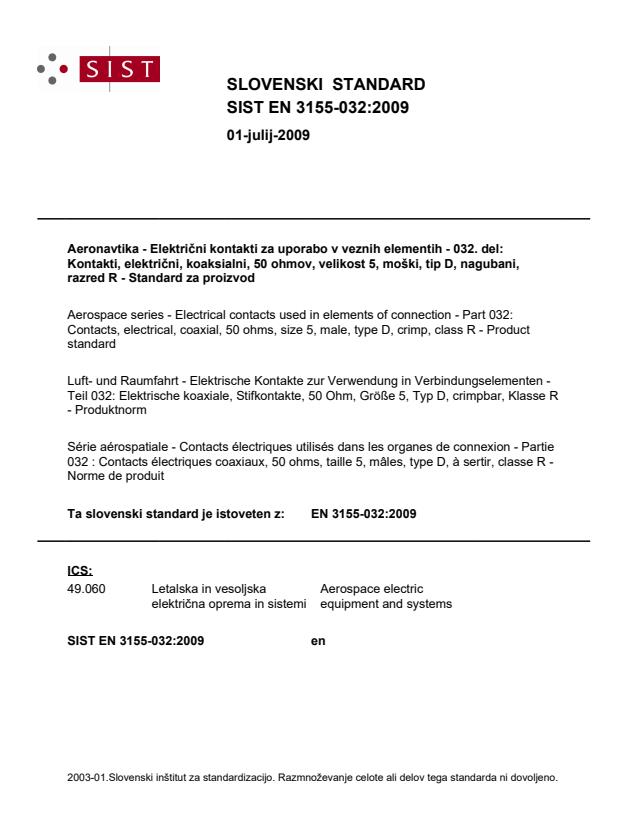

2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Luft- und Raumfahrt - Elektrische Kontakte zur Verwendung in Verbindungselementen - Teil 032: Elektrische koaxiale, Stifkontakte, 50 Ohm, Größe 5, Typ D, crimpbar, Klasse R - ProduktnormSérie aérospatiale - Contacts électriques utilisés dans les organes de connexion - Partie 032 : Contacts électriques coaxiaux, 50 ohms, taille 5, mâles, type D, à sertir, classe R - Norme de produitAerospace series - Electrical contacts used in elements of connection - Part 032: Contacts, electrical, coaxial, 50 ohms, size 5, male, type D, crimp, class R - Product standard49.060Aerospace electric equipment and systemsICS:Ta slovenski standard je istoveten z:EN 3155-032:2009SIST EN 3155-032:2009en01-julij-2009SIST EN 3155-032:2009SLOVENSKI
STANDARD
EUROPEAN STANDARDNORME EUROPÉENNEEUROPÄISCHE NORMEN 3155-032May 2009ICS 49.060 English VersionAerospace series - Electrical contacts used in elements ofconnection - Part 032: Contacts, electrical, coaxial, 50 ohms,size 5, male, type D, crimp, class R - Product standardSérie aérospatiale - Contacts électriques utilisés dans lesorganes de connexion - Partie 032 : Contacts électriquescoaxiaux, 50 ohms, taille 5, mâles, type D, à sertir, classeR - Norme de produitLuft- und Raumfahrt - Elektrische Kontakte zur Verwendungin Verbindungselementen - Teil 032: Elektrische koaxiale,Stifkontakte, 50 Ohm, Größe 5, Typ D, crimpbar, Klasse R- ProduktnormThis European Standard was approved by CEN on 31 January 2009.CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this EuropeanStandard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such nationalstandards may be obtained on application to the CEN Management Centre or to any CEN member.This European Standard exists in three official versions (English, French, German). A version in any other language made by translationunder the responsibility of a CEN member into its own language and notified to the CEN Management Centre has the same status as theofficial versions.CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Cyprus, Czech Republic, Denmark, Estonia, Finland,France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal,Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland and United Kingdom.EUROPEAN COMMITTEE FOR STANDARDIZATIONCOMITÉ EUROPÉEN DE NORMALISATIONEUROPÄISCHES KOMITEE FÜR NORMUNGManagement Centre:
Avenue Marnix 17,
B-1000 Brussels© 2009 CENAll rights of exploitation in any form and by any means reservedworldwide for CEN national Members.Ref. No. EN 3155-032:2009: ESIST EN 3155-032:2009
1 Scope This standard specifies the required characteristics, tests and tooling applicable to male electrical coaxial contacts, size 5, type D, crimp, class R, used in elements of connection according to EN 3155-002. It shall be used together with EN 3155-001. The associated female contacts are defined in EN 3155-033. 2 Normative references The following referenced documents are indispensable for the application of this document. For dated references, only the edition cited applies. For undated references, the latest edition of the referenced document (including any amendments) applies. EN 2591-100*, Aerospace series — Elements of electrical and optical connection — Test methods — Part 100: General EN 3155-001:2008, Aerospace series — Electrical contacts used in elements of connection — Part 001: Technical specification1 EN 3682-001, Aerospace series — Connectors, plug and receptacle, electrical, rectangular, interchangeable insert type, rack to panel, operating temperature 150 °C continuous — Part 001: Technical specification SAE-AS39029/99, Contacts, electrical connector pin, crimp removable, coaxial, size 5 (for DOD-C-83527 connectors)2 SAE-AS39029/100, Contacts, electrical connector, socket, crimp removable, coaxial, size 5 (for DOD-C-83527 connectors)2 MIL-DTL-22520G, Crimping tools, wire termination, general specification for3 MIL-I-81969/28, Installing and removal tools, connector electrical contacts, type II, class 2, composition C 3 TR 6058, A
...
