EN 4652-322:2017
(Main)Aerospace series - Connectors, coaxial, radio frequency - Part 322: Type 3, N interface - Crimp version - Square flange receptacle - Product standard
Aerospace series - Connectors, coaxial, radio frequency - Part 322: Type 3, N interface - Crimp version - Square flange receptacle - Product standard
This European Standard specifies the characteristics of screwed on coupling (N interface) coaxial square flange receptacle - 50 ohms. The cable to connector assembly is a crimp technology.
Luft- und Raumfahrt - Koaxiale Hochfrequenz-Steckverbinder - Teil 322: Typ 3, N-Schnittstelle - Crimpverbindung - fester Steckverbinder mit quadratischem Montageflansch - Produktnorm
Diese Europäische Norm legt die Eigenschaften von koaxialen, festen Steckverbindern mit quadratischem Montageflansch, 50 Ohm, mit Schraubkupplung (N-Schnittstelle) fest. Der Anschluss des Steckverbinders an die Leitung erfolgt über eine Crimpverbindung.
Série aérospatiale - Connecteurs coaxiaux pour radiofréquences - Partie 322 : Type 3, interface N - Version à sertir - embase à collerette carrée - Norme de produit
Aeronavtika - Konektorji, koaksialni, radiofrekvenčni - 322. del: Tip 3, vmesnik N - Izvedba s stisljivimi priključki - Podlaga s kvadratno prirobnico - Standard za proizvod
Ta evropski standard določa lastnosti koaksialnih vtičnic s podlago s kvadratno prirobnico in vijačnim spojem (vmesnik N) – 50 ohmov. Sklop kabla in konektorja je tehnologija izvedbe s stisljivimi priključki.
General Information
- Status
- Published
- Publication Date
- 14-Nov-2017
- Withdrawal Date
- 30-May-2018
- Technical Committee
- ASD-STAN - Aerospace
- Drafting Committee
- ASD-STAN/D 2 - Electrical
- Current Stage
- 6060 - Definitive text made available (DAV) - Publishing
- Start Date
- 15-Nov-2017
- Completion Date
- 15-Nov-2017
Overview
EN 4652-322:2017 is a CEN aerospace product standard for coaxial radio-frequency connectors: Type 3, N interface - crimp version - square flange receptacle. It defines mechanical, electrical and environmental characteristics for 50 Ω N‑interface square flange receptacles used in aerospace cabling assemblies where the cable‑to‑connector termination is by crimp technology.
Key topics and requirements
- Electrical characteristics
- Characteristic impedance: 50 Ω
- Maximum operating frequency: 6 GHz
- VSWR limits (example): ≤ 1.10 at 3 000 MHz, ≤ 1.15 at 6 000 MHz
- Contact resistance (initial central contact): ≤ 1.5 mΩ
- Insulation resistance: ≥ 5 000 MΩ
- Withstand voltage: 1 500 Veff (sea level)
- Mechanical and materials
- Service life: 500 mating cycles
- Tightening torque of coupling nut: specified in standard (see Clause 3)
- Retention of centre contact: ≥ 27 N
- Cable retention: specified per cable group (examples: 140 N or 400 N)
- Materials: centre contact gold plated copper alloy over nickel; PTFE insulators; silicone seals
- Configuration and dimensions
- Square flange receptacle dimensions, mass and marking are defined (see Figure 1 / Table 1).
- Holes for safety/lockwire required where no self‑locking device exists.
- Assembly and tooling
- Acceptable cable groups and crimp tooling are listed (e.g., cable codes WM, WD, WN and M22520-series crimp tools/locators).
- Stripping lengths specified per cable group (see Clauses 3.6.1–3.6.2).
- Qualification and testing
- Extensive test program: low‑level contact resistance, VSWR, insertion loss, RF leakage, corona, environmental tests (thermal cycles, salt mist, sand/dust), shock, vibration, mechanical endurance and crimp tensile tests.
- Qualification references: EN 4652‑001 and EN 9133 for quality/qualification procedures.
Applications and users
- Intended for aerospace RF signal paths where robust, qualified 50 Ω N‑type connections are required:
- Aircraft and spacecraft RF subsystems
- Avionics and antenna interfaces
- Aerospace harness manufacturers and cable assembly shops
- Design, procurement and quality engineers specifying aerospace‑grade RF connectors
- Useful for engineers verifying compatibility, environmental performance, and qualification testing of crimped N‑interface square flange receptacles.
Related standards (key references)
- EN 4652‑001 - Connectors, coaxial, radio frequency - Technical specification
- EN 4652‑320 - Type 3, N interface - crimp straight plug (mating part)
- EN 2591 - Test methods for electrical/optical connections
- EN 2812 - Cable stripping procedures
- EN 9133 - Quality management & qualification for aerospace standard products
- TR 6058 - Cable code identification list
Keywords: EN 4652-322:2017, N interface, square flange receptacle, coaxial connector, 50 ohm, crimp connector, aerospace RF connectors, VSWR, insertion loss, qualification testing.
Get Certified
Connect with accredited certification bodies for this standard
National Aerospace and Defense Contractors Accreditation Program (NADCAP)
Global cooperative program for special process quality in aerospace.
NSF-ISR
NSF International Strategic Registrations.
Orion Registrar Inc.
US-based certification body for management systems.
Sponsored listings
Frequently Asked Questions
EN 4652-322:2017 is a standard published by the European Committee for Standardization (CEN). Its full title is "Aerospace series - Connectors, coaxial, radio frequency - Part 322: Type 3, N interface - Crimp version - Square flange receptacle - Product standard". This standard covers: This European Standard specifies the characteristics of screwed on coupling (N interface) coaxial square flange receptacle - 50 ohms. The cable to connector assembly is a crimp technology.
This European Standard specifies the characteristics of screwed on coupling (N interface) coaxial square flange receptacle - 50 ohms. The cable to connector assembly is a crimp technology.
EN 4652-322:2017 is classified under the following ICS (International Classification for Standards) categories: 49.060 - Aerospace electric equipment and systems. The ICS classification helps identify the subject area and facilitates finding related standards.
EN 4652-322:2017 is available in PDF format for immediate download after purchase. The document can be added to your cart and obtained through the secure checkout process. Digital delivery ensures instant access to the complete standard document.

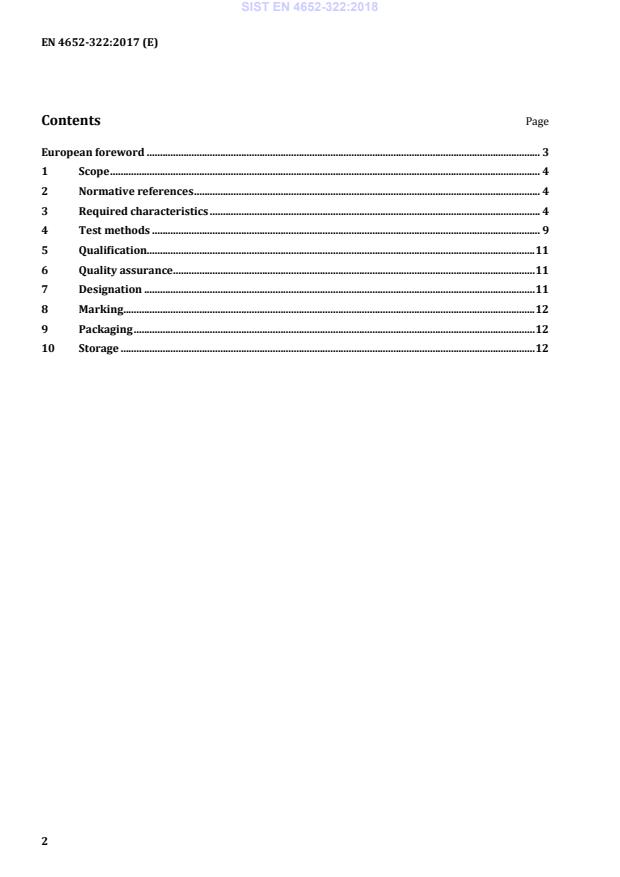

Standards Content (Sample)
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.SURL]YRGLuft- und Raumfahrt - Koaxiale Hochfrequenz-Steckverbinder - Teil 322: Typ 3, N-Schnittstelle - Crimpverbindung - fester Steckverbinder mit quadratischem Montageflansch - ProduktnormSérie aérospatiale - Connecteurs coaxiaux pour radiofréquences - Partie 322 : Type 3, interface N - Version à sertir - embase à collerette carrée - Norme de produitAerospace series - Connectors, coaxial, radio frequency - Part 322: Type 3, N interface - Crimp version - Square flange receptacle - Product standard49.060Aerospace electric equipment and systems31.220.10Plug-and-socket devices. ConnectorsICS:Ta slovenski standard je istoveten z:EN 4652-322:2017SIST EN 4652-322:2018en,fr,de01-februar-2018SIST EN 4652-322:2018SLOVENSKI
STANDARD
EUROPEAN STANDARD NORME EUROPÉENNE EUROPÄISCHE NORM
EN 4652-322
November
t r s y ICS
v {ä r x r English Version
Aerospace series æ Connectorsá coaxialá radio frequency æ Part
u t tã Type
uá N interface æ Crimp version æ Square flange receptacle æ Product standard Série aérospatiale æ Connecteurs coaxiaux pour radiofréquences æ Partie
u t t ã Type
uá interface N æ Version à sertir æ embase à collerette carrée æ Norme de produit
Luftæ und Raumfahrt æ Koaxiale HochfrequenzæSteckverbinder æ Teil
u t tã Typ
uá NæSchnittstelle æ Crimpverbindung æ fester Steckverbinder mit quadratischem Montageflansch æ Produktnorm This European Standard was approved by CEN on
s v August
t r s yä
egulations which stipulate the conditions for giving this European Standard the status of a national standard without any alterationä Upætoædate lists and bibliographical references concerning such national standards may be obtained on application to the CENæCENELEC Management Centre or to any CEN memberä
translation under the responsibility of a CEN member into its own language and notified to the CENæCENELEC Management Centre has the same status as the official versionsä
CEN members are the national standards bodies of Austriaá Belgiumá Bulgariaá Croatiaá Cyprusá Czech Republicá Denmarká Estoniaá Finlandá Former Yugoslav Republic of Macedoniaá Franceá Germanyá Greeceá Hungaryá Icelandá Irelandá Italyá Latviaá Lithuaniaá Luxembourgá Maltaá Netherlandsá Norwayá Polandá Portugalá Romaniaá Serbiaá Slovakiaá Sloveniaá Spainá Swedená Switzerlandá Turkey and United Kingdomä
EUROPEAN COMMITTEE FOR STANDARDIZATION COMITÉ EUROPÉEN DE NORMALISATION EUROPÄISCHES KOMITEE FÜR NORMUNG
CEN-CENELEC Management Centre:
Avenue Marnix 17,
B-1000 Brussels
t r s y CEN All rights of exploitation in any form and by any means reserved worldwide for CEN national Membersä Refä Noä EN
v x w tæ u t tã t r s y ESIST EN 4652-322:2018
EN 2424, Aerospace series — Marking of aerospace products EN 2591∗, Aerospace series — Elements of electrical and optical connection — Test methods 1) EN 2812, Aerospace series — Stripping of electric cables EN 4652-001, Aerospace series — Connectors, coaxial, radio frequency — Part 001: Technical specification EN 4652-320, Aerospace series — Connectors, coaxial, radio frequency — Part 320: Type 3, N interface —Crimp version — Straight plug — Product standard 1) EN 9133, Aerospace series — Quality Management Systems — Qualification Procedure for Aerospace Standard Products TR 6058, Aerospace series — Cable code identification list 2) 3 Required characteristics The connection technology shall comply to all required tests described in Clause 4. All interface shall comply to EN 4652-001. Holes for lockwire shall exist in case of no self-locking device on the product. Water ingress resistance is required in mated conditions for all cable groups. Water ingress resistance is required in unmated conditions for cable group A.
∗ All parts quoted in this European Standard. 1) Published as ASD-STAN Prestandard at the date of publication of this European Standard. (www.asd-stan.org). 2) Published as ASD-STAN Technical Report at the date of publication of this European Standard. (www.asd-stan.org). SIST EN 4652-322:2018
Key 1 Prospective cap 2 Marking axis 3 Reference plane Figure 1 — N Square flange receptacle Marking: see Clause 8. Table 1 — N square flange receptacle dimensions and mass Cable code (see TR 6058) Cable group A
max. B
max. ØC ØD ØE ØF G
max. Mass g WM C 47,2 38,8 14,4 4,2 1,15 3 3 45,43 WD E 50,4 42,3 14 8,4 2,5 6,3 2 48,75 WN F 50,4 42,3 14 8,4 2,5 6,3 2 48,75
3.2 Materials and finish Center contact (front active part) . : Copper alloy gold plated over nickel undercoat Ferrule (if existing) .
...
