EN 13880-10:2018
(Main)Hot applied joint sealants - Part 10: Test method for the determination of adhesion and cohesion following continuous extension and compression
Hot applied joint sealants - Part 10: Test method for the determination of adhesion and cohesion following continuous extension and compression
This document specifies a method for determination of adhesion and cohesion characteristics of hot applied joint sealant specimens following cyclic extensions.
NOTE The test simulates yearly joint movements due to temperature variations.
Heiß verarbeitbare Fugenmassen - Teil 10: Prüfverfahren zur Bestimmung des Dehn- und Haftvermögens bei kontinuierlicher Dehnung und Stauchung
Dieses Dokument legt ein Verfahren zur Bestimmung des Adhäsions- und Kohäsionsverhaltens von Probekörpern heiß verarbeitbarer Fugenmassen durch zyklische Dehnung.
ANMERKUNG Die Prüfung simuliert jährliche Fugenbewegungen durch Temperaturschwankungen.
Produits de scellement de joints appliqués à chaud - Partie 10 : Méthode d'essai pour la détermination de l'adhésion et de la cohésion après traction et compression répétée
Ce document décrit une méthode pour la détermination des caractéristiques d’adhésion et de cohésion d’éprouvettes de produit de scellement de joint appliqué à chaud après des cycles de traction répétée.
NOTE L'essai simule les mouvements annuels du joint dus aux variations de température.
Tesnilne mase za stike, ki se vgrajujejo po vročem postopku - 10. del: Preskusna metoda za ugotavljanje adhezije in kohezije po dolgotrajnem raztezanju in stiskanju
Ta evropski standard opisuje metodo za ugotavljanje značilnosti adhezije in kohezije vzorcev tesnilnih mas za stike, ki se vgrajujejo po vročem postopku, po preskušanju vezave z dolgotrajnim raztezanjem in stiskanjem.
General Information
- Status
- Published
- Publication Date
- 29-May-2018
- Withdrawal Date
- 29-Nov-2018
- Technical Committee
- CEN/TC 227 - Road materials
- Current Stage
- 9060 - Closure of 2 Year Review Enquiry - Review Enquiry
- Start Date
- 02-Dec-2023
- Completion Date
- 02-Dec-2023
Relations
- Effective Date
- 06-Jun-2018
Overview
EN 13880-10:2018 - Hot applied joint sealants - Part 10 - specifies a laboratory test method to determine adhesion and cohesion of hot-applied joint sealants after cyclic extension and compression. The procedure simulates yearly joint movements caused by temperature variation to assess whether a sealant maintains bond and internal strength under realistic thermal cycling.
Key Topics and Requirements
Specimens and dimensions
- Concrete test blocks per EN 13880-12, joint width 24.0 ± 0.5 mm, joint length/height 50.0 ± 0.5 mm.
- Typical block size and moisture control are specified (moisture ≈ 5.0 ± 0.5 %).
- Three test specimens per test.
Mechanical cycling
- Tensile rig capable of smooth, backlash-free movement and forces up to 2 500 N.
- Extension of specimens by 18.00 ± 0.25 mm at a rate of 6.00 ± 0.25 mm/h, followed by compression to original length (2.5 cycles total).
- Forces and extension are recorded; maximum force is reported and converted to stress (F/A).
Environmental control
- Cooling chamber to reach test temperature within 4 h and hold specimens for at least 36 h (test temperature per EN 14188-1).
- Calibrated temperature indicator (±1.0 °C).
Failure assessment and reporting
- Inspect for adhesive failures (reported to nearest 10 mm²) and cohesive failures (nearest 5 mm²); cavities > 3 mm depth noted.
- If a specimen totally fails, the test is repeated once; multiple failures → test reported as failure.
- Test report must include sample ID, primer, batch, force/time diagrams, results, test temperature and analyst details.
Optional fuel-immersion (Annex A)
- Procedure for fuel-resistant sealants: immersion in standard fuel (70% iso‑octane / 30% toluene) at (23 ± 2) °C for 24 ± 1 h, air-dry, then perform cyclic test.
Practical Applications and Users
EN 13880-10:2018 is used by:
- Quality control and R&D laboratories validating bond strength and durability of hot-applied joint sealants.
- Manufacturers seeking to demonstrate product performance under thermal cycling and to support specifications.
- Road authorities, contractors and specifiers who need verified adhesion/cohesion data for pavement joint systems.
- Certification bodies assessing compliance with road materials requirements.
This test informs product selection for road construction, runway joints and other pavements where thermal movement stresses sealing systems.
Related Standards
- EN 13880-6 - Sample preparation for testing
- EN 13880-12 - Manufacture of concrete test blocks for bond testing
- EN 14188-1 - Specifications and test temperatures for hot-applied sealants
- EN 13880-2 - Cone penetration (related test)
Keywords: EN 13880-10:2018, hot applied joint sealants, adhesion and cohesion, cyclic extension, bond testing, tensile rig, cooling chamber, fuel immersion.
Frequently Asked Questions
EN 13880-10:2018 is a standard published by the European Committee for Standardization (CEN). Its full title is "Hot applied joint sealants - Part 10: Test method for the determination of adhesion and cohesion following continuous extension and compression". This standard covers: This document specifies a method for determination of adhesion and cohesion characteristics of hot applied joint sealant specimens following cyclic extensions. NOTE The test simulates yearly joint movements due to temperature variations.
This document specifies a method for determination of adhesion and cohesion characteristics of hot applied joint sealant specimens following cyclic extensions. NOTE The test simulates yearly joint movements due to temperature variations.
EN 13880-10:2018 is classified under the following ICS (International Classification for Standards) categories: 93.080.20 - Road construction materials. The ICS classification helps identify the subject area and facilitates finding related standards.
EN 13880-10:2018 has the following relationships with other standards: It is inter standard links to EN 13880-10:2003. Understanding these relationships helps ensure you are using the most current and applicable version of the standard.
EN 13880-10:2018 is available in PDF format for immediate download after purchase. The document can be added to your cart and obtained through the secure checkout process. Digital delivery ensures instant access to the complete standard document.
Standards Content (Sample)
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.VWLVNDQMXHeiß verarbeitbare Fugenmassen - Teil 10: Prüfverfahren zur Bestimmung des Dehn- und Haftvermögens bei kontinuierlicher Dehnung und StauchungProduits de scellement de joints appliqués à chaud - Partie 10: Méthode d'essai pour la détermination de l'adhésion et de la cohésion après traction et compression répétéeHot applied joint sealants - Part 10: Test method for the determination of adhesion and cohesion following continuous extension and compression93.080.20Materiali za gradnjo cestRoad construction materials91.100.50Veziva. Tesnilni materialiBinders. Sealing materialsICS:Ta slovenski standard je istoveten z:EN 13880-10:2018SIST EN 13880-10:2018en,fr,de01-september-2018SIST EN 13880-10:2018SLOVENSKI
STANDARDSIST EN 13880-10:20041DGRPHãþD
EUROPEAN STANDARD NORME EUROPÉENNE EUROPÄISCHE NORM
EN 13880-10
May
t r s z ICS
{ uä r z rä t r Supersedes EN
s u z z ræ s rã t r r uEnglish Version
Hot applied joint sealants æ Part
s rã Test method for the determination of adhesion and cohesion following continuous extension and compression Produits de scellement de joints appliqués à chaud æ Partie
s rã Méthode d 5essai pour la détermination de l 5adhésion et de la cohésion après traction et compression répétée
Heiß verarbeitbare Fugenmassen æ Teil
s rã Prüfverfahren zur Bestimmung des Dehnæ und Haftvermögens bei kontinuierlicher Dehnung und Stauchung This European Standard was approved by CEN on
s x March
t r s zä
egulations which stipulate the conditions for giving this European Standard the status of a national standard without any alterationä Upætoædate lists and bibliographical references concerning such national standards may be obtained on application to the CENæCENELEC Management Centre or to any CEN memberä
translation under the responsibility of a CEN member into its own language and notified to the CENæCENELEC Management Centre has the same status as the official versionsä
CEN members are the national standards bodies of Austriaá Belgiumá Bulgariaá Croatiaá Cyprusá Czech Republicá Denmarká Estoniaá Finlandá Former Yugoslav Republic of Macedoniaá Franceá Germanyá Greeceá Hungaryá Icelandá Irelandá Italyá Latviaá Lithuaniaá Luxembourgá Maltaá Netherlandsá Norwayá Polandá Portugalá Romaniaá Serbiaá Slovakiaá Sloveniaá Spainá Swedená Switzerlandá Turkey and United Kingdomä
EUROPEAN COMMITTEE FOR STANDARDIZATION COMITÉ EUROPÉEN DE NORMALISATION EUROPÄISCHES KOMITEE FÜR NORMUNG
CEN-CENELEC Management Centre:
Rue de la Science 23,
B-1040 Brussels
t r s z CEN All rights of exploitation in any form and by any means reserved worldwide for CEN national Membersä Refä Noä EN
s u z z ræ s rã t r s z ESIST EN 13880-10:2018

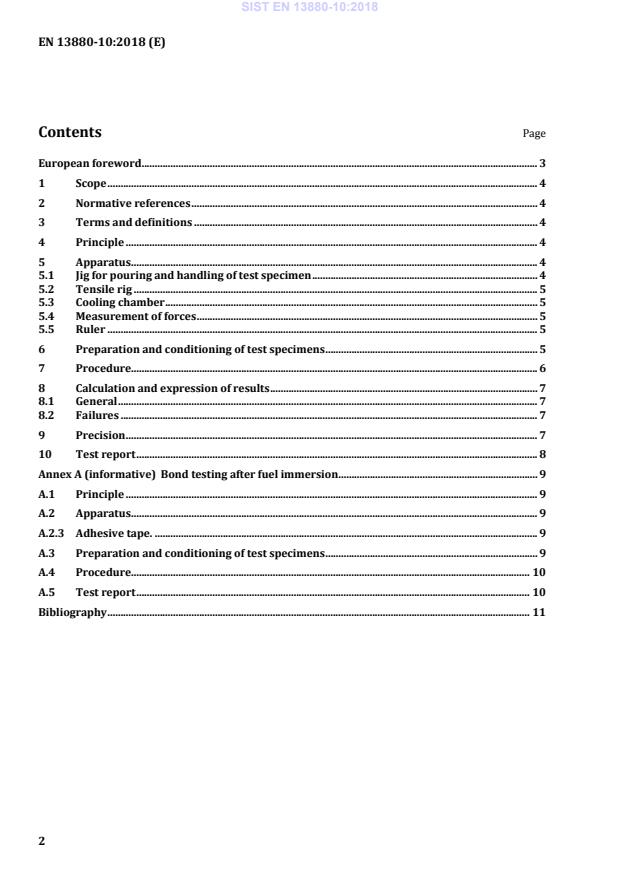

Bond testing after fuel immersion . 9 A.1 Principle . 9 A.2 Apparatus . 9 A.2.3 Adhesive tape. . 9 A.3 Preparation and conditioning of test specimens . 9 A.4 Procedure. 10 A.5 Test report . 10 Bibliography . 11
...
