EN 4003:2006
(Main)Aerospace series - Aluminium alloy AL-P2219-T87 - Sheet and strip 0,5 mm ≤ a ≤ 6 mm
Aerospace series - Aluminium alloy AL-P2219-T87 - Sheet and strip 0,5 mm ≤ a ≤ 6 mm
This standard specifies the requirements relating to:
Aluminium alloy AL-P2219-T87 - Sheet and strip 0,5 mm ≤ a ≤ 6 mm for aerospace applications.
Luft- und Raumfahrt - Aluminiumlegierung AL-P2219-T87 - Bleche und Bänder 0,5 mm ≤ a ≤ 6 mm
Diese Norm legt die Anforderungen an
Aluminiumlegierung AL P2219-T87
Bleche und Bänder
0,5 mm ≤ a ≤ 6 mm
für Anwendungen in der Luft- und Raumfahrt fest.
Série aérospatiale - Alliage d'aluminium AL-P2219-T87 - Tôles et bandes 0,5 mm ≤ a ≤ 6 mm
Aeronavtika - Aluminijeva zlitina AL-P2219-T87 - Pločevina in trakovi 0,5 mm ≤ a ≤ 6 mm
General Information
- Status
- Published
- Publication Date
- 19-Dec-2006
- Withdrawal Date
- 29-Jun-2007
- Technical Committee
- ASD-STAN - Aerospace
- Drafting Committee
- ASD-STAN/D 4 - Metallic
- Current Stage
- 9093 - Decision to confirm - Review Enquiry
- Start Date
- 01-Jun-2017
- Completion Date
- 11-Feb-2026
Relations
- Effective Date
- 28-Jan-2026
Overview
EN 4003:2006 (CEN) specifies requirements for the aerospace series aluminium alloy AL‑P2219 in temper T87 supplied as sheet and strip in the thickness range 0.5 mm ≤ a ≤ 6 mm. Prepared under ASD‑STAN and adopted by CEN, this material standard defines chemical composition, form and production, delivery conditions, heat treatments, and key mechanical and physical properties required for aerospace use.
Key topics and technical requirements
- Material designation: Aluminium alloy AL‑P2219‑T87 (as listed in the standard).
- Form and production: Rolled sheet and strip; thickness range 0.5–6 mm.
- Chemical composition: Limits given for major elements (example: Cu ~5.8–6.8 %); aluminium as balance. (See standard for full table of element limits.)
- Delivery conditions / tempers:
- T37 and T87 codes referenced.
- T37: solution heat treatment and quench, ~7% cold work and natural ageing (ambient) t ≥ 5 days.
- T87: solution heat treatment and quench, ~7% cold work, plus artificial ageing 157 °C – 168 °C for 10–28 h.
- Solution heat treatment temperature range 530 °C – 540 °C; quench to ≤ 40 °C.
- Mechanical properties (selected minimums):
- Proof stress Rp0.2 ≥ 360 MPa
- Tensile strength Rm ≥ 440 MPa
- Elongation A (50 mm) ≥ 5–6 % (dependent on thickness range)
- Physical / inspection data: Typical electrical conductivity values listed for conditions; dimensional, marking and defect inspections referenced to EN 4400‑2.
- Testing and qualification: Test pieces, sample directions (LT), and inspection rules follow EN 4400‑2; product qualification program to be agreed between manufacturer and purchaser.
Applications and who uses this standard
- Primary applications: Aerospace structural components, stiffeners, fittings, and thin-sheet assemblies where high strength and controlled thermal treatment are required.
- Intended users:
- Aerospace materials engineers and design teams specifying sheet/strip alloys.
- Manufacturers and rolling mills producing AL‑P2219 sheet/strip.
- Quality assurance personnel, procurement professionals, and certification bodies verifying compliance.
- Suppliers preparing material data sheets and conformity documentation for aerospace contracts.
Related standards
- EN 4400‑2 - Aluminium and aluminium alloy wrought products - Technical specification - Part 2: Sheet and strip (referenced for tests and inspections).
- EN 4258 - General organization of standardization for aerospace metallic materials.
- EN 4500‑2 - Rules for drafting and presentation of material standards (specific rules for aluminium alloys).
- National adoption example: SIST EN 4003:2009.
Keywords: EN 4003, AL‑P2219‑T87, aerospace aluminium, sheet and strip, T87 temper, mechanical properties, CEN standard, aluminium alloy standard.
Get Certified
Connect with accredited certification bodies for this standard
Element Materials Technology
Materials testing and product certification.
Inštitut za kovinske materiale in tehnologije
Institute of Metals and Technology. Materials testing, metallurgical analysis, NDT.
Sponsored listings
Frequently Asked Questions
EN 4003:2006 is a standard published by the European Committee for Standardization (CEN). Its full title is "Aerospace series - Aluminium alloy AL-P2219-T87 - Sheet and strip 0,5 mm ≤ a ≤ 6 mm". This standard covers: This standard specifies the requirements relating to: Aluminium alloy AL-P2219-T87 - Sheet and strip 0,5 mm ≤ a ≤ 6 mm for aerospace applications.
This standard specifies the requirements relating to: Aluminium alloy AL-P2219-T87 - Sheet and strip 0,5 mm ≤ a ≤ 6 mm for aerospace applications.
EN 4003:2006 is classified under the following ICS (International Classification for Standards) categories: 77.150.10 - Aluminium products. The ICS classification helps identify the subject area and facilitates finding related standards.
EN 4003:2006 has the following relationships with other standards: It is inter standard links to EN 4258:2024. Understanding these relationships helps ensure you are using the most current and applicable version of the standard.
EN 4003:2006 is available in PDF format for immediate download after purchase. The document can be added to your cart and obtained through the secure checkout process. Digital delivery ensures instant access to the complete standard document.

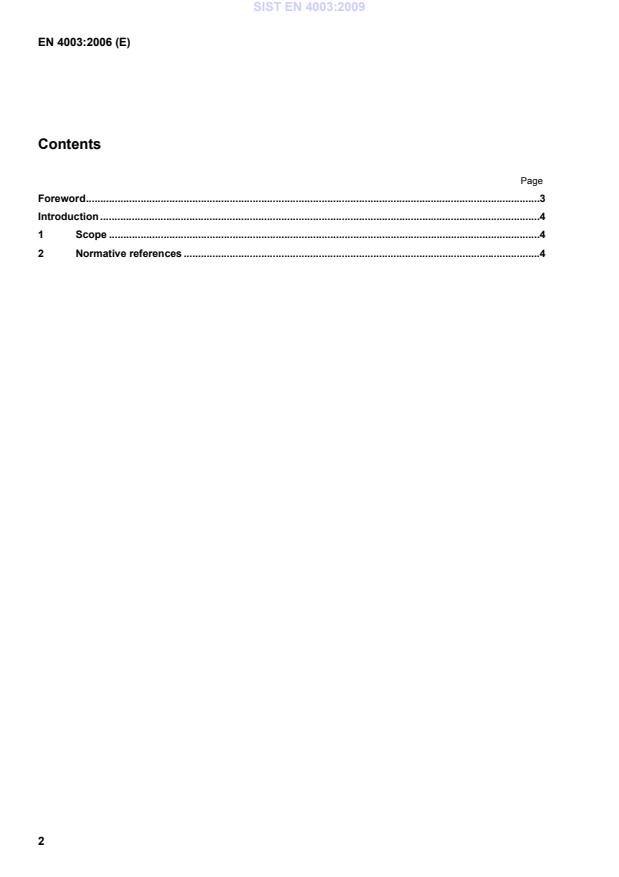

Standards Content (Sample)
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.PP49.025.20AluminijAluminiumICS:Ta slovenski standard je istoveten z:EN 4003:2006SIST EN 4003:2009en,de01-marec-2009SIST EN 4003:2009SLOVENSKI
STANDARD
EUROPEAN STANDARD NORME EUROPÉENNE EUROPÄISCHE NORM
EN 4003
December 2006 ICS 77.150.10 English Version
Aerospace series - Aluminium alloy AL-P2219-T87 - Sheet and strip 0,5 mm ≤ a ≤ 6 mm
Série aérospatiale - Alliage d'aluminium AL-P2219-T87 - Tôles et bandes 0,5 mm ≤ a ≤ 6 mm
Luft- und Raumfahrt - Aluminiumlegierung AL-P2219-T87 -Bleche und Bänder 0,5 mm ≤ a ≤ 6 mm This European Standard was approved by CEN on 12 June 2006.
CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the Central Secretariat or to any CEN member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation under the responsibility of a CEN member into its own language and notified to the Central Secretariat has the same status as the official versions.
CEN members are the national standards bodies of Austria, Belgium, Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland and United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION EUROPÄISCHES KOMITEE FÜR NORMUNG
Management Centre: rue de Stassart, 36
B-1050 Brussels © 2006 CEN All rights of exploitation in any form and by any means reserved worldwide for CEN national Members. Ref. No. EN 4003:2006: ESIST EN 4003:2009
...
