prEN 3475-701
(Main)Aerospace series - Cables, electrical, aircraft use - Test methods - Part 701: Strippability and adherence of insulation to the conductor
Aerospace series - Cables, electrical, aircraft use - Test methods - Part 701: Strippability and adherence of insulation to the conductor
This document specifies methods of measuring the strippability and adherence of the insulation to a conductor of a finished cable.
When a particular method is not specified in the detail product specification, method A is the default test method.
Method B is suitable for wires insulated with materials showing a low adhesion to the conductor due to the poor repeatability of the test method A with this type of wires.
It is intended to be used together with EN 3475 100.
Luft- und Raumfahrt - Elektrische Leitungen für Luftfahrtverwendung - Prüfverfahren - Teil 701: Abisolierbarkeit und Haftfestigkeit der Isolierung auf dem Leiter
Dieses Dokument legt Verfahren zur Bestimmung der Abisolierbarkeit und Haftfestigkeit der Isolierung auf einem Leiter einer fertigen Leitung fest.
Wenn kein bestimmtes Verfahren in der entsprechenden Produktspezifikation festgelegt ist, dann ist Verfahren A das standardmäßige Prüfverfahren.
Verfahren B ist für Drähte geeignet, die mit Werkstoffen isoliert sind, die eine niedrige Haftfestigkeit am Leiter aufweisen, da das Prüfverfahren A bei dieser Art von Drähten nur eine schlechte Wiederholpräzision aufweist.
Es ist vorgesehen, es zusammen mit EN 3475 100 anzuwenden.
Série aérospatiale - Câbles électriques à usage aéronautique - Méthodes d'essais - Partie 701 : Dénudabilité et adhérence de l'isolation sur le conducteur
Le présent document spécifie les méthodes pour mesurer la dénudabilité et l'adhérence de l'isolation sur un conducteur de câble fini.
Lorsqu'aucune méthode particulière n'est spécifiée dans la spécification de produit, la méthode A est la méthode par défaut.
La méthode B convient pour les fils isolés par des matériaux présentant une faible adhérence au conducteur en raison de la faible répétabilité de la méthode d'essai A pour ce type de fils.
Il est destiné à être utilisé conjointement avec l’EN 3475-100.
Aeronavtika - Električni kabli za uporabo v letalih - Preskusne metode - 701. del: Odstranljivost in oprijemljivost izolacije vodnika
General Information
- Status
- Not Published
- Publication Date
- 27-Oct-2026
- Technical Committee
- ASD-STAN - Aerospace
- Drafting Committee
- ASD-STAN/D 2/S 2 - Cables & Stripping Tools
- Current Stage
- 4060 - Closure of enquiry - Enquiry
- Start Date
- 24-Jul-2025
- Completion Date
- 24-Jul-2025
Relations
- Effective Date
- 06-Dec-2023
Overview
prEN 3475-701 - "Aerospace series - Cables, electrical, aircraft use - Test methods - Part 701: Strippability and adherence of insulation to the conductor" (CEN draft) specifies test methods to measure the strippability of cable jackets and the adherence (adhesion) of insulation to conductors for aerospace electrical cables. It is intended to be used together with EN 3475-100 and replaces EN 3475-701:2017 when adopted. The standard defines specimen preparation, test procedures, acceptance criteria and the default test approach for product specifications.
Key topics and requirements
- Specimen preparation
- Strippability tests use specimens taken from the finished cable.
- Adherence tests use individual wires taken before integration into a finished cable.
- Measurements should be made on samples directly from reels or coils with minimal deformation.
- Strippability (jacket removal)
- Stripping shall be achievable without difficulty over specified lengths (document references 5 mm for smaller sections and 8 mm for larger sections) using tools per EN 2812.
- For screened cables, the stripping capability is characterized by the time to strip an 80 mm jacket section.
- Maximum allowed stripping time: 40 s for a suitably skilled operator.
- Adherence (insulation-to-conductor)
- Two procedures are defined: Method A (default) and Method B (for low-adhesion insulating materials where Method A shows poor repeatability).
- Test method: conductor is passed through a calibrated hole (conductor diameter + 0.05 mm) and subjected to increasing tensile force until sliding occurs.
- Tensile speed: 100 ± 10 mm/min.
- Method A: single measurement per specimen with minimum force defined in the product/technical specification.
- Method B: typically three measurements per sample; if a measurement falls below the product limit, two additional measurements are taken and the median of five measurements must meet the specified minimum.
- Acceptance
- Minimum adherence forces and stripping performance are specified in the product or technical specification referenced by the purchaser/supplier.
Applications
- Quality control and type-approval testing of aerospace electrical cables, wire harnesses and screened cables.
- Ensuring reliable insulation adhesion for assembly processes (stripping, soldering, crimping) used in aircraft and aerospace systems.
- Material selection and supplier qualification for cable manufacturers and aerospace OEMs.
Who should use this standard
- Cable manufacturers, aerospace OEMs, wiring harness assemblers, test laboratories and quality engineers involved in aircraft electrical systems and component qualification.
Related standards
- EN 3475-100 - General test methods for aerospace cables
- EN 2812 - Stripping of electric cables
Keywords: prEN 3475-701, strippability, adherence of insulation, aerospace cables, test methods, cable insulation, Method A, Method B, EN 3475-100.
Frequently Asked Questions
prEN 3475-701 is a draft published by the European Committee for Standardization (CEN). Its full title is "Aerospace series - Cables, electrical, aircraft use - Test methods - Part 701: Strippability and adherence of insulation to the conductor". This standard covers: This document specifies methods of measuring the strippability and adherence of the insulation to a conductor of a finished cable. When a particular method is not specified in the detail product specification, method A is the default test method. Method B is suitable for wires insulated with materials showing a low adhesion to the conductor due to the poor repeatability of the test method A with this type of wires. It is intended to be used together with EN 3475 100.
This document specifies methods of measuring the strippability and adherence of the insulation to a conductor of a finished cable. When a particular method is not specified in the detail product specification, method A is the default test method. Method B is suitable for wires insulated with materials showing a low adhesion to the conductor due to the poor repeatability of the test method A with this type of wires. It is intended to be used together with EN 3475 100.
prEN 3475-701 is classified under the following ICS (International Classification for Standards) categories: 49.060 - Aerospace electric equipment and systems. The ICS classification helps identify the subject area and facilitates finding related standards.
prEN 3475-701 has the following relationships with other standards: It is inter standard links to EN 3475-701:2017. Understanding these relationships helps ensure you are using the most current and applicable version of the standard.
prEN 3475-701 is available in PDF format for immediate download after purchase. The document can be added to your cart and obtained through the secure checkout process. Digital delivery ensures instant access to the complete standard document.
Standards Content (Sample)
SLOVENSKI STANDARD
01-julij-2025
Aeronavtika - Električni kabli za uporabo v letalih - Preskusne metode - 701. del:
Odstranljivost in oprijemljivost izolacije vodnika
Aerospace series - Cables, electrical, aircraft use - Test methods - Part 701: Strippability
and adherence of insulation to the conductor
Luft- und Raumfahrt - Elektrische Leitungen für Luftfahrtverwendung - Prüfverfahren -
Teil 701: Abisolierbarkeit und Haftfestigkeit der Isolierung auf dem Leiter
Série aérospatiale - Câbles électriques à usage aéronautique - Méthodes d'essais -
Partie 701 : Dénudabilité et adhérence de l'isolation sur le conducteur
Ta slovenski standard je istoveten z: prEN 3475-701
ICS:
29.060.20 Kabli Cables
49.060 Letalska in vesoljska Aerospace electric
električna oprema in sistemi equipment and systems
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.
DRAFT
EUROPEAN STANDARD
NORME EUROPÉENNE
EUROPÄISCHE NORM
May 2025
ICS 49.060 Will supersede EN 3475-701:2017
English Version
Aerospace series - Cables, electrical, aircraft use - Test
methods - Part 701: Strippability and adherence of
insulation to the conductor
Série aérospatiale - Câbles électriques à usage Luft- und Raumfahrt - Elektrische Leitungen für
aéronautique - Méthodes d'essais - Partie 701 : Luftfahrtverwendung - Prüfverfahren - Teil 701:
Dénudabilité et adhérence de l'isolation sur le Abisolierbarkeit und Haftfestigkeit der Isolierung auf
conducteur dem Leiter
This draft European Standard is submitted to CEN members for enquiry. It has been drawn up by the Technical Committee ASD-
STAN.
If this draft becomes a European Standard, CEN members are bound to comply with the CEN/CENELEC Internal Regulations
which stipulate the conditions for giving this European Standard the status of a national standard without any alteration.
This draft European Standard was established by CEN in three official versions (English, French, German). A version in any other
language made by translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC
Management Centre has the same status as the official versions.
CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia,
Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway,
Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Türkiye and
United Kingdom.
Recipients of this draft are invited to submit, with their comments, notification of any relevant patent rights of which they are
aware and to provide supporting documentation.
Warning : This document is not a European Standard. It is distributed for review and comments. It is subject to change without
notice and shall not be referred to as a European Standard.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION
EUROPÄISCHES KOMITEE FÜR NORMUNG
CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2025 CEN All rights of exploitation in any form and by any means reserved Ref. No. prEN 3475-701:2025 E
worldwide for CEN national Members.

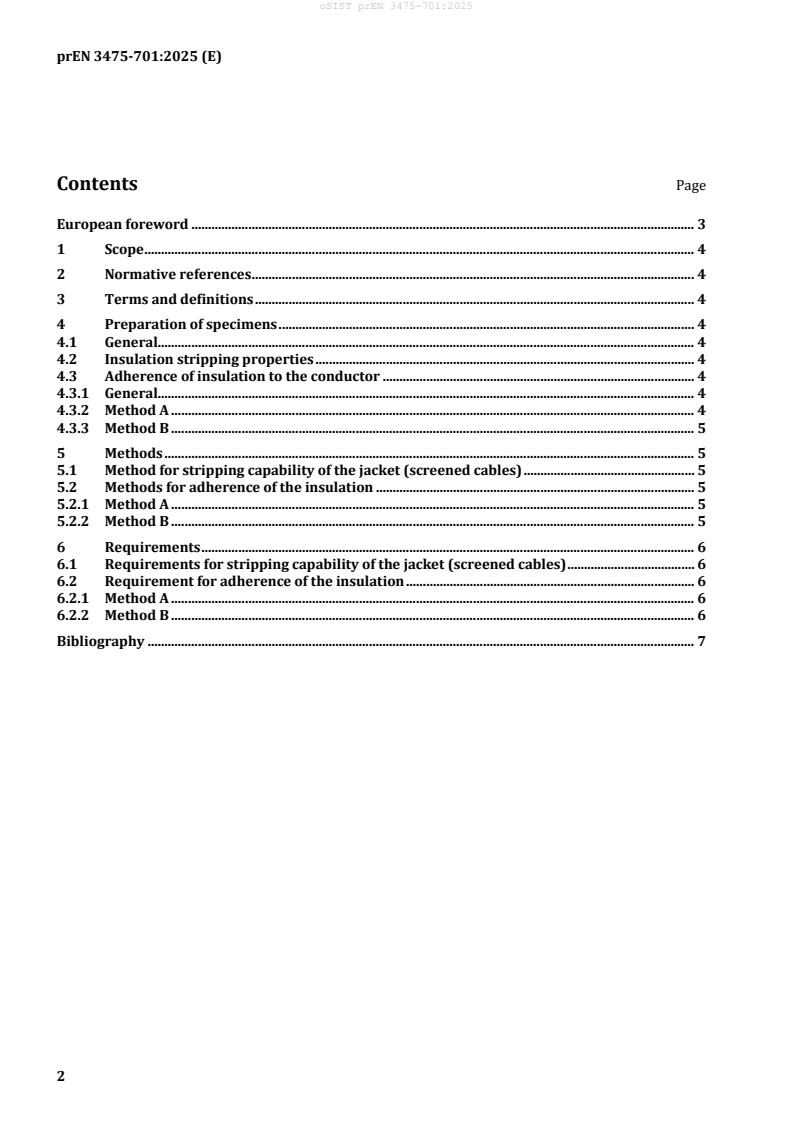

Contents Page
European foreword . 3
1 Scope . 4
2 Normative references . 4
3 Terms and definitions . 4
4 Preparation of specimens . 4
4.1 General. 4
4.2 Insulation stripping properties . 4
4.3 Adherence of insulation to the conductor . 4
4.3.1 General. 4
4.3.2 Method A . 4
4.3.3 Method B . 5
5 Methods . 5
5.1 Method for stripping capability of the jacket (screened cables) . 5
5.2 Methods for adherence of the insulation . 5
5.2.1 Method A . 5
5.2.2 Method B . 5
6 Requirements . 6
6.1 Requirements for stripping capability of the jacket (screened cables) . 6
6.2 Requirement
...
