EN 683-1:2006

SLOVENSKI STANDARD
01-marec-2007
1DGRPHãþD
SIST EN 683-1:1998
$OXPLQLMLQDOXPLQLMHYH]OLWLQH+ODGQRYDOMDQLSROL]GHONL]DWRSORWQHL]PHQMHYDOQLNH
GHO7HKQLþQLSRJRML]DSUHY]HPLQGREDYR
Aluminium and aluminium alloys - Finstock - Part 1: Technical conditions for inspection
and delivery
Aluminium und Aluminiumlegierungen - Vormaterial für Wärmeaustauscher (Finstock) -
Teil 1: Technische Lieferbedingungen
Aluminium et alliages d'aluminium - Bandes pour échangeurs thermiques - Partie 1 :
Conditions techniques de contrôle et de livraison
Ta slovenski standard je istoveten z: EN 683-1:2006
ICS:
77.150.10 Aluminijski izdelki Aluminium products
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

EUROPEAN STANDARD
EN 683-1
NORME EUROPÉENNE
EUROPÄISCHE NORM
December 2006
ICS 77.150.10 Supersedes EN 683-1:1996
English Version
Aluminium and aluminium alloys - Finstock - Part 1: Technical
conditions for inspection and delivery
Aluminium et alliages d'aluminium - Bandes pour Aluminium und Aluminiumlegierungen - Vormaterial für
échangeurs thermiques - Partie 1 : Conditions techniques Wärmeaustauscher (Finstock) - Teil 1: Technische
de contrôle et de livraison Lieferbedingungen
This European Standard was approved by CEN on 25 November 2006.
CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European
Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such national
standards may be obtained on application to the Central Secretariat or to any CEN member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation
under the responsibility of a CEN member into its own language and notified to the Central Secretariat has the same status as the official
versions.
CEN members are the national standards bodies of Austria, Belgium, Cyprus, Czech Republic, Denmark, Estonia, Finland, France,
Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania,
Slovakia, Slovenia, Spain, Sweden, Switzerland and United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION
EUROPÄISCHES KOMITEE FÜR NORMUNG
Management Centre: rue de Stassart, 36  B-1050 Brussels
© 2006 CEN All rights of exploitation in any form and by any means reserved Ref. No. EN 683-1:2006: E
worldwide for CEN national Members.

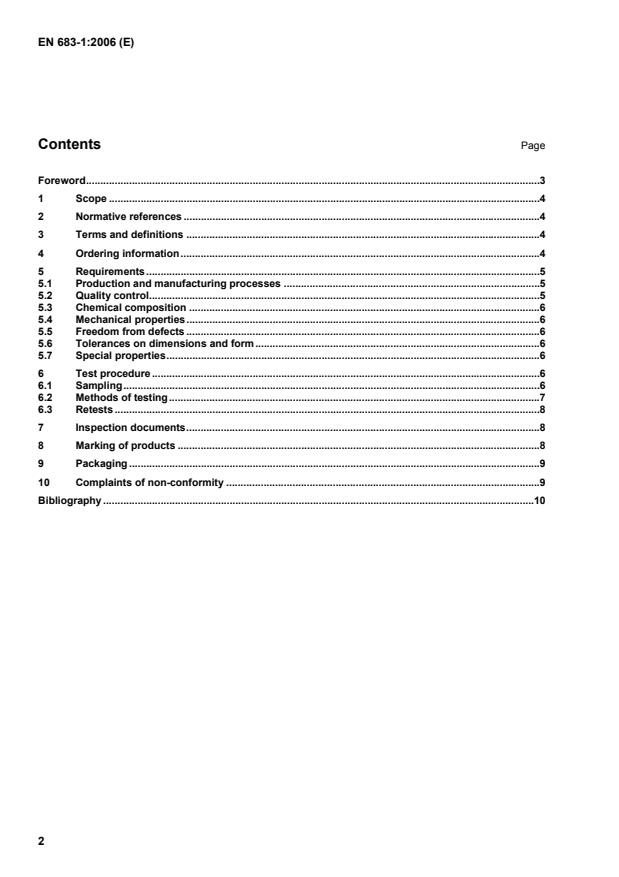

Contents Page
Foreword.3
1 Scope .4
2 Normative references .4
3 Terms and definitions .4
4 Ordering information.4
5 Requirements.5
5.1 Production and manufacturing processes .5
5.2 Quality control.5
5.3 Chemical composition .6
5.4 Mechanical properties.6
5.5 Freedom from defects .6
5.6 Tolerances on dimensions and form.6
5.7 Special properties.6
6 Test procedure.6
6.1 Sampling.6
6.2 Methods of testing.7
6.3 Retests .8
7 Inspection documents.8
8 Marking of products .8
9 Packaging .9
10 Complaints of non-conformity .9
Bibliography .10

Foreword
This document (EN 683-1:2006) has been prepared by Technical Committee CEN/TC 132 “Aluminium and
aluminium alloys”, the secretariat of which is held by AFNOR.
This European Standard shall be given the status of a national standard, either by publication of an identical
text or by endorsement, at the latest by June 2007, and conflicting national standards shall be withdrawn at
the latest by June 2007.
This document supersedes EN 683-1:1996.
Within its programme of work, Technical Committee CEN/TC 132 entrusted CEN/TC 132/WG 6 "Foil and
finstock" to revise EN 683-1:1996.
The following modifications have been made:
 scope is changed into gauge ranges from 60 µm to 400 µm;
 Clause 3 refers now to EN 12258-1;
 Clause 4: title is changed, and list is amended;
 Clause 5: subclause 5.2 is modified;
 Clause 6: subclauses 6.1.1 and 6.2.1 are modified;
 Clause 7: completely ammended;
 addition of Bibliography.
EN 683 comprises the following parts under the general title "Aluminium and aluminium alloys — Finstock":
 Part 1: Technical conditions for inspection and delivery
 Part 2: Mechanical properties
 Part 3: Tolerances on dimensions and form
Attention is drawn to the possibility that some of the elements of this document may be the subject of patent
rights. CEN shall not be held responsible for identifying any or all such patent rights.
CEN/TC 132 affirms it is its policy that in the case when a patentee refuses to grant licences on standardised
standard products under reasonable and not discriminatory conditions, then this product shall be removed
from the corresponding standard.
According to the CEN/CENELEC Internal Regulations, the national standards organizations of the following
countries are bound to implement this European Standard: Austria, Belgium, Cyprus, Czech Republic,
Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania,
Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden,
Switzerland and United Kingdom.
1 Scope
This document specifies the technical conditions for inspection and delivery of wrought aluminium and
wrought aluminium alloy finstock.
The gauge range covered is 60 µm to 400 µm.
It does not apply to cladded finstock.
2 Normative references
The following referenced documents are indispensable for the application of this document. For dated
references, only the edition cited applies. For undated references, the latest edition of the referenced
document (including any amendments) applies.
EN 515, Aluminium and aluminium alloys — Wrought products — Temper designations
EN 573-3, Aluminium and aluminium alloys — Chemical composition and form of wrought products —
Part 3: Chemical composition
EN 683-2, Aluminium and aluminium alloys — Finstock — Part 2: Mechanical properties
EN 683-3, Aluminium and aluminium alloys — Finstock — Part 3: Tolerances on dimensions and form
EN 12258-1:1998, Aluminium and aluminium alloys — Terms and definitions — Part 1: General terms
EN 14242, Aluminium and aluminium alloys - Chemical analysis - Inductively coupled plasma optical emission
spectral analysis
EN 14361, Aluminium and aluminium alloys - Chemical analysis - Sampling from metal melts
3 Terms and definitions
For the purposes of this document, the terms and definitions of EN 12258-1:1998 and the following applies.
3.1
finstock
flat, cold rolled product of rectangular cross section and thickness in the range 60 µm to 400 µm suitable for
heat exchanger applications
4 Ordering information
The order shall specify the product required and shall contain the following information:
a) type and form of product:
 the designation of the aluminium or aluminium alloy;
 the form of the product;
b) temper designation of the material to be delivered as specified in EN 515;
c) number of this European Standard (EN 683-1) or separate specification, if any;
d) dimensions of the product:
 thickness;
 width and type of specified t
...
