EN 13480-6:2004
(Main)Metallic industrial piping - Part 6: Additional requirements for buried piping
Metallic industrial piping - Part 6: Additional requirements for buried piping
This European Standard specifies requirements for industrial piping either totally buried or partly buried and partly run in sleeves or similar protection. It is used in conjunction with the other six parts of
EN 13480.
Where buried piping subject to this standard connects to piping installed under other jurisdiction such as pipelines, the transition should be made at a closing element e.g. an isolating or regulating valve separating the two sections. This should be close to the boundary of the industrial site, but may be inside or outside the boundary.
Operating temperature up to 75 °C.
NOTE For higher temperatures reference should be made to EN 13941, but it should be kept in mind, that CEN/TC 107 only deals with pre-insulated piping with temperatures up to 140 °C and diameters up to 800 mm, which is state of the art for these products.
Metallische industrielle Rohrleitungen - Teil 6: Zusätzliche Anforderungen an erdgedeckte Rohrleitungen
Diese Norm legt Anforderungen an ganz oder teilweise erdgedeckte industrielle Rohrleitungen fest, die teilweise in Schutzrohren oder ähnlichen Schutzvorrichtungen verlaufen. Diese Norm muss in Zusammenhang mit den anderen sechs Teilen der EN 13480 angewendet werden.
Werden erdgedeckte Rohrleitungen nach dieser vorliegenden Norm an Rohrleitungen angeschlossen, die unter eine andere Zuständigkeit fallen, z. B. Fernrohrleitungen, dann sollte der Übergang an einem Absperrorgan vorgenommen werden, z. B. an einem Absperr- oder Regelventil, durch das die beiden Abschnitte getrennt werden. Dies sollte in unmittelbarer Nähe des Grenzbereiches des Betriebsgeländes erfolgen, kann jedoch inner- oder außerhalb dieser Grenze sein.
Arbeitstemperatur bis 75 °C.
ANMERKUNG Bei höheren Temperaturen sollte auf EN 13941 verwiesen werden, wobei jedoch berücksichtigt werden sollte, dass CEN/TC 107 nur vorummantelte Rohrleitungen mit Temperaturen bis 140 °C und Durchmessern bis 800 mm behandelt, die den neuesten Stand der Technik dieser Produkte darstellen.
Tuyauteries industrielles métalliques - Partie 6: Exigences complémentaires relatives aux tuyauteries enterrées
Le présent document prescrit les exigences concernant les tuyauteries industrielles, soit complètement enterrées, soit partiellement enterrées et partiellement placées dans des gaines ou des protections similaires. Elle est à utiliser conjointement avec les six autres parties de l'EN 13480.
Lorsque les tuyauteries enterrées soumises à la présente norme sont raccordées à des tuyauteries installées soumises à d'autres réglementations comme les canalisations de transport, il est recommandé que la transition soit réalisée au niveau d'un élément de fermeture comme par exemple une vanne d'isolation ou de régulation séparant les deux sections. Il est recommandé que cette transition soit située à proximité de la limite du site industriel, toutefois elle peut être située à l'intérieur ou à l'extérieur de la limite.
Température de service jusqu'à 75 °C.
NOTE Pour des températures élevées, il convient de faire référence à l'EN 13941, mais il convient de garder à l'esprit que CEN/TC 107 ne traite que des tuyauteries pré-isolées pour des températures allant jusqu'à 140 °C et des diamètres allant jusqu'à 800 mm, ce qui est la pointe de la technologie en ce qui concerne ces produits.
Kovinski industrijski cevovodi - 6. del: Dodatne zahteve za vkopane cevovode
General Information
- Status
- Withdrawn
- Publication Date
- 13-Jul-2004
- Withdrawal Date
- 26-Jun-2012
- Technical Committee
- CEN/TC 267 - Industrial piping and pipelines
- Drafting Committee
- CEN/TC 267/WG 1 - General
- Current Stage
- 9960 - Withdrawal effective - Withdrawal
- Start Date
- 27-Jun-2012
- Completion Date
- 27-Jun-2012
Relations
- Replaced By
EN 13480-6:2012 - Metallic industrial piping - Part 6: Additional requirements for buried piping - Effective Date
- 06-Jun-2012
- Effective Date
- 28-Jan-2026
- Effective Date
- 08-Jun-2022
Frequently Asked Questions
EN 13480-6:2004 is a standard published by the European Committee for Standardization (CEN). Its full title is "Metallic industrial piping - Part 6: Additional requirements for buried piping". This standard covers: This European Standard specifies requirements for industrial piping either totally buried or partly buried and partly run in sleeves or similar protection. It is used in conjunction with the other six parts of EN 13480. Where buried piping subject to this standard connects to piping installed under other jurisdiction such as pipelines, the transition should be made at a closing element e.g. an isolating or regulating valve separating the two sections. This should be close to the boundary of the industrial site, but may be inside or outside the boundary. Operating temperature up to 75 °C. NOTE For higher temperatures reference should be made to EN 13941, but it should be kept in mind, that CEN/TC 107 only deals with pre-insulated piping with temperatures up to 140 °C and diameters up to 800 mm, which is state of the art for these products.
This European Standard specifies requirements for industrial piping either totally buried or partly buried and partly run in sleeves or similar protection. It is used in conjunction with the other six parts of EN 13480. Where buried piping subject to this standard connects to piping installed under other jurisdiction such as pipelines, the transition should be made at a closing element e.g. an isolating or regulating valve separating the two sections. This should be close to the boundary of the industrial site, but may be inside or outside the boundary. Operating temperature up to 75 °C. NOTE For higher temperatures reference should be made to EN 13941, but it should be kept in mind, that CEN/TC 107 only deals with pre-insulated piping with temperatures up to 140 °C and diameters up to 800 mm, which is state of the art for these products.
EN 13480-6:2004 is classified under the following ICS (International Classification for Standards) categories: 23.040.01 - Pipeline components and pipelines in general. The ICS classification helps identify the subject area and facilitates finding related standards.
EN 13480-6:2004 has the following relationships with other standards: It is inter standard links to EN 13480-6:2012, EN 378-2:2008+A2:2012, EN 13480-6:2004/A1:2005. Understanding these relationships helps ensure you are using the most current and applicable version of the standard.
EN 13480-6:2004 is associated with the following European legislation: EU Directives/Regulations: 97/23/EC; Standardization Mandates: M/071. When a standard is cited in the Official Journal of the European Union, products manufactured in conformity with it benefit from a presumption of conformity with the essential requirements of the corresponding EU directive or regulation.
EN 13480-6:2004 is available in PDF format for immediate download after purchase. The document can be added to your cart and obtained through the secure checkout process. Digital delivery ensures instant access to the complete standard document.

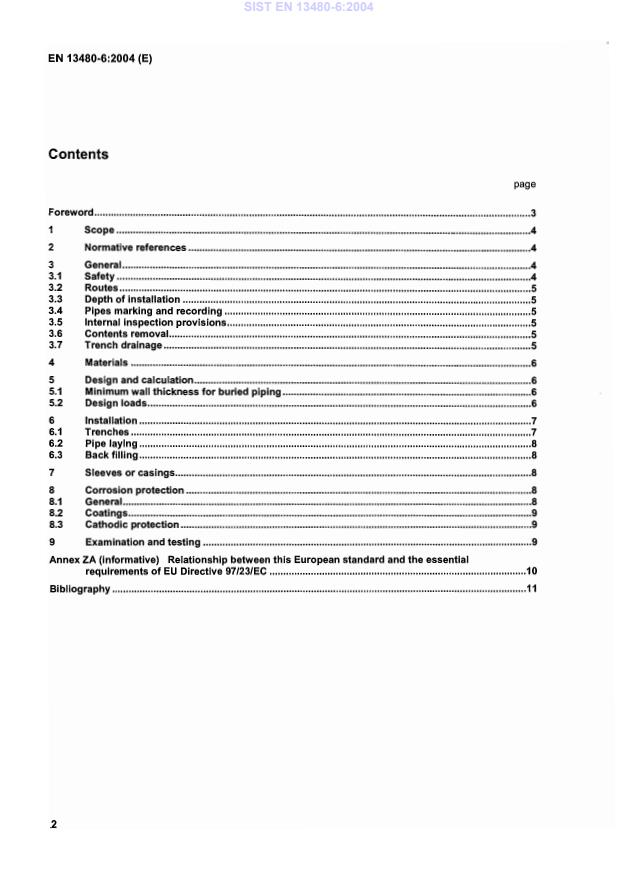

Standards Content (Sample)
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Kovinski industrijski cevovodi - 6. del: Dodatne zahteve za vkopane cevovodeMetallische industrielle Rohrleitungen - Teil 6: Zusätzliche Anforderungen an erdgedeckte RohrleitungenTuyauteries industrielles métalliques - Partie 6: Exigences complémentaires relatives aux tuyauteries enterréesMetallic industrial piping - Part 6: Additional requirements for buried piping77.140.75Jeklene ce
...
