EN 1264-4:2009

2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Ploskovni sistemi za gretje in hlajenje z vodo - 4. del: VgradnjaRaumflächenintegrierte Heiz- und Kühlsysteme mit Wasserdurchströmung - Teil 4: InstallationSystèmes de surfaces chauffantes et rafraîchissantes hydrauliques intégrées - Partie 4: InstallationWater based surface embedded heating and cooling systems - Part 4: Installation91.140.10Sistemi centralnega ogrevanjaCentral heating systemsICS:Ta slovenski standard je istoveten z:EN 1264-4:2009SIST EN 1264-4:2009en,de01-december-2009SIST EN 1264-4:2009SLOVENSKI
STANDARDSIST EN 15377-2:2008SIST EN 1264-4:20021DGRPHãþD

EUROPEAN STANDARDNORME EUROPÉENNEEUROPÄISCHE NORMEN 1264-4September 2009ICS 91.140.10Supersedes EN 1264-4:2001, EN 15377-2:2008
English VersionWater based surface embedded heating and cooling systems -Part 4: InstallationSystèmes de surfaces chauffantes et rafraîchissanteshydrauliques intégrées - Partie 4: InstallationRaumflächenintegrierte Heiz- und Kühlsysteme mitWasserdurchströmung - Teil 4: InstallationThis European Standard was approved by CEN on 1 August 2009.CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this EuropeanStandard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such nationalstandards may be obtained on application to the CEN Management Centre or to any CEN member.This European Standard exists in three official versions (English, French, German). A version in any other language made by translationunder the responsibility of a CEN member into its own language and notified to the CEN Management Centre has the same status as theofficial versions.CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Cyprus, Czech Republic, Denmark, Estonia, Finland,France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal,Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland and United Kingdom.EUROPEAN COMMITTEE FOR STANDARDIZATIONCOMITÉ EUROPÉEN DE NORMALISATIONEUROPÄISCHES KOMITEE FÜR NORMUNGManagement Centre:
Avenue Marnix 17,
B-1000 Brussels© 2009 CENAll rights of exploitation in any form and by any means reservedworldwide for CEN national Members.Ref. No. EN 1264-4:2009: ESIST EN 1264-4:2009

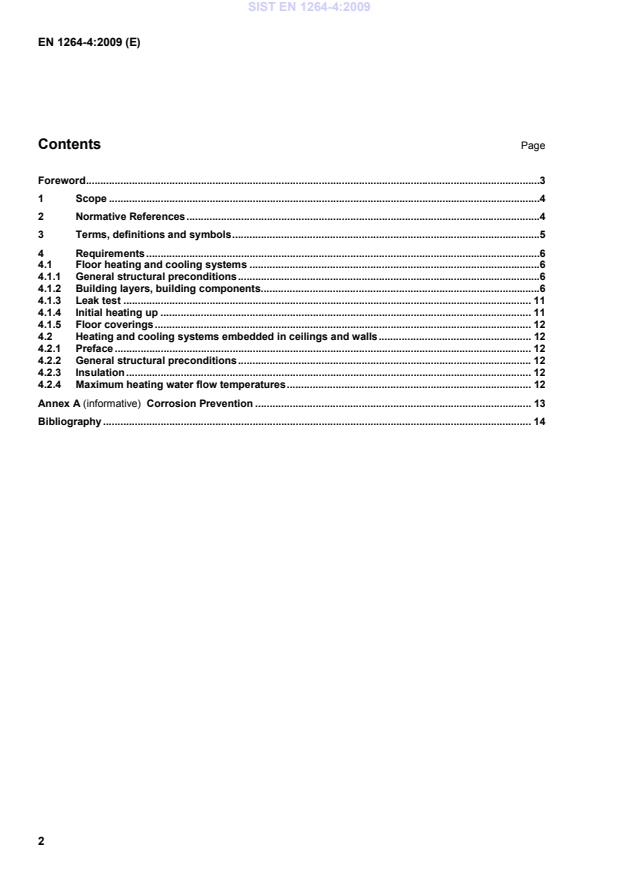

Corrosion Prevention . 13Bibliography . 14 SIST EN 1264-4:2009

1 Scope This European Standard applies to heating and cooling systems embedded into the enclosure surfaces of the room to be heated or to be cooled. This document specifies uniform requirements for the design and the construction of heating and cooling floor, ceiling and wall structures to ensure that the heating/cooling systems are suited to the particular application. The requirements specified by this Standard apply only to the components of the heating/cooling systems which are part of the heating/cooling system. This document excludes all other elements which are not part of the heating/cooling system.
2 Normative References The following referenced documents are indispensable for the application of this document. For dated references, only the edition cited applies. For undated references, the latest edition of the referenced document (including any amendments) applies. EN 1057:2006, Copper and copper alloys - Seamless, round copper tubes for water and gas in sanitary and heating applications EN 1254 (all parts), Copper and copper alloys — Plumbing fittings EN 1264-1:1997, Water based surface embedded heating and cooling systems - Part 1: Definitions and symbols EN 1264-2, Water based surface embedded heating and cooling systems - Part 2: Floor heating: Prove methods for the determination of the thermal output using calculation and test methods EN ISO 15874-1, Plastics piping systems for hot and cold water installations - Polypropylene (PP) - Part 1: General (ISO 15874-1:2003) EN ISO 15874-2, Plastics piping systems for hot and cold water installations - Polypropylene (PP) - Part 2: Pipes (ISO 15874-2:2003) EN ISO 15874-3, Plastics piping systems for hot and cold water installations - Polypropylene (PP) - Part 3: Fittings (ISO 15874-3:2003) EN ISO 15874-5, Plastics piping systems for hot and cold water installations - Polypropylene (PP) - Part 5: Fitness for purpose of the system (ISO 15874-5:2003) EN ISO 15875-1, Plastics piping systems for hot and cold water installations - Crosslinked polyethylene (PE-X) - Part 1: General (ISO 15875-1:2003) EN ISO 15875-2, Plastics piping systems for hot and cold water installations - Crosslinked polyethylene (PE-X) - Part 2: Pipes (ISO 15875-2:2003) EN ISO 15875-3, Plastics piping systems for hot and cold water installations - Crosslinked polyethylene (PE-X) - Part 3: Fittings (ISO 15875-3:2003) EN ISO 15875-5, Plastics piping systems for hot and cold water installations - Crosslinked polyethylene (PE-X) - Part 5: Fitness for purpose of the system (ISO 15875-5:2003) SIST EN 1264-4:2009

Table 1 — System Insulation Minimum heat conduction resistance of system-insulating layers below the pipes of heating/cooling systems (m2⋅⋅⋅⋅K)/W
heated room below or adjacent
Unheated or intermittent heated
room below, adjacent or directly on the ground *) external air temperature below or adjacent external design temperature
ϑd ≥ 0 °C external design temperature 0 °C > ϑd ≥ -5 °C external design temperature -5 °C > ϑd ≥ -15 °Cheat conduction resistance Rλ,ins
0,75
1,25
1,25
1,50
2,00 *) with ground water level ≤ 5m below the supporting base, the value should be increased.
When installing the system-insulating layer, the insulating panels shall be butted tightly together. Multiple insulating layers shall be staggered or placed in such a way that the joints between panels of one layer are out of line with the next layer. SIST EN 1264-4:2009

When using gush asphalt screeds, also a therefore suitable protective layer shall be applied, but in this case, liquid tightness is not necessary. Pr
...
