EN 1186-6:2002

2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Werkstoffe und Gegenstände in Kontakt mit Lebensmitteln - Kunststoffe - Teil 6: Prüfverfahren für die Gesamtmigration in Olivenöl unter Verwendung eines BeutelsMatériaux et objets en contact avec les denrées alimentaires - Matiere plastique - Partie 6: Méthodes d'essai pour la migration globale dans l'huile d'olive a l'aide d'un sachetMaterials and articles in contact with foodstuffs - Plastics - Part 6: Test methods for overall migration into olive oil using a pouch67.250Materiali in predmeti v stiku z živiliMaterials and articles in contact with foodstuffsICS:Ta slovenski standard je istoveten z:EN 1186-6:2002SIST EN 1186-6:2002en01-september-2002SIST EN 1186-6:2002SLOVENSKI
STANDARDSIST ENV 1186-6:19971DGRPHãþD

EUROPEAN STANDARDNORME EUROPÉENNEEUROPÄISCHE NORMEN 1186-6April 2002ICS 67.250Supersedes ENV 1186-6:1994English versionMaterials and articles in contact with foodstuffs - Plastics - Part6: Test methods for overall migration into olive oil using a pouchMatériaux et objets en contact avec les denréesalimentaires - Matière plastique - Partie 6: Méthodesd'essai pour la migration globale dans l'huile d'olive à l'aided'un sachetWerkstoffe und Gegenstände in Kontakt mit Lebensmitteln- Kunststoffe - Teil 6: Prüfverfahren für dieGesamtmigration in Olivenöl unter Verwendung einesBeutelsThis European Standard was approved by CEN on 4 January 2002.CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this EuropeanStandard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such nationalstandards may be obtained on application to the Management Centre or to any CEN member.This European Standard exists in three official versions (English, French, German). A version in any other language made by translationunder the responsibility of a CEN member into its own language and notified to the Management Centre has the same status as the officialversions.CEN members are the national standards bodies of Austria, Belgium, Czech Republic, Denmark, Finland, France, Germany, Greece,Iceland, Ireland, Italy, Luxembourg, Malta, Netherlands, Norway, Portugal, Spain, Sweden, Switzerland and United Kingdom.EUROPEAN COMMITTEE FOR STANDARDIZATIONCOMITÉ EUROPÉEN DE NORMALISATIONEUROPÄISCHES KOMITEE FÜR NORMUNGManagement Centre: rue de Stassart, 36
B-1050 Brussels© 2002 CENAll rights of exploitation in any form and by any means reservedworldwide for CEN national Members.Ref. No. EN 1186-6:2002 ESIST EN 1186-6:2002

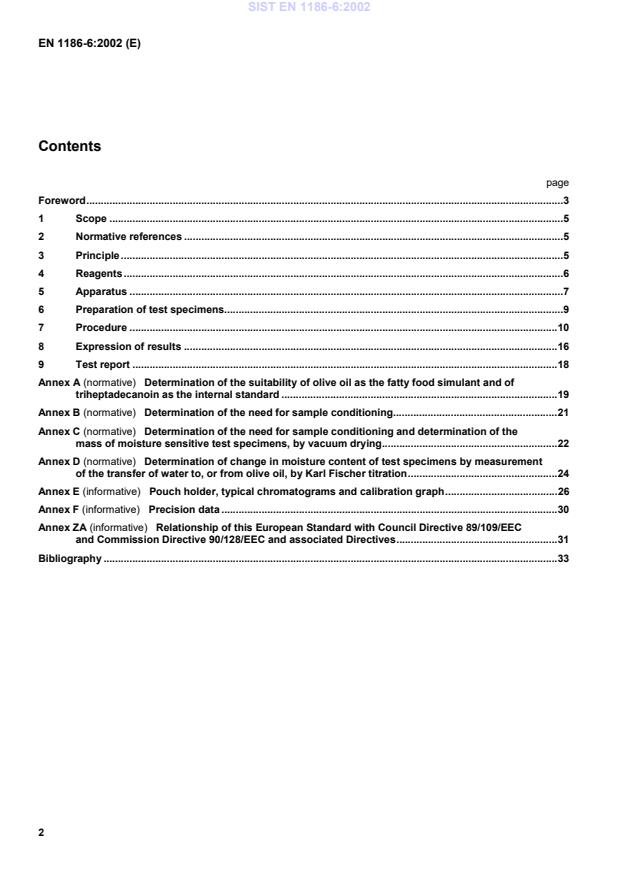

Determination of the suitability of olive oil as the fatty food simulant and oftriheptadecanoin as the internal standard.19Annex B (normative)
Determination of the need for sample conditioning.21Annex C (normative)
Determination of the need for sample conditioning and determination of themass of moisture sensitive test specimens, by vacuum drying.22Annex D (normative)
Determination of change in moisture content of test specimens by measurementof the transfer of water to, or from olive oil, by Karl Fischer titration.24Annex E (informative)
Pouch holder, typical chromatograms and calibration graph.26Annex F (informative)
Precision data.30Annex ZA (informative)
Relationship of this European Standard with Council Directive 89/109/EECand Commission Directive 90/128/EEC and associated Directives.31Bibliography.33SIST EN 1186-6:2002

Further Directives andamendments to existing Directives are expected which could change the legislative requirements which thisstandard supports.
It is therefore strongly recommended that users of this standard refer to the latest relevantpublished Directive(s) before commencement of any of the test or tests described in this standard.EN 1186-6:2002 should be read in conjunction with EN 1186-1:2002.Further Parts of this standard have been prepared, and others are in preparation, concerned with the determinationof overall migration from plastics materials into food simulants.Their titles are as follows:EN 1186 Materials and articles in contact with foodstuffs- Plastics-Part 1Guide to the selection of conditions and test methods for overall migrationPart 2Test methods for overall migration into olive oil by total immersionPart 3Test methods for overall migration into aqueous food simulants by total immersionPart 4Test methods for overall migration into olive oil by cellPart 5Test methods for overall migration into aqueous food simulants by cellPart 7Test methods for overall migration into aqueous food simulants using a pouchPart 8Test methods for overall migration into olive oil by article fillingPart 9Test methods for overall migration into aqueous food simulants by article fillingPart 10Test methods for overall migration into olive oil (modified method for use in cases whereincomplete extraction of olive oil occurs)Part 11Test methods for overall migration into mixtures of
14C-labelled synthetic triglycerideSIST EN 1186-6:2002

The test method can also be usedwith appropriate modifications with 'other fatty food simulants ' called simulant D - a synthetic mixture of triglycerides, sunfloweroil and corn oil.
These other fatty food simulants will produce different chromatograms for the simulant methyl esters to those ofthe methyl esters of olive oil.
Select suitable chromatogram peaks of the methyl esters of the other fatty food simulants for thequantitative determination of the simulant extracted from the test specimens.The test method described is applicable to most types of plastics, although there are some plastics for which it isknown not to be applicable.2 Normative referencesThis European Standard incorporates by dated and undated reference, provisions from other publications.
Thesenormative references are cited at the appropriate places in the text, and the publications are listed hereafter. Fordated references, subsequent amendments to and revisions of any of these publications apply to this EuropeanStandard only when incorporated in it by amendment or revision.
For undated references the latest edition of thepublication referred to applies (including amendments).EN 1186-1:2002, Materials and articles in contact with food – Plastics – Part 1: Guide to the selection of conditionsand test methods for overall migration.ISO 648, Laboratory glassware - One mark pipettes.ISO 4788, Laboratory glassware - Graduated measuring cylinders.3 PrincipleThe overall migration from a sample of the plastics is determined as the loss in mass per unit of surface areaintended to come into contact with foodstuffs.The selection of the conditions of test will be determined by the conditions of use, see clauses 4, 5 and 6 of EN1186-1:2002.Test specimens of known mass and in the form of pouches are filled with olive oil for the exposure time, attemperatures above 20 °C and below 100 °C, then the olive oil is removed, the pouches cut open and the olive oiladhering to the surface is removed by blotting.
The cut portion of each pouch is then reweighed,The specimens will usually retain absorbed olive oil which is extracted and determined quantitatively by means ofgas chromatography after conversion to methyl esters.
Methylation is carried out by reacting a borontrifluoride/methanol complex with fatty acids formed by hydrolysing the oil with potassium hydroxide.
An internalstandard, triheptadecanoin, is added prior to the extraction of the absorbed olive oil from the test specimens.
Thisensures that any active or extractable components of the plastics react with the internal standard, as well as withSIST EN 1186-6:2002

If an unacceptable amount of interference is present thensuitability of one of the 'other fatty food simulants' should be examined, see annex A and 9.3 and 9.5 of EN 1186-1:2002.
If aninterference is present which would interfere with the triheptadecanoin internal standard an alternative internal standard shouldbe used, see annex A, and 9.3 of EN 1186-1:2002.4 ReagentsNOTEAll reagents should be of recognized analytical quality, unless otherwise specified.4.1Olive oil, simulant D, as specified in 5.2 of EN 1186-1:2002.4.2Extraction solvent (see 10.1 of EN 1186-1:2002).4.2.1For non-polar plastics, such as polyethylene and polypropylene:- Pentane 98 % boiling point 36 °C.For polar plastics, such as polyamide and polyacetal:- 95/5 by volume azeotropic mixture of pentane 98 % and ethanol 99 %.NOTE 1Pentane is a very volatile and highly flammable solvent.
Care should therefore be taken when handling this solventto prevent contact with sources of ignition.
Ethanol is also a flammable solvent.
It is not recommended that extractions witheither pentane or the pentane/ethanol mixture be left unattended, particularly overnight.NOTE 2Due to the low boiling points of these solvents, cooled condenser water can be required to prevent undue loss of thesolvent from the condenser.or4.2.2Other suitable solvent.NOTE 1In previous methods for determining overall migration into olive oil the extraction solvent used has been 1,1,2-trichloro-trifluoroethane.
For environmental reasons the use of this solvent should be avoided where possible, see 9.1 of EN1186-1:2002.
Experience has shown that this solvent, although effective for most plastics requires longer periods of extraction.NOTE 2Some solvents can contain non-volatile substances which, after hydrolysis and methylation processes, produce gaschromatography peaks with retention times similar to the retention times of olive oil methyl esters and methyl heptadecanoatefrom the internal standard.
Solvents found to contain such substances should be redistilled before use.SIST EN 1186-6:2002

Therefore thecontainers should be placed in a thermostatically controlled room or oven, at a temperature of approximately 20 °C, the settemperature should not vary by more than ± 1 °C.
1) The source of this is the Chemical Abstracts published by the American Chemical Society.SIST EN 1186-6:2002

A 10 ml graduated syringe may be used in place of the 10 ml measuring cylinder.5.19Pipettes, complying with the minimum requirements of ISO 648, 5 ml and 10 ml.5.20Glass beads, 2 mm to 3 mm in diameter or glass rods, 2 mm to 3 mm in diameter and approximately100 mm long (see 7.2 of EN 1186-1:2002).5.21Gas chromatograph, with flame ionisation detector equipped with an appropriate column.
When using apolar column, the major peaks of olive oil, such as C16:0, methyl hexadecanoate (methyl palmitate), C16:1, methyl9-hexadecenoate (methyl palmitoate), C18:0, methyl octadecanoate (methyl stearate), C18:1, methyl 9-octadecenoate (methyl oleate), C18:2, methyl 9,12-octadecadienoate (methyl linoleate) and the internal standardC17:0, methyl heptadecanoate (methyl margarate) shall demonstrate baseline separation. Optionally, a non-polarcolumn can be used which shall give baseline separation of the methyl esters with 16 and 18 carbon numbers andthe internal standard with 17 carbon number.NOTEThe following columns have been found to be suitable:- Column 1, polar column, WCOT fused silica column, length 50 m, internal diameter 0,25 mm, coated with a 0,21micrometre film of cyanopropyl silicone;- Column 2, non polar column, BP1, length 25 m, internal diameter 0,32 mm, with a 1 micron film thickness;- Column 3, polar column, stainless steel column 2 mm to 3 mm internal diameter and 2 m to 3 m length with a packingof 10 % to 20 % by mass of polyestersuccinate on a stationary phase of diatomaceous earth 80 mesh to100 mesh.5.22Heat or pressure sealing device, for use in forming pouches5.23Glass tubes with ground glass necks and stoppers, of a volume of approximately 10 ml, for storing theheptane layer if necessary.5.24Vacuum oven or vacuum desiccator, capable of maintaining a temperature of 60 °C ± 2 °C.
The vacuumoven or vacuum desiccator shall be equipped with or connected to a vacuum pump capable of achieving a vacuumSIST EN 1186-6:2002

The vacuum pump shall be provided with a time controller to switch on the vacuum pump everyhour for 15 min.NOTEIf a vacuum oven is not available, a vacuum desiccator placed in an oven at 60 °C can be used.5.25Desiccator containing self indicating silica gel or anhydrous calcium chloride.5.26Balance, capable of determining a change of mass of 10 mg.5.27Disposable plastic syringes with luer fitting. 1 ml or 10 ml size.5.28Wide gauge luer needles (80 mm ´ 1,2 mm).5.29Karl Fischer apparatus, either an automated volumetric titrator, or an automated coulometric titrator.
TheKarl Fischer titrator shall be capable of measuring the water content of the simulant with a precision
(standarddeviation) of 10 mg/kg or less (equivalent to 1 mg/dm2 plastic).
An automated volumetric or coulometric instrumentshall be used.
Manual titration procedures do not give the required accuracy or precision.6 Preparation of test specimens6.1 GeneralIt is essential that test specimens are clean and free from surface contamination (many plastics can readily attractdust due to static charges). Before preparing test specimens, remove any surface contamination from the sampleby gently wiping it with a lint-free cloth, or by brushing with a soft brush. Under no circumstances wash the samplewith water or solvent. If it is specified in the instructions for use of the article that it should be washed or cleanedbefore use see 8.1 of EN 1186-1:2002.
Minimise handling of the samples and, where necessary, wear cottongloves.6.2 Number of test specimensSeven test specimens are required.
These test specimens are utilized as follows:a) four test specimens for the migration test;b) two test specimens to check for possible loss of volatiles;c) one test specimen to determine the suitability of olive oil as the fatty food simulant and triheptadecanoinas the internal standard (see annex A);If the conditioning test in annex C is used, one additional test specimen is required.NOTEThe two test specimens, b), are used to check whether the sample losses mass from the evaporation of volatiles,such as solvents, during the test period.
If the vacuum drying procedure in annex C is used these test specimens are notrequired as during the vacuum drying any volatiles will have been removed from the test specimens.If previous testing has established that interference in the gas chromatography procedure is unlikely and annex A isomitted, one fewer test specimen will be required.A minimum of three valid test results is required to calculate the mean.
Testing in triplicate is allowed but in thiscase if one test result is invalid repeat the entire procedure.6.3 Cutting and preparation of test specimensLay the sample on the cutting slab (5.1) with the surface to be in contact with the olive oil uppermost and cut andcut test pieces using the 120 mm ´ 120 mm template (5.4).
Two test pieces are required for each test specimen.SIST EN 1186-6:2002

Using the heat orpressure sealer (5.22), join to form pouches with four seals parallel to all four edges, 10 mm from the edge.Measure the distances between the inner edges of the seals to the nearest 1 mm and calculate the total surfacearea of the test specimen which will be exposed to olive oil, to the nearest 0,01 dm².
This shall be approximately2 dm².
Using the cutting implement, remove excess film from the sealed area (to reduce the area of film notdirectly exposed to olive oil) whilst leaving enough to withstand the test conditions without leaking.Measure and record the surface area of the pouch which will be in contact with the simulant and the total externalarea of the pouch after trimming excess material.Mark each pouch for identification.
Cut off one corner of the pouch to leave a hole sufficiently large to insert a100 ml pipette.7 Procedure7.1 GeneralDetermine the applicability of the method by carrying out the procedure described in annex A.
If prior tests haveestablished that the method is applicable then annex A may be omitted.Before weighing, discharge any build up of static electricity with an antistatic gun or other suitable means.7.2 Initial weighing of test specimens7.2.1Determine the need for conditioning of the test specimens by carrying out the procedure described inannex B or in annex C.
If prior tests have established that sample conditioning is not required then annex B andannex C may be omitted.
If prior tests have established that the procedure described in annex D is applicable tothe sample, then annex B or annex C may be omitted.7.2.2If the tests described in annex B or annex C show that conditioning is not necessary, determine and recordthe mass of each test specimen.7.2.3 If the tests described in annex B or annex C show that conditioning is necessary, follow the directions inthe relevant annex to determine the initial mass of the sample.7.2.4If the tests described in annex B show that conditioning is necessary, but constant mass cannot beachieved within five days then carry out the conditioning procedure described in C.3.1 or annex D.NOTE 1Long conditioning periods are not satisfactory due to oxidation of the olive oil which can occur upon prolongedconditioning.NOTE 2The conditioning procedures described in annex C and annex D can be used if it has been established that theseprocedures are more suited to the
polymer type under test.7.3 Exposure to food simulantTake five of the glass tubes (5.9), measure 100 ml ± 5 ml of olive oil (4.1) into each tube by measuring cylinder(5.18) and stopper the tube.NOTE 1The pouch holder (5.7) should be cleaned before use, if necessary, using solvents, such as acetone and ordetergents.
For difficult to remove olive oil, use propriety solvent mixtures.WARNINGProprietary solvent mixtures usually contain caustic substances and also volatile solvents.
Handle with care, usingprotective gloves and eye protection, in a fume cupboard.
Information regarding sources of the proprietary mixtures specified inthis European Standard are available from National Standards Bodies.NOTE 2If the procedure described in annex D is used, it can be necessary to dry all of the olive oil used for the migrationtest, see D.3.2.SIST EN 1186-6:2002

Two extra tubes with aminimum of 50 ml of olive oil are required as blank simulant, if the procedure in annex D is used.
Place the five orseven tubes and the pouch holder, in the thermostatically controlled oven or incubator (5.10) set at the testtemperature.NOTE 3Leakage can occur from the pouches and it is advisable to have a drip tray in the oven.Leave until the olive oil has attained the test temperature, using the thermometer or thermocouple to monitor thetemperature.Remove the pouch holder from the thermostatically controlled oven or incubator and place the test specimensbetween the spacers.Remove four of the tubes containing olive oil from the oven and into four of the test specimen pouches pipettesufficient olive oil to just fill the pouch.
This shall be approximately 100 ml, but for thick/semirigid materials thequantity will be less.
Place a thermocouple in one pouch and close the open corners with a clip.NOTE 4The olive oil in the fifth tube is used as a reference standard in constructing the calibration graph (see 7.6.2.2) and ifthe procedure in annex D is used, as the third blank sample for Karl Fischer titrations.Place the remaining two test specimens pouches into the pouch holder.NOTE 5These two test specimens are used to check whether the sample losses mass from the evaporation of volatiles,such as water, solvents and oligomers, during the test period.
If the vacuum drying procedure in annex C is applicable thesetest specimens are not required as during the vacuum drying volatiles will have been removed from the test specimens.Replace the pouch holder, containing the six test specimen pouches, in the thermostatically controlled oven orincubator set at the test temperature.
This part of the operation should be carried out in the minimum time possibleto prevent undue heat loss.
Observe the temperature of the thermostatically controlled oven or incubator or theolive oil (see NOTE 7) in the pouch and leave the pouches and tubes for the selected test period, taking intoaccount the tolerances specified in Table B.1 of EN 1186-1:2002, after the olive oil in the sixth tube has reached atemperature within the tolerance specified in Table B.2 of EN 1186-1:2002.NOTE 6Annex B of EN 1186-1:2002 includes tolerances on a wide range of contact times and contact temperatures.
All ofthese contact times and contact temperatures are not necessarily relevant to this Part of the standard.NOTE 7For exposure times of 24 h or more it is acceptable to monitor the temperature of the air bath of the thermostaticallycontrolled oven or incubator or refrigerator, instead of the temperature of the simulant.Take the pouch holder and the tubes containing olive oil from the thermostatically controlled oven or incubator.If an evident leak has occurred with more than one pouch the test is invalid and shall be repeated.If no evident leaks have occurred in at least three pouches, then remove the test specimen pouches from theholder.Pour the olive oil from each test specimen and wipe any excess from the outside with filter paper (5.11).
Take eachof the four pouches in turn, lay on the cutting slab (5.1) and using the cutting implement (5.3.) carefully open bycutting through one layer along the inner edges of the seals.Take the two portions of each test specimen and remove adhering olive oil by gently pressing between filter papers(5.11).
Repeat the pressing procedure until the filter paper shows no spots of olive oil.NOTE 8If the procedure in annex D is followed, retain the tubes containing the oil. The tubes should be capped to preventfurther change in the moisture content of the oil and carry out the Karl Fischer determination of water content as soon aspossible.SIST EN 1186-6:2002

Before commencing the operationsin this clause an estimation of the quantity of olive oil retained in the test specimens should be obtained by comparing the finalmasses of the test specimens with their initial masses.
If considered necessary the quantity of internal standard solution can beincreased from 10 ml although it is essential that the same quantity is used for each test specimen, and that this quantity is alsoused with the olive oil standards for the calibration graph (see 7.6.2.2).
As a guide, approximately 0,5 mg of the internalstandard is required for every mg of extracted olive oil.Add sufficient extraction solvent (4.2) to allow cycling of the soxhlet type extractor (approximately 200 ml or400 ml, according to the size of the flask) with
anti-bumping beads (5.12) to control boiling.Place the four test specimens which have been in contact with olive oil into four soxhlet type extractors.
Coupleeach soxhlet to a flask containing the internal standard prepared as above.
Using either a water bath or steambath (5.16), extract for a period of 7 10+ h, with a minimum of six cycles per hour, ensuring that the test pieces aretotally submerged in the solvent during each soxhlet cycle, and that they remain separated from each other.Drain all of the solvent from the soxhlet type extractors, remove the flasks from the soxhlet type extractors andevaporate the solvent to approximately 10 ml using a rotary evaporator, or simple distillation apparatus (5.15).Transfer the solutions containing the extracted olive oil and internal standard to separate 50 ml flasks (5.17), andwash each flask with three portions of 5 ml of solvent.
Add the three washings to the respective individual 50 mlflasks.
Evaporate to dryness using a rotary evaporator or a waterbath (5.15 or 5.14).NOTE 2Oxidation of the olive oil is to be avoided where possible.
Therefore evaporation of the solvent to dryness should becarried out under mild conditions of temperature.
In addition exposure of the olive oil to oxygen should be limited.NOTE 3Some types of plastics are known to retain some of the absorbed olive oil.
In these cases extraction of the olive oilis incomplete and a second extraction with a more polar solvent is required, see also 9.2 of EN 1186-1:2002.Repeat the extraction of the test specimens for an additional 710+ h, with diethyl ether (4.8), adding a furtherquantity of the internal standard solution.NOTE 4The same quantity of internal standard solution is used as for the first 7 h extraction.
This quantity might not be theoptimum if the quantity of olive oil in the first 7 h extraction is high. Good precision is not required for the second 7 hSIST EN 1186-6:2002

The internal standard might not react with the plasticsextractables to the same degree as does the olive oil and correct results for olive oil might not be obtained.Add by measuring cylinder or graduated syringe (5.18), 10 ml ± 0,2 ml of the potassium hydroxide solution (4.4)and a few anti-bumping beads (5.12).
Connect a condenser to the flask and boil the mixture under reflux for10 min ± 1,0 min.Add through the condenser by measuring cylinder, or graduated syringe (5.18), 5,0 ml ± 0,2 ml of the methanolsolution of boron trifluoride (4.5) and boil the mixture under reflux for 2 min ± 0,25 min.Cool to room temperature and add, by measuring cylinder (5.18), 15 ml to 20 ml of saturated sodium sulfatesolution (4.7.2) and shake well.
Then add further sodium sulfate solution until the liquid level reaches the neck ofthe flask.
Allow to stand until the phases have separated.NOTE 2The methyl esters for the subsequent gas chromatographic determination are in the upper, n-heptane, layer.Treat the residues from the second 7 h extraction as described above.If there will be a delay of more than seven days in using a methyl ester solution for the gas chromatographicdeterminations, transfer the n-heptane layer to a small stoppered tube (5.23) containing solid anhydrous sodiumsulfate (4.7.1) and store in a refrigerator.7.6.2 Determination of fatty acid methyl esters7.6.2.1 InstrumentDetermine the methyl esters of the olive oil fatty acids using a gas chromatograph (5.21).NOTE 1For column 1 described in the note to 5.21 the following operating conditions have been found to be suitable:carrier gashelium at 2 ml/mininjectorsplit (ratio 40:1)detectorflame ionisationSIST EN 1186-6:2002

5 °C to 190 °C and maintained at 190 °C for 8min.injector temperature220 °Cdetector temperature240 °CFor column 2 described in the note to 5.21 the following operating conditions have been found to be suitablecarrier gasheliumoven temperature250 °C isothermalinjector temperature320 °Cdetector temperature320 °CFor column 3 described in the note to 5.21 the following operating conditions have been found to be suitablecarrier gasnitrogen at 25 ml/minoven temperature185 °C to 195 °Cinjector temperature190 °C to 200 °Cdetector temperature190 °C to 200 °CUse an integrator to measure the area of each of the olive oil peaks and the internal standard.
Optionally a chartrecorder may be used to record the chromatogram and the height of the various peaks is measured.
In this caseonly the height of the internal standard and the major peak of olive oil (C18 or C18:1) shall be used forquantification of the amount of olive oil.NOTE 2The use of an integrator and measurement of the peak area is the preferred method.7.6.2.2 Calibration graphWeigh a range of quantities of the blank reference olive oil which has been subjected to the same test conditionsas the test specimens into 50 ml flasks (5.17).
Weigh a range of olive oil quantities spanning the quantities of oliveoil in the first 7 h extractions, taking no fewer than four standards.Add 10,0 ml of the internal standard cyclohexane solution of triheptadecanoin (4.3) to each flask using a pipette(5.19), or the alternative quantity which has been added to the extraction flasks in 7.5.
Remove the cyclohexaneusing a rotary evaporator or water bath (5.15 or 5.14). Subject the olive oil quantities, with the added internalstandard, to the methyl ester preparation procedure described in 7.6.1.Inject each of the n-heptane methyl ester solutions in duplicate, as a minimum, into the gas chromatographiccolumn.NOTE 1Typical chromatograms generated using columns 1 and 2 are shown respectively in Figures E.2 and E.3.Construct
a calibration graph, plotting the ratios of olive oil methyl esters to the internal standard peak on the y-axis and against the weighed quantities of olive oil on the x-axis.Various methods for the construction of a calibration graph are suitable and the choice of method depends on theequipment and chromatographic column used.
The following methods are acceptable:SIST EN 1186-6:2002

Peak height methodMeasure the peak height of the internal standard peak and of the methyl oleate (C18:1) peak, when a polar columnhas been employed.
In the case where a non-polar column has been used for the separation of the methyl ester,then measure the internal standard peak and the C18 peak of the olive oil.
Calculate the ratio of the measuredC18 peaks to the internal standard peak and plot the ratios versus the weighed quantities of olive oil.Method 2
Peak area methodMeasure the peak area of the internal standard peak and of each of the methyl esters originating from the olive oil.Add together the peak areas of the C16 and C18 peaks if a non-polar column was employed.
If a polar columnwas used, sum the areas of all the peaks (C16:0, C16:1, C18:0, C18:1 and C18:2) originating from the olive oil.Calculate the ratio of the combined areas of the measured peaks to the area of the internal standard peak and plotthe ratio versus the weighed quantities of olive oil.Method 3 Peak area method in the case of interference from the test sampleIn the event that the analysis of a blank test sample, see annex A, has revealed an interference with one or more ofthe olive oil methyl esters, but not all of the peaks, then this peak or peaks shall be excluded from the calculation ofthe total area of the olive oil methyl esters.
Calculate the ratio of the total area of the methyl esters originating fromolive oil and which are free from interference and the area of the internal standard and plot the ratios versus theweighed quantities of oil.NOTE 2A typical calibration graph is shown in Figure E.4.Calculate from each calibration standard chromatogram the C18:1/C16:0 ratio if a polar column was used orC18/C16 ratio in the case of a non polar column.
Determine the mean ratio value from the duplicate or multipleinjections for comparison with the same ratio obtained from the test specimen extracts, see 7.6.2.3.7.6.2.3 Determination of olive oil absorbed by test specimensInject into the gas chromatograph (5.21) a suitable quantity from each of the n-heptane methyl ester solutionsprepared from the residues containing the extracted olive oil (see 7.6.1).
Inject in duplicate, as a minimum.For each chromatogram, measure the height or area of the olive oil methyl ester peak or peaks and the internalstandard peak using the same peaks and method as used in the construction of the calibration graph, see 7.6.2.2.Calculate the ratio of the relevant peaks to the internal standard peak for each chromatogram and for each solutiondetermine the mean ratio value from the duplicate or multiple injections.Calculate the amount of olive oil extracted from the test specimen as follows:Graphical methodRead the amount of olive oil extracted from the calibration graph (7.6.2.2) using the calculated ratio of the relevantolive oil peak or peaks to the internal standard peak.Calculation from regression parametersIf the regression line equation isy
= a x
+
b(1)then:SIST EN 1186-6:2002
= a
b)-
(y
(2)wheremoois the mass of olive oil e
...
